StarTech.com 16U 2-Post Open Frame Desktop Server Rack, 19in Compact Space-Saving

Build a tidy install with the StarTech.com 16U 2-Post Open Frame — dimensions and mounting details are in the spec table.

Store your server, network and telecom devices in this sturdy steel rack

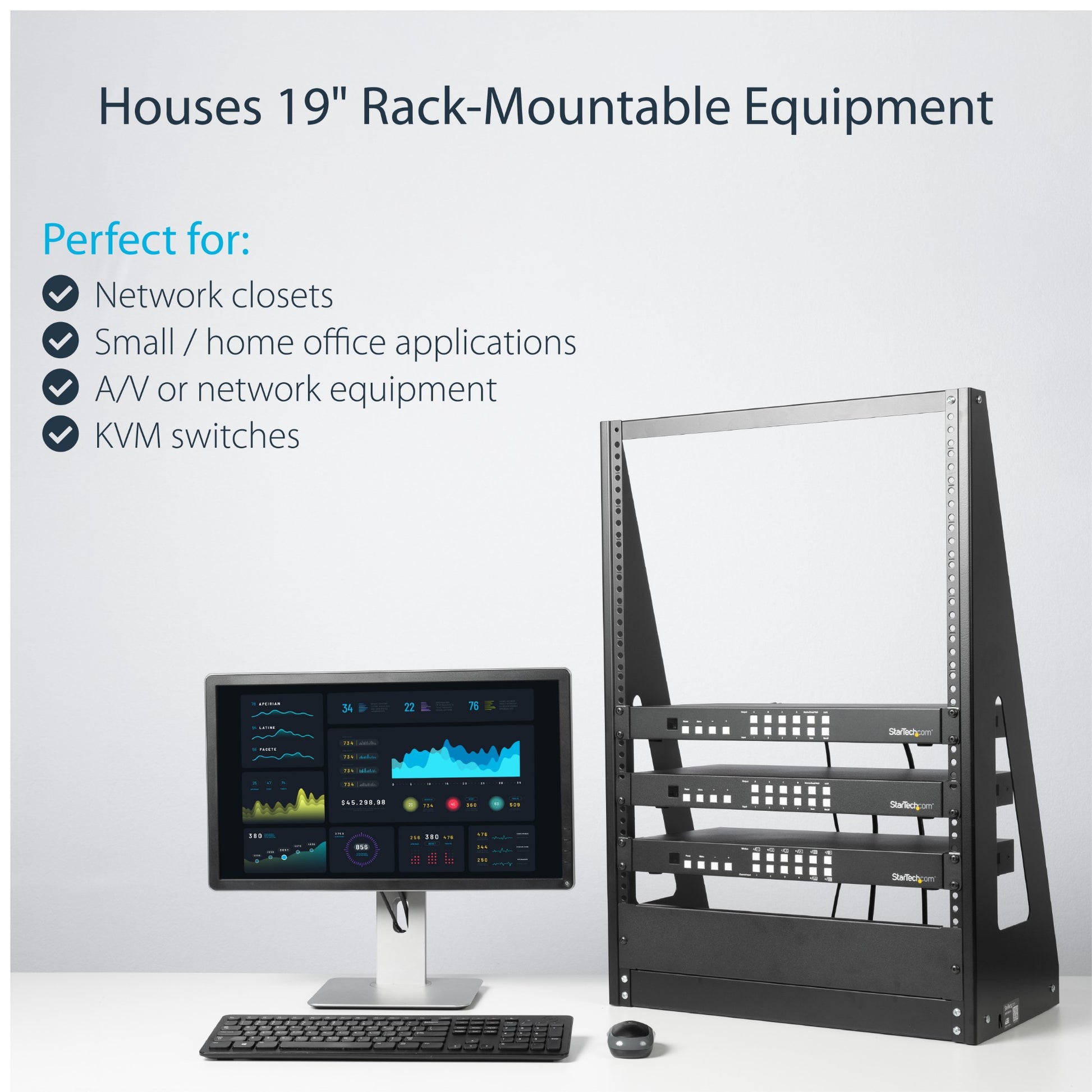

This 2-post rack stands on your floor or desktop to provide 16U of storage space for EIA-310-D compliant 19” rack-mount devices, such as telecommunication and A/V equipment. The rack creates a robust storage solution, with support for a total load capacity of 160 kg (350 lb.).

Save space and cost, without losing weight capacity

This compact 2-post mounting solution offers a small footprint, and it’s engineered to provide exceptional stability, with a total weight capacity of up to 160 kg (350 lb.). The rack fits in virtually any environment, and can be positioned on any surface, such as your floor, desk or table.

Save money, with a cost-effective, compact shipping package

The 2-post server rack comes in a flat-packed box to reduce shipping volume, which also significantly reduces your costs in shipping. The rack is packaged efficiently, so you can easily store it for deployment at a later date.

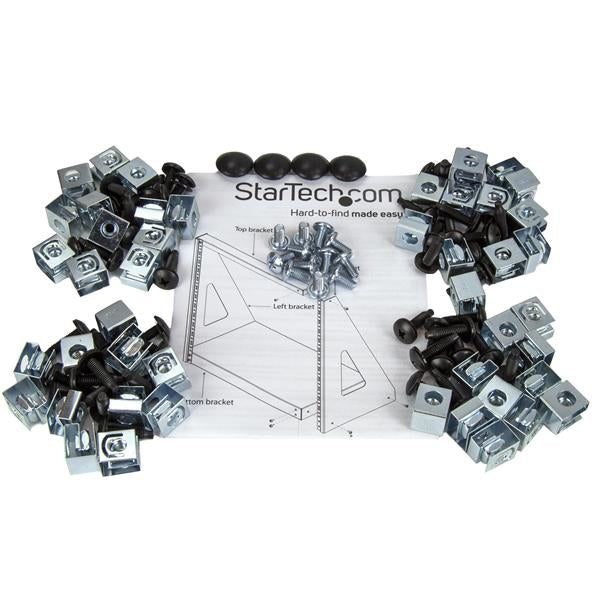

Hassle-free hardware installation, with tool-less clip nuts

To help make your equipment install easier, this rack includes tool-less clip nuts that seamlessly work with the punched round holes featured on this rack. The tool-less clip nuts provide an easy-to-install nut, unlike square cage nuts which can be a hassle.

The 2POSTRACK16 is backed by a lifetime StarTech.com warranty with free technical support.

Specifications

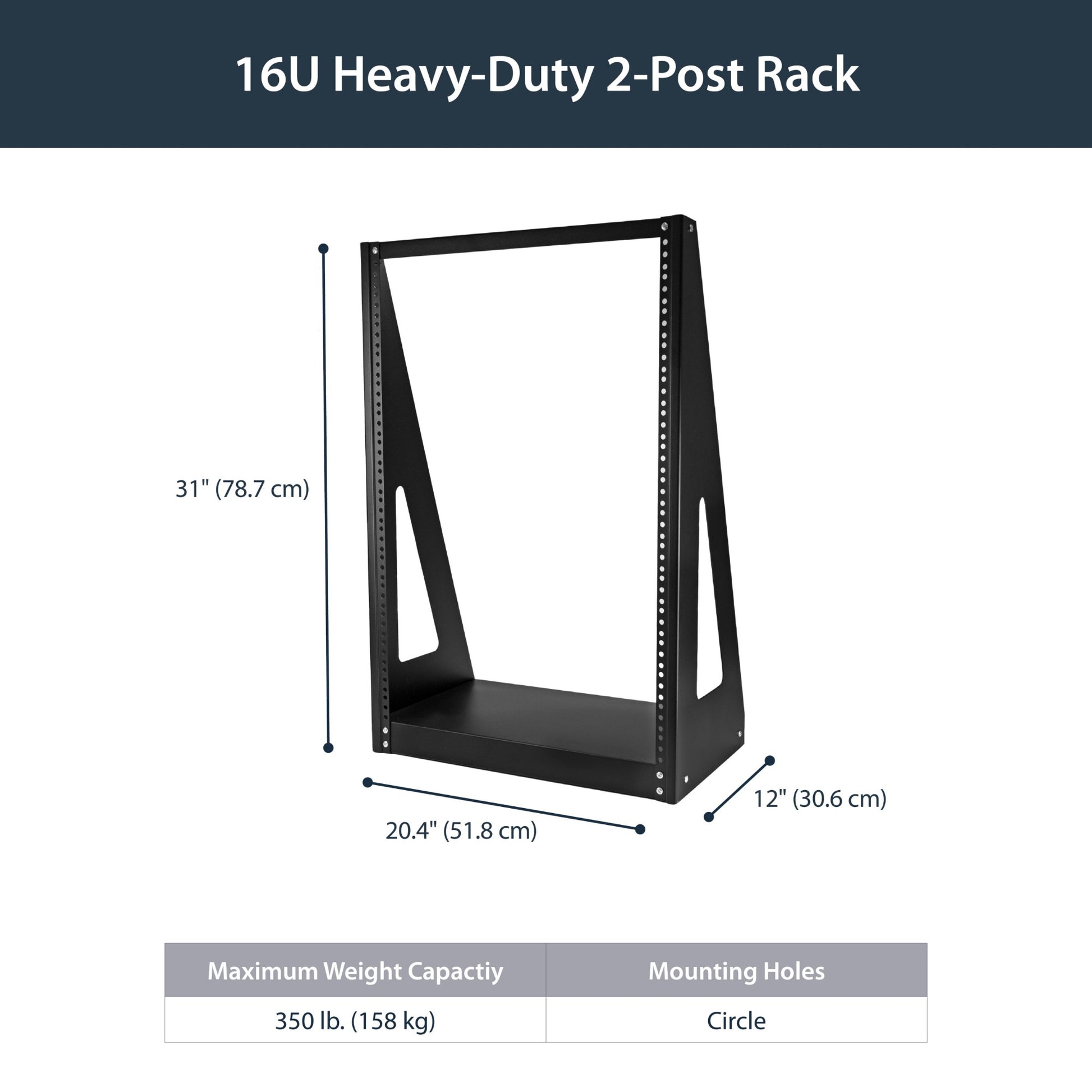

Weight & dimensions
Package depth	354 mm
Package width	898 mm
Package height	78 mm
Package weight	9.27 kg
Inner width	45.2 cm
Width	518 mm
Depth	305 mm
Height	787 mm
Weight	9 kg
Maximum weight capacity	160 kg
Packaging content
Manual	Yes
Mounting kit	Yes
Nuts included	Yes
Number of nuts	48
Screws included	Yes
Number of screws	50
Features
Frame type	Open
Product design	2-post
Rack capacity	16U
Type	Freestanding rack
Material	Steel
Product colour	Black
Certification	RoHS
Technical details
Compliance industry standards	EIA RS310-D
Harmonized System (HS) code	85381000

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
