StarTech.com 160W Universal DC Power Adapter (24V/6.6A), 4ft(1.2m) 2-Wire Cord Charger

Power up anywhere with the StarTech.com 160W Universal DC Power — wattage and connector details are in the spec table.

AC/DC Power Adapter for StarTech.com DC Powered Industrial Products

Power a StarTech.com Industrial USB Hub, or other device with a 2-or-3-wire terminal block DC input, using this 24V Universal Power Adapter.

High-Performance Universal Power Adapter

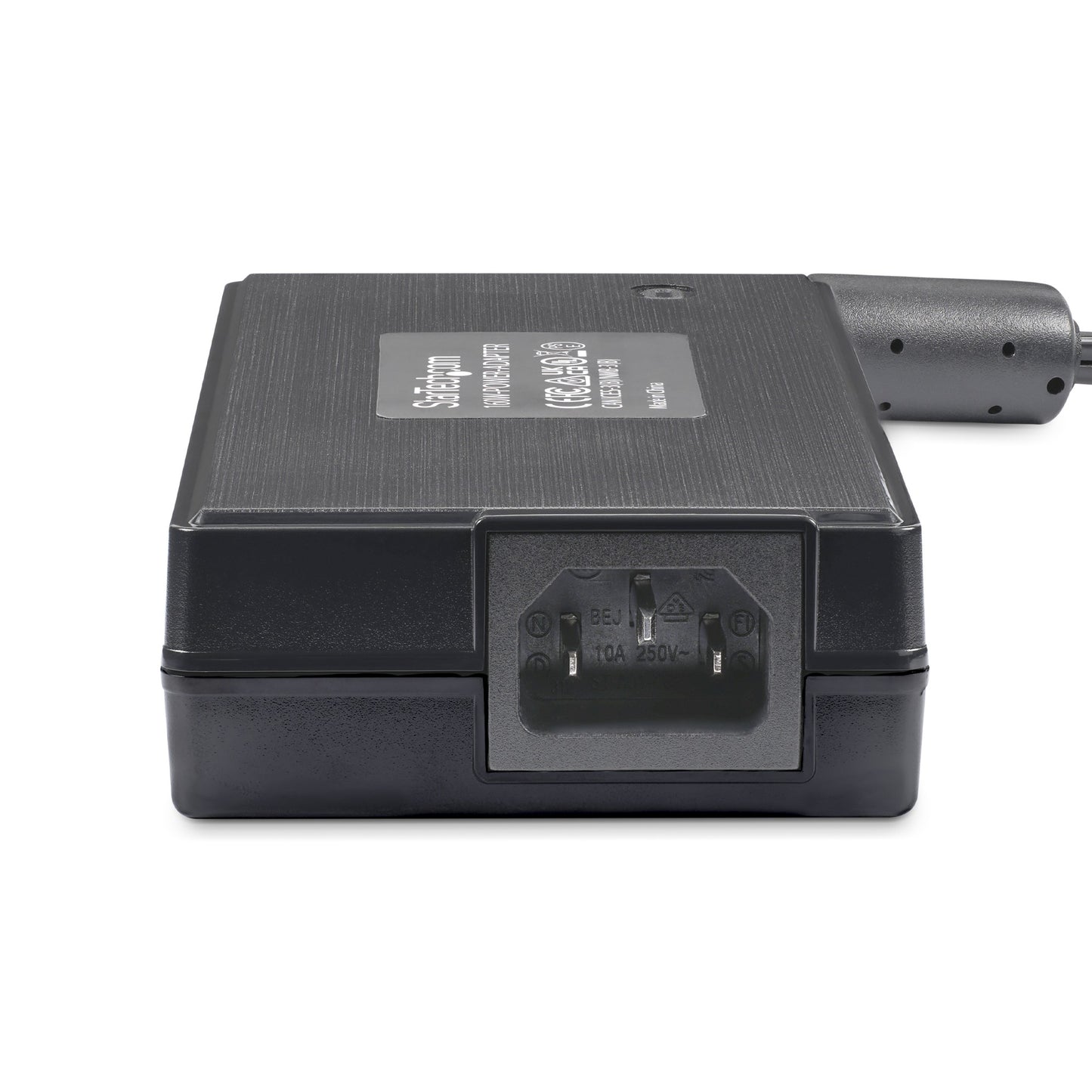

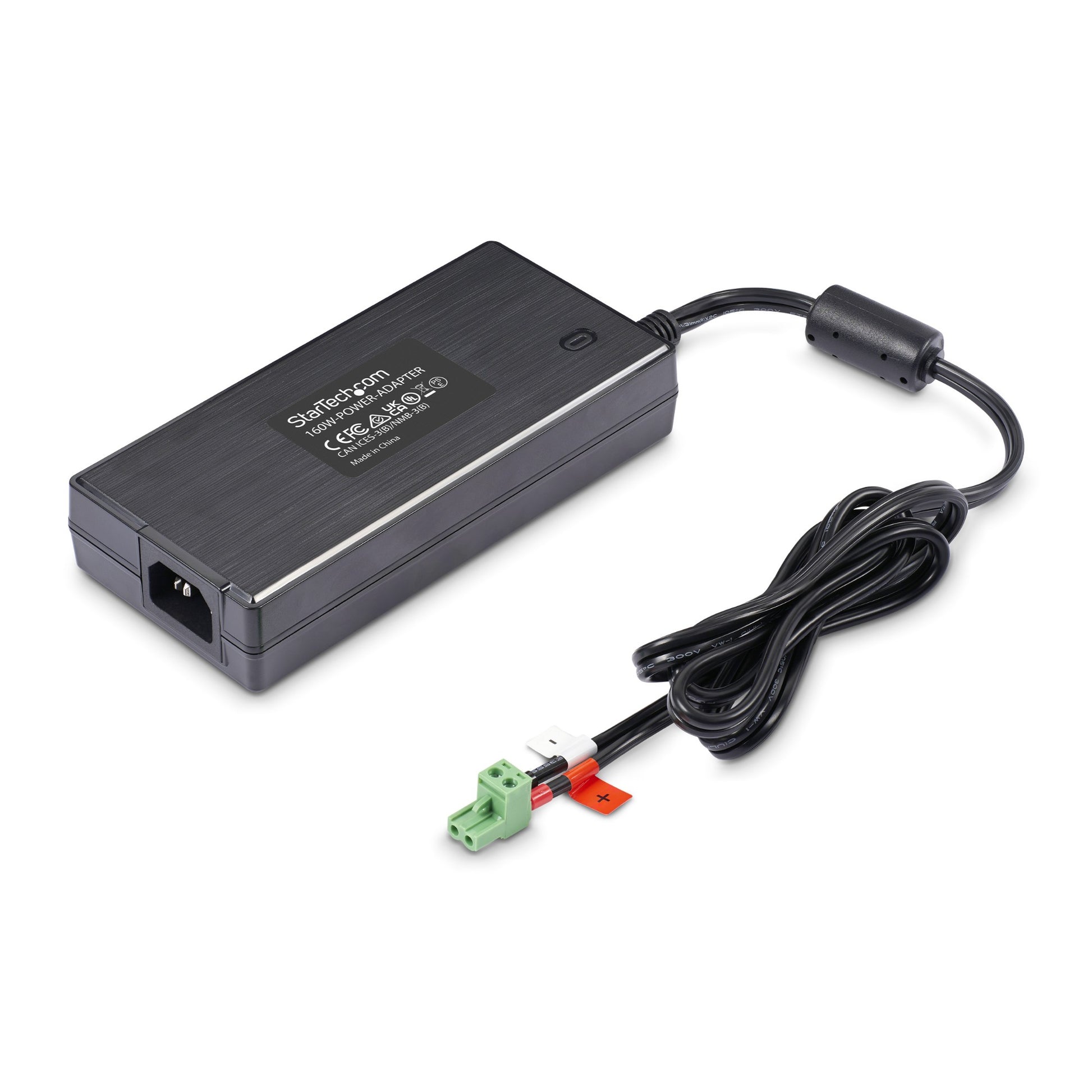

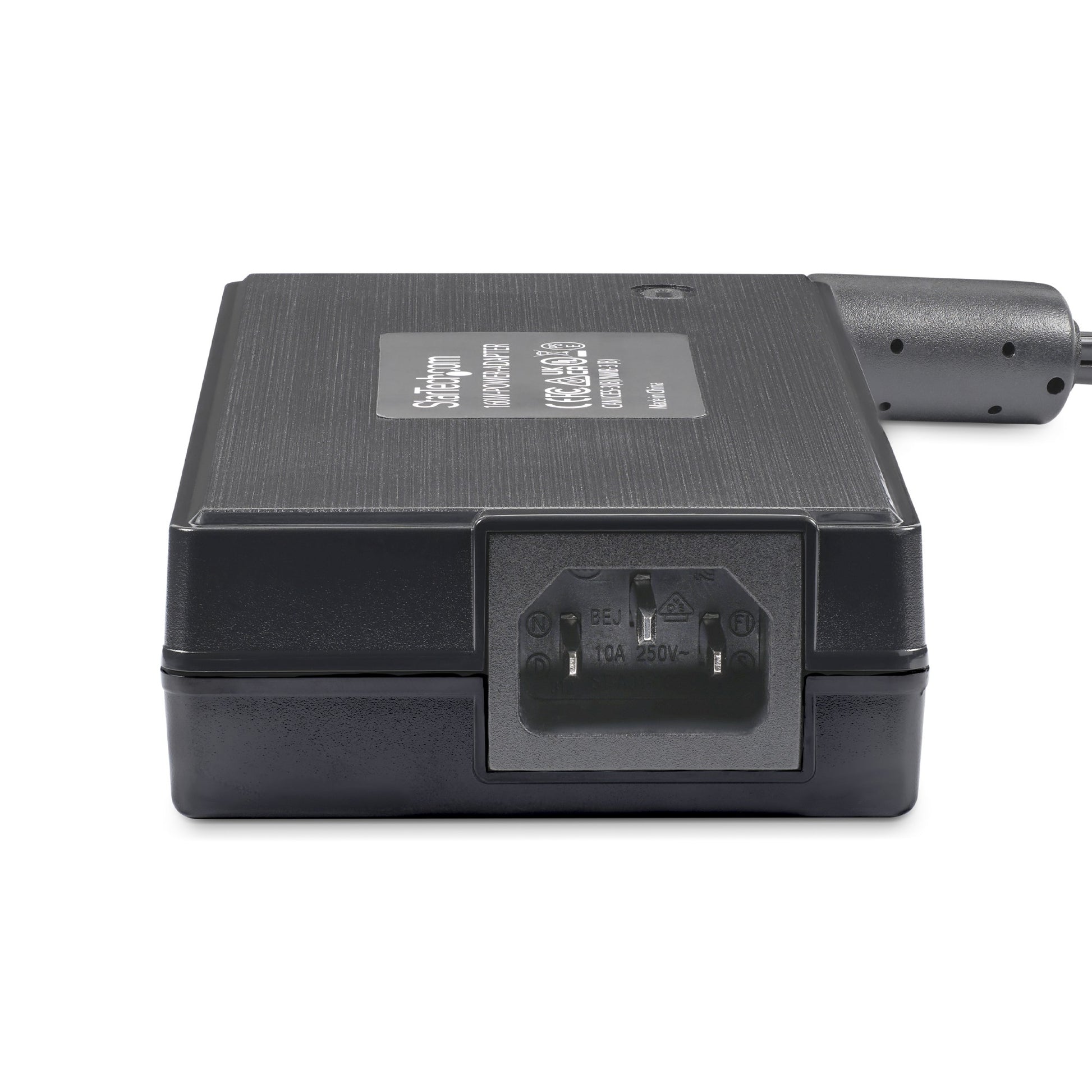

The Power Adapter features an auto-switching 100-240V AC input with a 24V/6.6A (158.4W) DC output and attached 4ft (1.2m) DC cord.

Four 4ft (1.2m) regional power cables are included, to ensure international support:

• North America - Type-A NEMA 1-15
• United Kingdom - Type-G BS 1363
• Europe - CEE 7/7
• Australia/New Zealand - Type-I AS 3112

Device Compatibility

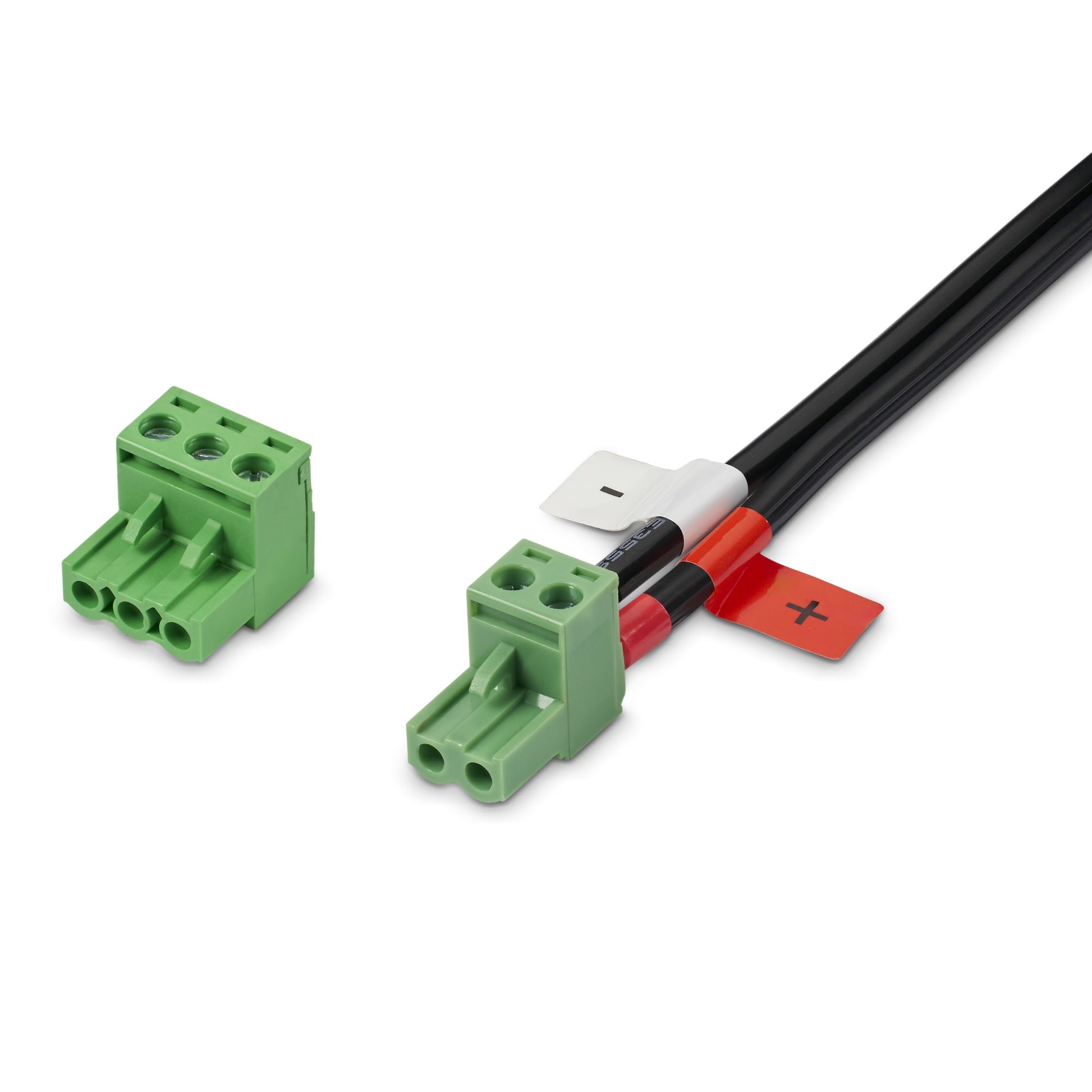

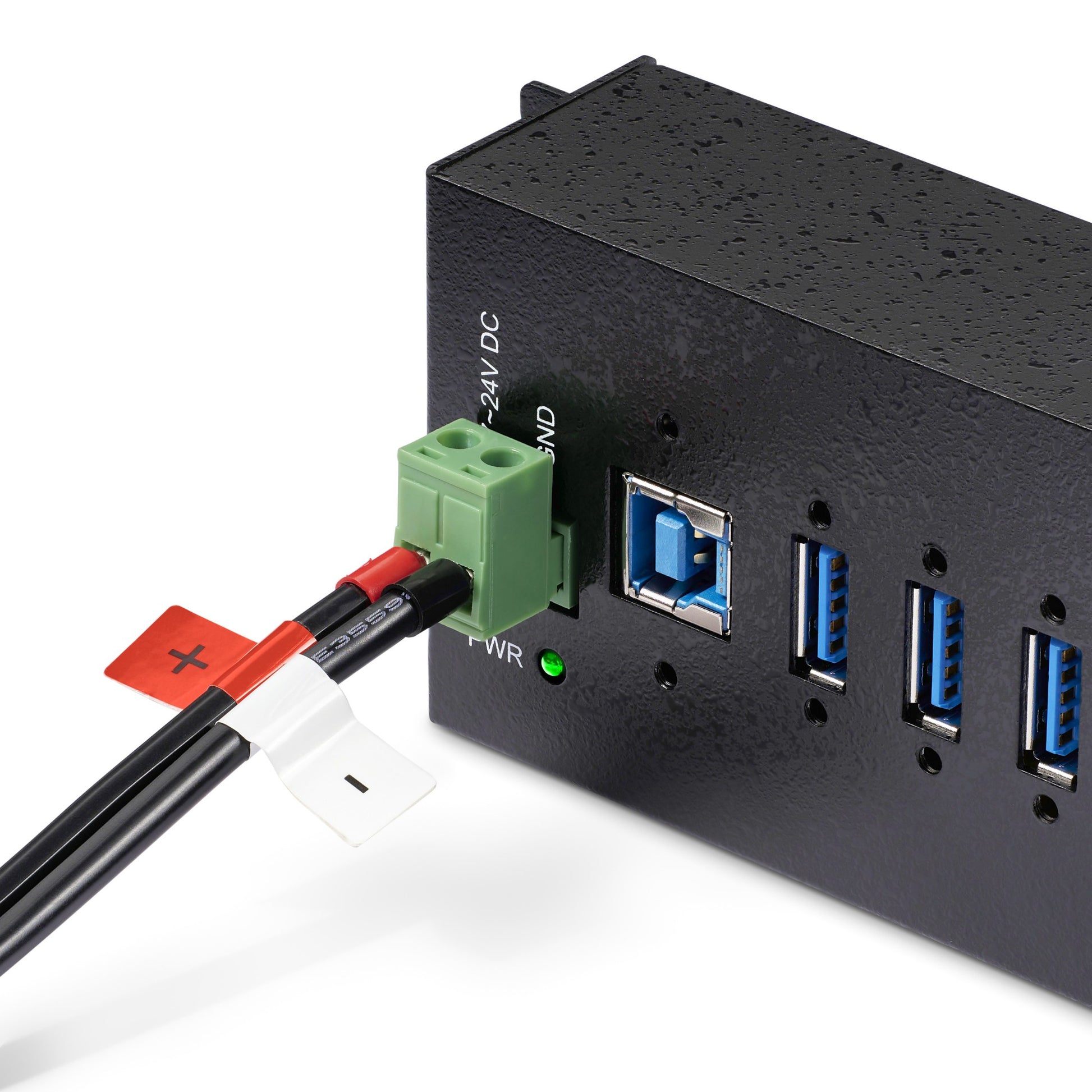

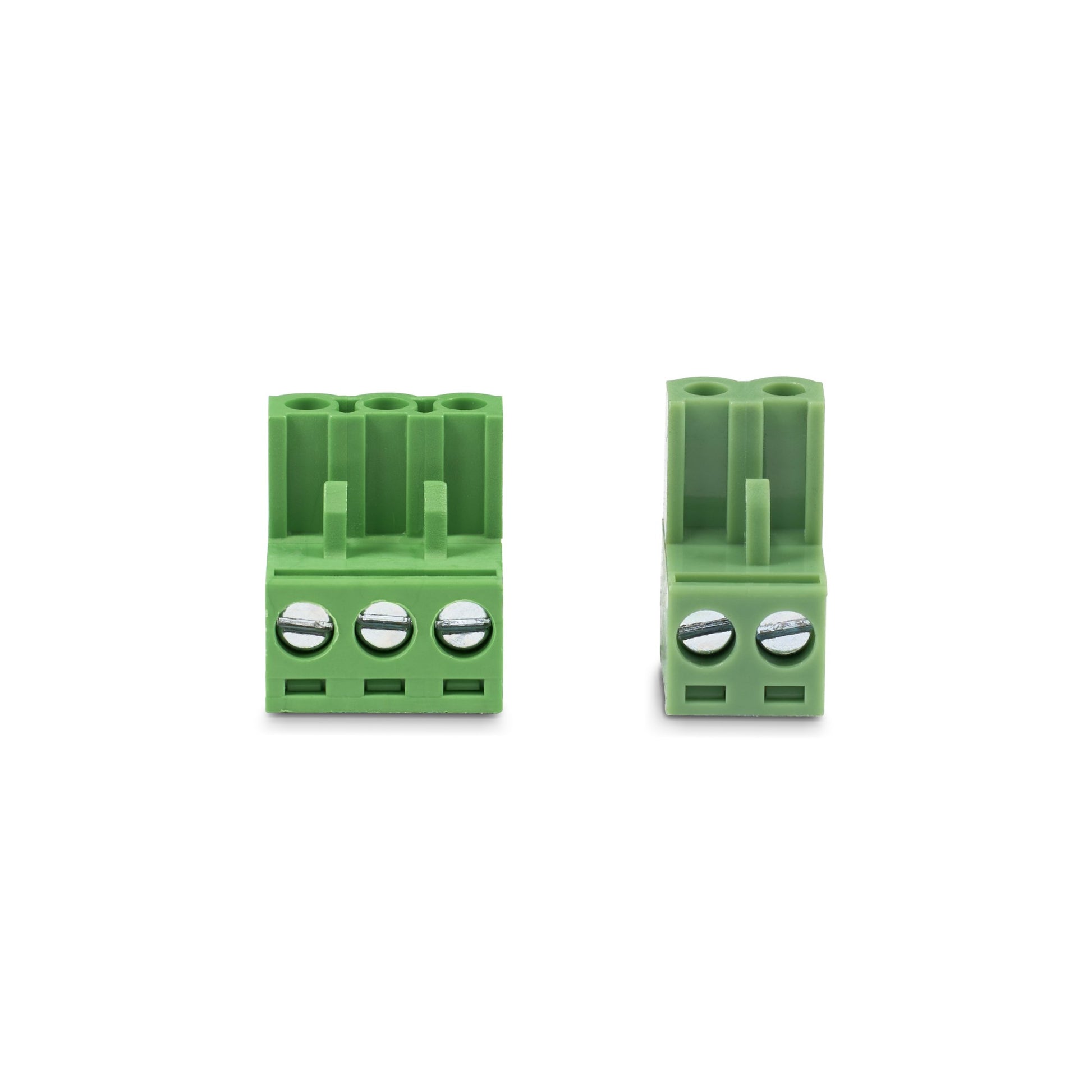

The Power Adapter features two bare-wire leads with both 2-conductor and 3-conductor terminal block connectors included, for seamless integration with a variety of devices. This power supply can be used as an accessory and primary power source for many StarTech.com Industrial USB Hubs, such as:

• 16-Port Industrial USB 5Gbps Hub (5G16AINDS-USB-A-HUB)
• 10-Port Industrial USB 5Gbps Hub (ST1030USBM)
• 7-Port Industrial USB 5Gbps Hub (ST7300USBME)
• 7-Port Industrial USB 2.0 (480Mbps) Hub (HB20A7AME)
• 7-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (ST7200USBM)
• 4-Port Industrial USB 2.0 (480Mbps) Hub with Extended Temperature Range (HB20A4AME)
• 4-Port Industrial USB 2.0 (480Mbps) Hub (ST4200USBM)

This power adapter can also be used to replace a lost or broken power adapter, or can be kept as a redundant back-up power brick for mission critical applications for StarTech.com Industrial USB Hubs that include a power adapter, such as:

• 10-Port USB 5Gbps Industrial Hub (HB30A10AME)
• 7-Port USB 5Gbps Industrial Hub (HB30A7AME)
• 4-Port Industrial USB 5Gbps Hub (ST4300USBM)

Specifications

Features
Brand compatibility	StarTech.com
Input current	3.5 A
Input voltage	100 - 240 V
Output power	158.4 W
Output voltage	24 V
Output current	6.6 A
Power supply type	Indoor
Purpose	Universal
Housing material	Plastic
Compatibility	HB30A10AME, HB30A7AME, ST1030USBM, ST7300USBME, ST4300USBM, HB20A7AME, ST7200USBM, HB20A4AME, ST4200USBM, 5G16AINDS-USB-A-HUB
Product colour	Black
Design
Cable length	1.2 m
Operational conditions
Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	20 - 80%
Certificates
Compliance certificates	PSE
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Weight	291 g
Width	53 mm
Depth	115 mm
Height	37 mm
Packaging data
Package width	204 mm
Package depth	162 mm
Package height	92 mm
Package weight	350 g
Cables included	AC
Quantity per pack	1 pc(s)
Logistics data
Products per master (outer) case	10 pc(s)
Master (outer) case width	480 mm
Master (outer) case length	230 mm
Master (outer) case height	369 mm
