StarTech.com 16 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ (NS1716K)

Build a tidy install with the StarTech.com 16 Port Rackmount — dimensions and mounting details are in the spec table.

KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included

Providing centralized control of up to 16 servers, this 16-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

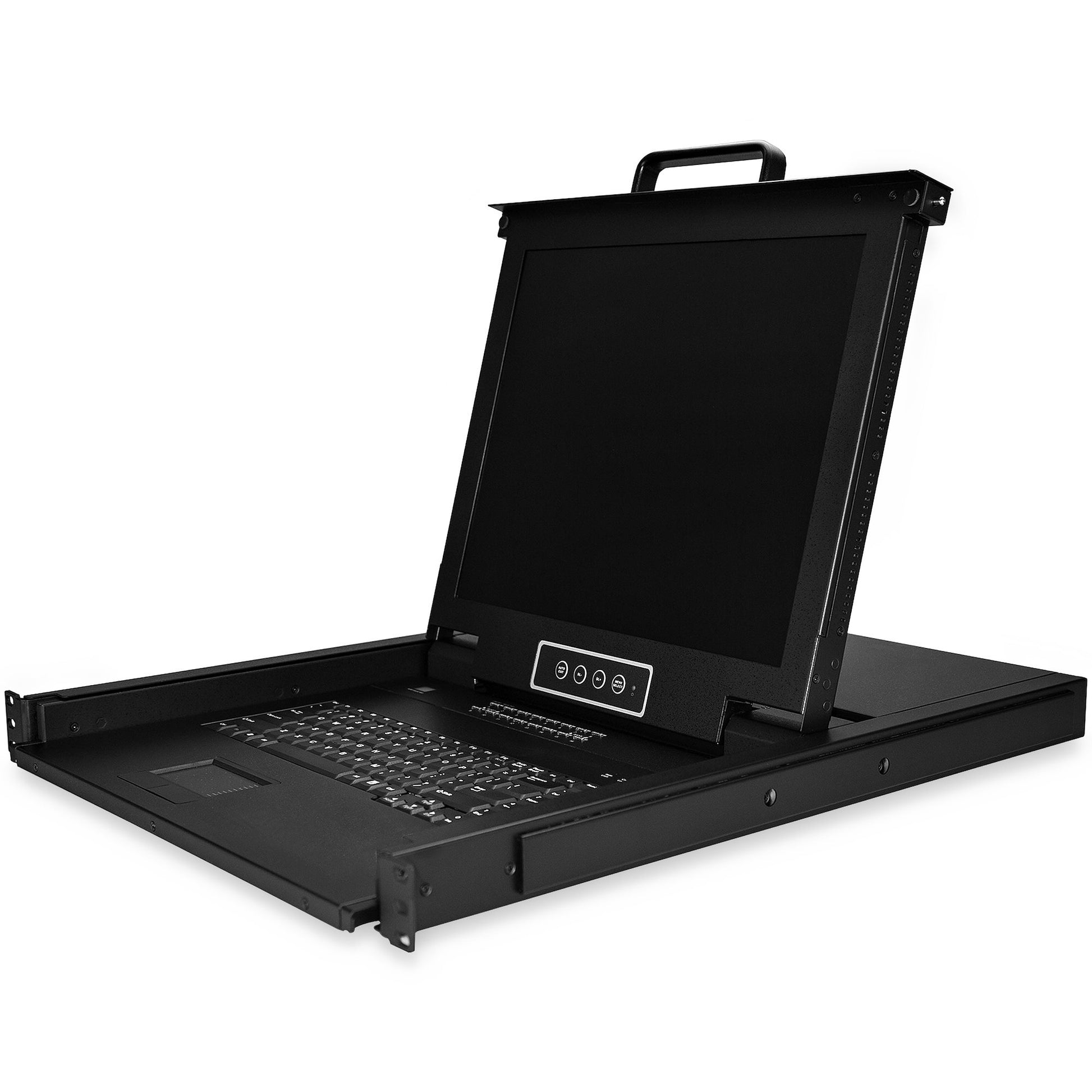

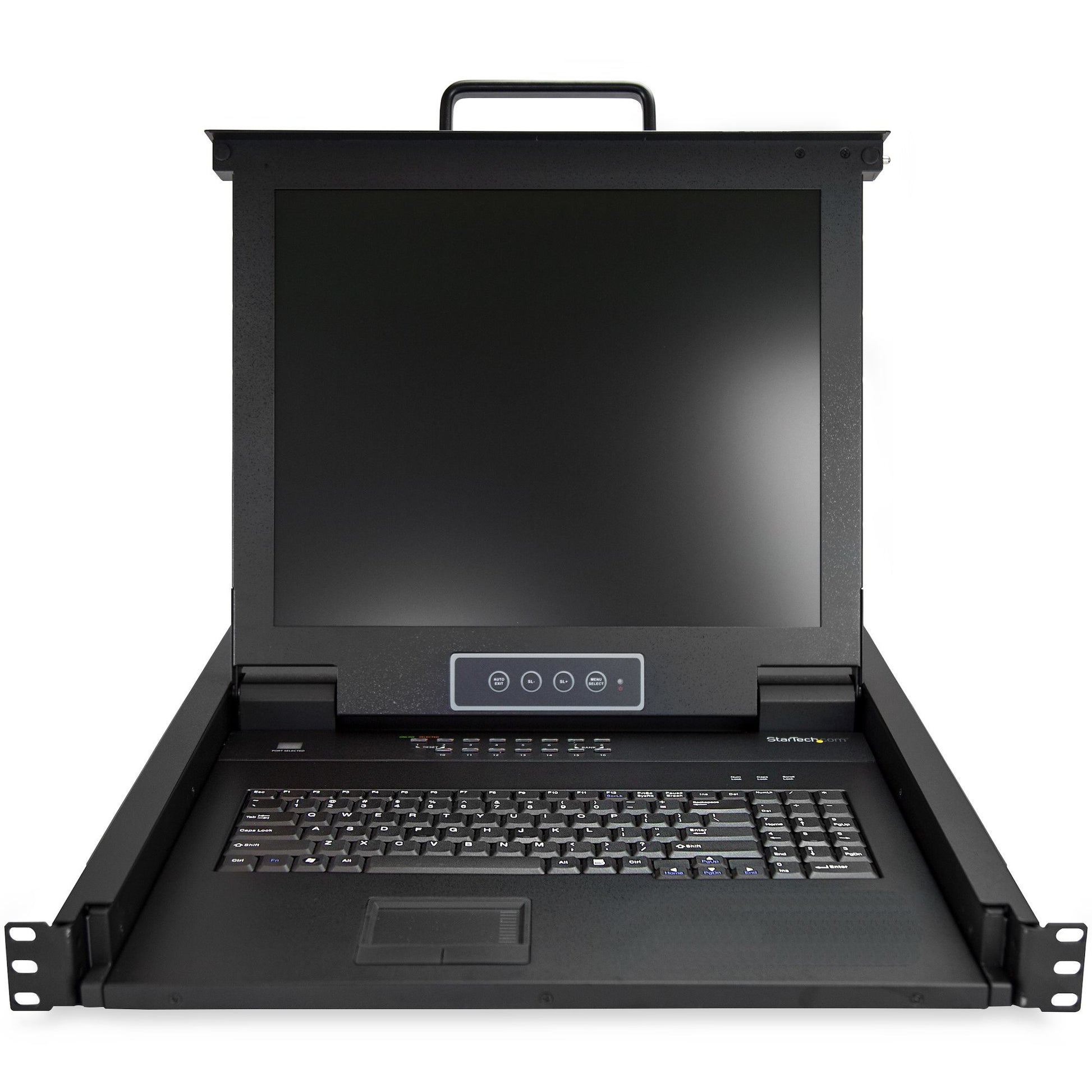

The 1U rackmount console features a built-in keyboard (QWERTY), and a touchpad for intuitive control, as well as a 17-inch LCD display that supports resolutions up to 1280x1024.

This 16-port KVM console comes with everything you need to set up right out of the box:

• 16 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

With direct access to 16 systems or servers, the 16-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.

StarTech.com Rack Consoles

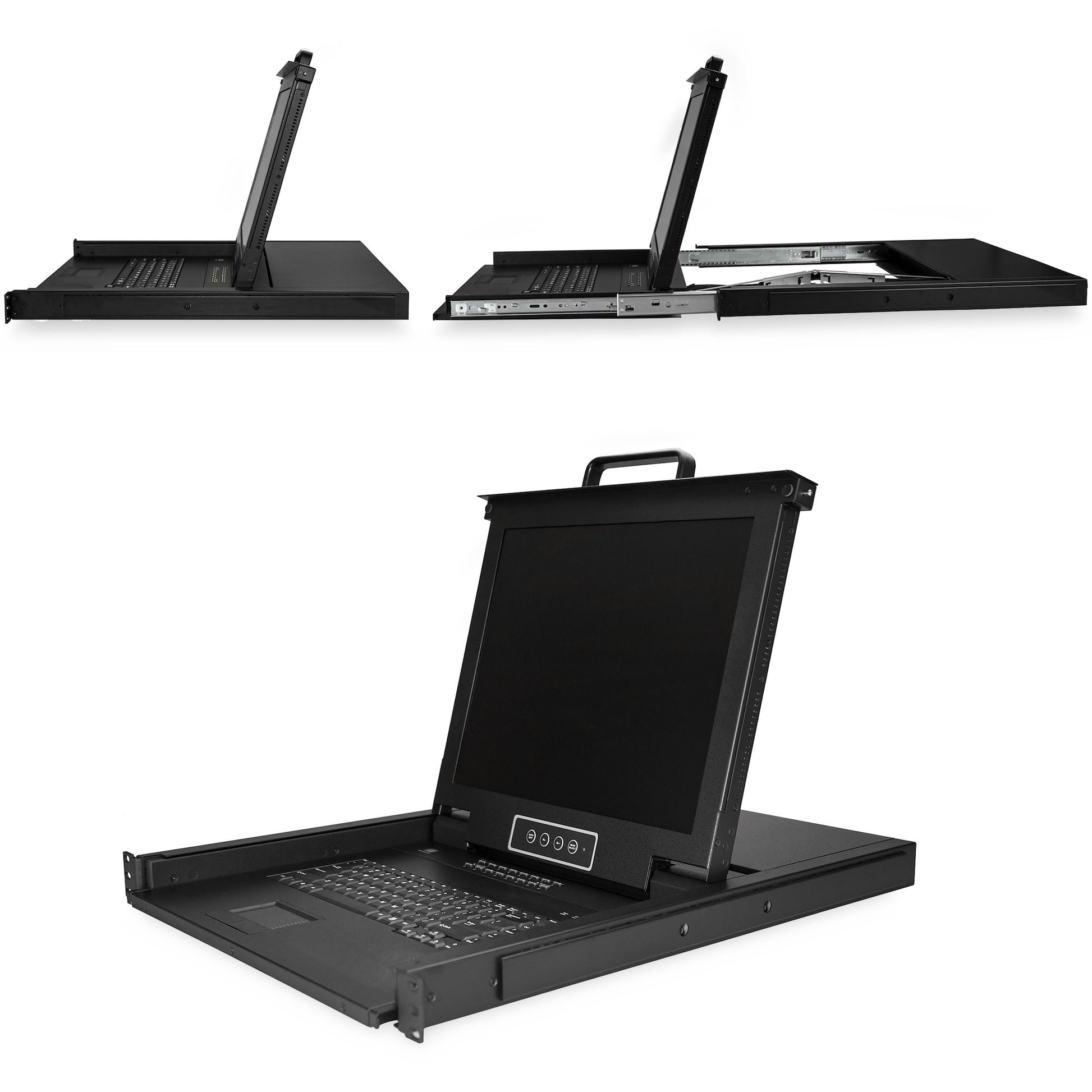

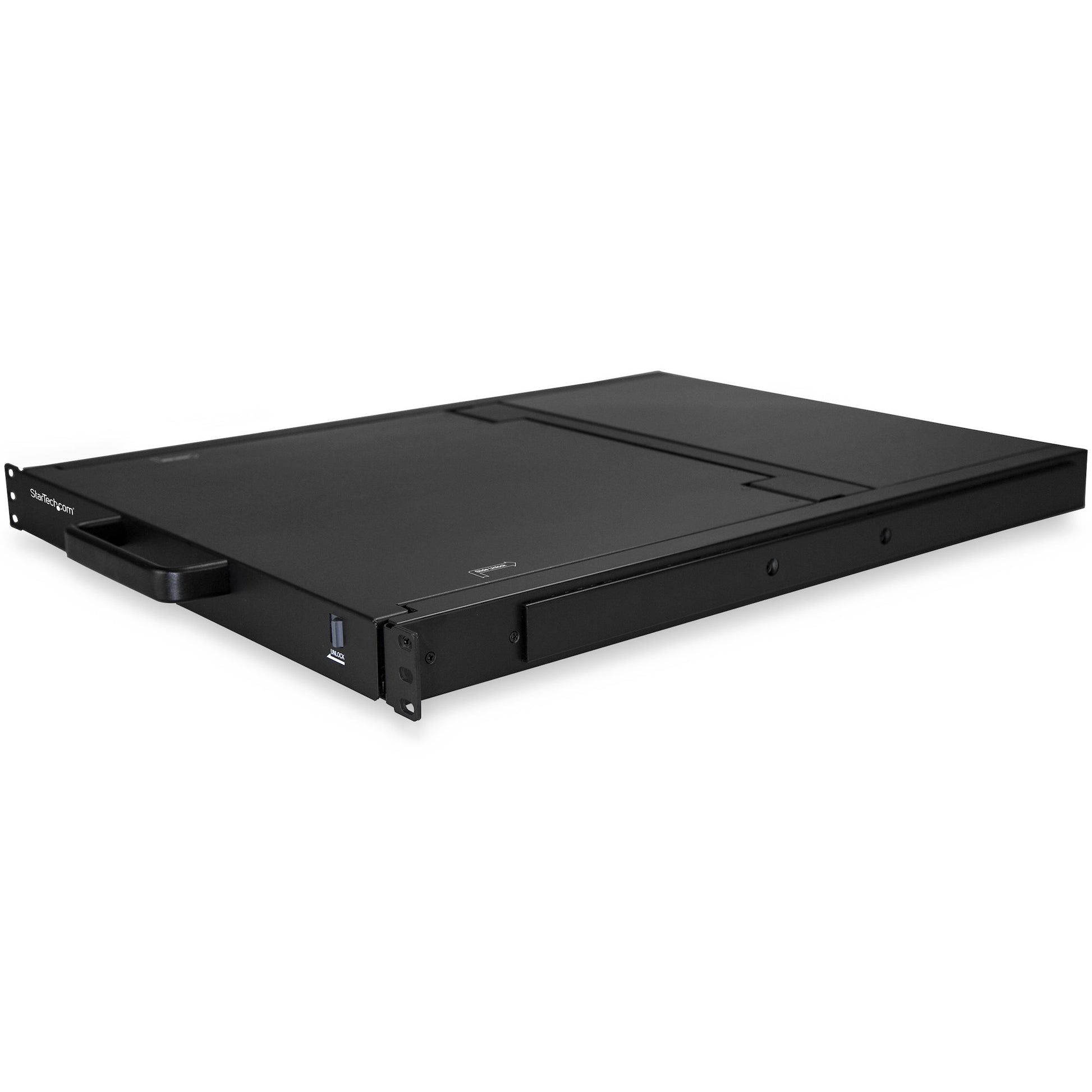

Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1716K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Display
Response time	5 ms
Display number of colours	16.78 million colours
Display type	LCD
Display	TFT LCD
Display diagonal	43.2 cm (17")
Viewing angle, vertical	160°
Viewing angle, horizontal	170°
Pixel pitch	0.264 x 0.264 mm
On Screen Display (OSD)	Yes
Display resolution	1280 x 1024 pixels
Display brightness	250 cd/m²
Contrast ratio (typical)	1000:1
Aspect ratio	5:4
Technical details
Key lock	No
Daisy chain	No
LED indicators	Yes
Rack mounting	Yes
Rack capacity	1U
Operating relative humidity (H-H)	10 - 80%
Mean time between failures (MTBF)	50000 h
Material	Steel
Product colour	Black
Cables included	KVM
IP control	No
Compliance certificates	RoHS

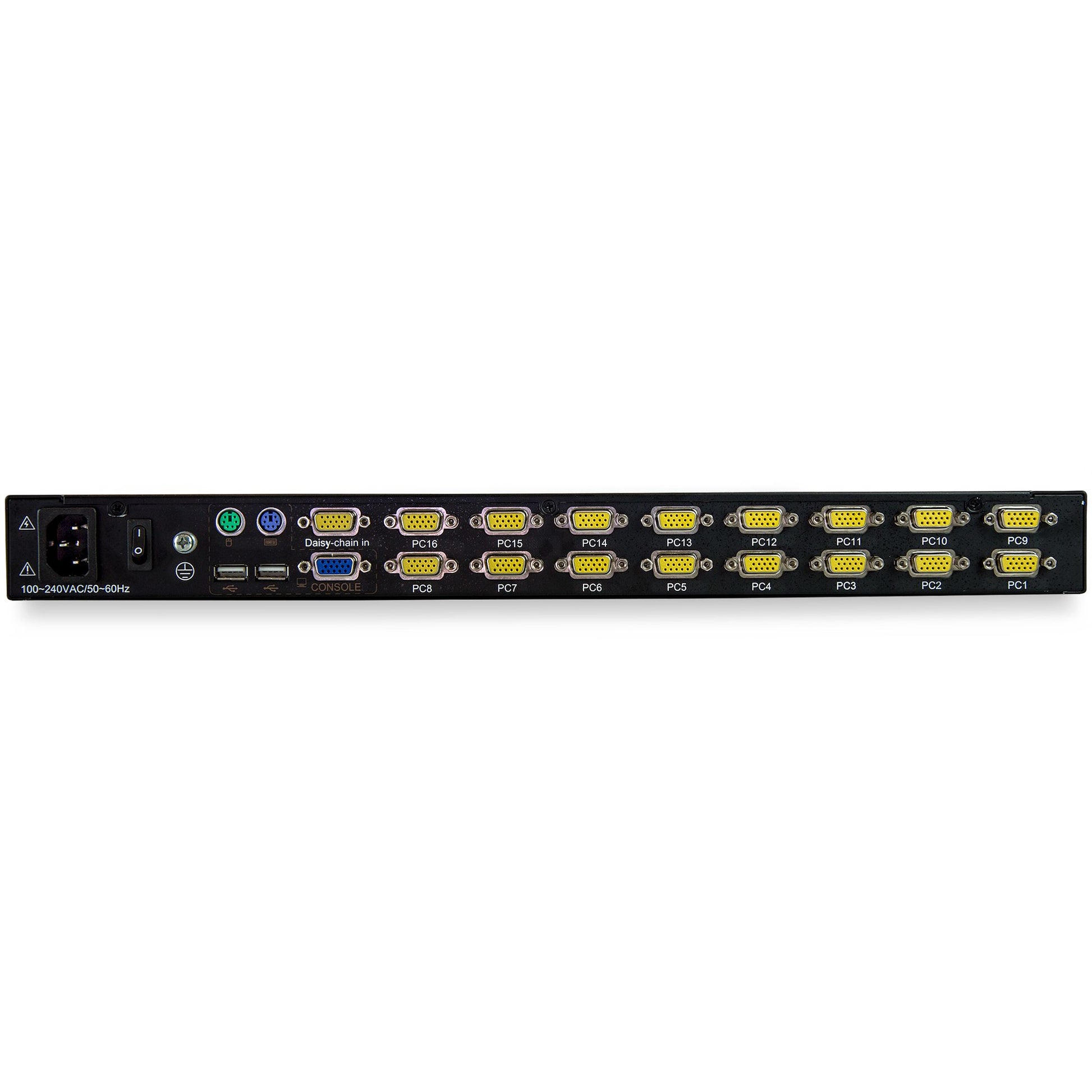

Ports & interfaces
Video port type	VGA
Mouse port type	PS/2
Keyboard port type	PS/2
USB 2.0 Type-A ports quantity	2
VGA (D-Sub) ports quantity	16
Keyboard
Hot keys	Yes
Power
AC adapter input voltage	100 - 240 V
Input current	1.5 A
Power consumption (typical)	23 W
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Certificates
Certification	FCC, PSE, UL, CE, REACH
Weight & dimensions
Mounting depth (min)	56 cm
Mounting depth (max)	90 cm
Weight	13 kg
Width	448 mm
Height	581 mm
Depth	43 mm
Packaging data
Package width	615 mm
Package depth	765 mm
Package height	185 mm
Package weight	21.1 kg
Packaging content
Screws included	Yes
Mounting brackets included	Yes
Manual	Yes
Number of screws	8
Number of cage nuts	8
Included power plug types	ANZ, EU, JP, NA, UK
Cage nuts included	Yes
Logistics data
Master (outer) case width	615 mm
Master (outer) case length	765 mm
Master (outer) case height	185 mm
Products per master (outer) case	1 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
