StarTech.com 16 Port 1U Rackmount USB KVM Switch with OSD - TAA

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 16 Port 1U Rackmount.

Control up to 16 USB computers from a single keyboard, mouse and monitor

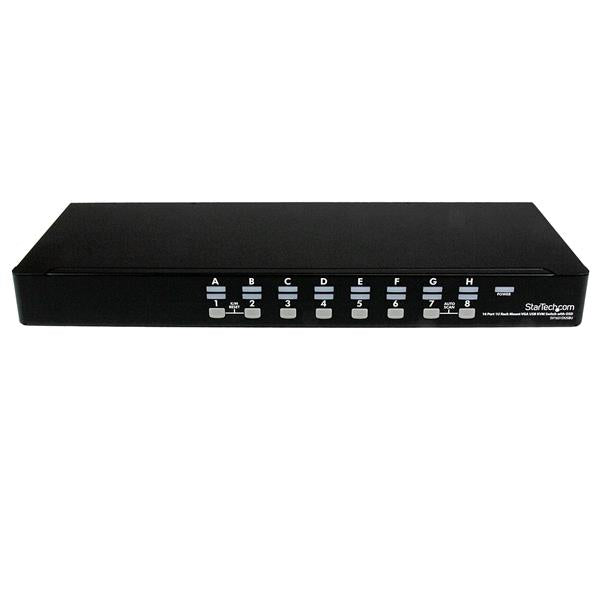

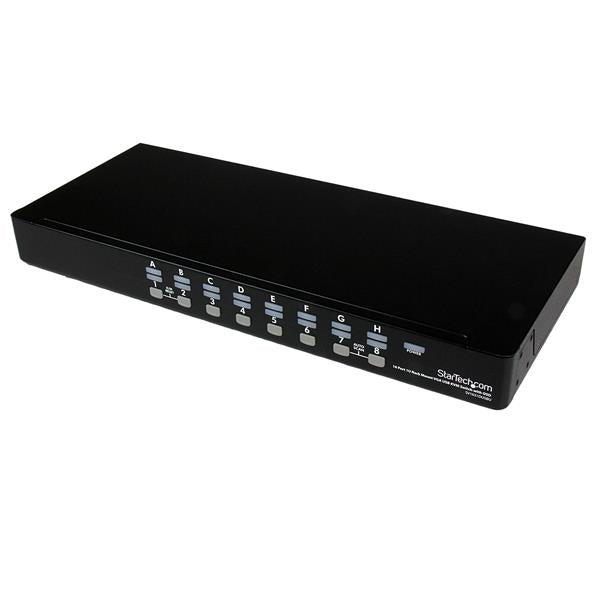

The SV1631DUSBU 16 Port 1U Rack Mountable USB KVM Switch with OSD lets you control 16 USB computers from a single console (USB keyboard, USB mouse, VGA monitor).

Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.

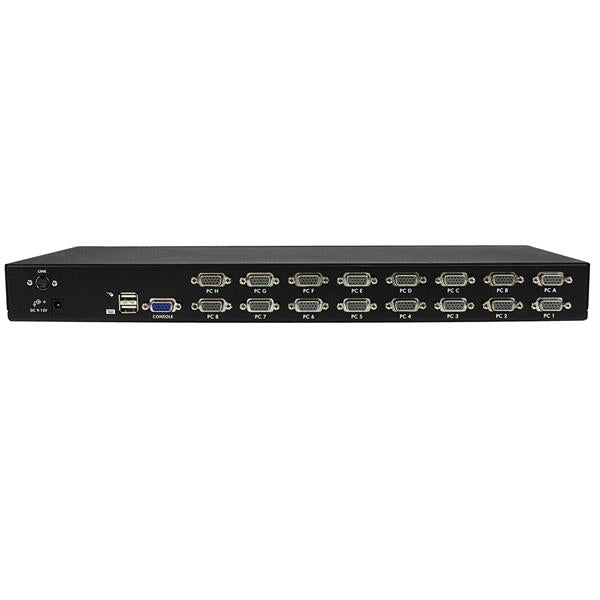

Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet with the included brackets, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch. Rear cable connections help to eliminate cable tangles and minimize workspace disruption.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

The SV1631DUSBU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:

6 ft Ultra Thin USB VGA 2-in-1 KVM Cable

6 ft Ultra Thin USB VGA 2-in-1 KVM Cable

10 ft Ultra Thin USB VGA 2-in-1 KVM Cable

15 ft Ultra Thin USB VGA 2-in-1 KVM Cable

Specifications

Ports & interfaces
Console USB ports quantity	2
Console ports	USB A, VGA (D-Sub)
Number of computers controlled	16
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
Audio connections	No
DC-in jack	Yes
Performance
Daisy chain	Yes
Plug and Play	Yes
Maximum resolution	1920 x 1440 pixels
Technical details
Product colour	Black
Rack mounting	Yes
LED indicators	Yes
IP control	No
Audio support	No
Design
Rack capacity	1U
Housing material	Steel
Display
Built-in display	No
Power
Input current	0.8 A
Output current	1.5 A
Power plug type	Type M
Output voltage	12 V
Input voltage	110-240 V
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 80%
Weight & dimensions
Width	540 mm
Depth	180 mm
Height	45 mm
Weight	3.1 kg
Package width	597 mm
Package depth	265 mm
Package height	91 mm
Package weight	3.53 kg

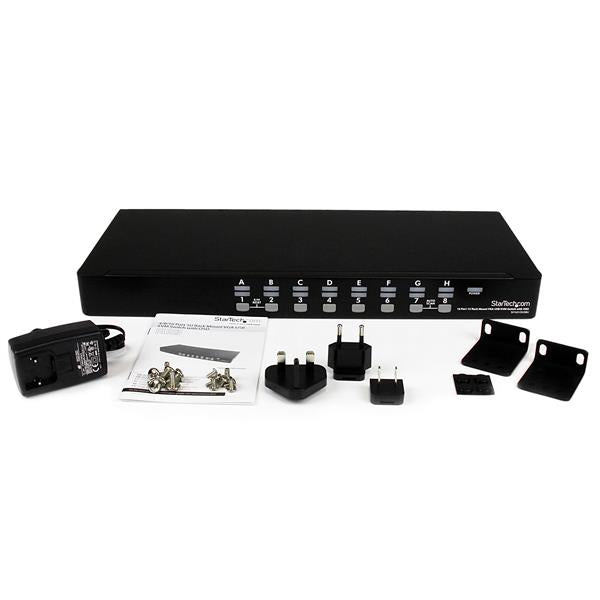

Packaging content
Manual	Yes
AC adapter included	Yes
Logistics data
Master (outer) case width	613 mm
Master (outer) case length	290 mm
Master (outer) case height	412 mm
Products per master (outer) case	4 pc(s)
Harmonized System (HS) code	85176200
