StarTech.com 15m USB 2.0 Active Extension Cable - M/F - TAA

Make the connection with the StarTech.com 15m — length and connector details are in the spec table.

Extend the distance between a computer and a USB 2.0 device by 15 meters

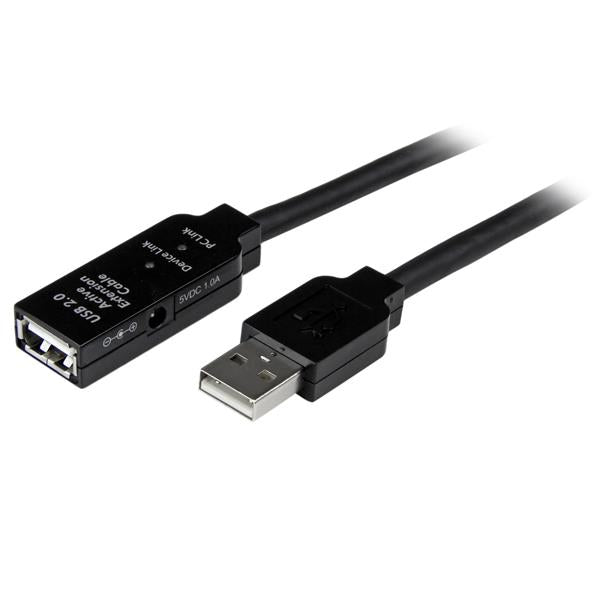

The USB2AAEXT15M 15m Active USB 2.0 Extension Cable, offers one USB 'A' male connector and one USB 'A' female connector, and provides an active extension of USB 2.0 devices of up to 15-meters (49.2-feet).
An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables.

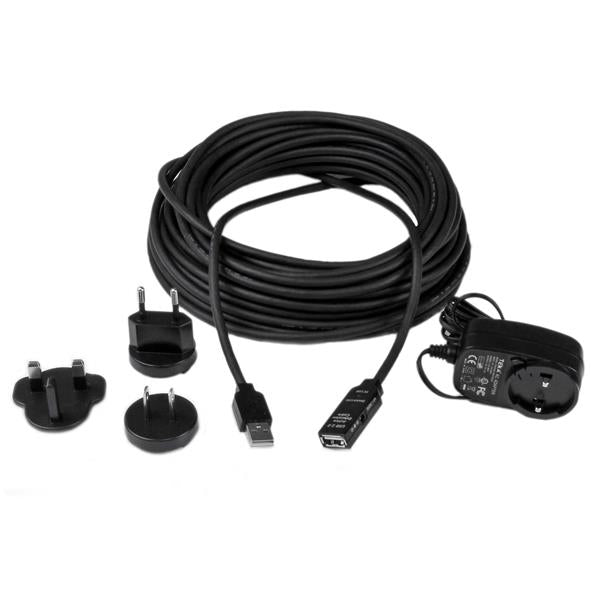

Up to 4 of these cables can be daisy-chained together, allowing for a total USB extension of up to 60-meters. If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter (provided with the cable).
The USB2AAEXT15M repeater cable supports the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.

Specifications

Features
Connector gender	Male/Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Plug and Play	Yes
USB version	USB 2.0
Connector 1	USB A
Connector 2	USB A
Cable length	15 m
Connector contacts plating	Nickel
Product colour	Black
Certification	CE, FCC, TAA, REACH
Connector 1 gender	Male
Connector 2 gender	Female
Cable jacket material	Polyvinyl chloride (PVC)
Input voltage	100 - 240 V
Output voltage	5 V
Output current (max)	1 A
Input current (max)	0.35 A
Weight	596 g
Quantity per pack	1 pc(s)
Weight & dimensions
Package width	224 mm
Package depth	215 mm
Package height	62 mm
Package weight	866 g
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	6 pc(s)
Master (outer) case width	451 mm
Master (outer) case length	360 mm
Master (outer) case height	255 mm

Downloads

• Datasheet (PDF)
