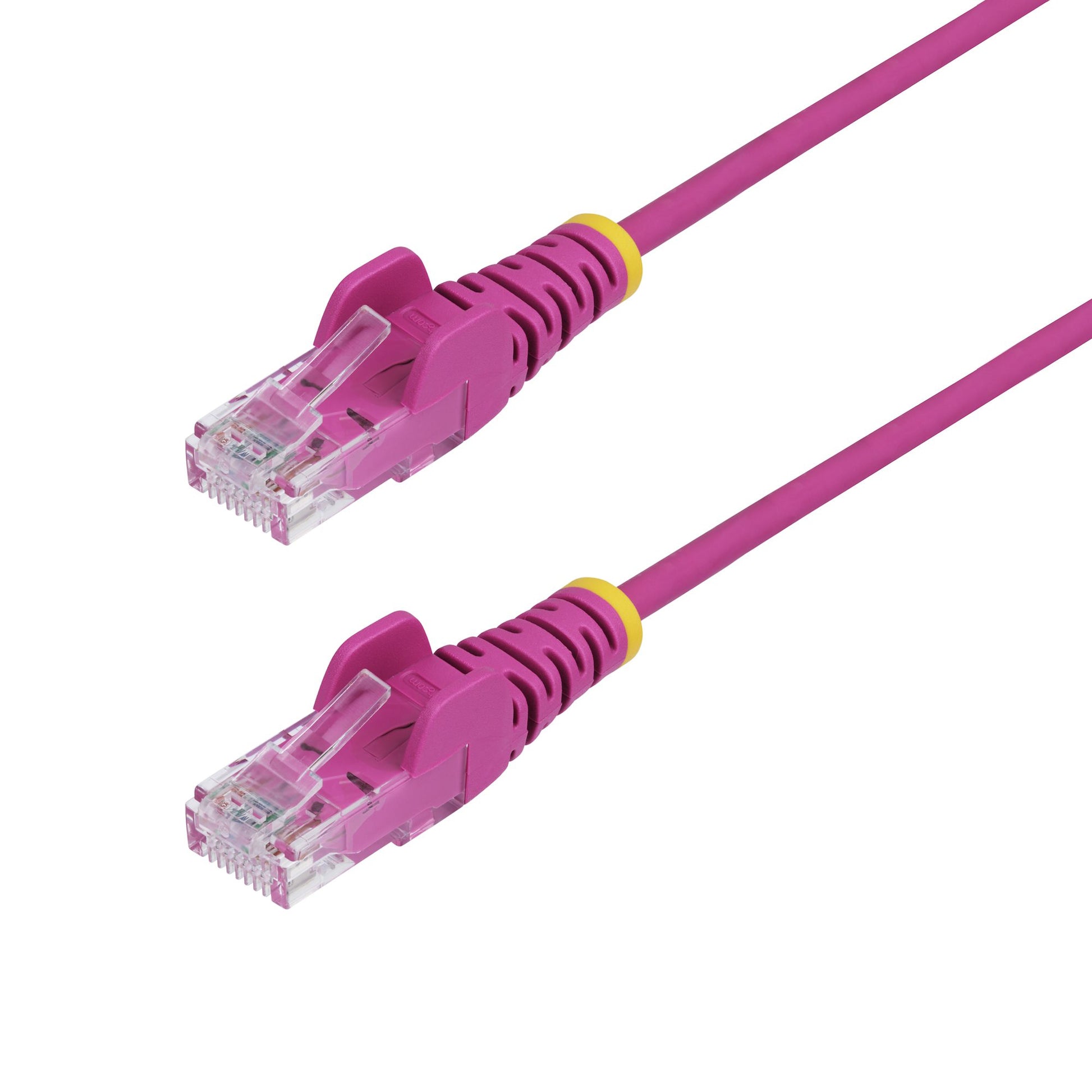

StarTech.com 15m Pink Slim CAT6 Ethernet Cable, Snagless, 100W PoE, UTP, LSZH, 28AWG

Make the connection with the StarTech.com 15m Pink Slim CAT6 — length and connector details are in the spec table.

Route Slim Cat6 cables through high density installations for optimal flexibility and airflow

This slim CAT6 cable meets all Category 6 patch cable specifications to deliver a reliable Gigabit and Power over Ethernet (PoE) network connection in high-density network installations.

Improved Airflow

The Slim Cat6 Patch Cord is 36% thinner than standard Cat6 Ethernet cables, enabling greater airflow and heat dissipation in confined spaces. The Slim Cat6 Ethernet cable is also more flexible, for easier cable routing in crowded network racks and patch panels.

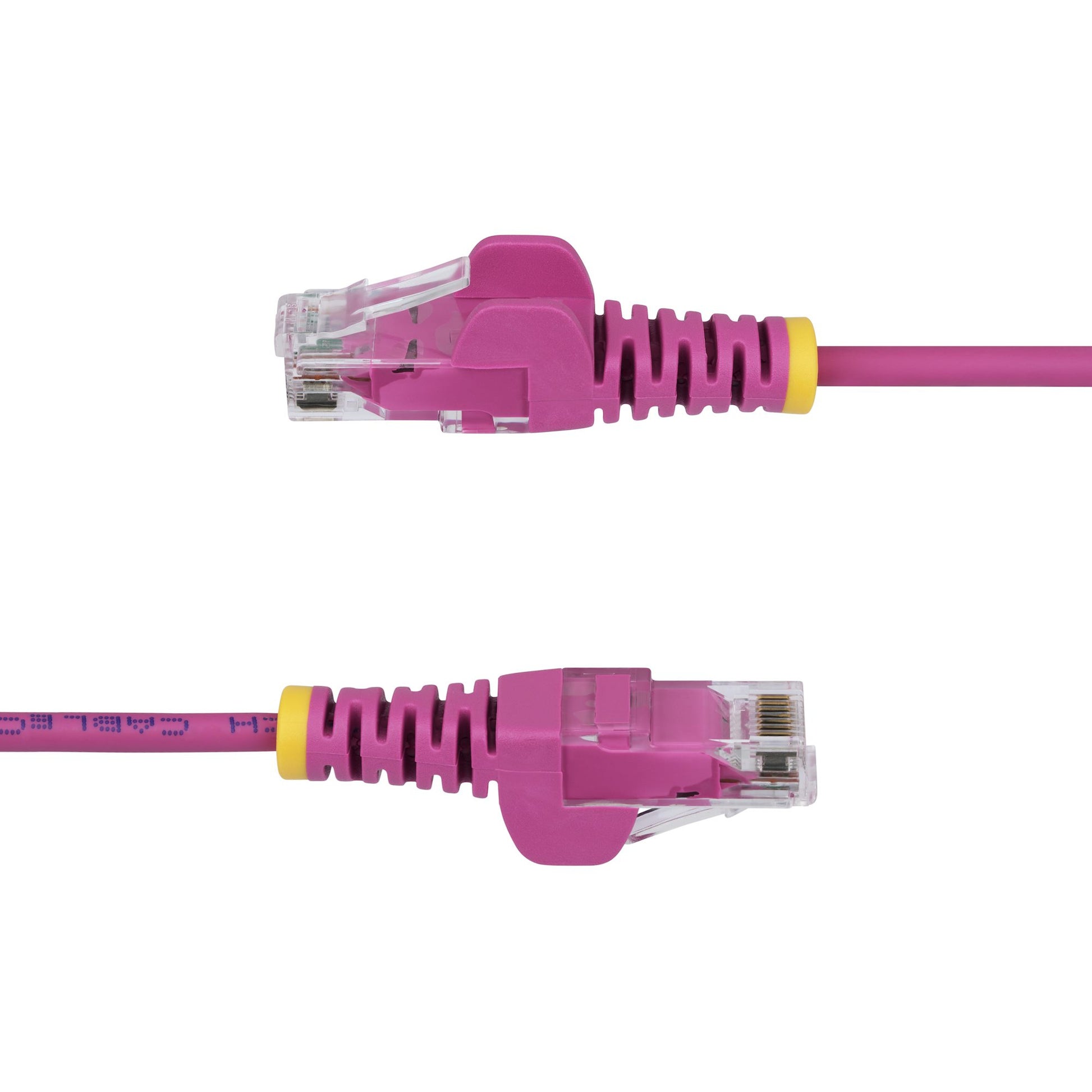

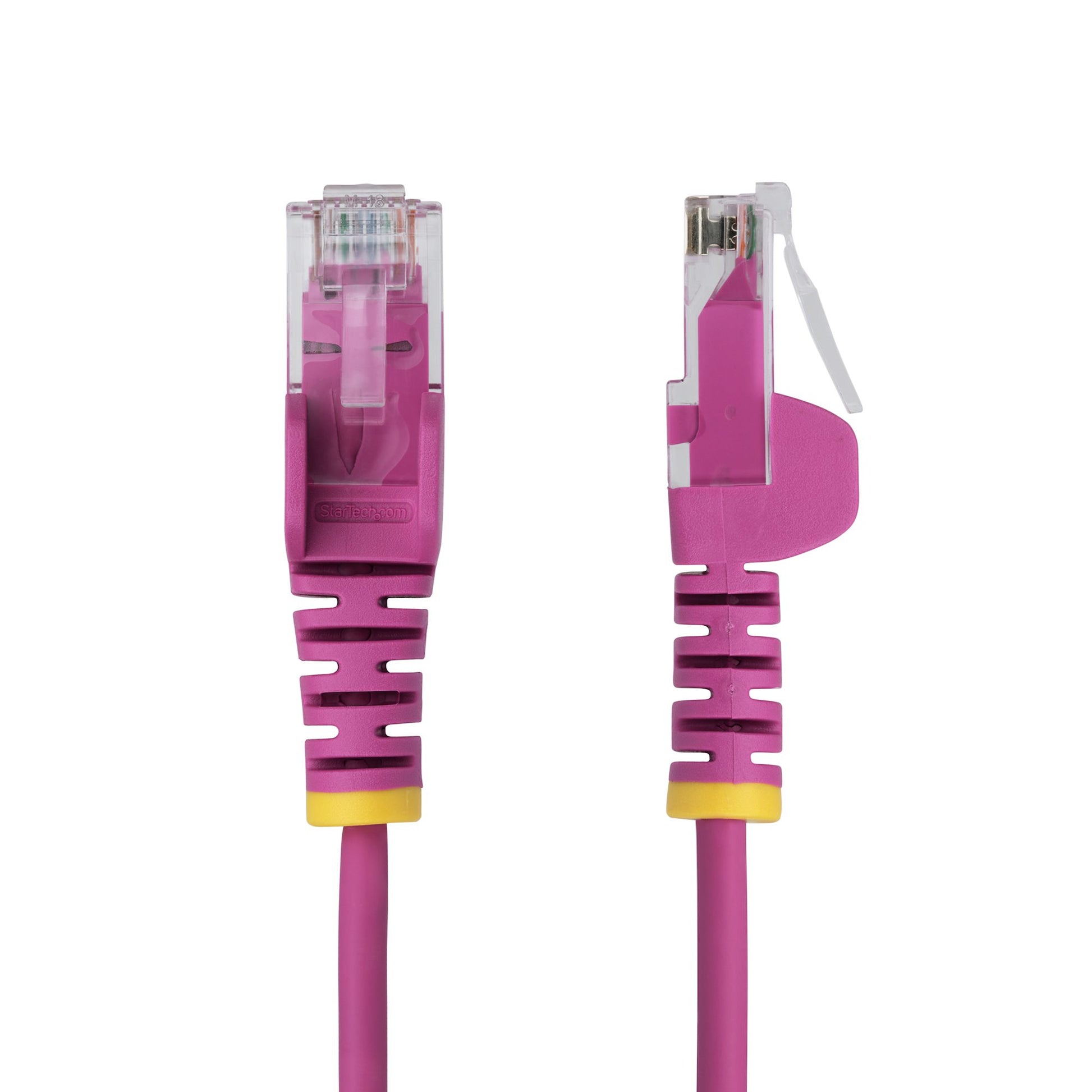

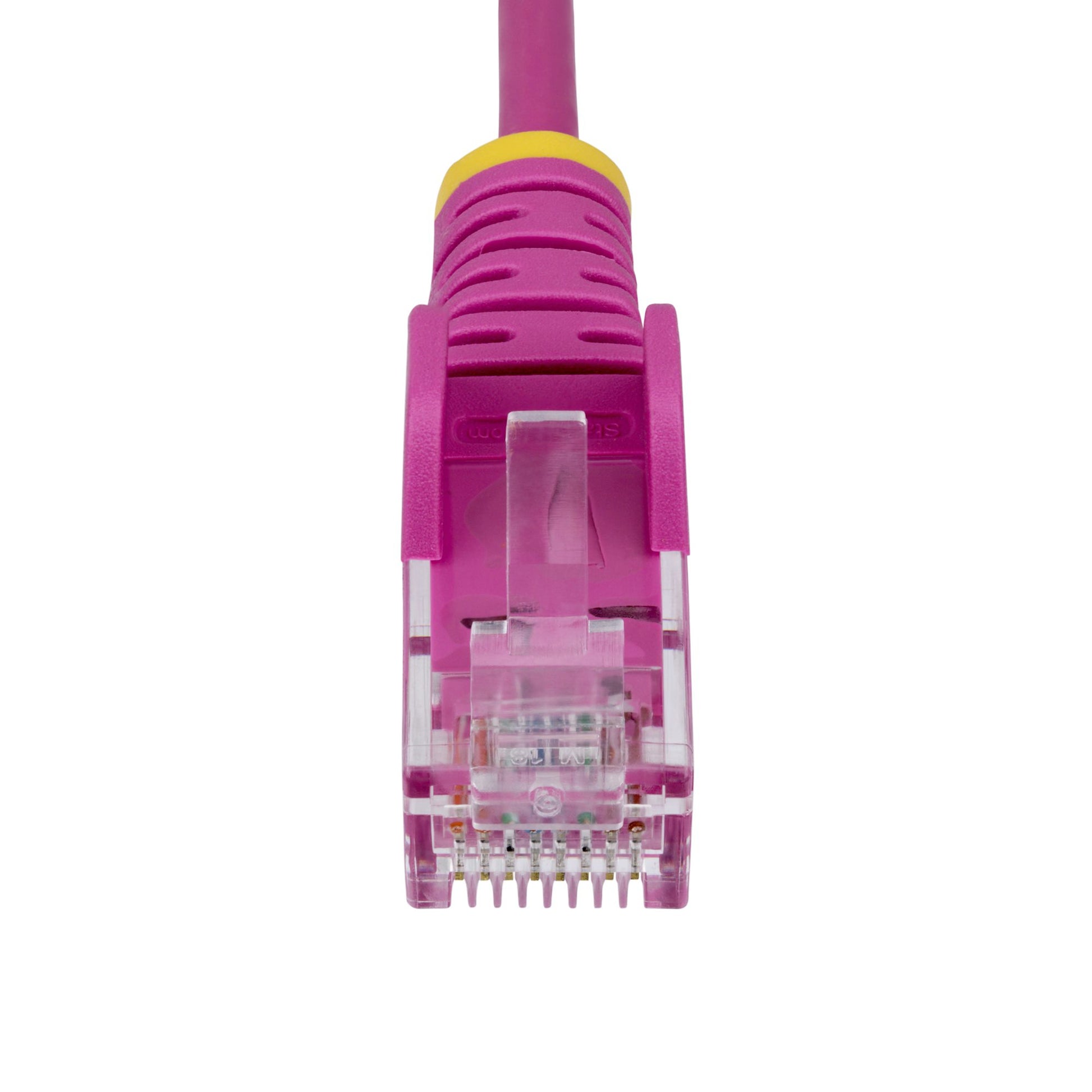

This cable features snagless connectors that protect the RJ45 clips during installation, reducing snags or breakage when routing through narrow gaps or in between devices.

Durable Construction

The Slim Cat6 Cable features 50-micron gold RJ45 contacts that ensure a precise fit to minimize wear and signal loss. The 4-pair Unshielded Twisted Pair (UTP) construction utilizes 28AWG Pure Bare Copper Wire for improved conductivity and low resistance. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Tested for Reliability

Each cable is individually tested using a Fluke® DSX2-8000 CableAnalyzer™ to meet ANSI/TIA-568.2-D Category 6 specifications, ensuring consistent signal integrity with minimal Near-End Crosstalk (NEXT) and Retun Loss (RL). Reliably deliver up to 100W of PoE++ to power a remote networking devices, including PoE switches and boardroom cameras. This Slim Cat6 Patch Cable complies with IEEE 802.3bt Type 4 PoE++ specifications.

Specifications

Features
Product colour	Pink
Snagless cable boot	Yes
Conductor material	Copper
Frequency	250 MHz
AWG wire size	28
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3bt
Jacket material	Low smoke zero halogen (LSZH)
Conductor type	Stranded
Cable length	15 m
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Power over Ethernet (PoE)	Yes
Cable shape	Round
Connector 2 gender	Male
Connector 1 gender	Male
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Total Power over Ethernet (PoE) budget	100 W
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	10 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Certificates
Compliance certificates	CE, RoHS
Weight & dimensions
Outer diameter	3.6 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	200 mm
Package depth	220 mm
Package height	50 mm
Package weight	254 g
Logistics data
Products per master (outer) case	50 pc(s)
Master (outer) case width	420 mm
Master (outer) case length	420 mm
Master (outer) case height	250 mm
