StarTech.com 12U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch
StarTech.com 12U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch
Regular price
£131.71 GBP
Regular price
Sale price
£131.71 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Build a tidy install with the StarTech.com 12U Wall Mount Network — dimensions and mounting details are in the spec table.

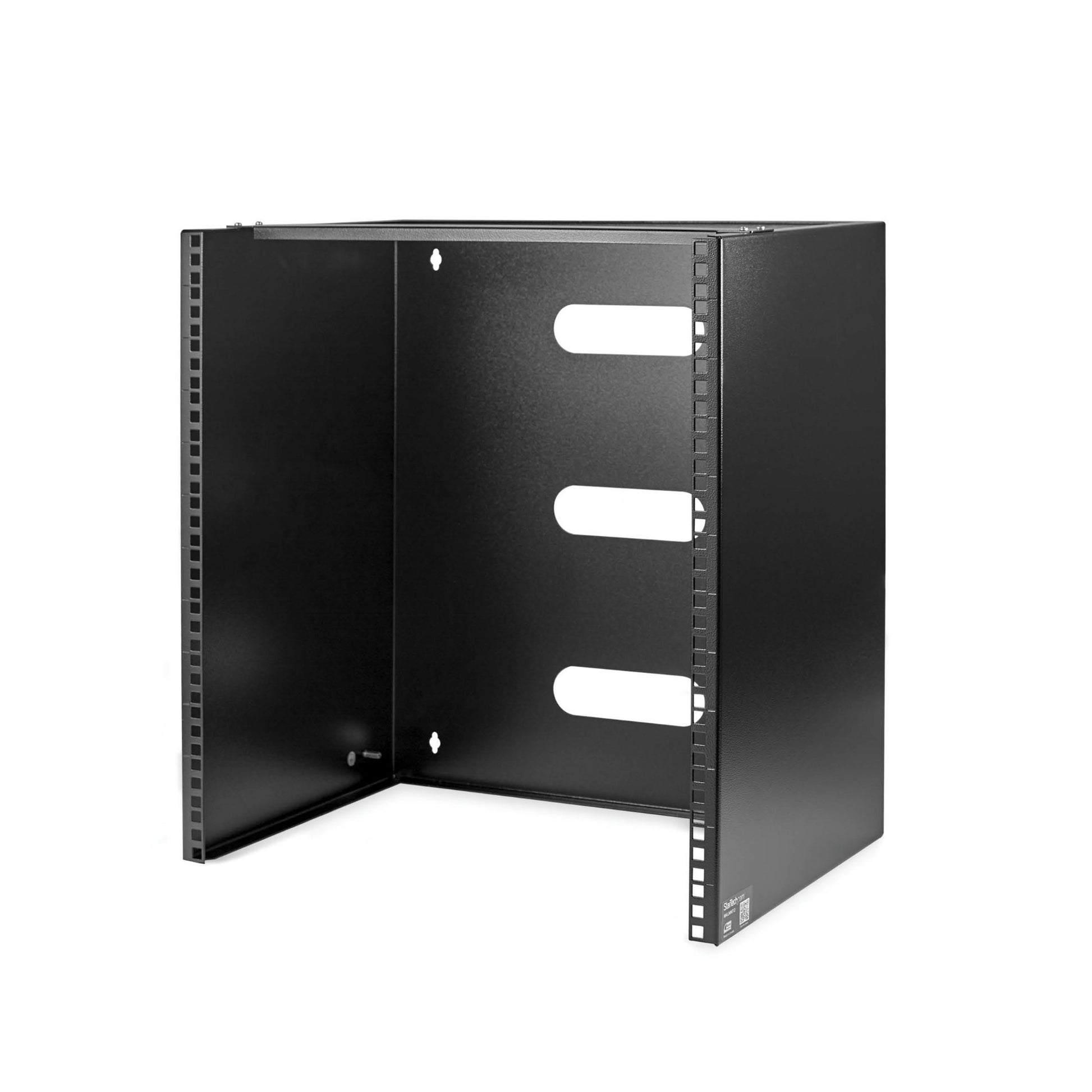

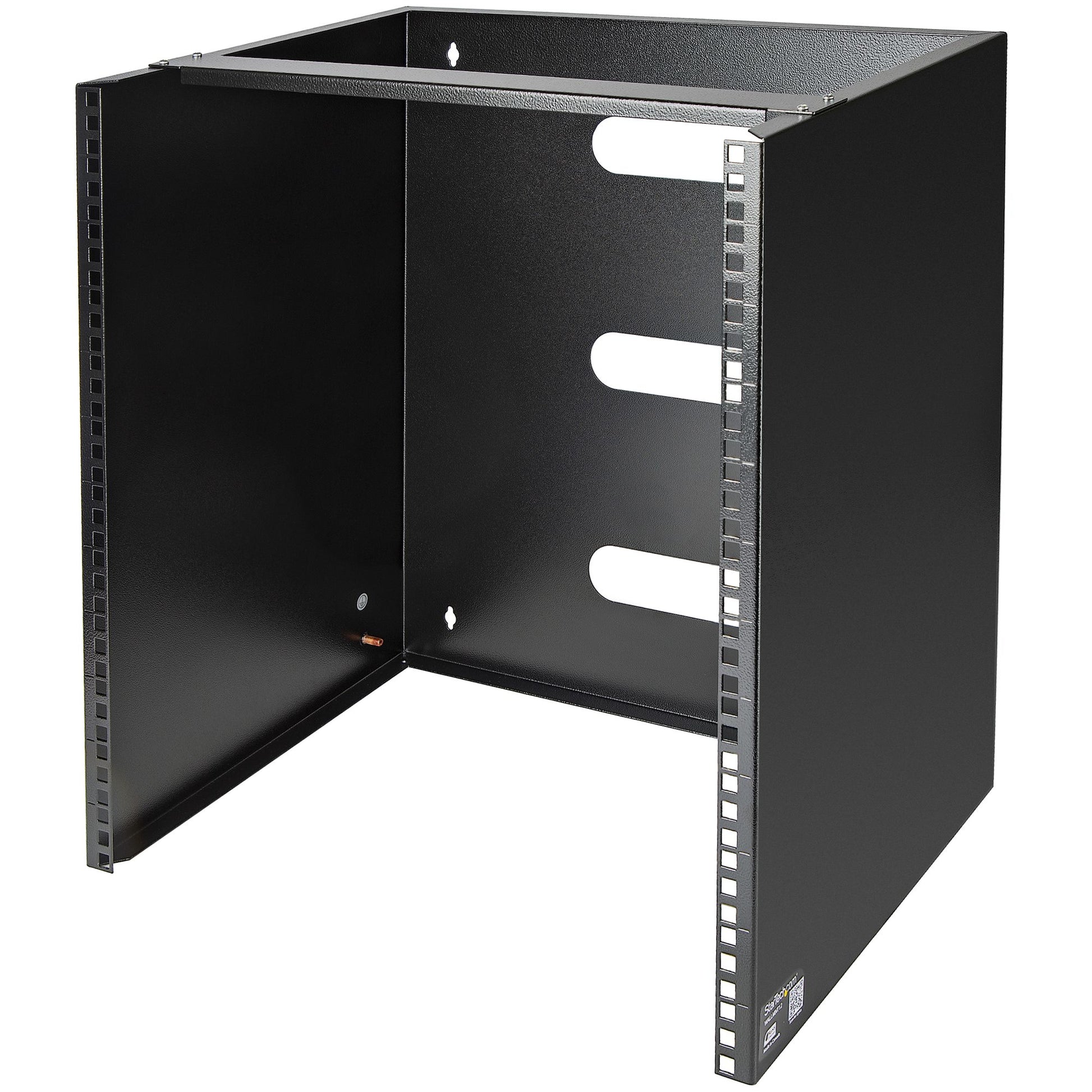

Mount equipment that is up to 13.75 inches deep, such as patch panels or network switches, to your wallThis wall-mount bracket provides 12U of space for mounting shallow rack-mount equipment that's 13.75 in. (34.93 cm) deep or less to the wall, such as patch panels or network switches.
Improve efficiency and accessibility in your workspace
The 12U rack optimizes your working space by efficiently mounting your shallow equipment on your wall instead of taking up desk space or other usable surface areas. It's the perfect solution for your space-limited SoHo (small office, home office) environment or server room because it doesn't take up any floor space.
Ensure a secure and hassle-free installation

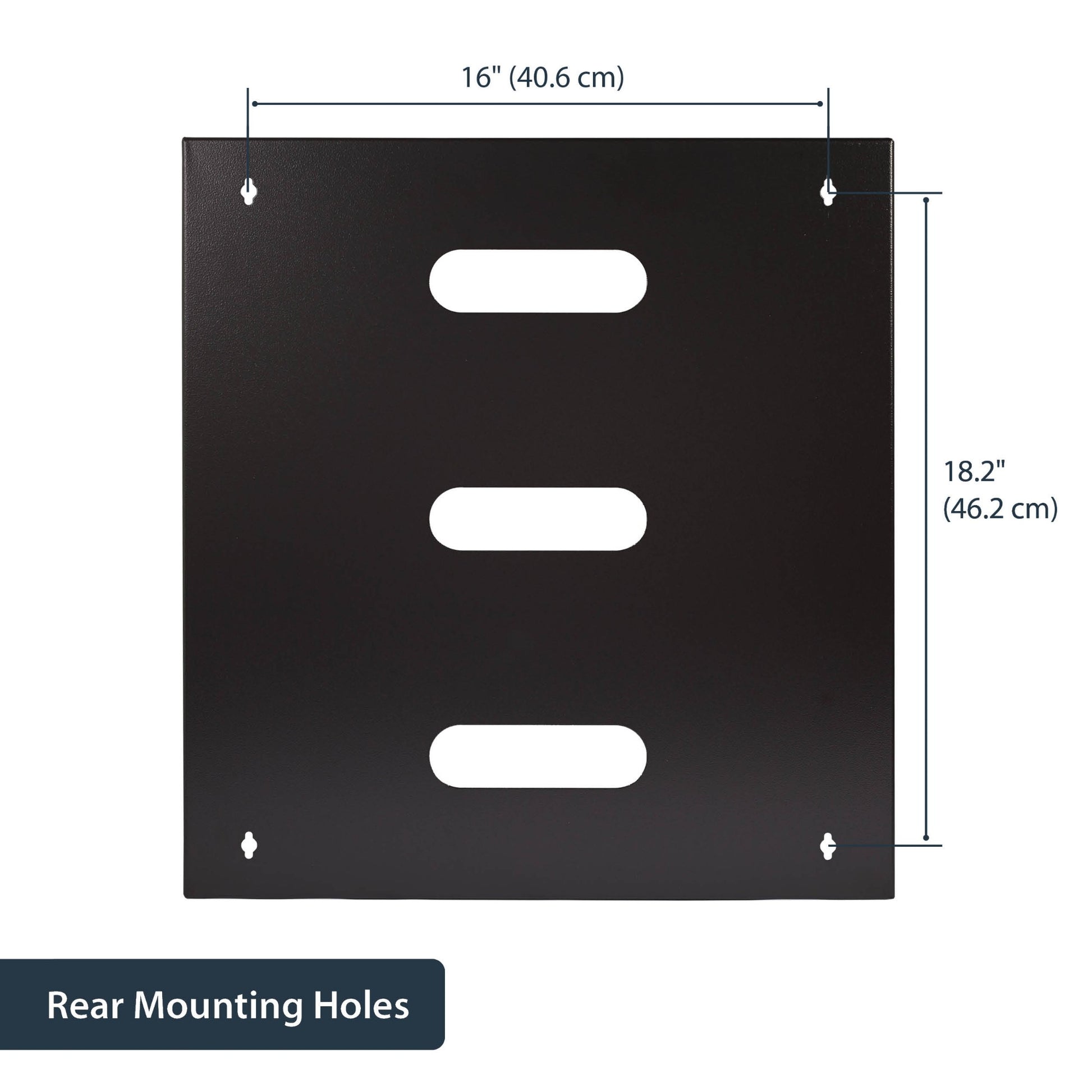

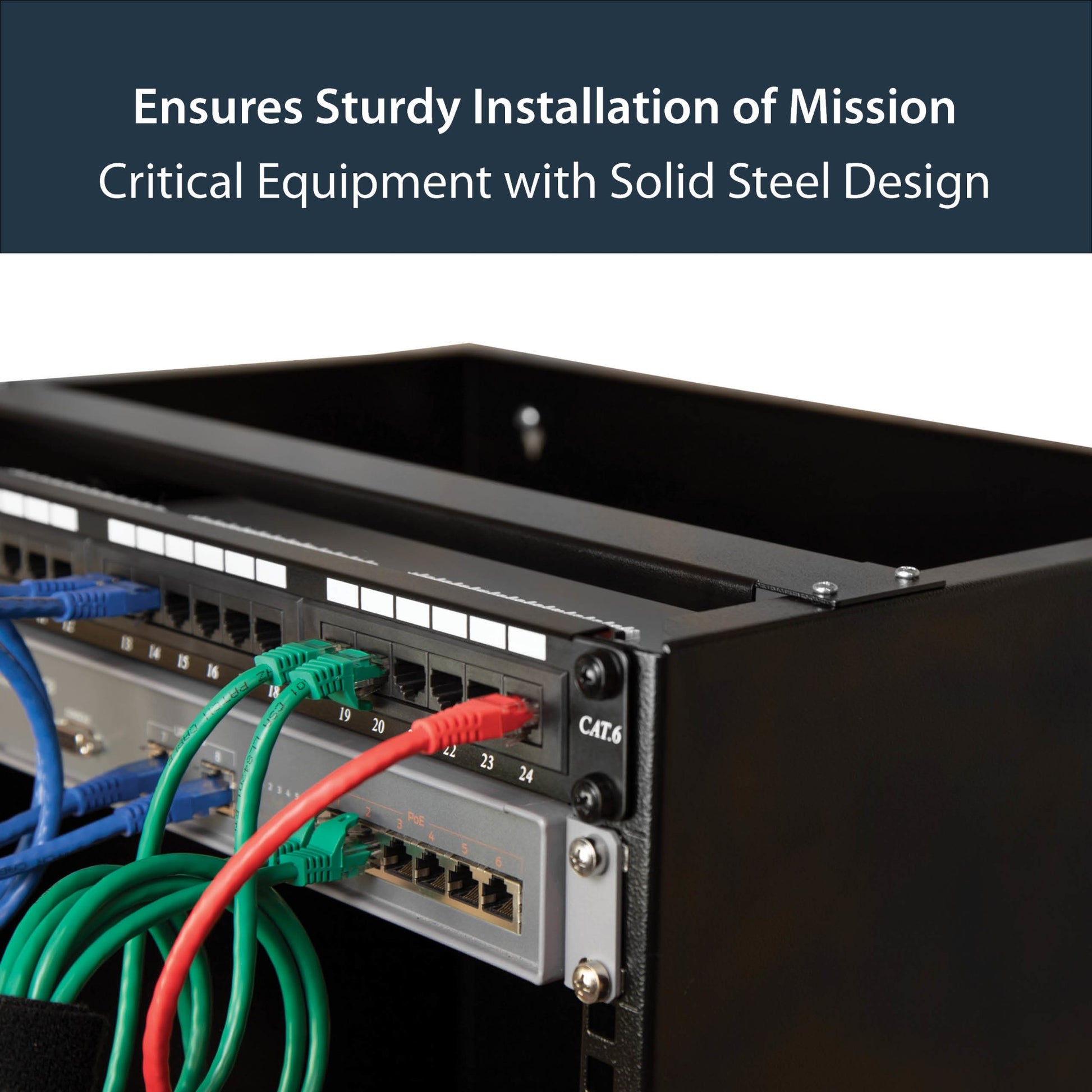

The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment. Also, because the wall-mount rack's mounting holes are positioned 16 in. apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring. The rack also features a rear access panel that can be used to easily run cabling into the rack.

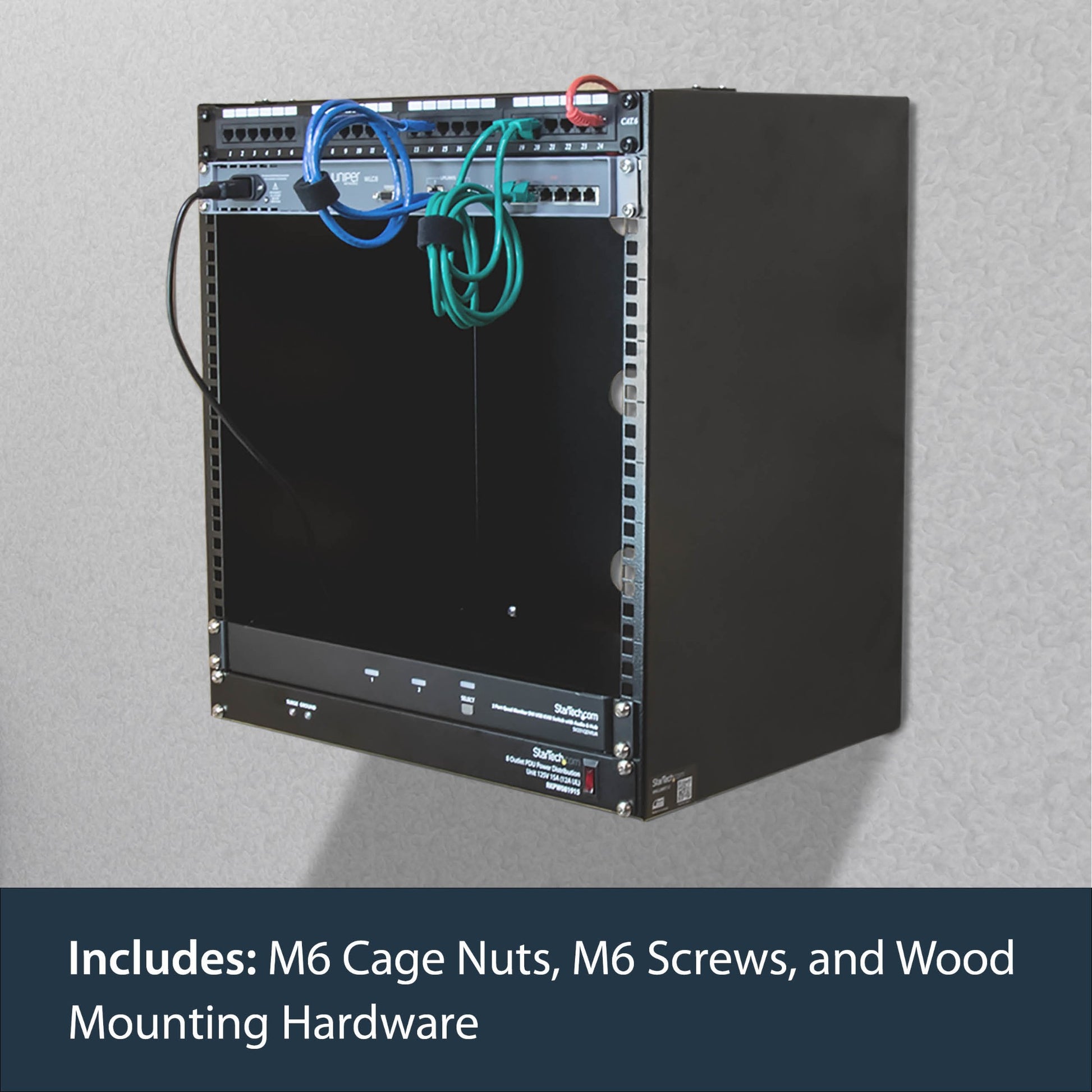

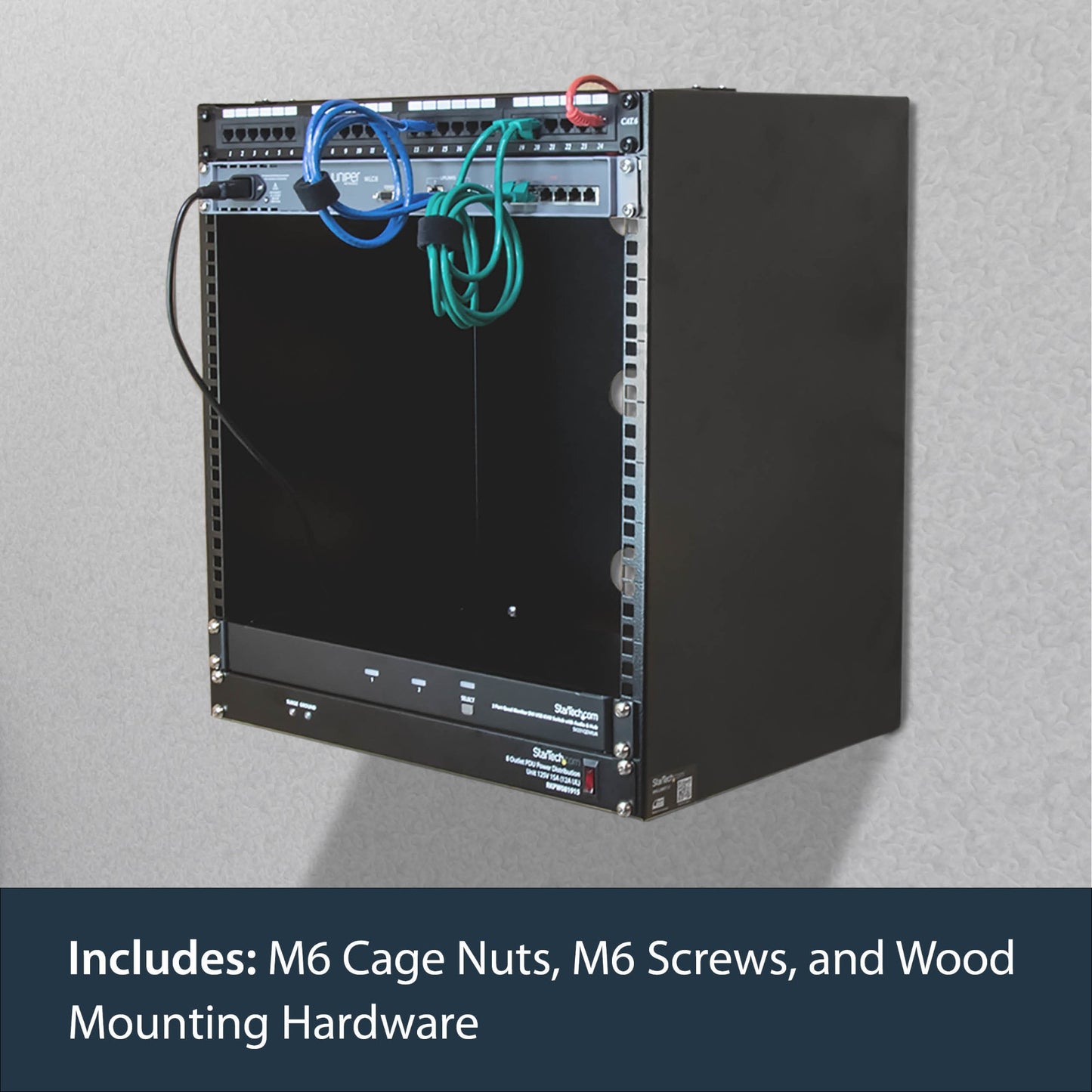

Cage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.

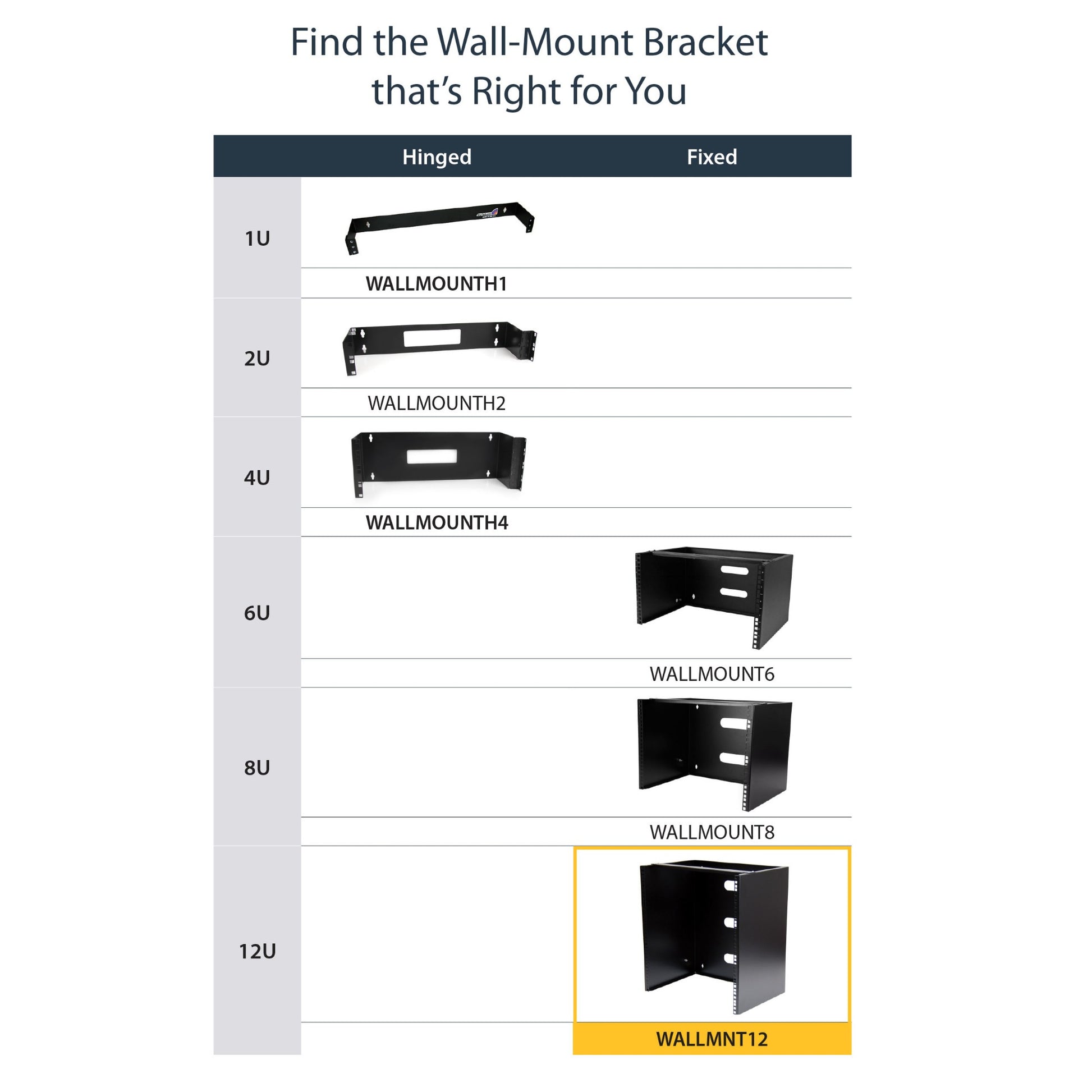

If you're looking for a shallow mounting solution with fewer rack units, StarTech.com also offers a 6U wall-mount bracket, and an 8U wall-mount bracket.
The WALLMNT12 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 395 mm |
| Package width | 545 mm |
| Package height | 582 mm |
| Package weight | 11 kg |

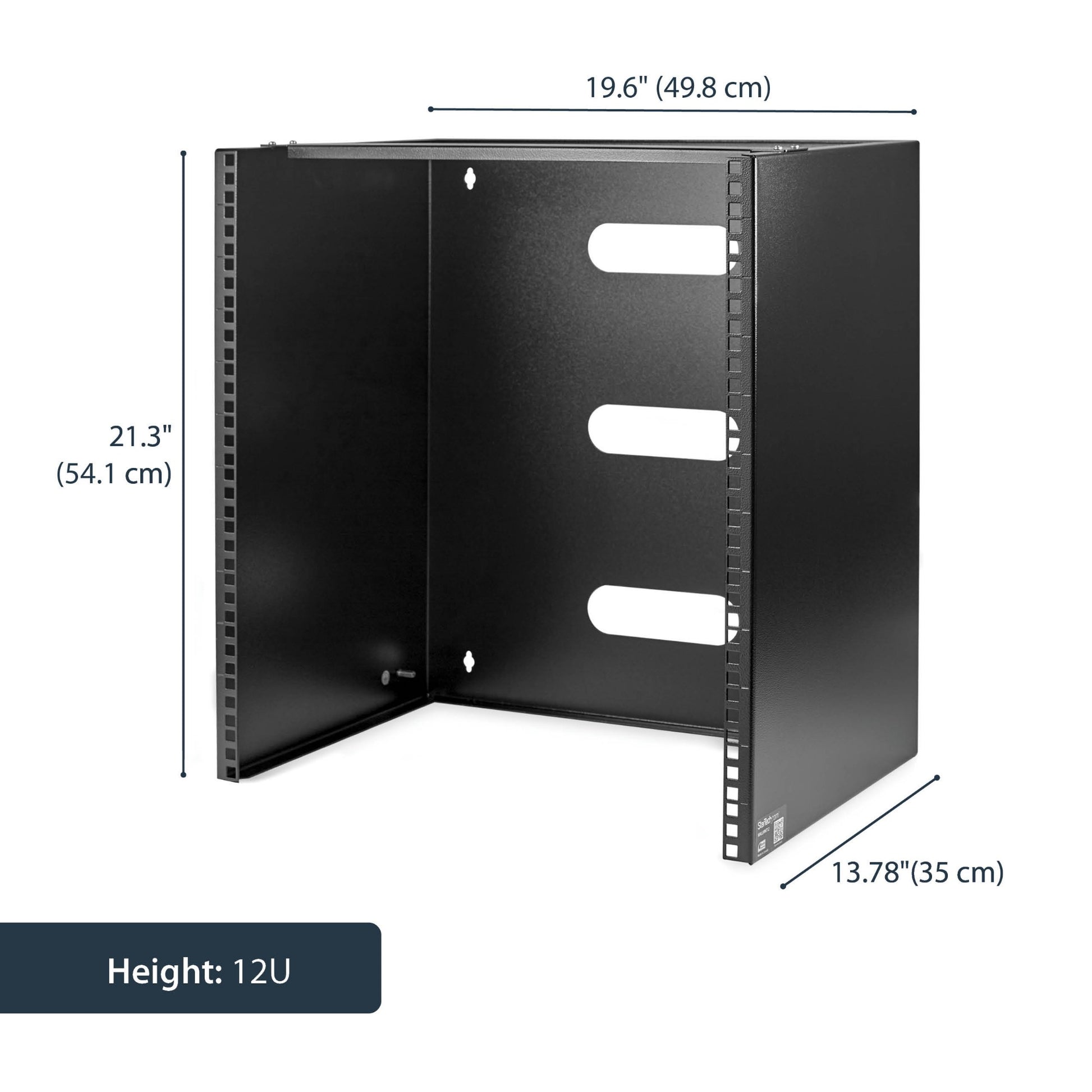

| Mounting depth (max) | 34.9 cm |
| Width | 499 mm |
| Depth | 350 mm |
| Height | 541 mm |
| Weight | 8.7 kg |
| Maximum weight capacity | 56.7 kg |

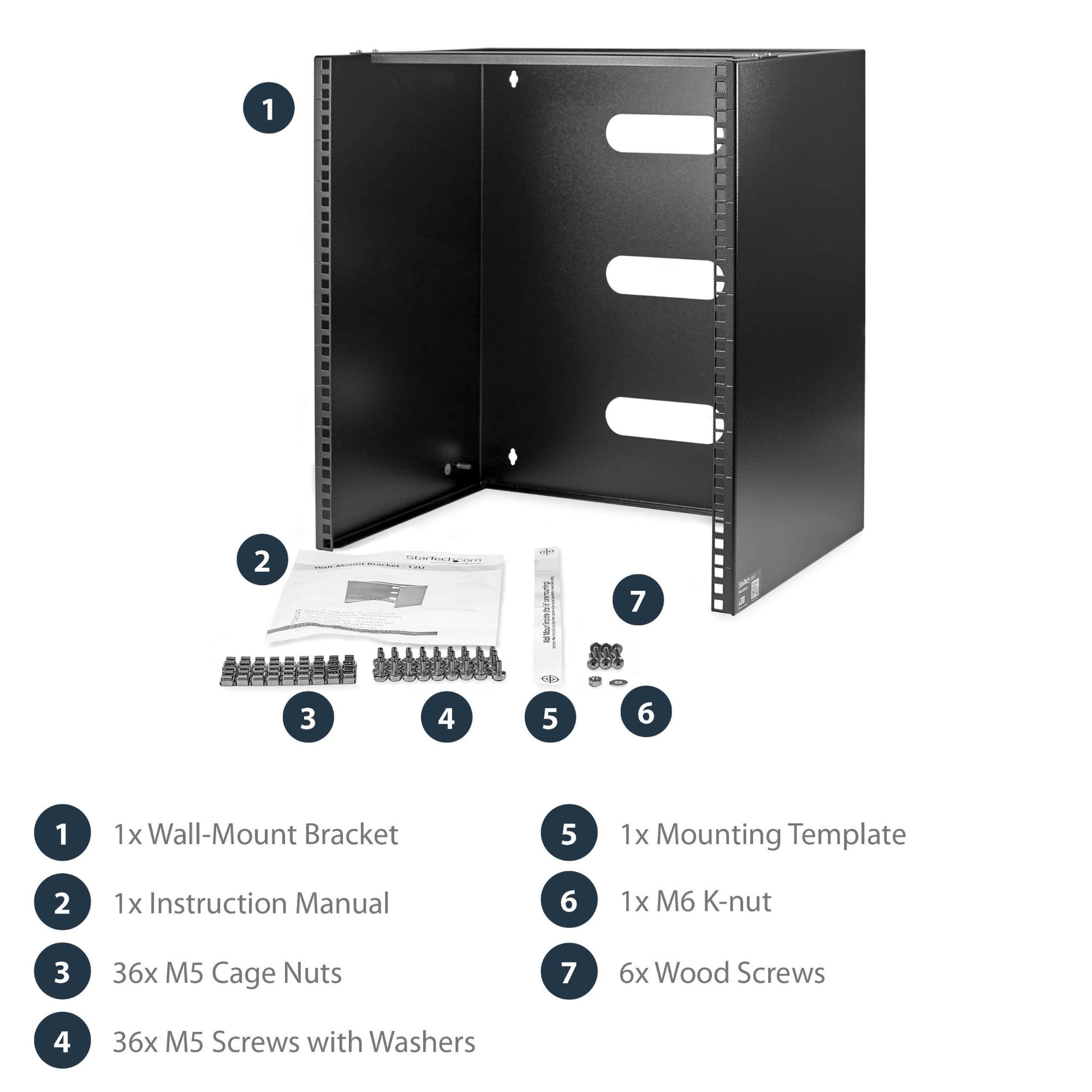

| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 37 |
| Screws included | Yes |
| Number of screws | 42 |
| Features | |
| Number of fans | 0 fan(s) |
| Frame type | Open |
| Product design | 2-post |
| Rack capacity | 12U |
| Castor wheels | No |
| Adjustable mounting rails | No |
| Cable management | No |
| Mounting hole shape | Square |
| Type | Wall mounted rack |
| Material | Steel |
| Product colour | Black |
| Certification | CE, REACH |
| Technical details | |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 383 mm |
| Master (outer) case length | 530 mm |
| Master (outer) case height | 567 mm |
| Products per master (outer) case | 1 pc(s) |
