StarTech.com 12U 4-Post Server Rack, 19in Open Frame Rack with 40in (101cm) Mounting
StarTech.com 12U 4-Post Server Rack, 19in Open Frame Rack with 40in (101cm) Mounting
Regular price
£210.01 GBP
Regular price
Sale price
£210.01 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Build a tidy install with the StarTech.com 12U 4-Post Server Rack — dimensions and mounting details are in the spec table.

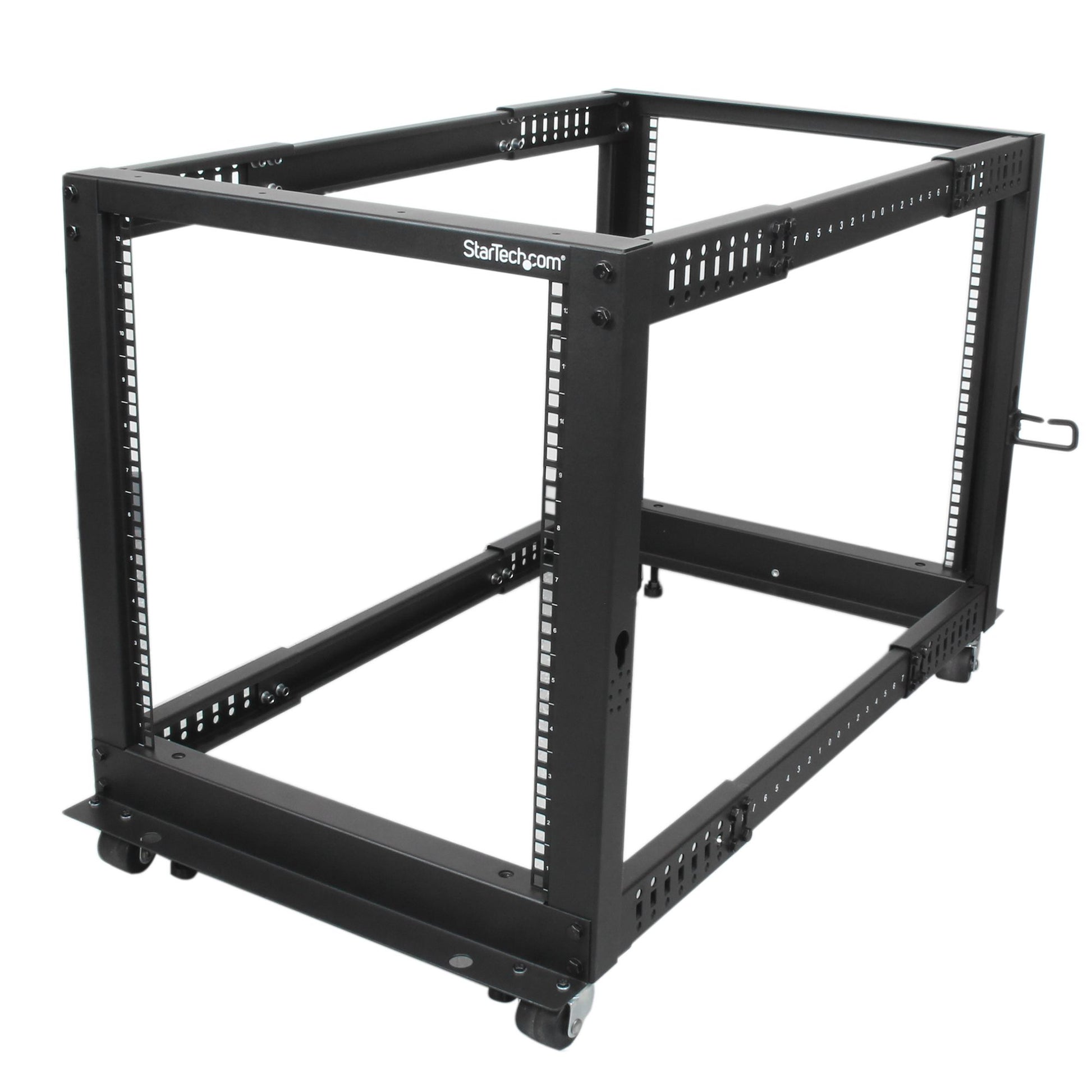

Computer Equipment Rack | 22" to 40" Adjustable Mounting Depth | Casters | Leveling Feet | Cable Management HooksThe 4POSTRACK12U 12U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.
Designed with ease of use in mind, this 12U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.

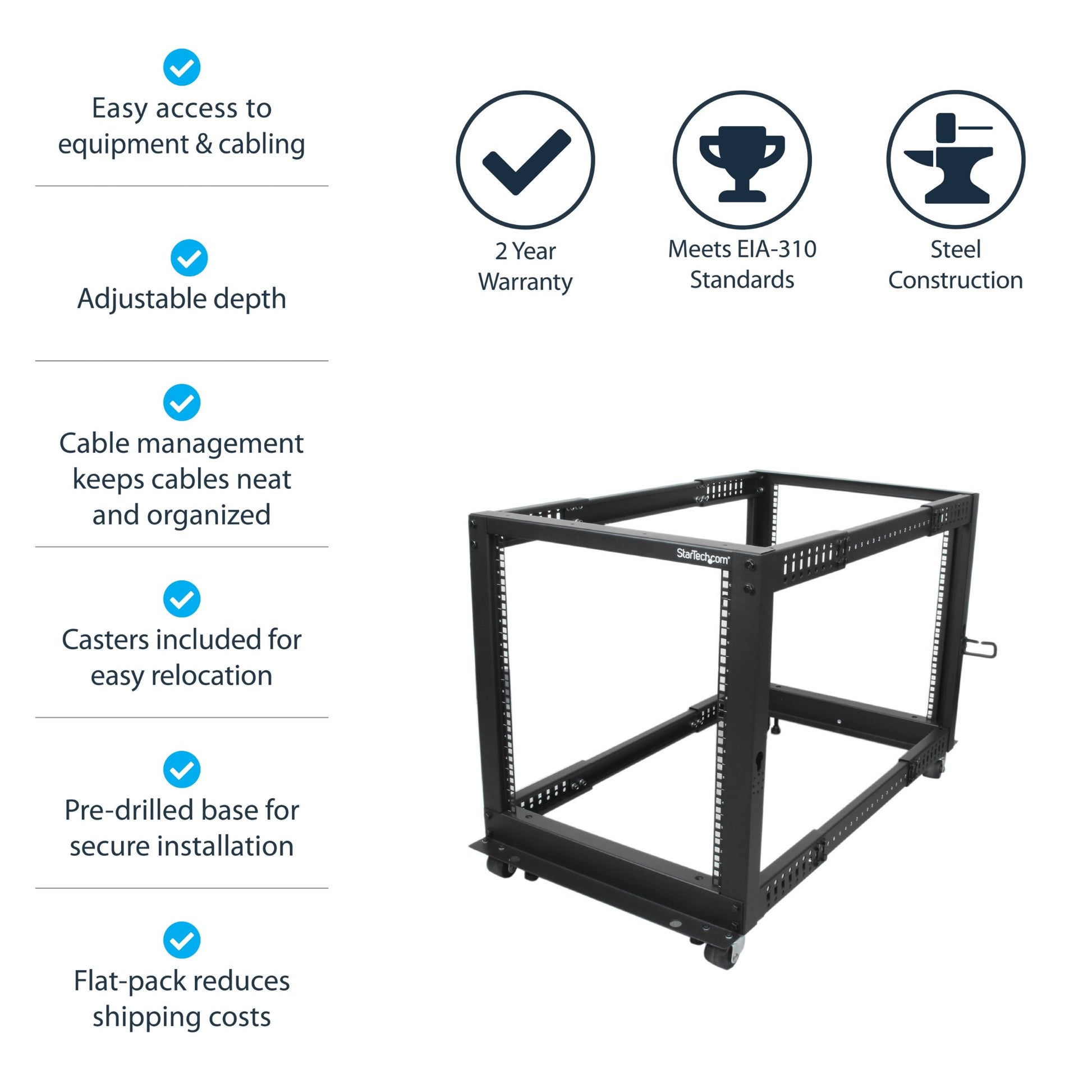

This durable 4-post rack supports a static loading capacity of up to 1200lbs (544kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 40494) for a universal design that's compatible with most rack equipment.

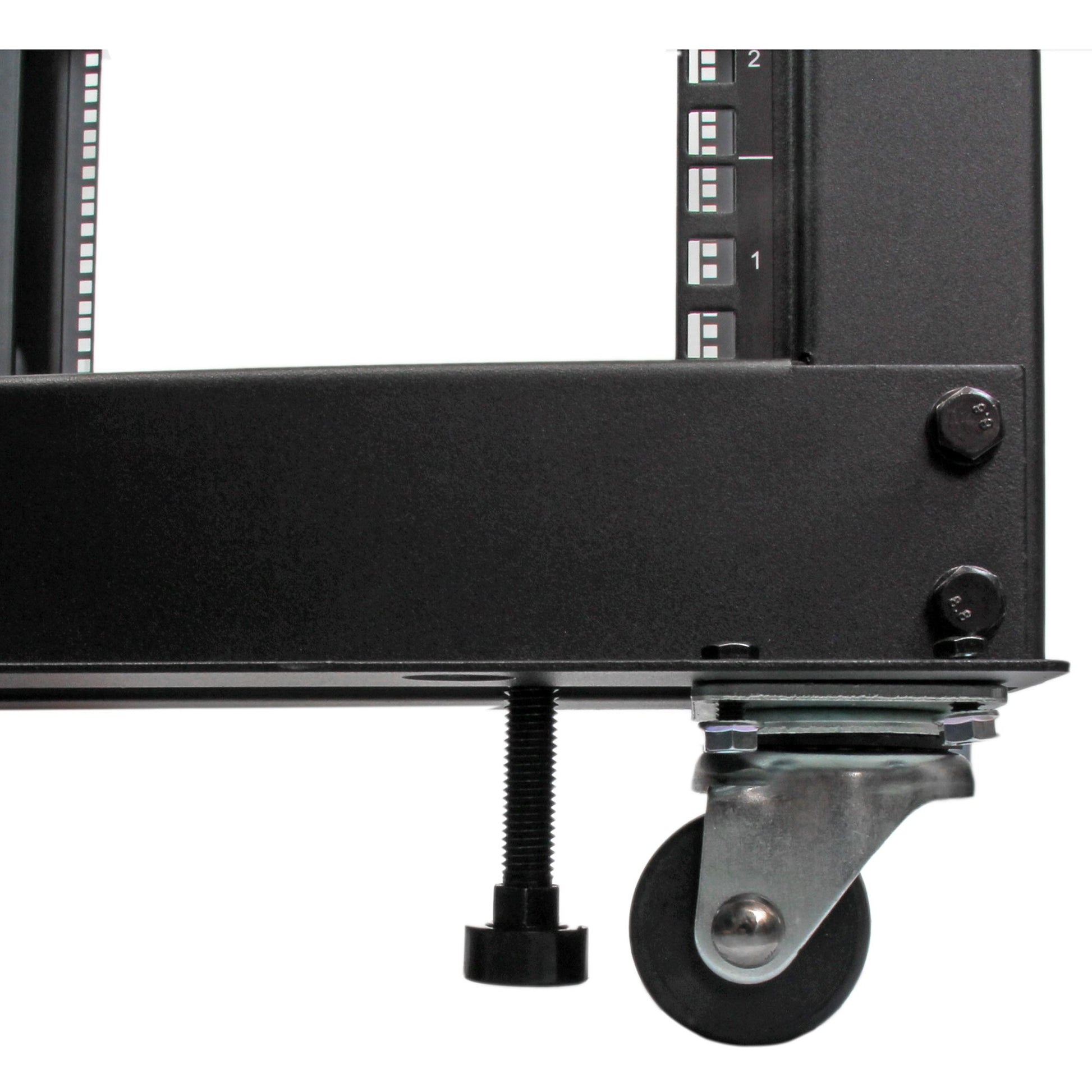

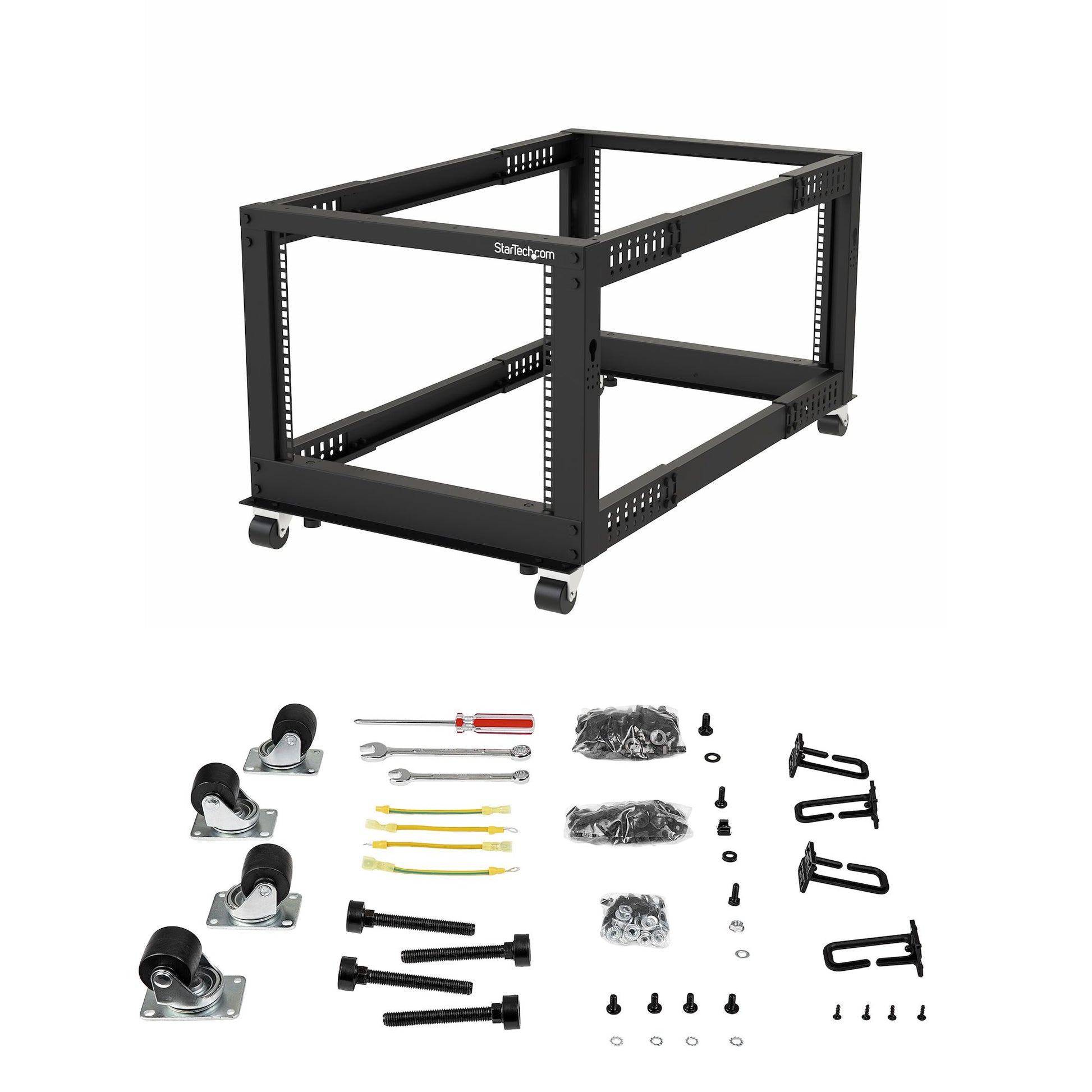

For a complete server storage solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability to better suit your server environment.
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 361 mm |
| Package width | 664 mm |
| Package height | 153 mm |
| Package weight | 26.3 kg |
| Mounting depth (max) | 100 cm |
| Mounting depth (min) | 56 cm |
| Width | 604 mm |
| Depth | 1000 mm |
| Height | 638 mm |
| Weight | 22.7 kg |
| Maximum weight capacity | 544 kg |

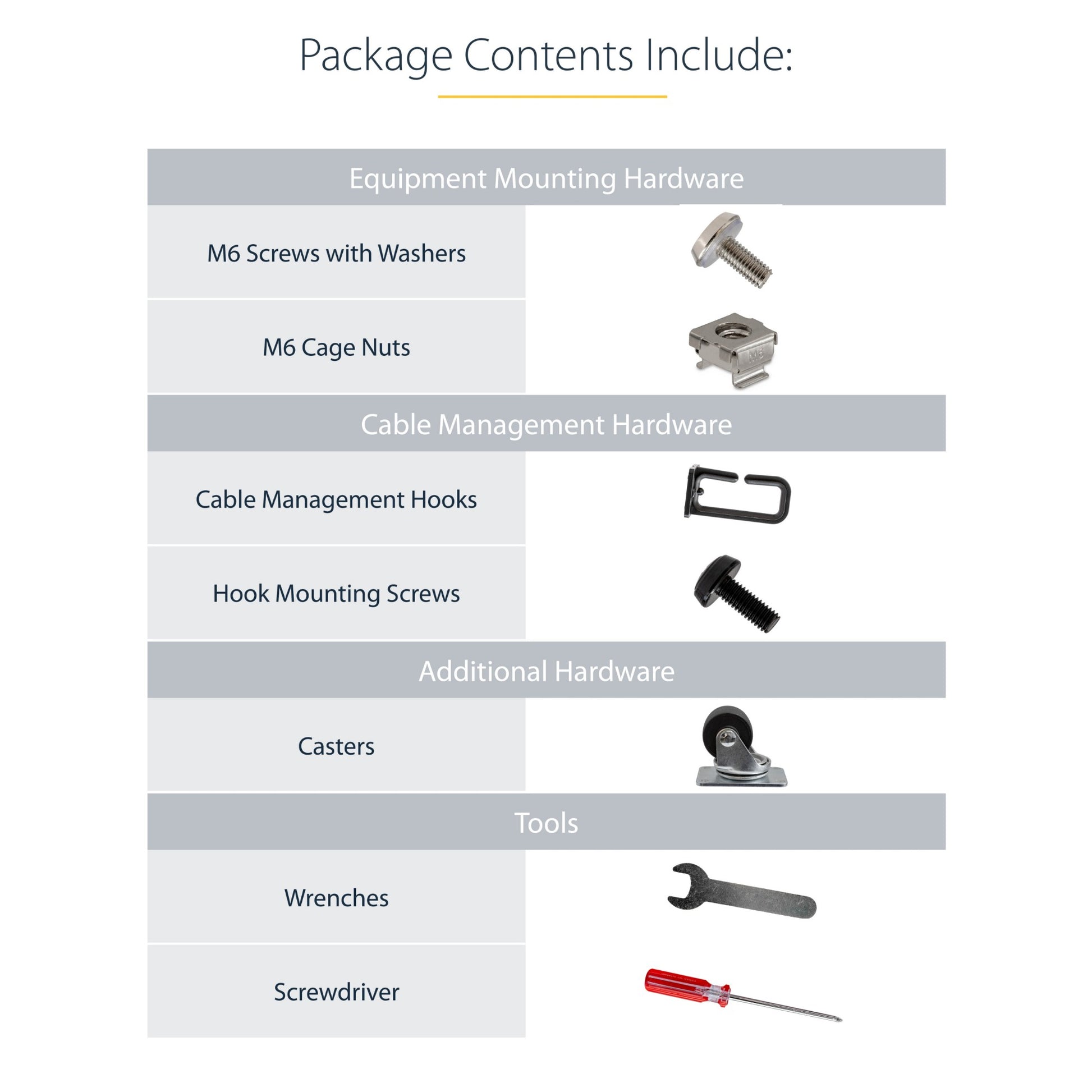

| Packaging content | |
| Nuts included | Yes |
| Number of nuts | 40 |
| Screws included | Yes |
| Number of screws | 44 |
| Number of bolts | 48 |
| Number of washers included | 88 |
| Number of grounding wires included | 4 |
| Number of leveling feets included | 4 pc(s) |
| Number of cable management hooks included | 4 pc(s) |
| Features | |
| Number of fans | 0 fan(s) |
| Frame type | Open |
| Product design | 4-post |
| Rack capacity | 12U |
| Castor wheels | Yes |
| Adjustable mounting rails | Yes |
| Cable management | Yes |
| Mounting hole shape | Square |
| Type | Freestanding rack |
| Material | Steel |
| Product colour | Black |
| Certification | CE |
| Technical details | |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 750 mm |
| Master (outer) case length | 1340 mm |
| Master (outer) case height | 485 mm |
| Products per master (outer) case | 12 pc(s) |
