StarTech.com 10m USB 2.0 Active Extension Cable - M/F - TAA

Make the connection with the StarTech.com 10m — length and connector details are in the spec table.

Extend the distance between a computer and a USB 2.0 device by 10 meters

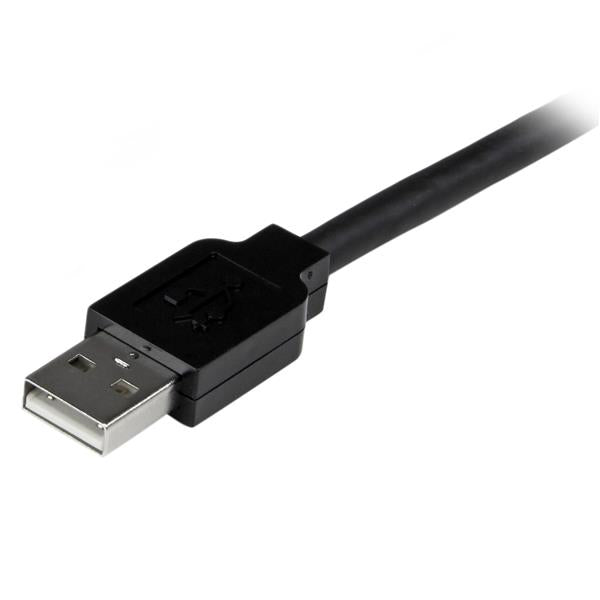

The USB2AAEXT10M 10m Active USB 2.0 Extension Cable offers one USB-A male connector and one USB-A female connector, and provides an active extension of USB 2.0 devices of up to 10-meters (30-feet).

An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables.

Up to 4 of these cables can be daisy-chained together, allowing for a total USB extension of up to 40-meters. If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter (provided with the cable).

The USB2AAEXT10M repeater cable supports the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.

Specifications

Features
Connector gender	Male/Female
USB version	USB 2.0
Connector 1	USB A
Connector 2	USB A
Cable length	10 m
Connector contacts plating	Nickel
Maximum data transfer rate	480 Mbit/s
Product colour	Black
Connector 1 gender	Male
Connector 2 gender	Female
Cable jacket material	Polyvinyl chloride (PVC)
Weight	500 g
Quantity per pack	1 pc(s)
Weight & dimensions
Package width	191 mm
Package depth	159 mm
Package height	115 mm
Package weight	677 g
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	8 pc(s)
Master (outer) case width	482 mm
Master (outer) case length	346 mm
Master (outer) case height	244 mm

Downloads

• Datasheet (PDF)
