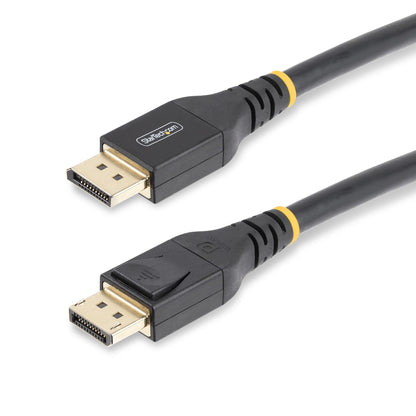

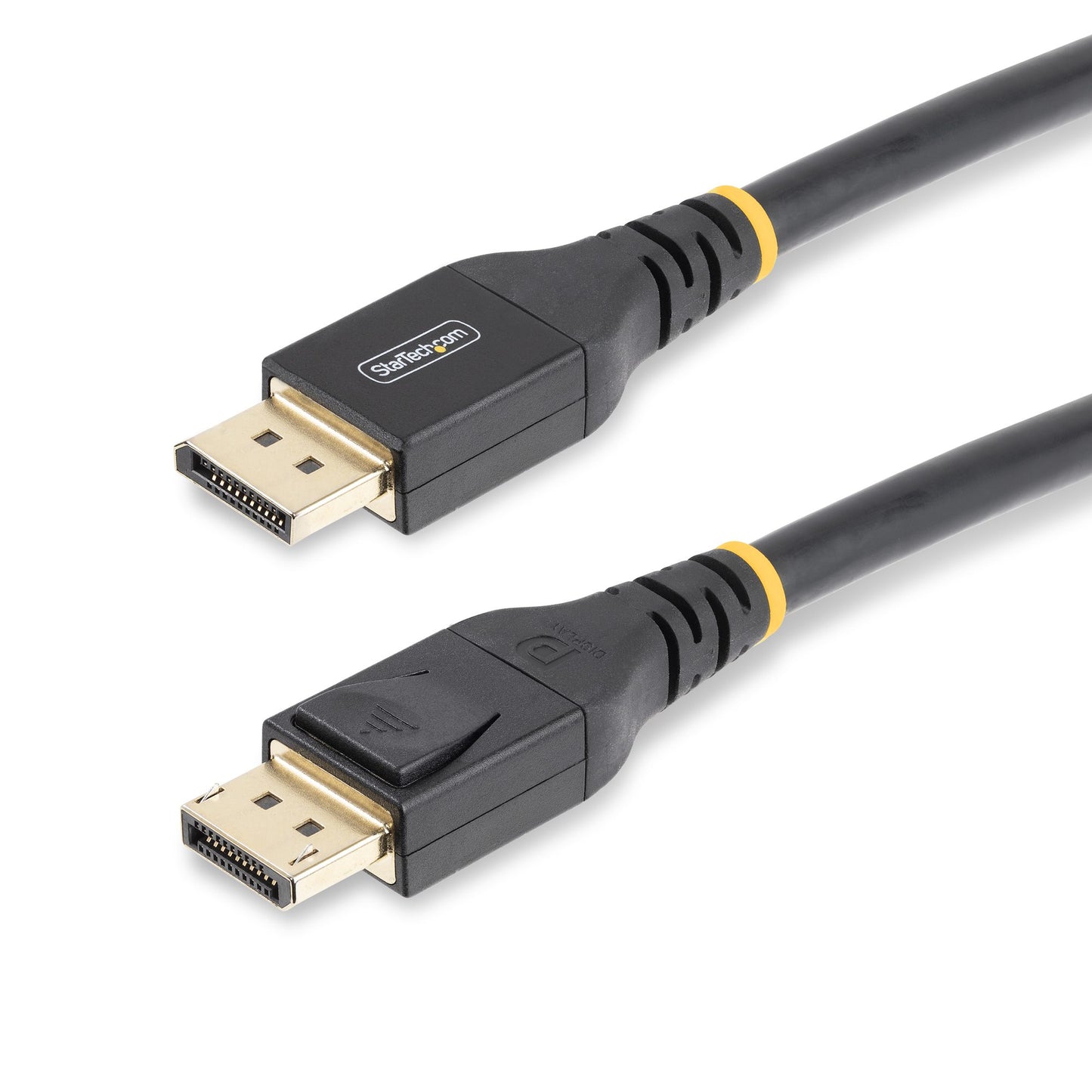

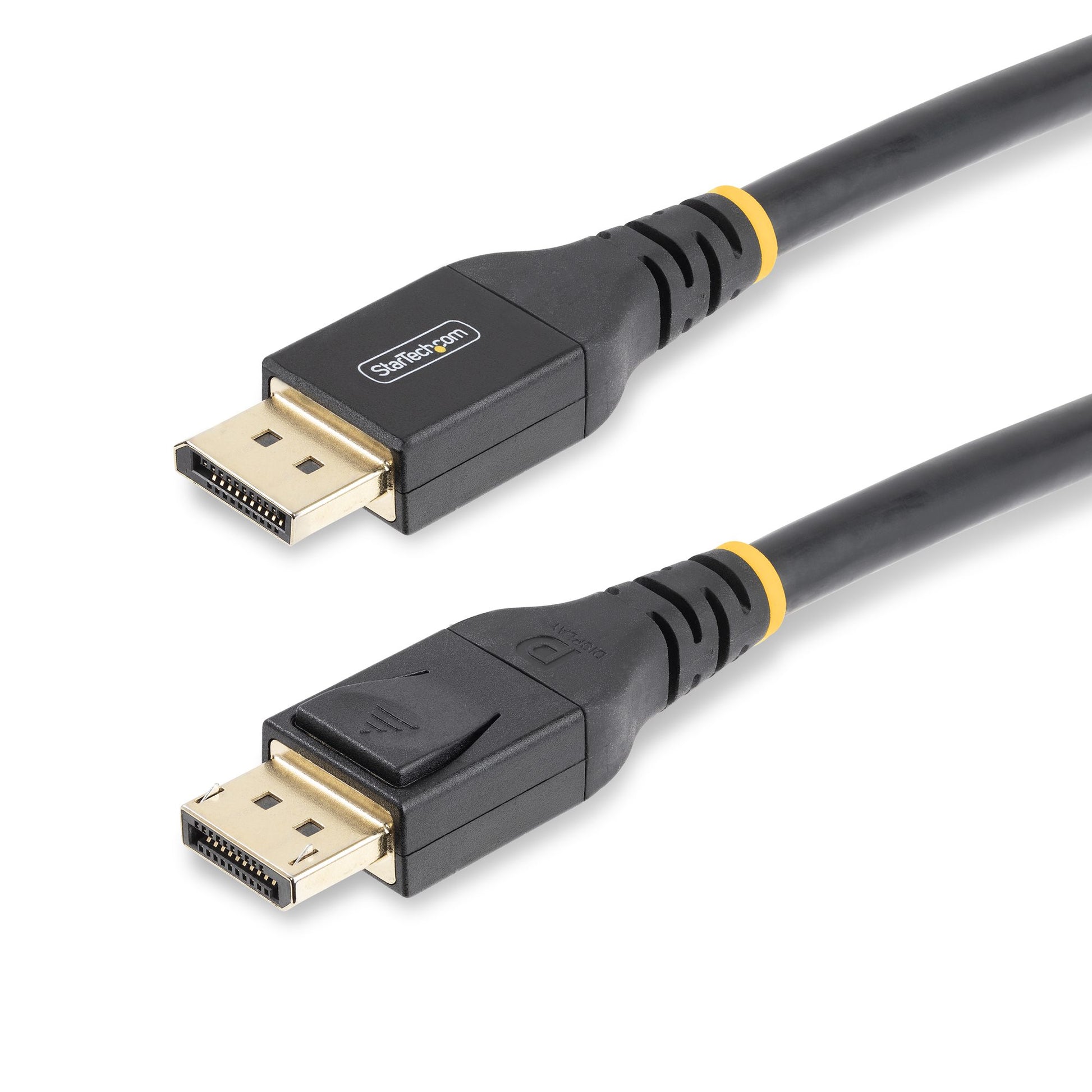

StarTech.com 10m (33ft) Active DisplayPort 1.4 Cable, DP8K DisplayPort Cable w/HBR3

Make the connection with the StarTech.com 10m (33ft) Active DisplayPort — length and connector details are in the spec table.

Facilitate a longer 8K connection without requiring an external power source

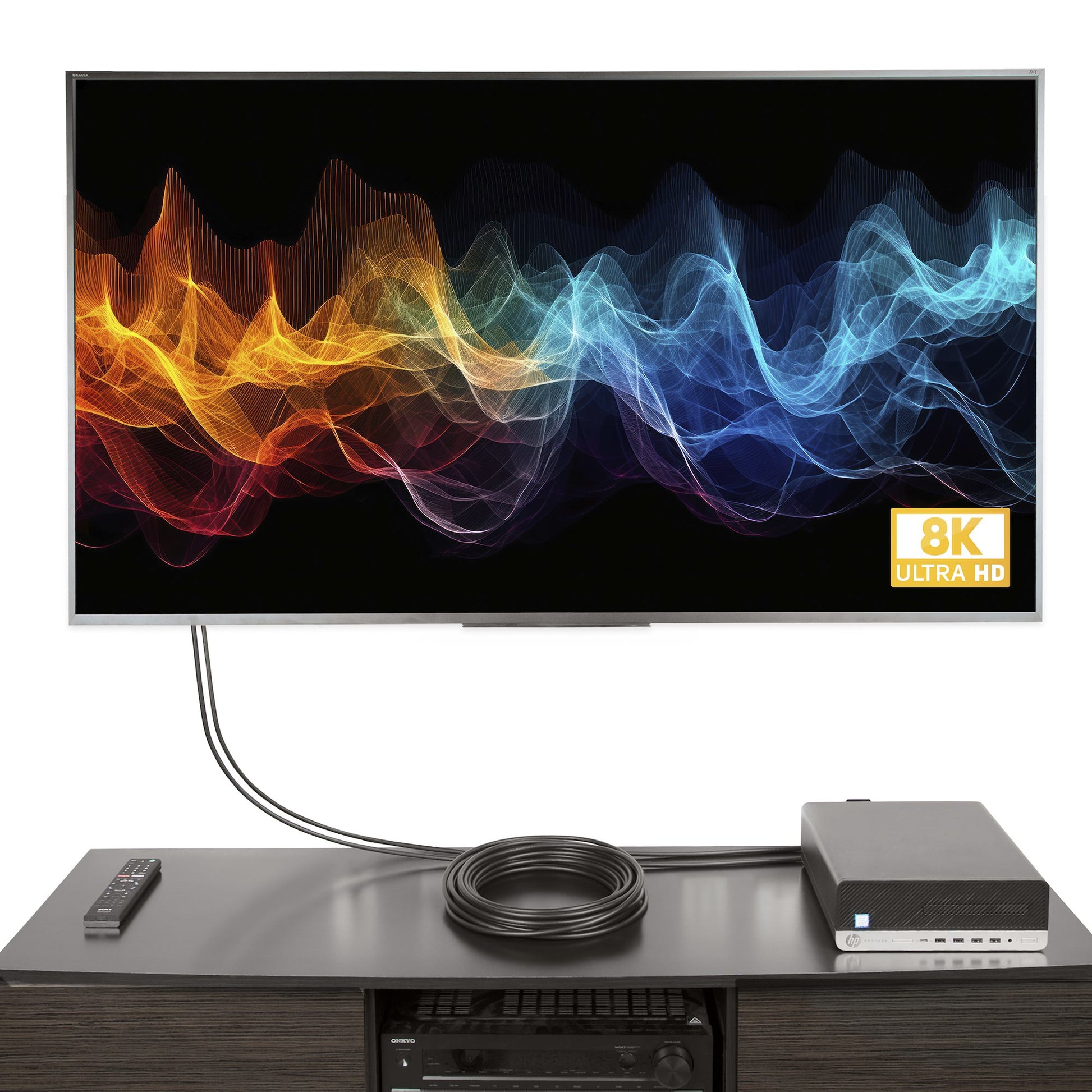

Connect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this Active DisplayPort 1.4 Cable. The active signal booster ensures reliable audio and 8K video output at up to 32.8ft (10m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.

Durable Design

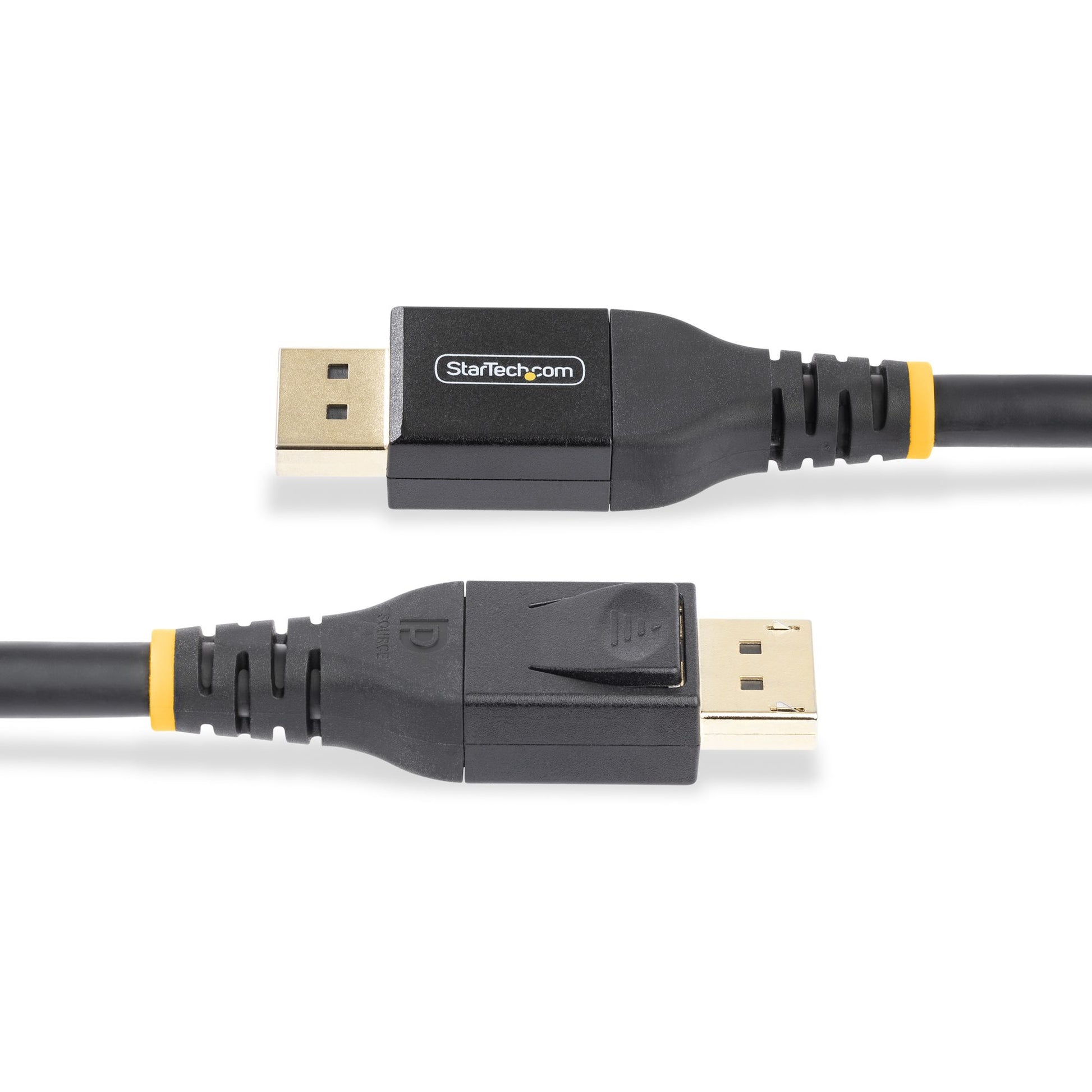

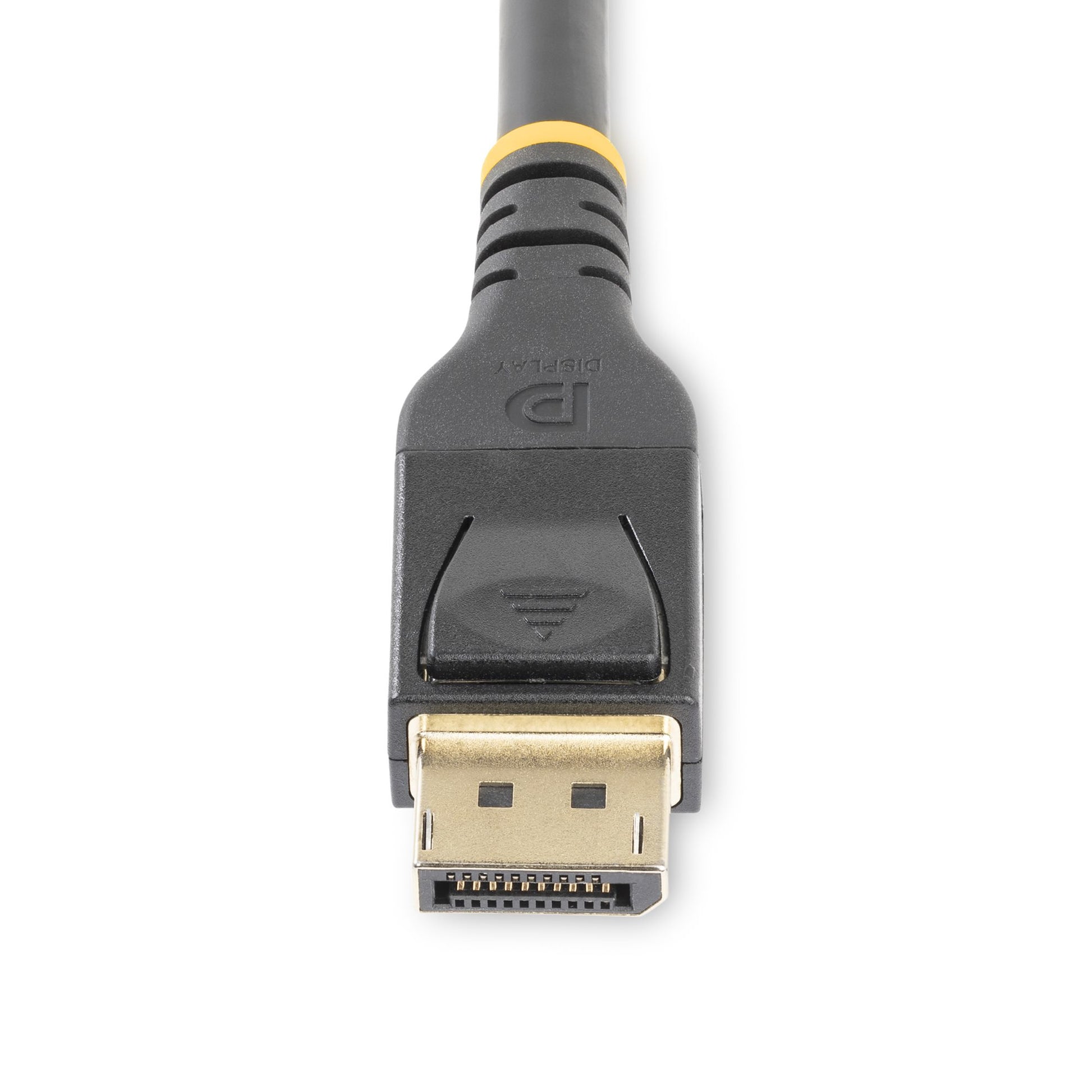

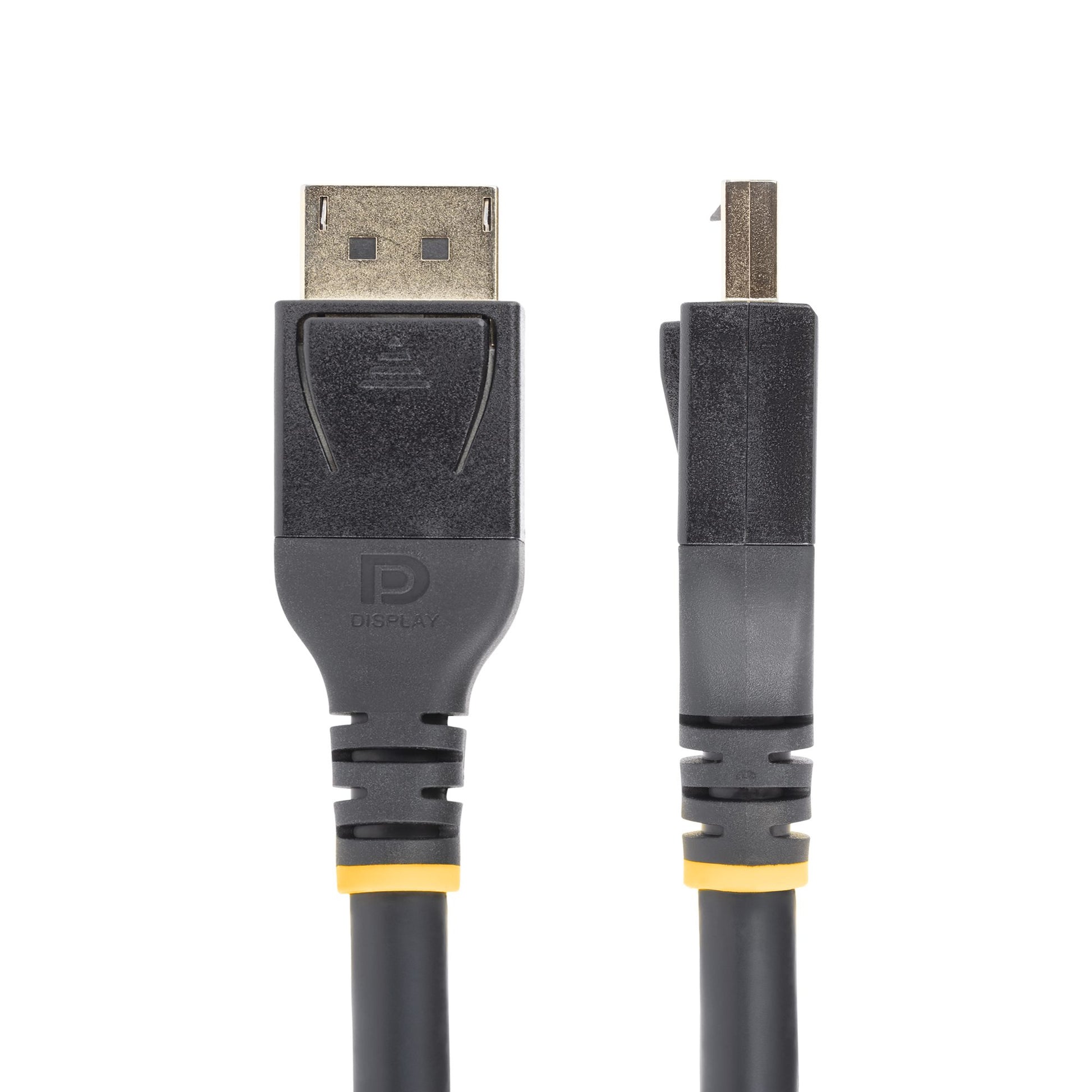

This long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.

Supported DisplayPort 1.4 Features:

This 8K DisplayPort cable supports all DP 1.4 features:

• Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display
• HDCP 2.2 support
• High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps
• High Dynamic Range 10 (HDR10)
• Display Stream Compression 1.2 (DSC 1.2)

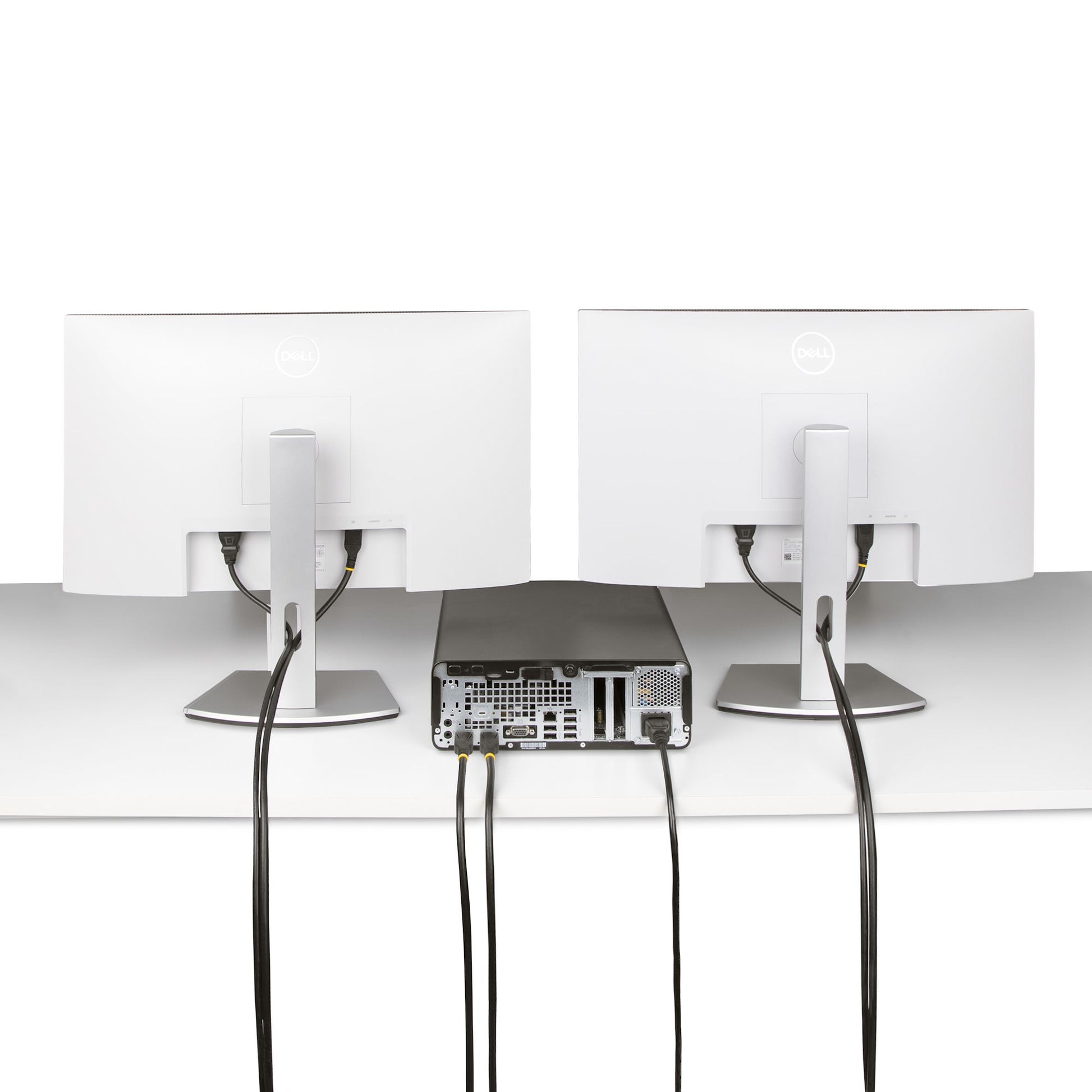

• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versions

The Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.

Specifications

Features
Cable shielding	Aluminum mylar foil
Product colour	Black

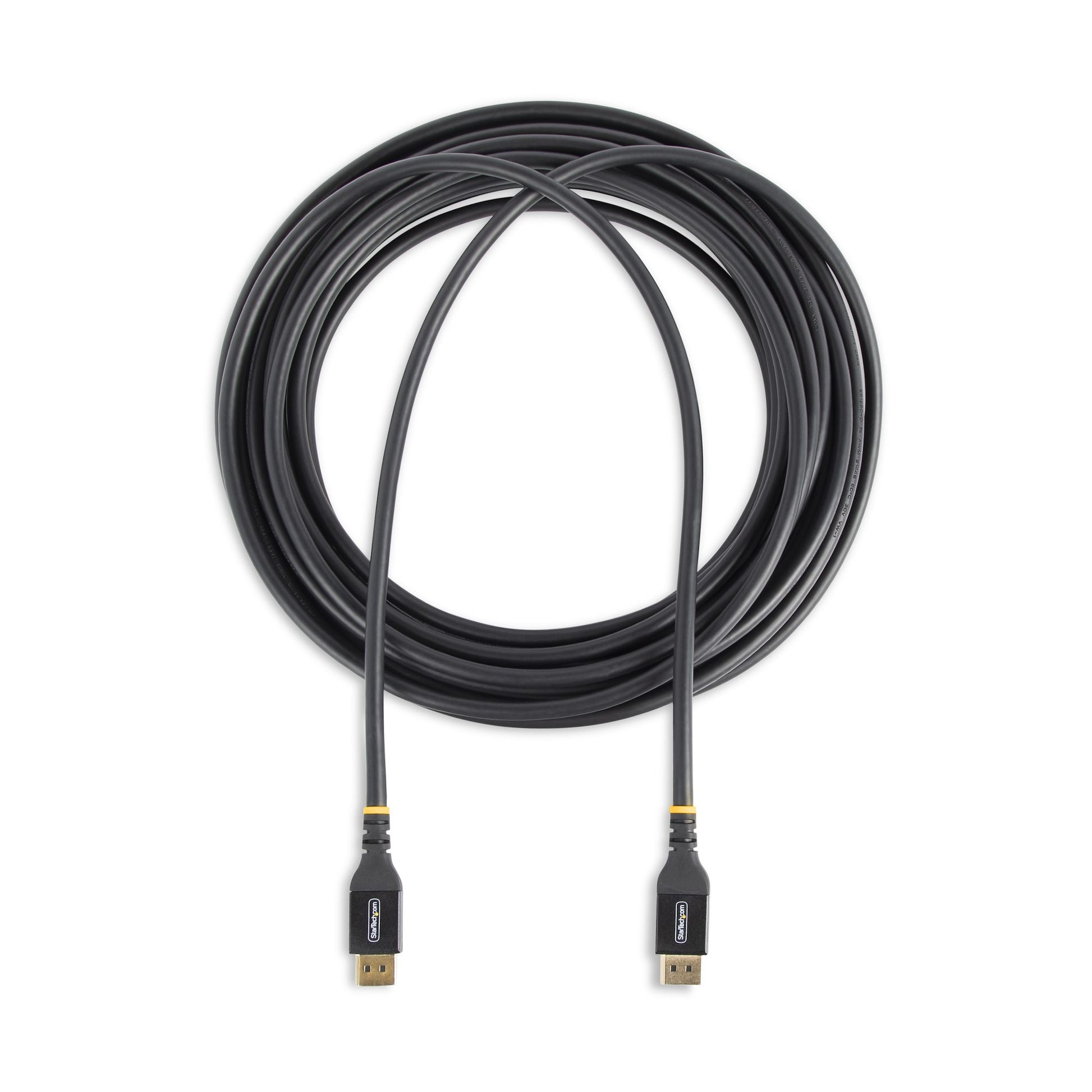

Cable length	10 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Cable material	Copper
Jacket material	Thermoplastic elastomer (TPE)
AWG wire size	24/28
DisplayPort version	1.4
Data transfer rate	25.92 Gbit/s
Bandwidth	32400 MB/s
Maximum resolution	7680 x 4320 pixels
Supported graphics resolutions	3840 x 2160, 7680 x 4320
HDCP	Yes
Maximum refresh rate	144 Hz
Fire-resistance rating	VW-1
Multi-Stream Transport (MST)	Yes
HBR3 support	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDCP version	2.2
Display Stream Compression (DSC)	Yes
Display Stream Compression (DSC) version	1.2
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Certificates
Compliance certificates	RoHS
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Cable diameter	7.5 mm
Package weight	700 g
Package width	249 mm
Package depth	208 mm
Package height	54 mm
Logistics data
Products per master (outer) case	16 pc(s)
Master (outer) case width	437 mm
Master (outer) case length	392 mm
Master (outer) case height	300 mm
