StarTech.com 10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, Standalone Networking

The StarTech.com 10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, Standalone is a dependable addition to any modern network installation.

Connect a high-speed copper (10GBASE-T) network to a fiber (10GBASE-R) network using a 10GbE SFP+ transceiver.

Flexible, High-Speed Copper-to-Fiber Conversion

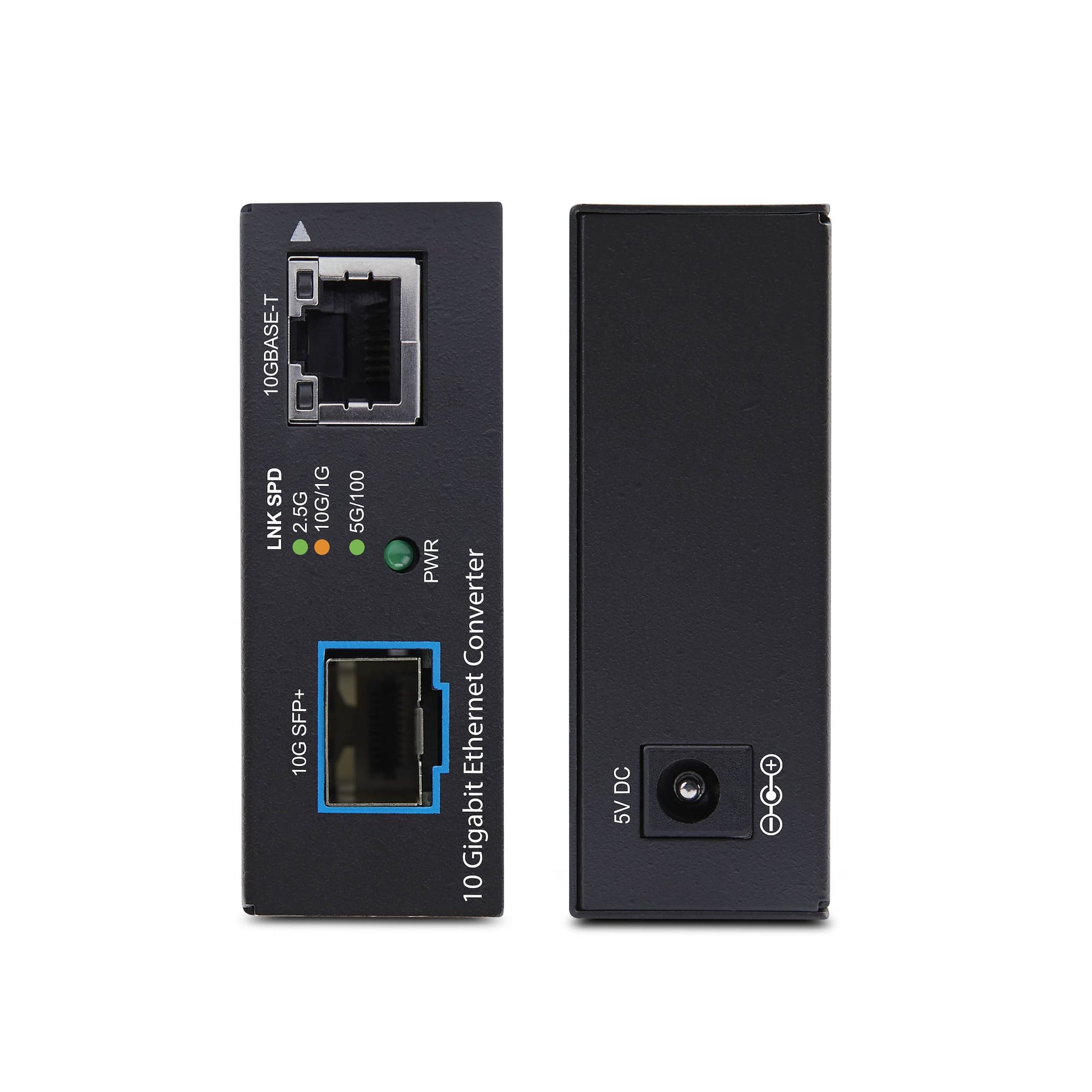

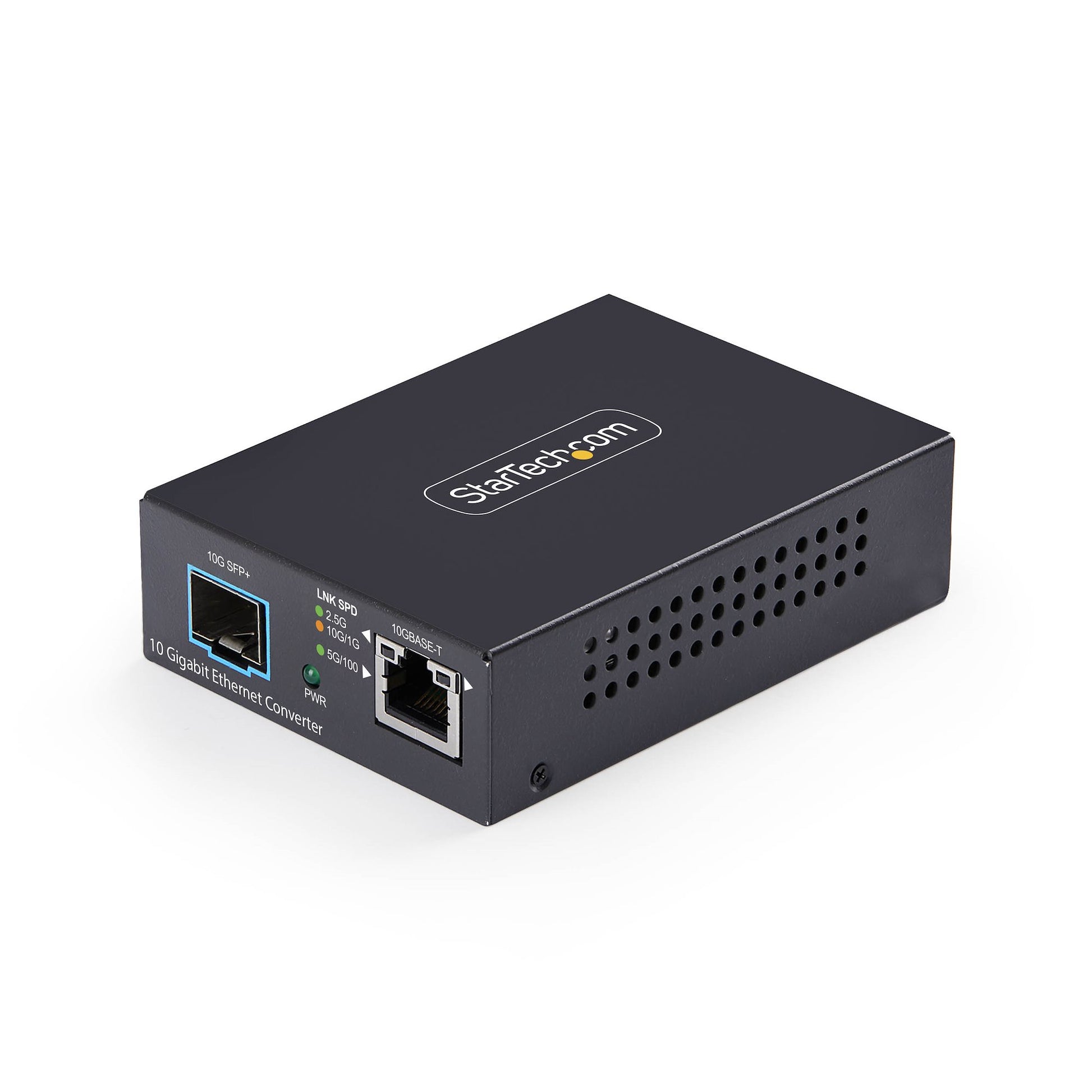

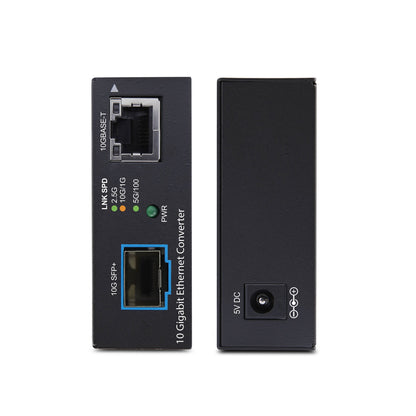

This compact 10G media converter enables seamless copper-to-fiber conversion for network upgrades or long-distance extension. Featuring an open SFP+ slot, it converts 100M to - 10GBASE-T RJ-45 to 10G fiber and supports both multi-mode and single-mode transceivers (10GBASE-SR/LR) for flexible deployment across enterprise and telecom environments.

Versatile Mounting and Deployment

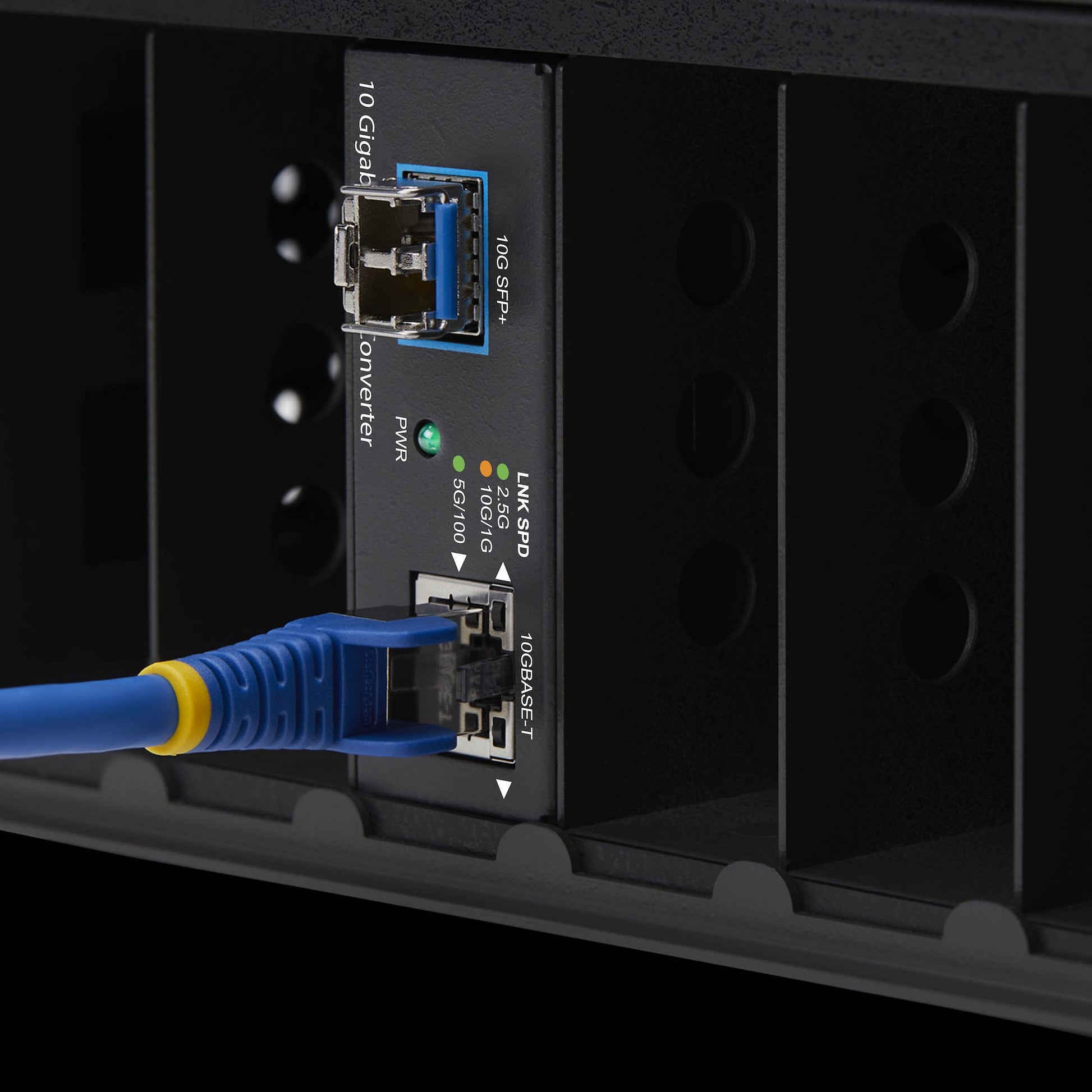

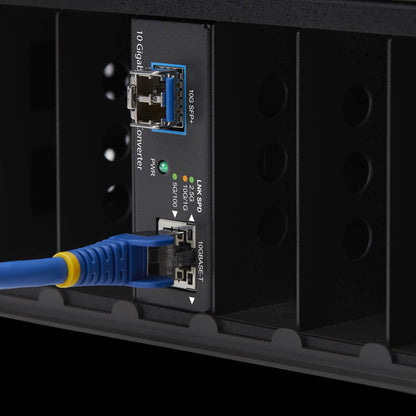

Ideal for structured wiring closets, server rooms, or remote network upgrades, the converter supports wall-mount, DIN rail, and chassis installations. It can operate as a standalone device or integrate into a media converter chassis system.

Optimized for Mixed-Speed Networks

Built for maximum compatibility, the converter supports IEEE 802.3 standards, 16K Jumbo Frames, auto MDI/MDI-X, and full-duplex flow control. With plug-and-play setup and reliable diagnostics, it ensures consistent performance across legacy and high-speed links.

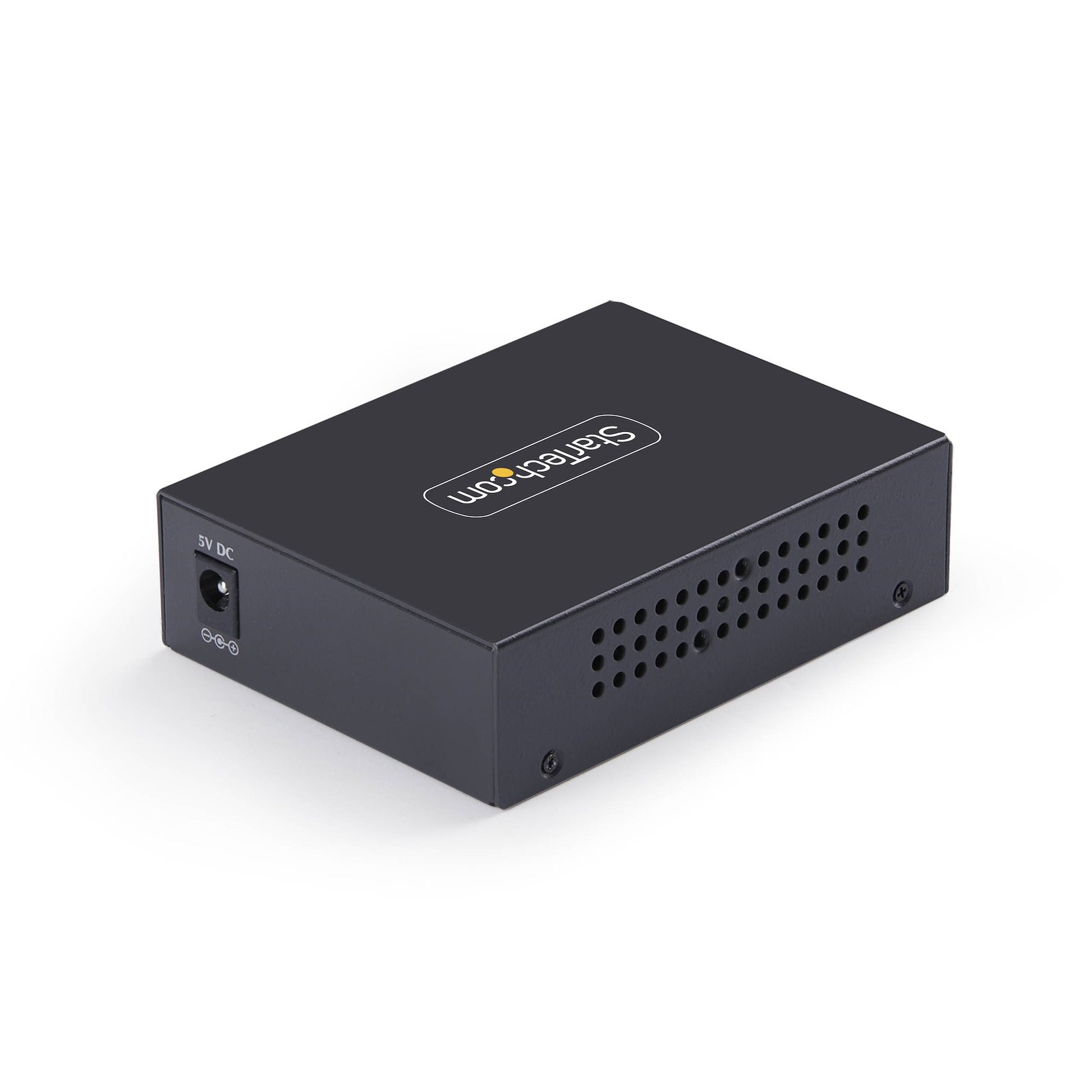

Efficient, Compact Design

With low 3.75W (typical) power consumption via 5V DC input, this power-efficient converter operates in environments ranging from 0°C to 50°C. It avoids PoE-related conflicts and is ideal for compact, power-sensitive deployments.

Specifications

Network
Jumbo frames support	Yes
Flow control support	Yes
Auto-negotiation	Yes
Jumbo frames	16000
Converter input interface	10GBase-T
Networking standards	IEEE 802.3
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
Ethernet interface type	2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Duplex system	Full
Converter output interface	10GBase-X
Auto MDI/MDI-X	Yes
Maximum data transfer rate	10000 Mbit/s
Fiber optic connector	SFP+
Performance
Fiber mode structure	Multi-mode, Single-mode
Plug and Play	Yes
Features
Housing material	Metal
LED indicators	Link, Power
Product colour	Black
Internal	No
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Power
Input voltage	100 - 240 V
Input current	0.4 A
Output voltage	5 V
Output current	2 A
Power consumption (typical)	3.75 W
External power adapter	Yes
Weight & dimensions
Width	94 mm
Depth	70 mm
Height	26 mm
Package depth	94 mm
Package width	70 mm
Package height	26 mm
Package weight	500 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Packaging content

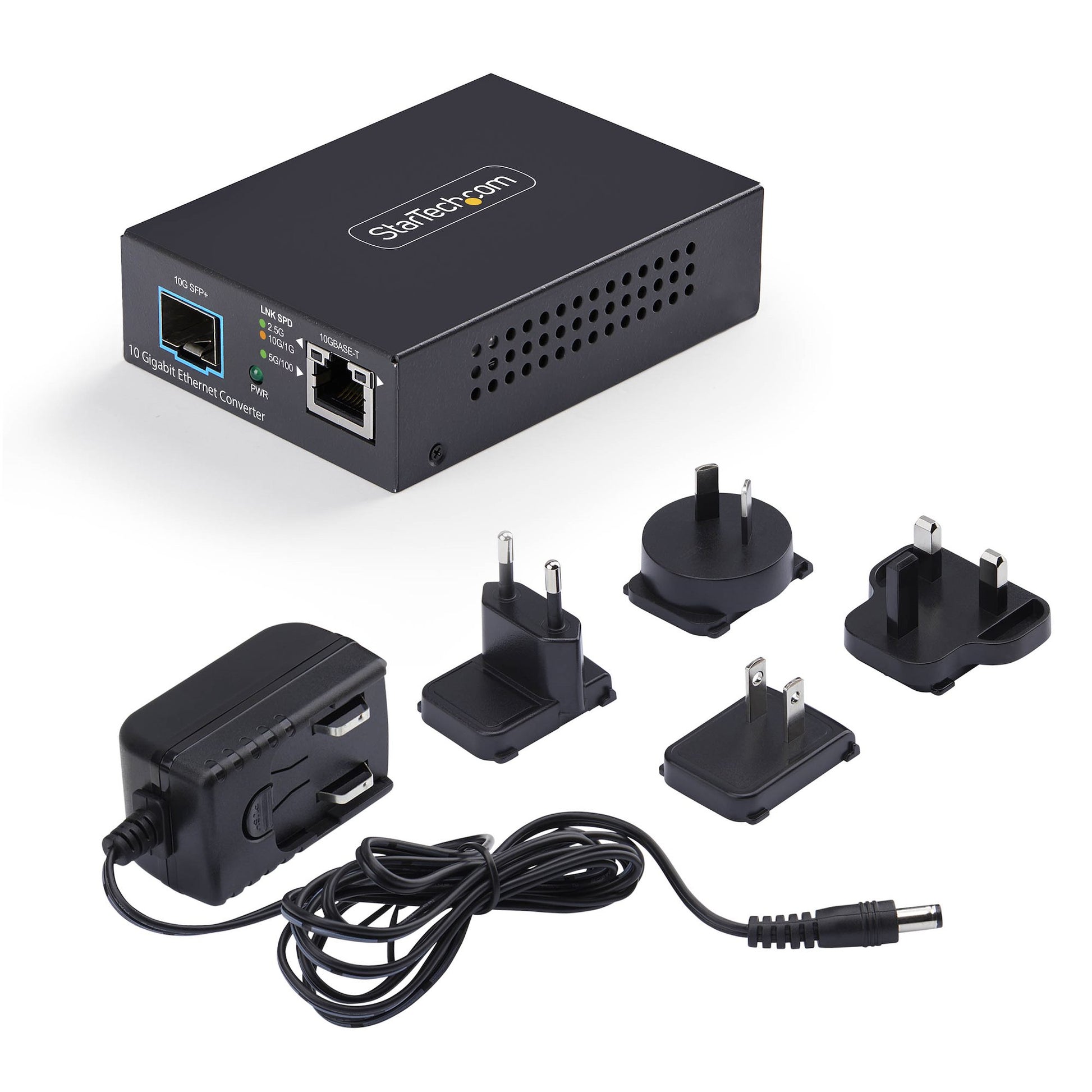

AC adapter included	Yes
User guide	Yes
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Logistics data
Master (outer) case width	133 mm
Master (outer) case length	281 mm
Master (outer) case height	66 mm
Products per master (outer) case	20 pc(s)
