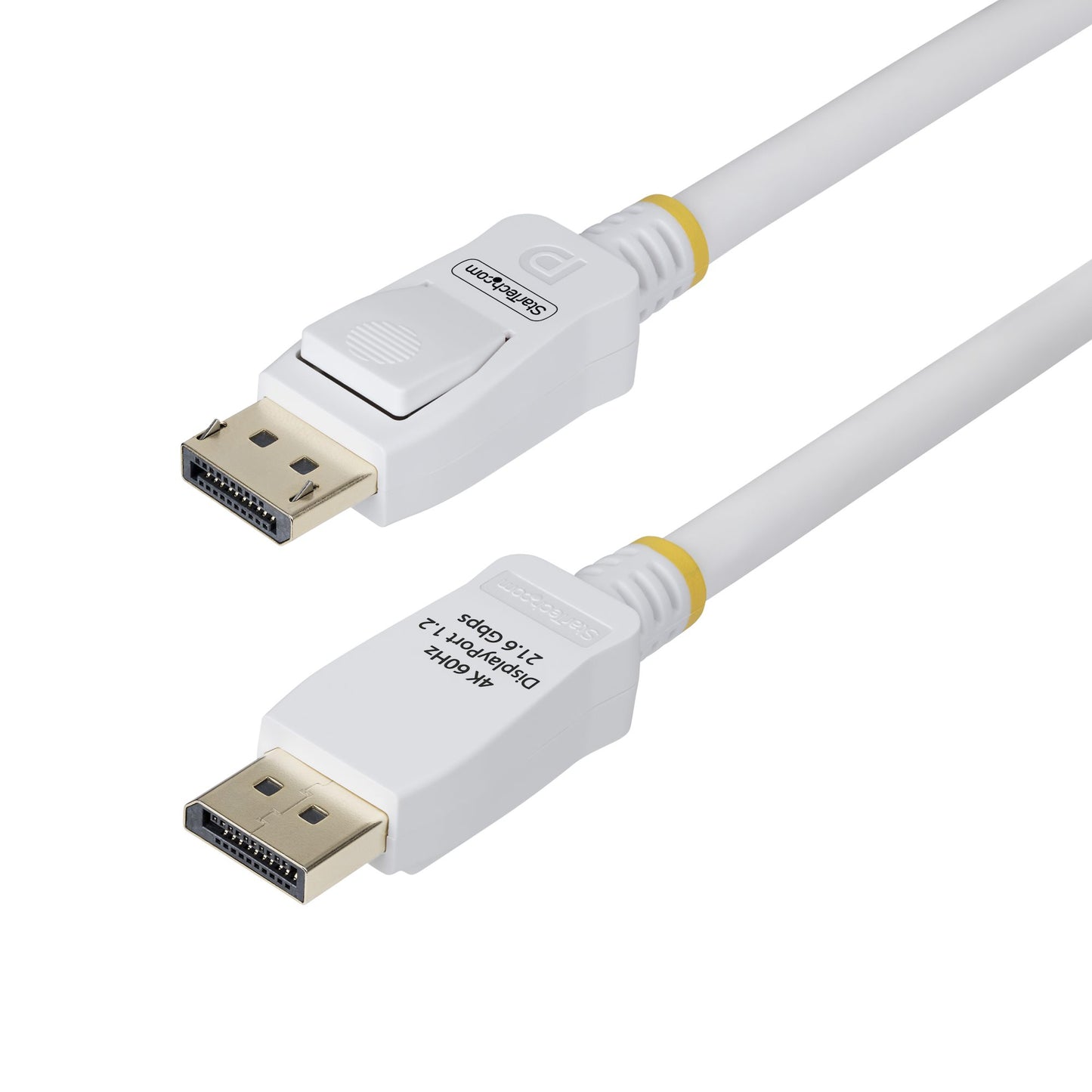

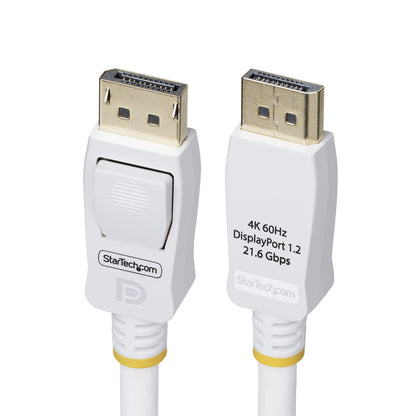

StarTech.com 10ft (3m) White VESA Certified DisplayPort 1.2 Cable, 4K 60Hz

Make the connection with the StarTech.com 10ft (3m) White VESA — length and connector details are in the spec table.

Enable seamless 4K 60Hz video using this VESA-Certified DP 1.2 Cable

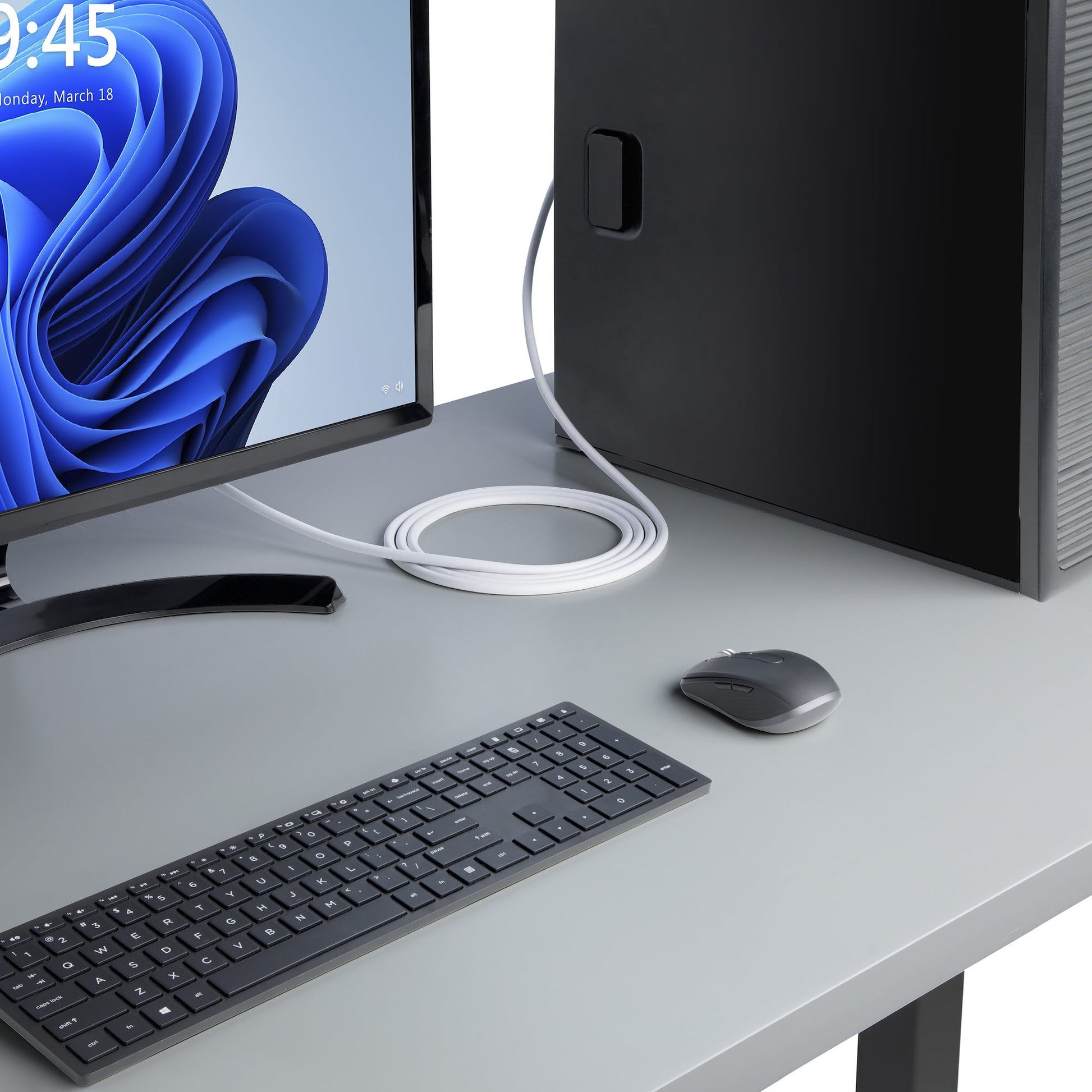

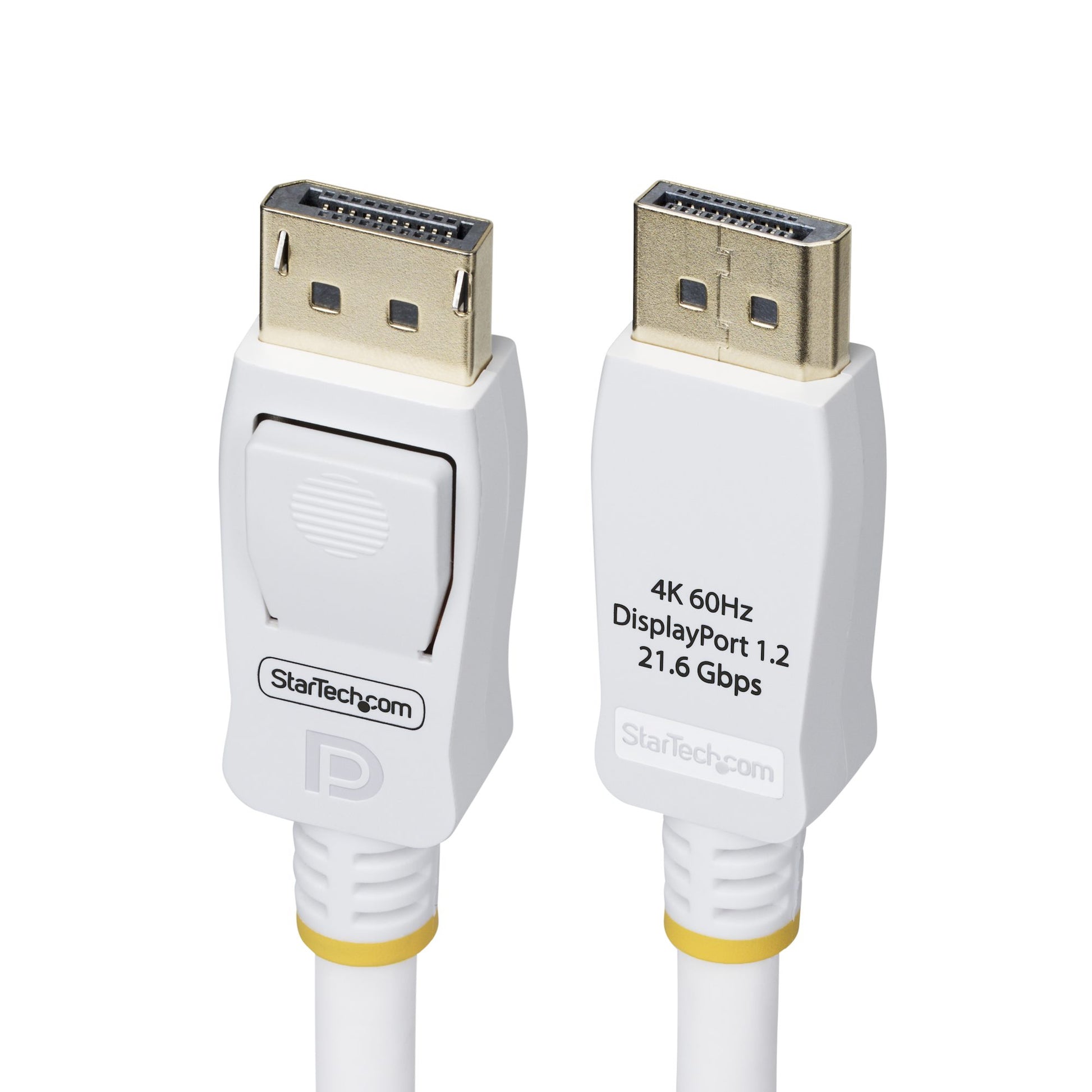

Connect a 4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 1.2 Cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked DP cables. Eliminate guesswork and always choose the appropriate cable to support full DP 1.2 capabilities.

Seamless Compatibility

For seamless operation between DisplayPort-enabled devices, the DisplayPort 1.2 Cable is VESA Certified for guaranteed DP 1.2 and backward compatibility. Certified cables provide consistent, reliable performance across multiple resolutions and refresh rates.

Durable Design

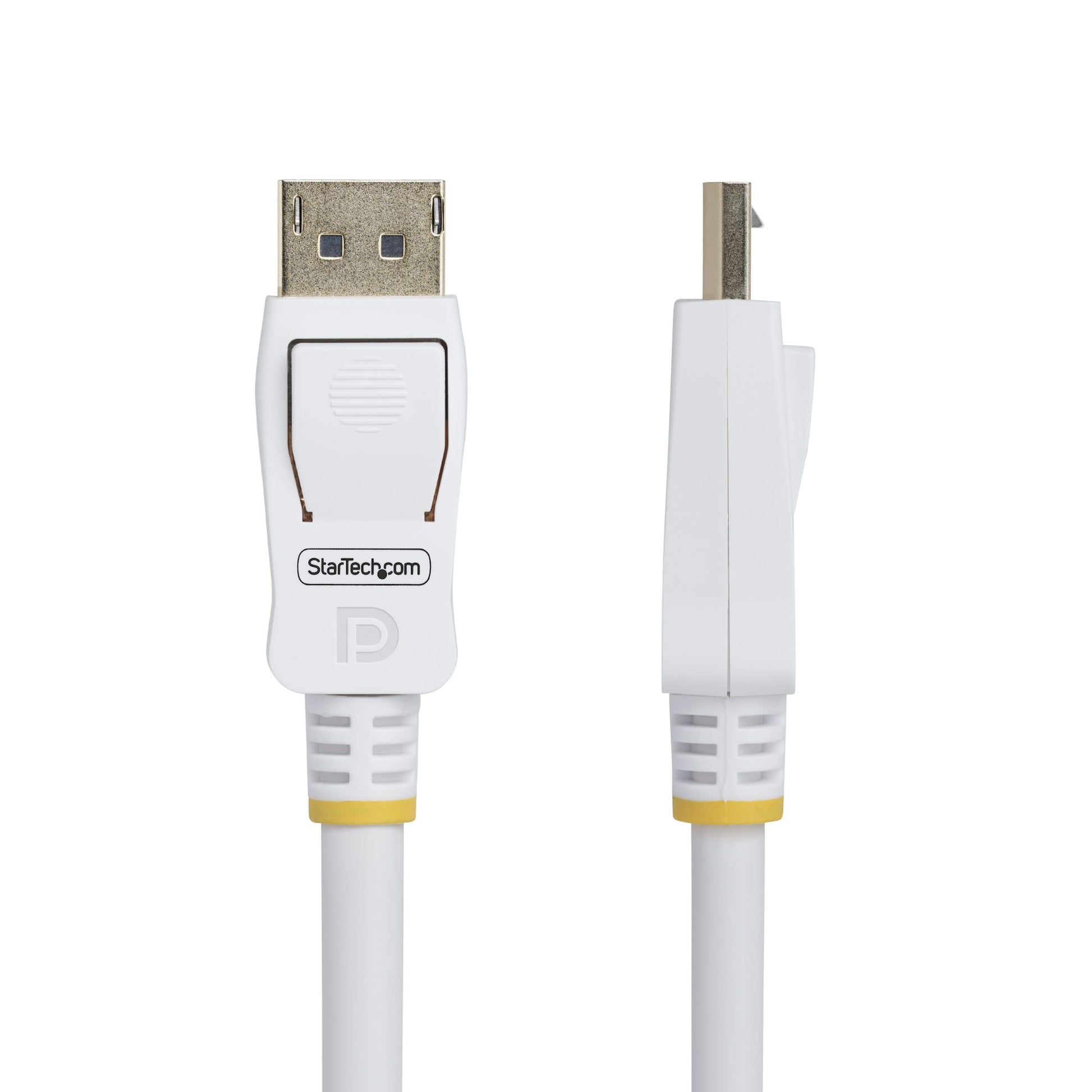

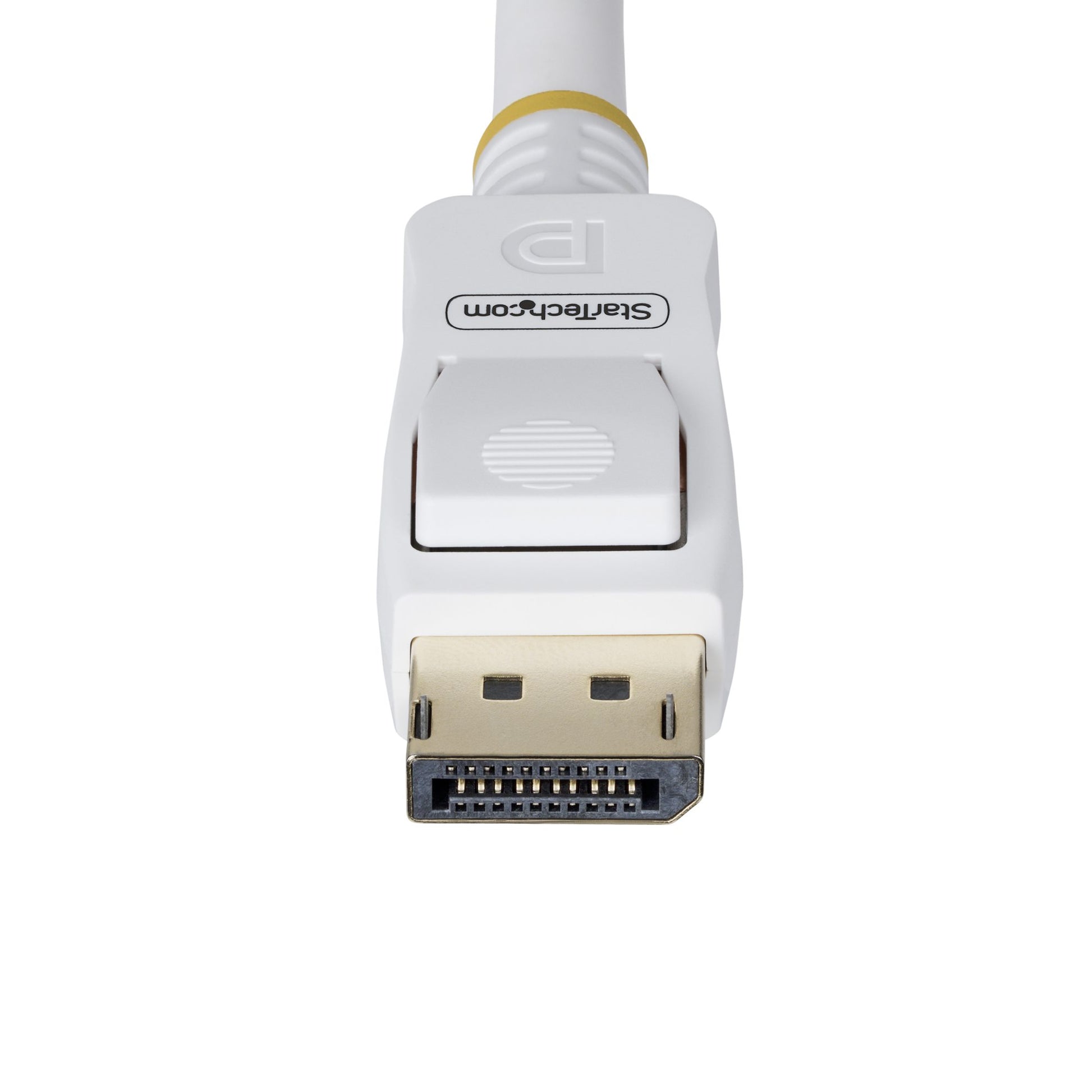

This DisplayPort cable features a flexible TPE outer jacket that routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection.

Supported DisplayPort 1.2 Features:

This DisplayPort cable supports full DP 1.2 features:

• Resolutions up to 4K 60Hz using a compatible DP source and display
• 21.6Gbps bandwidth supports high refresh rates including 1440p 144Hz and 1080p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 1.3 for a secure connection between source and display
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• Up to 8 Uncompressed Digital Audio Channels
• 3D Stereo support for 3D video formats
• Backward compatible with previous DP versions

This DP 1.2 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.

Specifications

Features
Cable shielding	Aluminum mylar foil
Latching connectors	Yes
Number of conductors	19
Product colour	White
Cable length	3 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Nickel
AWG wire size	28
DisplayPort version	1.2
Data transfer rate	21.6 Gbit/s
Maximum resolution	4096 x 2160 pixels
Supported graphics resolutions	2560 x 1440, 4096 x 2160, 1920 x 1080 (HD 1080)
Supported video modes	1080p, 1440p, 2160p
HDCP	Yes
Maximum refresh rate	240 Hz
Fire-resistance rating	VW-1
Multi-Stream Transport (MST)	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDCP version	1.3
Channels quantity	7.1 channels
Cable type	Round cable
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 85%
Weight & dimensions
Cable diameter	7.5 mm
Weight	192 g
Package weight	200 g
Package width	200 mm
Package depth	220 mm
Package height	20 mm
Logistics data
Products per master (outer) case	30 pc(s)
Master (outer) case width	320 mm
Master (outer) case length	500 mm
Master (outer) case height	190 mm

Downloads

• Datasheet (PDF)
