StarTech.com 10ft (3m) Mini DisplayPort to DisplayPort 1.4 Cable - 8K 60Hz/4K 120Hz

Make the connection with the StarTech.com 10ft (3m) Mini DisplayPort — length and connector details are in the spec table.

Create high-resolution 8K connections with HBR3 support between your Mini DisplayPort and DisplayPort devices

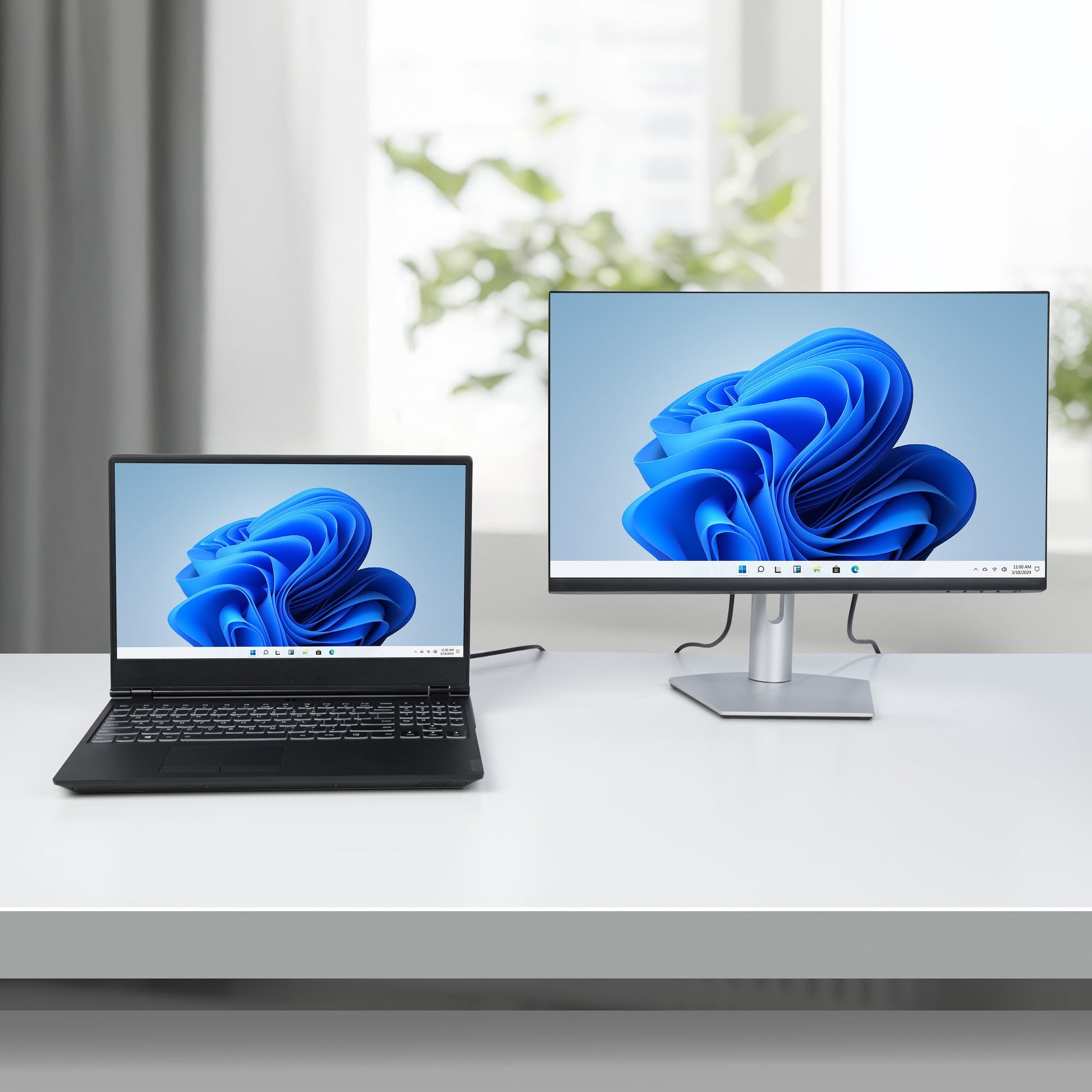

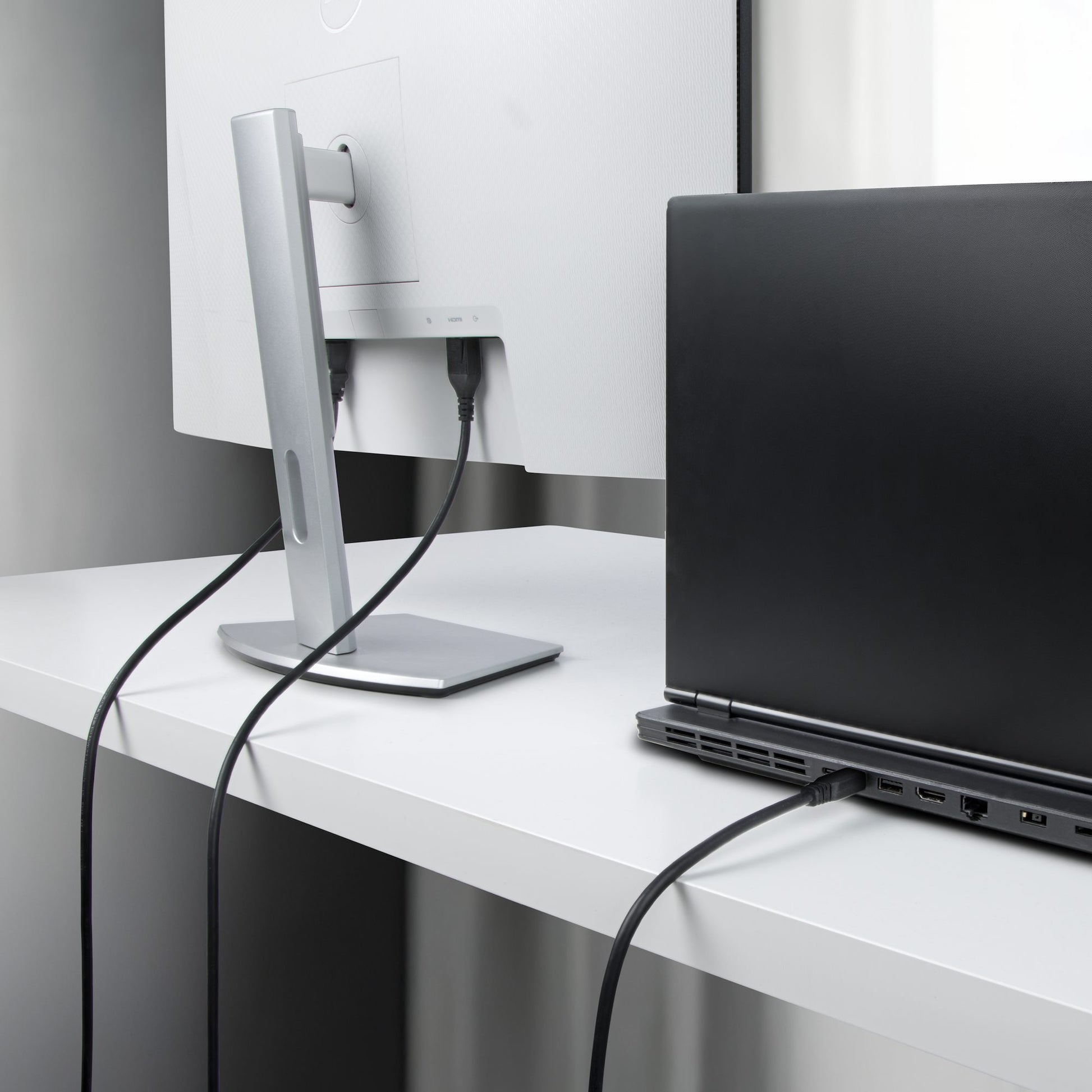

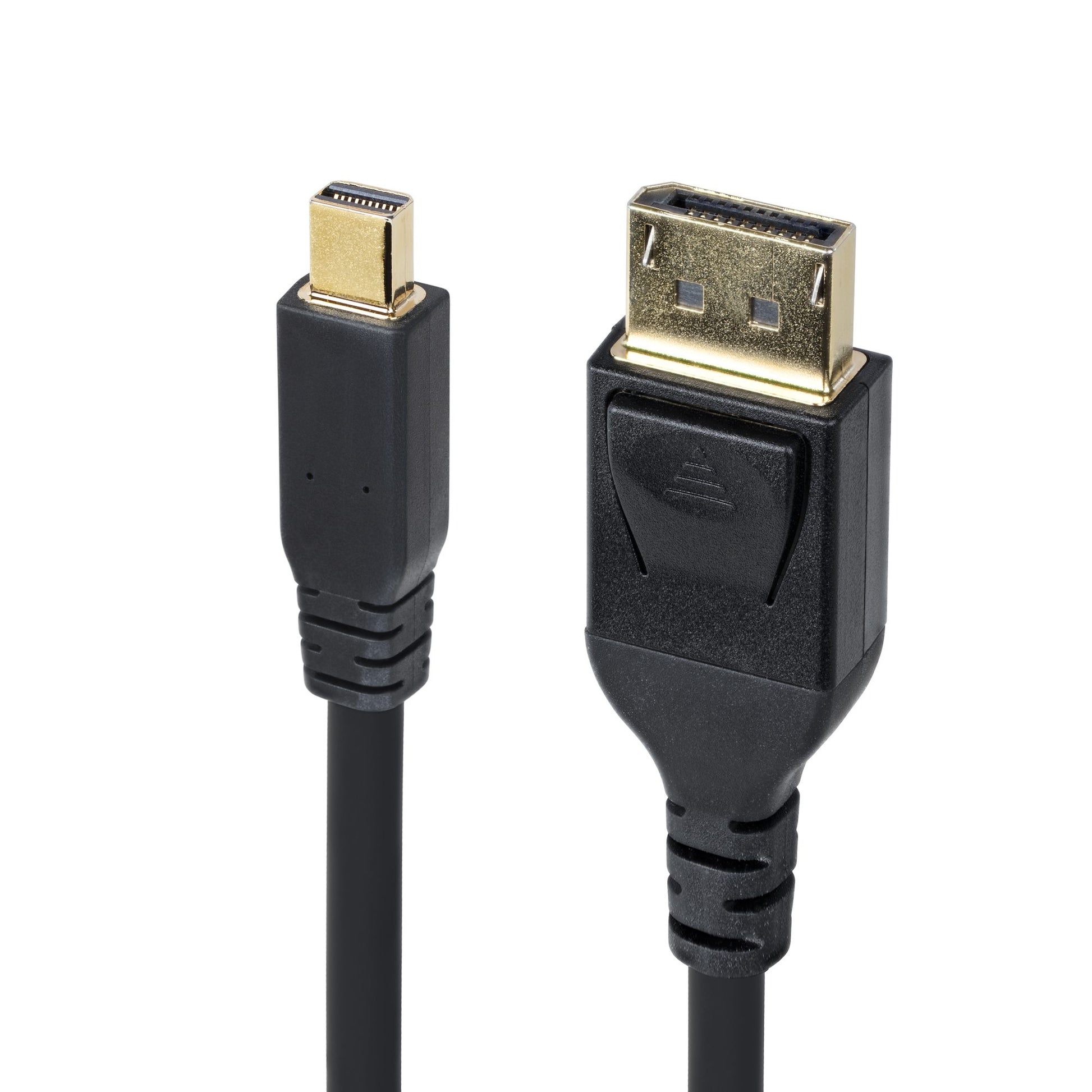

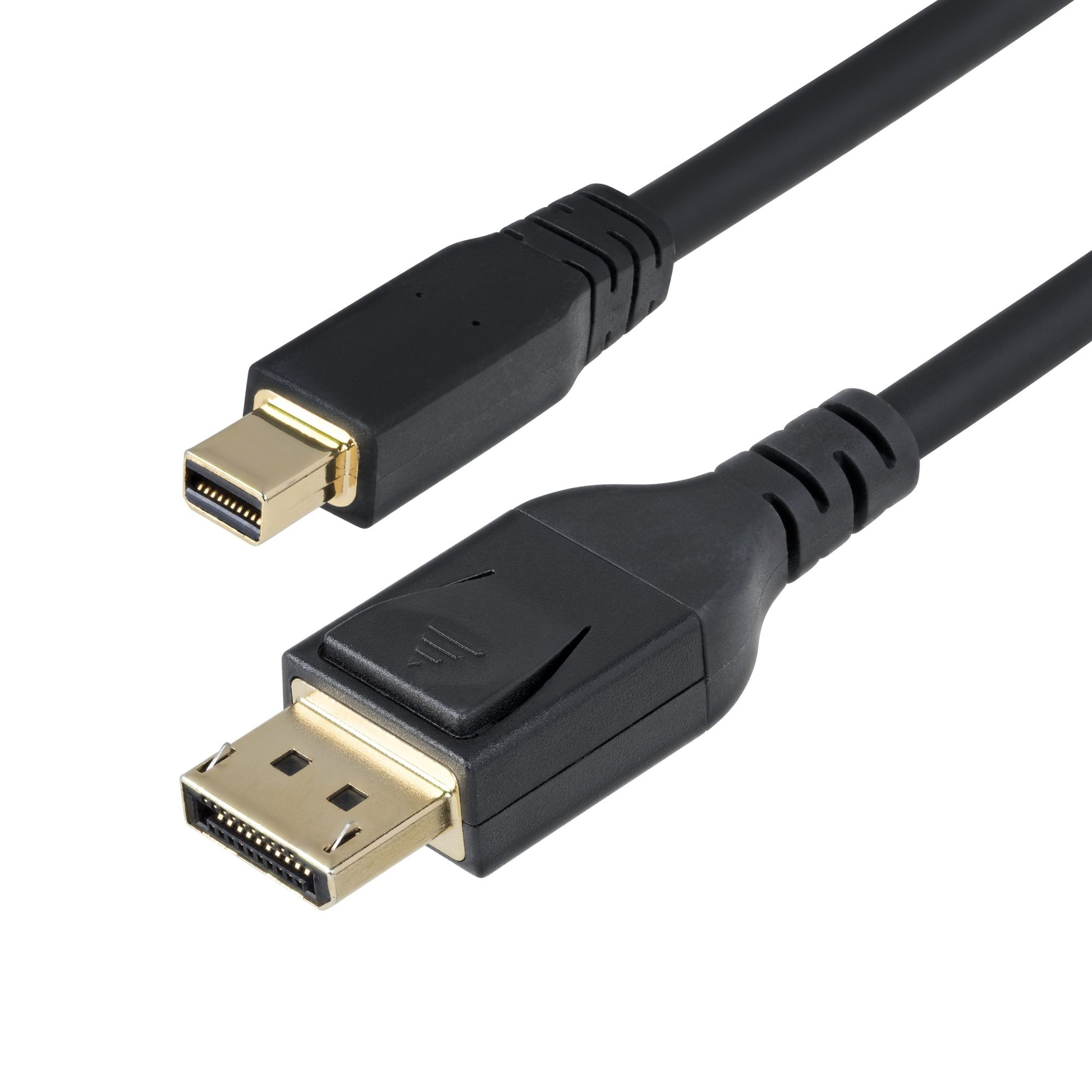

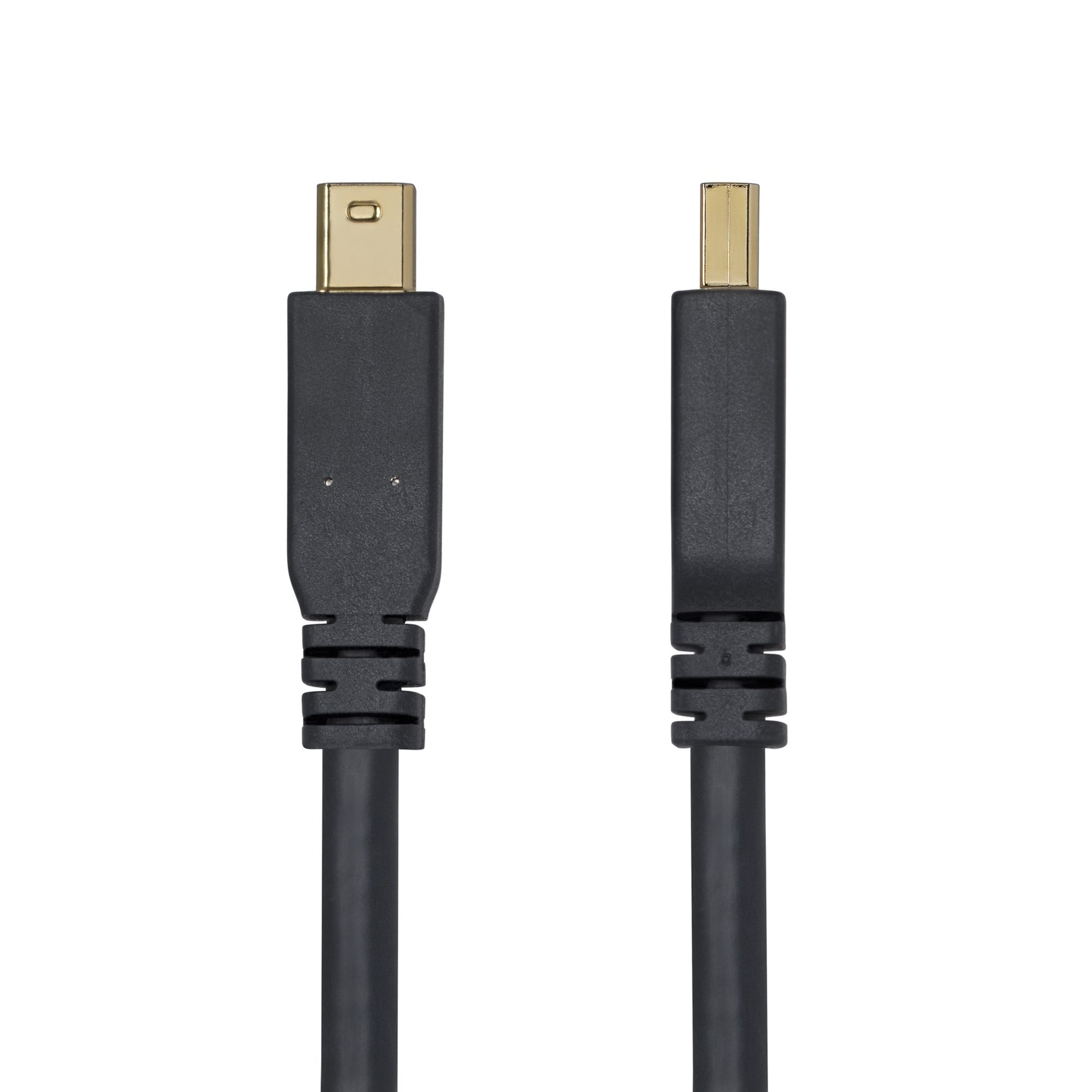

This 10ft Mini DisplayPort to DisplayPort v1.4 cable features a mDP male connector on one end, and a DP male latching connector on the other, allowing you to connect any Mini DisplayPort-enabled laptop or workstation to an 8K TV, monitor or projector that uses a standard DisplayPort connection.

Crystal-Clear Picture Quality

This mDP to DP 1.4 cable supports high resolutions of up to 8K (7680 x 4320p) at 60Hz or 4K (3840 x 2160) at 120Hz with a maximum HBR3 bandwidth of 32.4 Gbps and ensures that digitally protected content is displayed properly, with both HDCP 2.2 and DPCP capability. The adapter cable also supports:

• Multi-Stream Transport (MST) for daisy chaining multiple monitors.
• Display Stream Compression (DSC) v1.2 transport that enables up to 3:1 compression ratio.
• HDR meta transport, which offers a flexible metadata packet transport to support future dynamic HDR standards.
• Expanded audio transport, which covers capabilities such as 32 uncompressed audio channels, 1536kHz sample rate.
• Forward Error Correction (FEC), which overlays the DSC 1.2 transport, addresses the transport error resiliency needed for compressed video transport to external displays.

Ultimate Compatibility

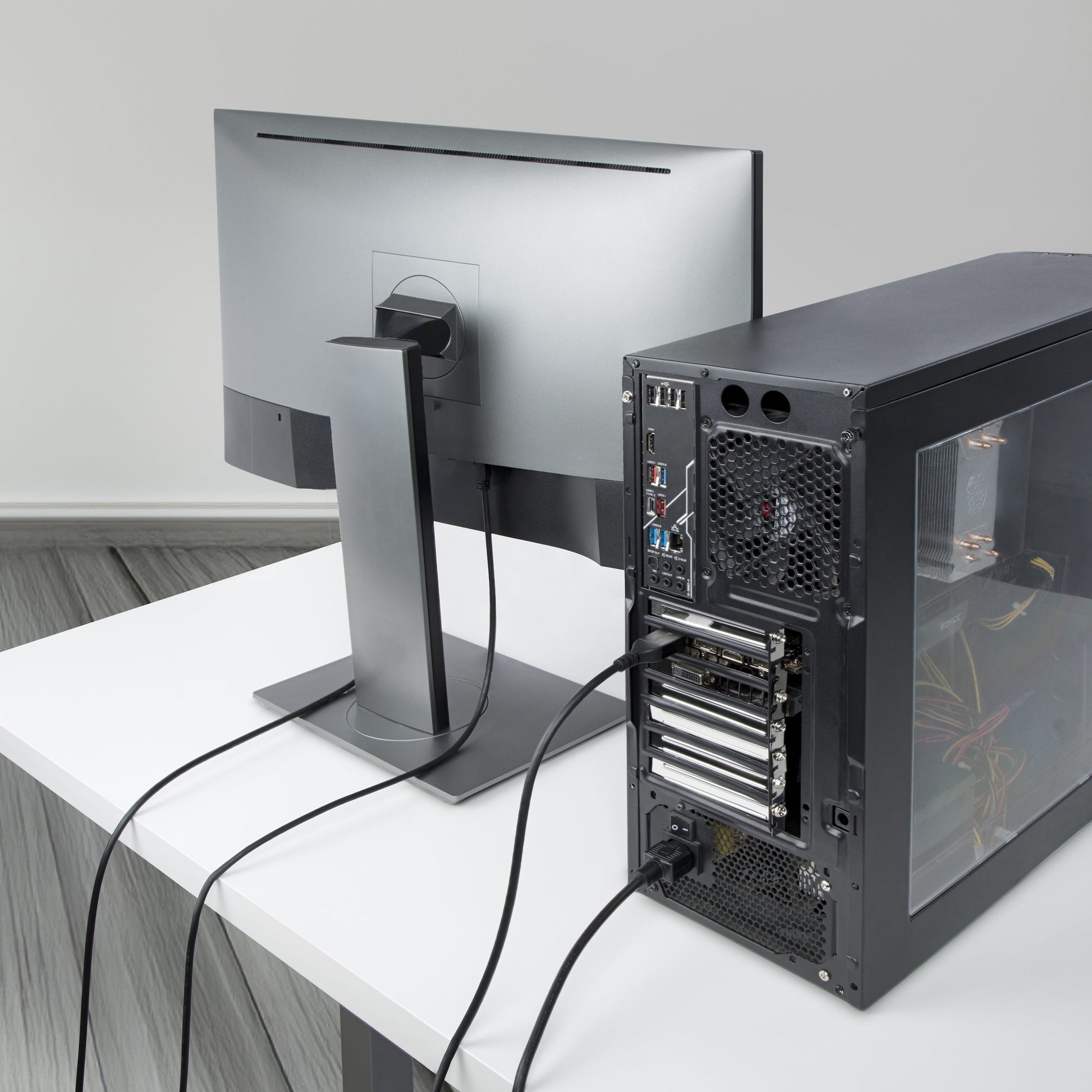

This Mini DisplayPort to DisplayPort adapter is compatible with several systems, including your PC, Mac and Microsoft Surface devices with mDP. For ultimate convenience, this Mini DisplayPort cable works with computers that are equipped with Thunderbolt 2 ports, enabling you to connect your DP compatible displays to your mDP source. In addition, this DP1.4 adapter cable supports a wide selection of mDP1.4-equipped graphics cards such as:

• Radeon™ VII, SSG, WX x100, Pro and FirePro™ series.
• Nvidia Quadro P series.

Built to Last

This Mini DisplayPort to DisplayPort v1.4 adapter cable is designed with gold-plated latching DisplayPort connectors that prevent accidental disconnection, making it a great accessory for office or boardroom applications.

Specifications

Features
Cable shielding	Aluminum mylar foil
Number of conductors	19
Product colour	Black
Cable length	3 m
Connector 1	DisplayPort
Connector 2	Mini DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	34
DisplayPort version	1.4
Bandwidth	32400 MB/s
Maximum resolution	7680 x 4320 pixels
Supported graphics resolutions	3840 x 2160, 7680 x 4320
HDCP	Yes
High Dynamic Range (HDR) supported	Yes
Multi-Stream Transport (MST)	Yes
HBR3 support	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Colour sampling	4:4:4
HDCP version	2.2
Display Stream Compression (DSC)	Yes
Display Stream Compression (DSC) version	1.2
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 85%
Certificates
Compliance certificates	CE, RoHS
Weight & dimensions
Cable diameter	4.5 mm
Weight	144 g
Package weight	144 g
Package width	220 mm
Package depth	200 mm
Package height	20 mm
Logistics data
Products per master (outer) case	50 pc(s)
Master (outer) case width	400 mm
Master (outer) case length	330 mm
Master (outer) case height	270 mm

Downloads

• Datasheet (PDF)
