StarTech.com 10-Port USB-C Hub - 8x USB-A/2x USB-C - Self-Powered w/65W Power Supply

The StarTech.com 10-Port USB-C expands your ports in seconds — plug in and go.

Add 8x USB-A and 2x USB-C ports to a USB-C enabled Desktop/Laptop

Add ten USB 3.2 Gen 2 (10Gbps) ports (8x USB-A, 2x USB-C) to a USB-C computer using this 10-Port USB-C Hub. The USB Hub is self-powered with an included power adapter. The USB Hub features Overcurrent Protection (OCP). OCP aids in preventing peripherals from overdrawing power, avoiding USB device dropouts and computers from shutting down unexpectedly. Support for Wake On USB enables USB communications, from devices connected to the hub, to take the computer out of standby or other power saving/sleep modes.

High Performance USB 3.2 Gen 2 (10Gbps) Hub

The USB Hub shares 10Gbps of bandwidth from the USB host device, enabling high-speed data transfers for high-performance applications. The USB hub is backward compatible with previous USB versions, including USB 3.2 Gen 1 (5Gpbs), USB 2.0 (480Mbps), and USB 1.1 (12Mbps). It features eight USB-A ports and two USB-C ports. This combination of ports enables support for a wide range of modern and legacy USB devices, such as external storage devices (e.g., thumb drives, HDDs/SSDs), HD Cameras (e.g., webcams), mice, keyboards, and USB headsets.

Power and Charge USB Devices

The USB hub is self-powered, using the 65W power adapter. The hub features two USB BC 1.2 ports (1x USB-A, 1x USB-C), each providing 2.4A (12W) of power simultaneously, making it ideal to charge battery powered USB devices like smartphones, and tablets, while also providing a data connection. These ports will provide power with or without a host computer connected, with support for both CDP (Charging Downstream Port) & DCP (Dedicated Charging Port) applications. The hub features seven USB-A, and one USB-C port that each provide the USB 3.2 standard of 0.9A (4.5W) of power. The included power adapter ensures that all ports will always provide specified power regardless of how many devices are connected.

USB-IF Certified Host Cable

A high-quality USB-IF certified USB-C host cable is included. The cable features a screw-locking, connector to ensure a secure and reliable connection to the USB hub. The Thermoplastic Elastomer (TPE) cable jacket is softer and more flexible than PVC jacketed cables.

Plug-and-Play Installation

The 10-Port USB Hub is OS independent supporting all operating systems, including Windows, macOS, ChromeOS, iPadOS and Android. Installation is automatic upon connection to a host computer.

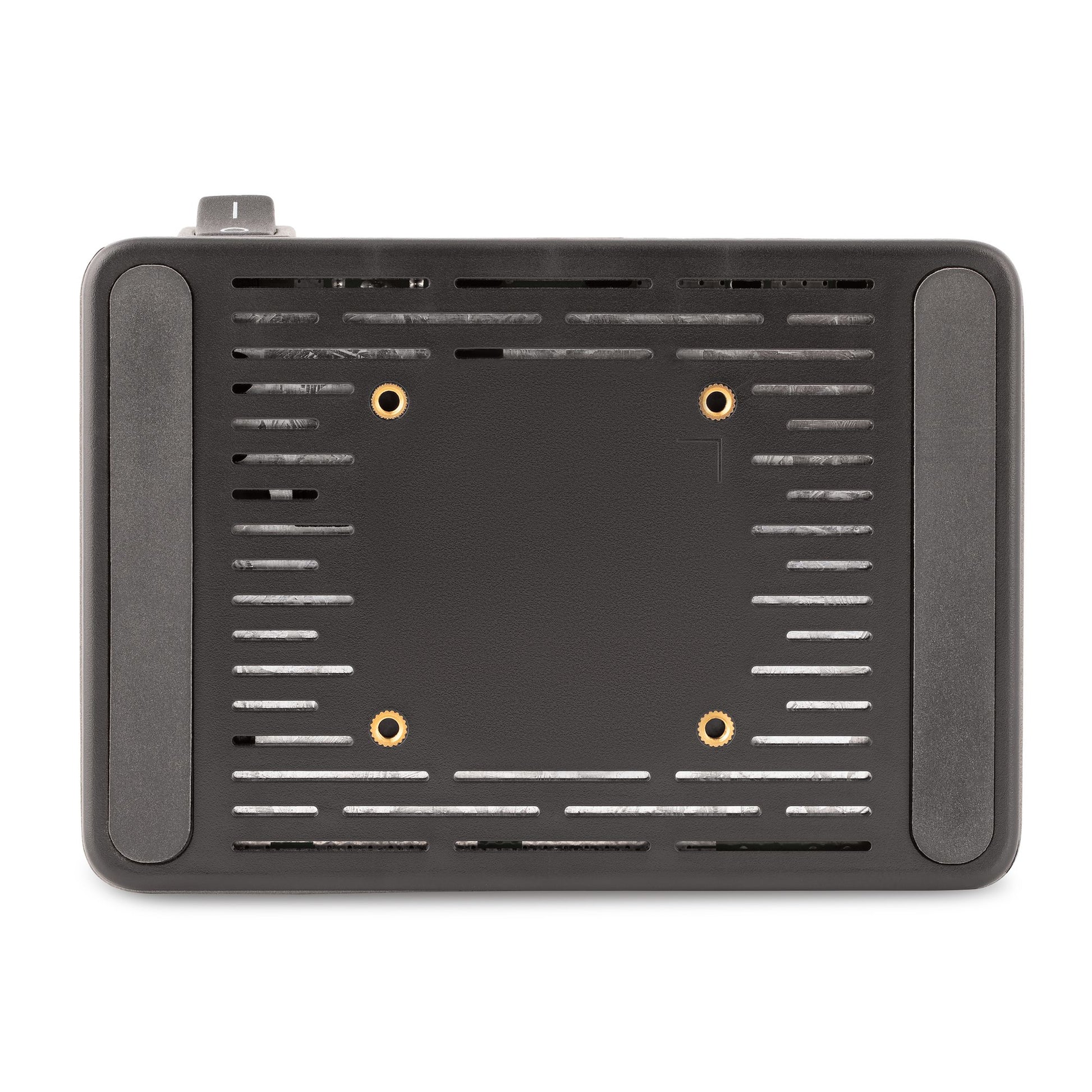

Mount the USB Hub to a wall, desk, or VESA mount, using StarTech.com hub mounts: SSPMSVESA or SSPMSUDWM.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The applicable software for this product is the USB Event Monitoring Utility. Use this utility to track and log any connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-tools

This product is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	8
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Hub interfaces	USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
DC-in jack	Yes
Ports quantity	10
Cable length	1 m
Features
LED indicators	Status
Product colour	Grey
Data transfer rate	10000 Mbit/s
Overcurrent protection	Yes
Cable jacket material	Thermoplastic elastomer (TPE)
Power
Power plug type	Type M
Power consumption (typical)	65 W
Output voltage	19 V
Output current	3.42 A
Input voltage	110 - 240 V
Power supply type	DC
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Weight & dimensions
Weight	287 g
Width	80 mm
Depth	115 mm
Height	30 mm
Package width	172 mm
Package depth	251 mm
Package height	99 mm
Package weight	287 g

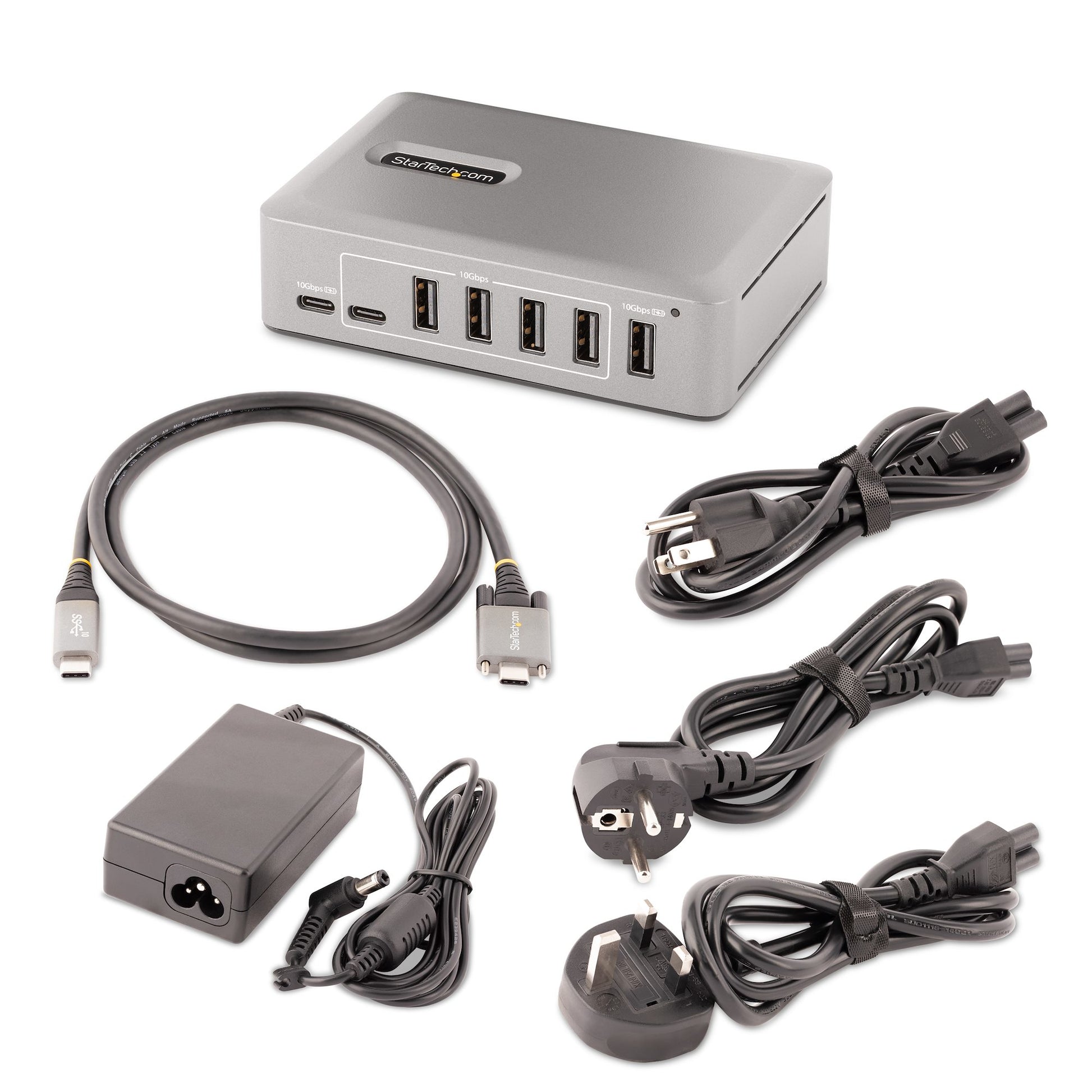

Packaging content
Included power plug types	EU, NA, UK
Cables included	USB Type-C to USB Type-C
AC adapter included	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Logistics data
Master (outer) case width	381 mm
Master (outer) case length	294 mm
Master (outer) case height	529 mm
Products per master (outer) case	10 pc(s)
Other features
Chipset	VIA - VL822-Q7, VIA - VL162
