StarTech.com 10-Port USB 3.0 Hub with Power Adapter - Metal Industrial USB-A Hub

The StarTech.com 10-Port expands your ports in seconds — plug in and go.

Industrial-Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5Gbps

This TAA compliant 10-port industrial USB 3.2 Gen 1 hub gives you the scalability and power supply flexibility you need in harsh industrial environments, product, and repair labs, conference rooms or office workstations. With its rugged industrial-grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers 10 connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities. You have the option to power the industrial hub by connecting the hub directly to an outlet with the included external terminal block power adapter, for more convenient and flexible installation.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The HB30A10AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Terminal block port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	10
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
DC-in jack	Yes
Card reader integrated	No
Ports quantity	10
Features
Surge protection	Yes
Plug and Play	Yes
LED indicators	Power
Product colour	Black
Certification	RoHS, REACH, CE, FCC, TAA
Data transfer rate	5000 Mbit/s
Network
UASP support	Yes
Power
Input current	1.4 A
Power consumption (typical)	65 W
Output voltage	20 V
Output current	3.25 A
Input voltage	100 - 240 V
Power supply type	AC
Performance
Mean time between failures (MTBF)	126106 h
Harmonized System (HS) code	84719000
Weight & dimensions
Weight	352 g
Width	55 mm
Depth	198 mm
Height	30 mm
Package width	190 mm
Package depth	292 mm
Package height	71 mm
Package weight	1.4 kg
Packaging data
Quantity per pack	1 pc(s)

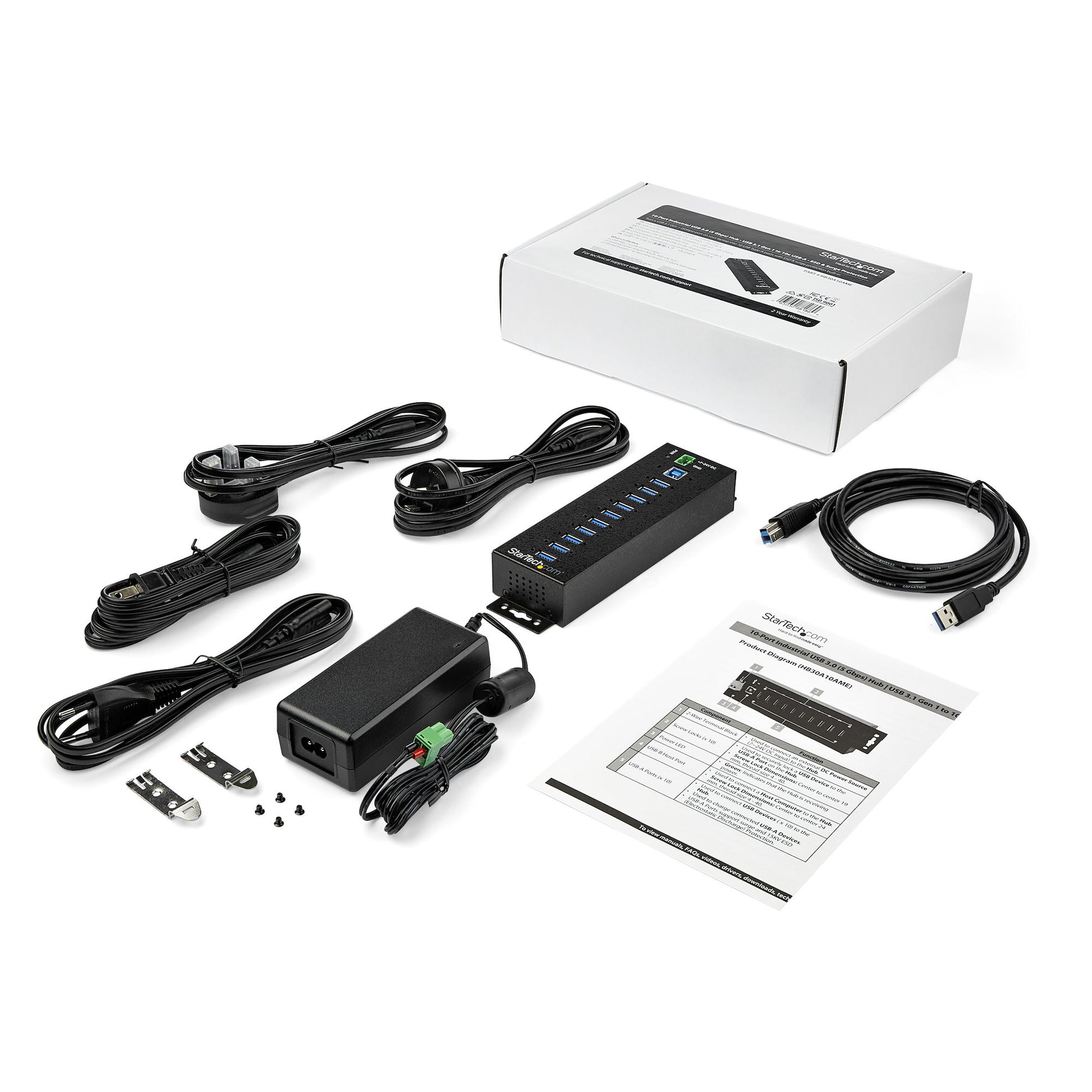

Packaging content
Quick installation guide	Yes
Included power plug types	ANZ, EU, JP, NA, UK
Cables included	USB
AC adapter included	Yes
DIN rail kit included	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Master (outer) case width	526 mm
Master (outer) case length	403 mm
Master (outer) case height	329 mm
Products per master (outer) case	14 pc(s)
Other features
Chipset	Genesys Logic - GL3523

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
