StarTech.com 10-Port USB 3.0 Hub - 5Gbps - Metal Industrial USB-A Hub with ESD &

The StarTech.com 10-Port expands your ports in seconds — plug in and go.

Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps

This TAA compliant 10-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers ten connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need it Most

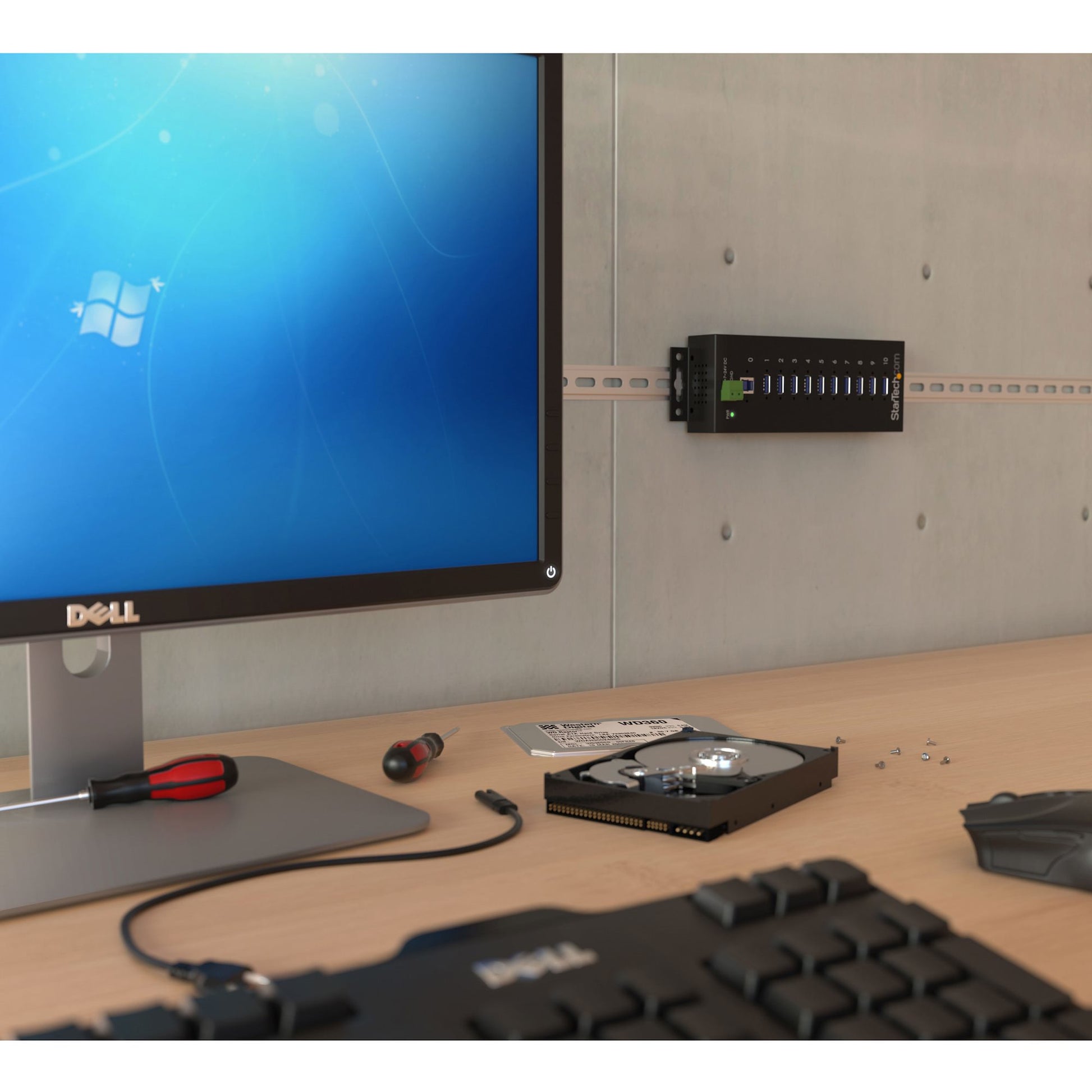

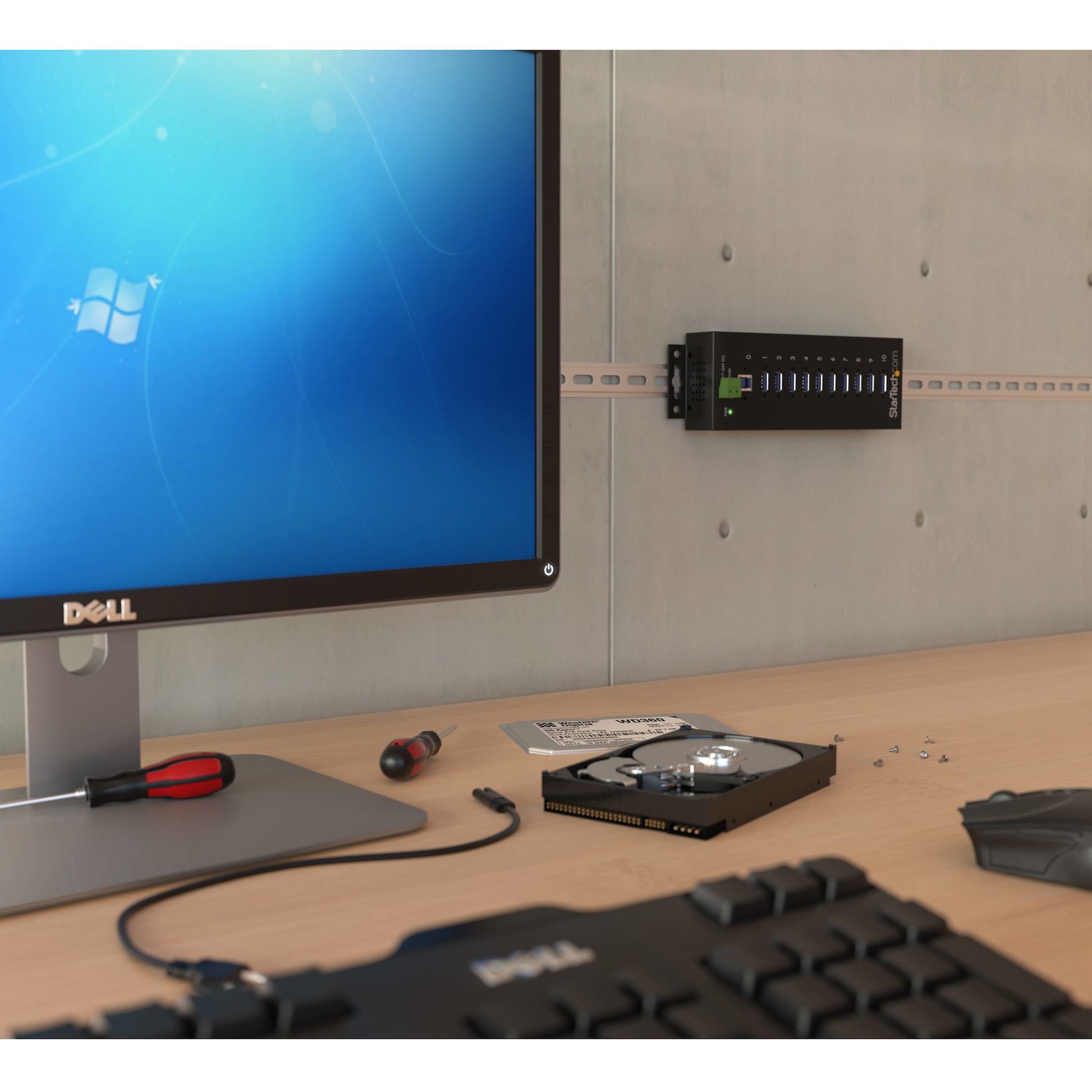

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works With Your Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy USB 3.2 Gen 1 and 1.x peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The ST1030USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Terminal block port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	10
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Card reader integrated	No
Ports quantity	10
Cable length	2.032 m
Features
Surge protection	Yes
LED indicators	Power
Product colour	Black
Certification	RoHS, CE, FCC, TAA, REACH
Data transfer rate	5000 Mbit/s
Housing material	Steel
Power
Input voltage	7 - 24 V
Performance
Mean time between failures (MTBF)	119388 h
Harmonized System (HS) code	84719000
Weight & dimensions
Weight	357 g
Width	56 mm
Depth	198 mm
Height	31 mm
Package width	244 mm
Package depth	169 mm
Package height	57 mm
Package weight	600 g

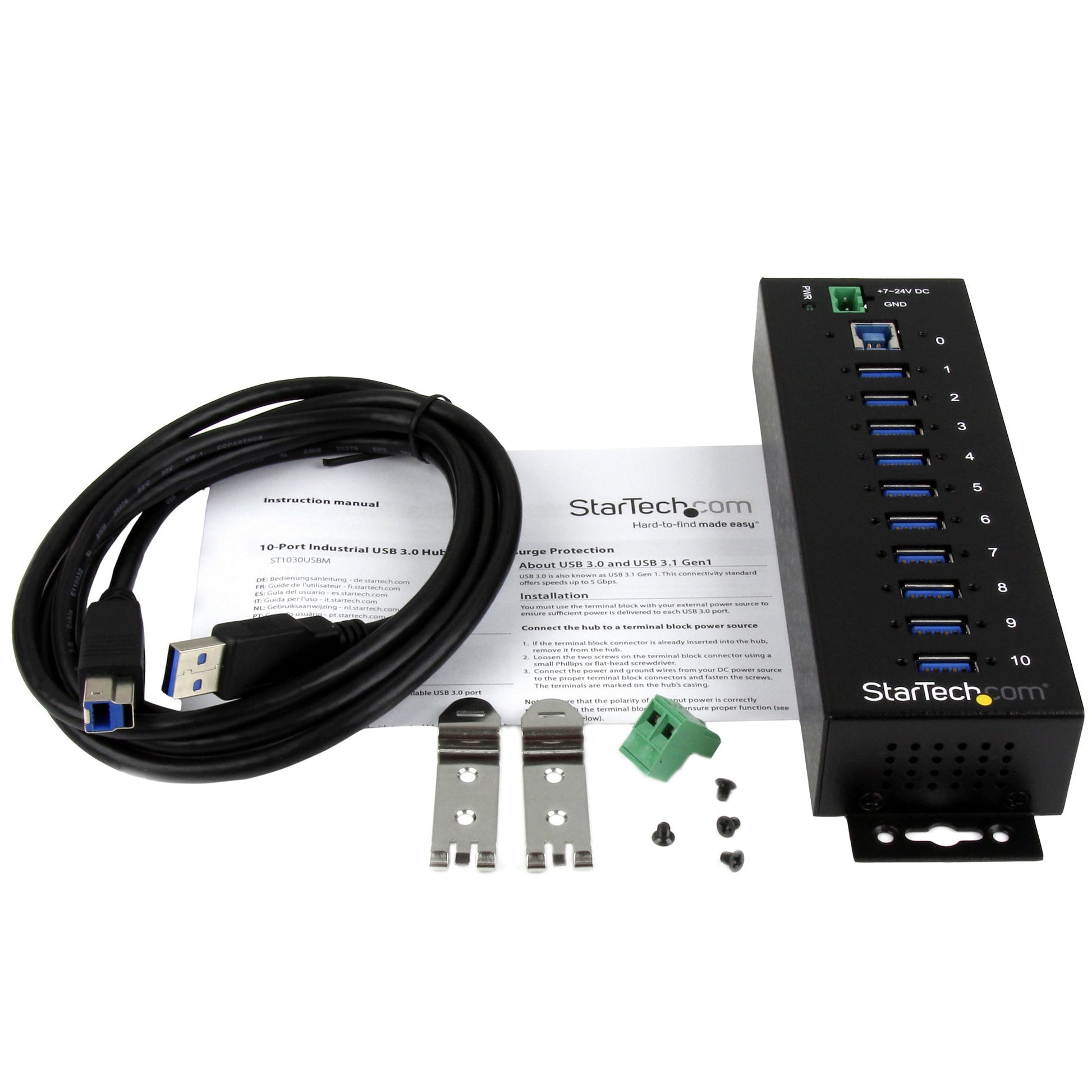

Packaging content
Manual	Yes
Terminal block included	Yes
Cables included	USB
DIN rail kit included	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Master (outer) case width	440 mm
Master (outer) case length	530 mm
Master (outer) case height	335 mm
Products per master (outer) case	25 pc(s)
Other features
Chipset	Genesys Logic - GL3520
