StarTech.com 10-Pack Horizontal Lacing Bar, Server Rack Cable Management, 19"

Build a tidy install with the StarTech.com 10-Pack Horizontal Lacing Bar — dimensions and mounting details are in the spec table.

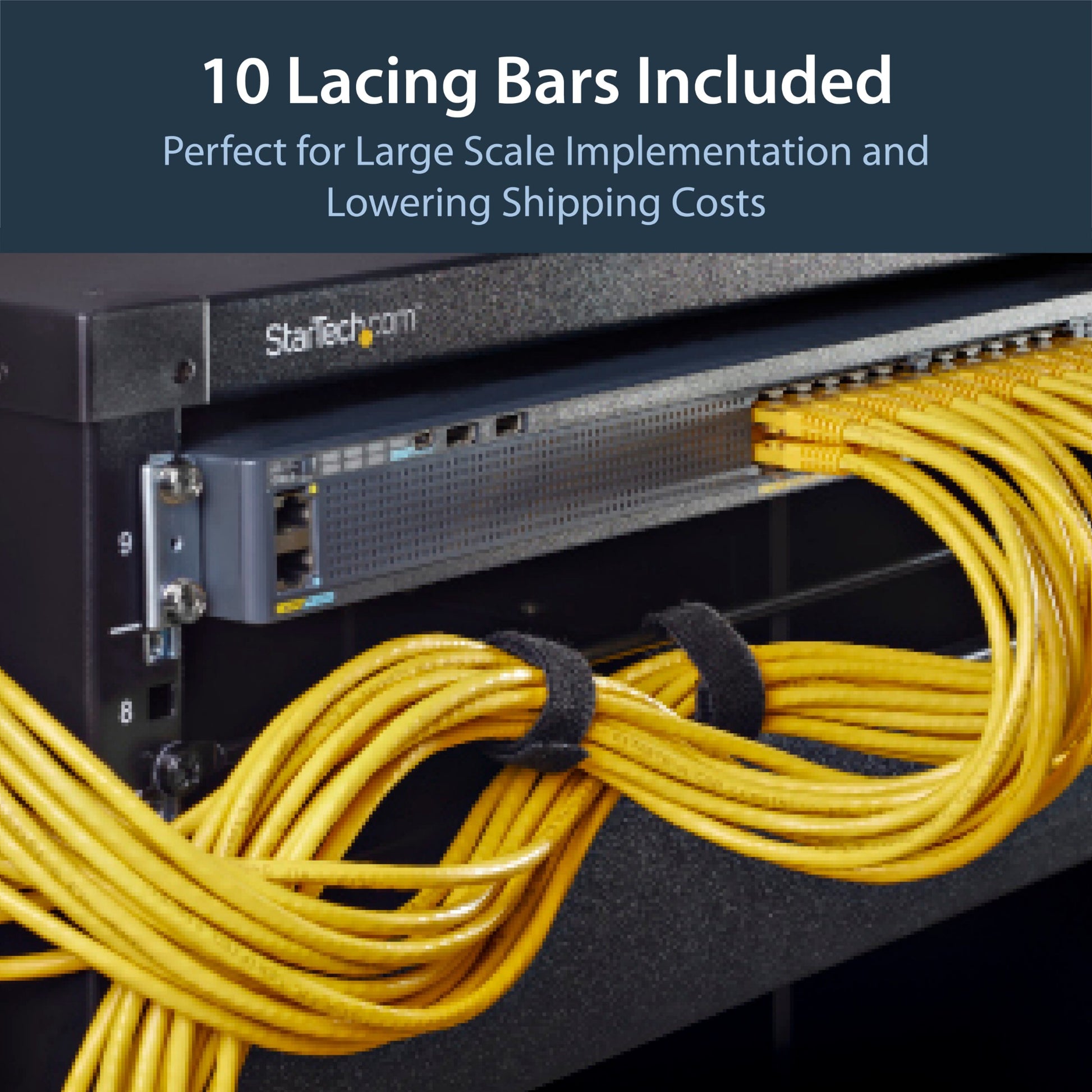

Route your cables on these lacing bars to reduce cable tension in your rack

These lacing bars install horizontally on the front or back of your rack to provide a secure mounting point for you to run cables. You can attach your cables to the lacing bars using cable ties to reduce the tension on your cables and prevent damage to the ports on your rack-mount equipment.

Protect your equipment

Cable lacing bars protect your equipment by offloading the weight of the cables in your rack, which reduces the constant strain that can be put on the ports of your rack equipment. The lacing bars also provide a route for cables, which enhances passive cooling within your rack. This helps to ensure your rack remains at an optimal temperature, to extend the life of your equipment and minimize or eliminate downtime.

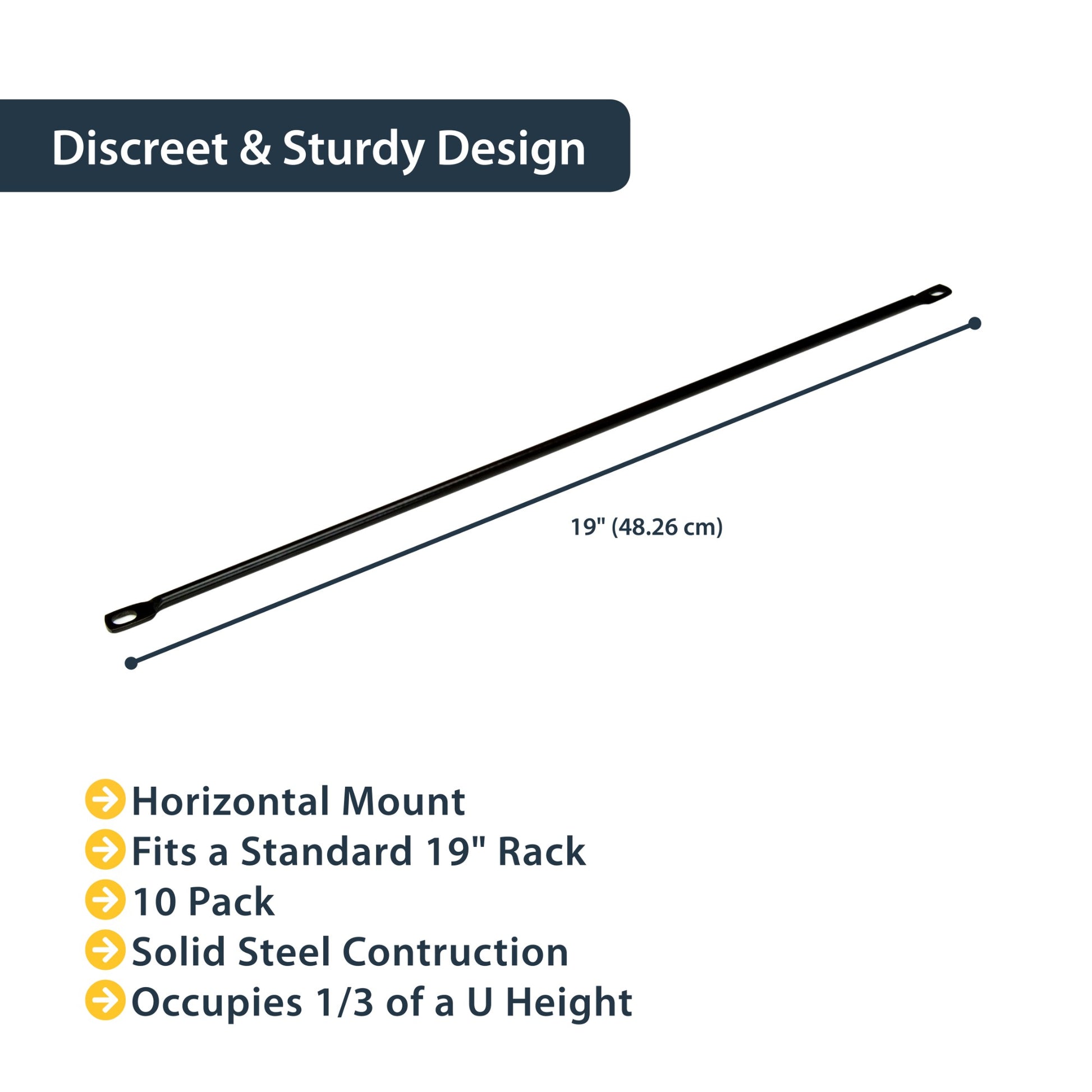

Discreet and sturdy design

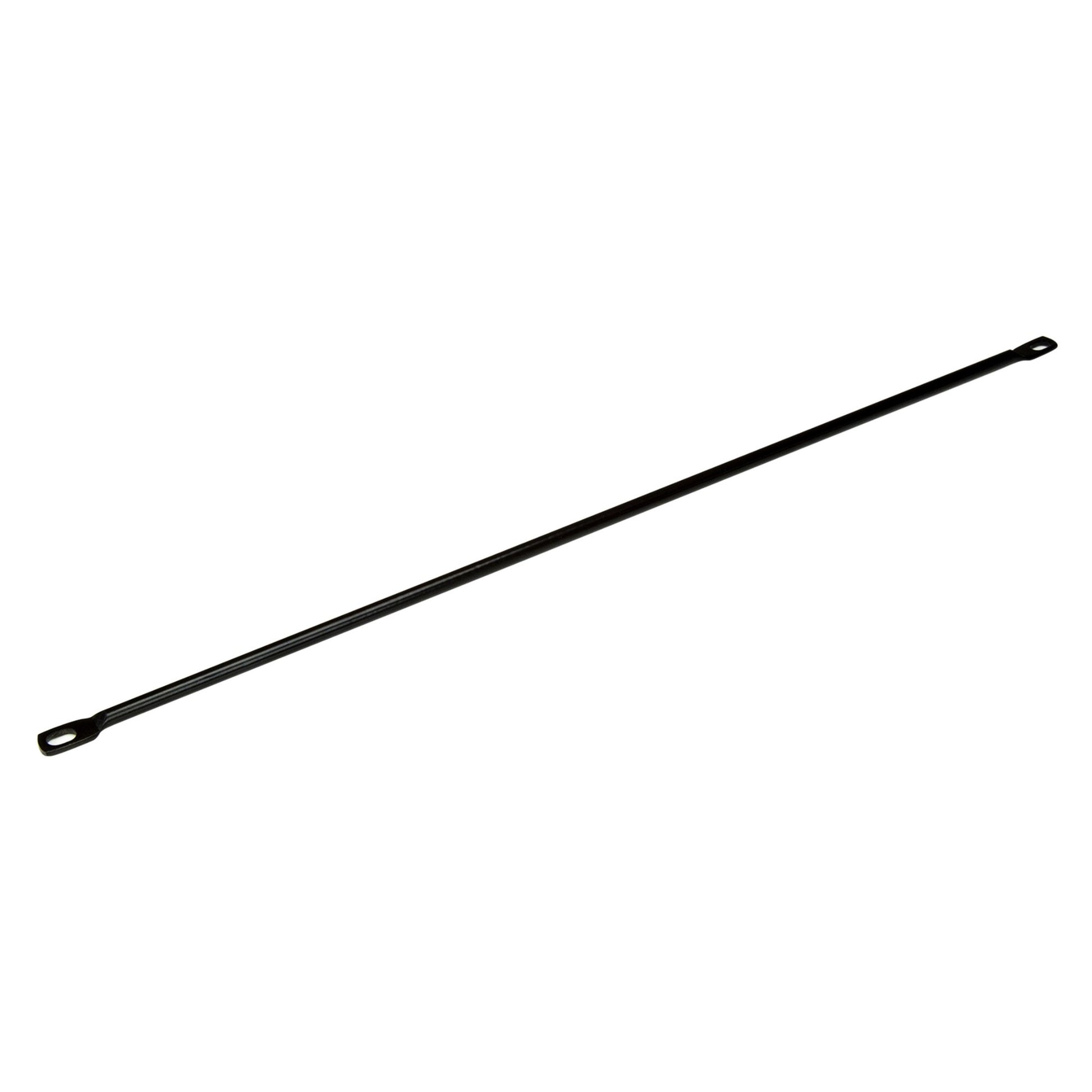

These cable lacing bars are constructed of solid steel and occupy just one-third of a rack U at each install point. The round solid-steel design ensures a high weight capacity, unlike flat lacing bars that can bend easily.

Save on shipping costs

This package includes 10 cable lacing bars, enabling you to buy multiple bars packaged together. This is ideal for large-scale implementations, because it significantly reduces the packaging, and in turn, shipping costs.

The CMLB10 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Specifications

Features
Type	Cable lacing bar
Rack capacity	1U
Product colour	Black
Harmonized System (HS) code	85389099
Housing material	Steel
Weight & dimensions
Package width	510 mm
Package height	56 mm
Package depth	121 mm
Package weight	1.57 kg
Width	7 mm
Weight	95 g
Height	11 mm
Depth	483 mm
Packaging data

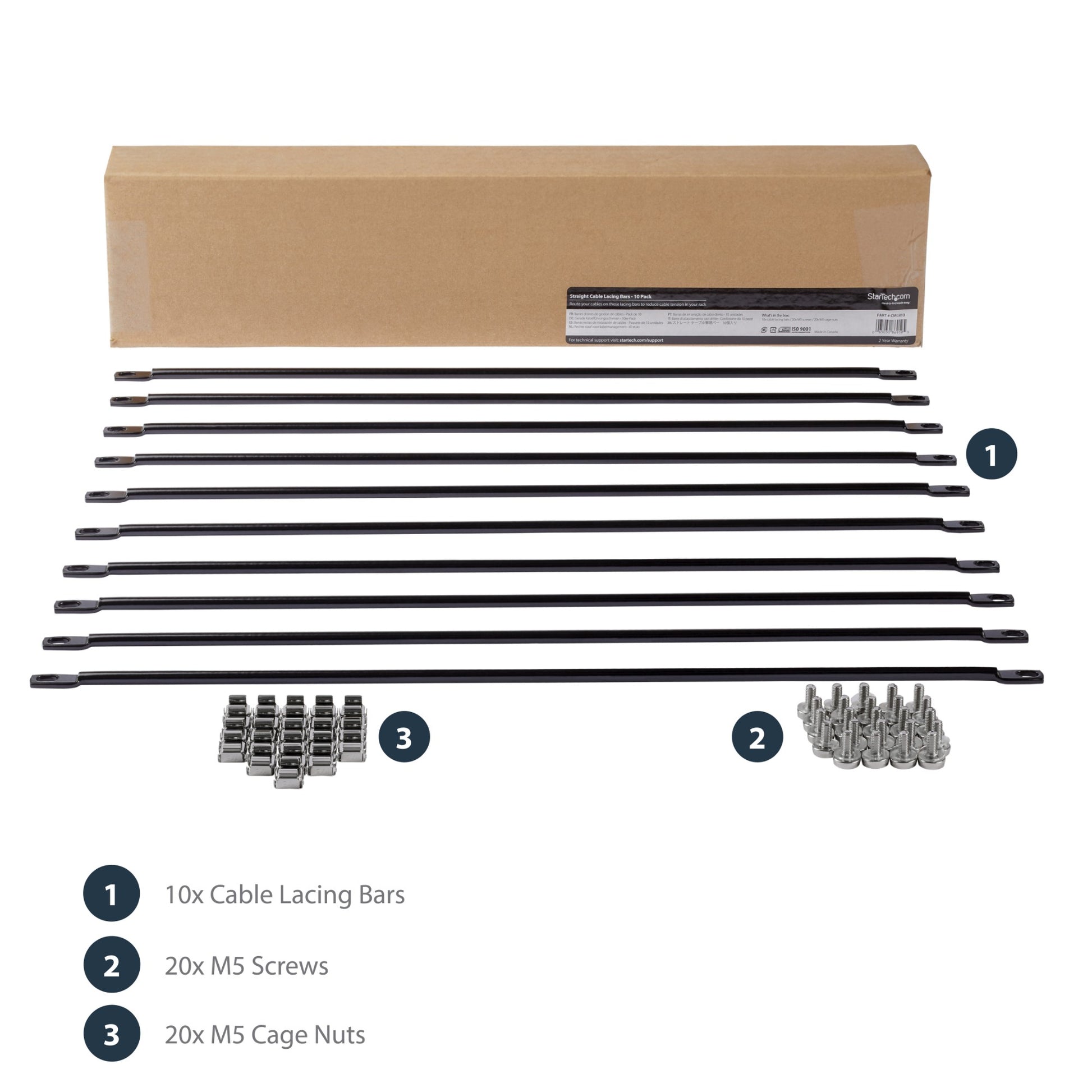

Quantity per pack	10 pc(s)
Packaging content
Screws included	Yes
Technical details
Compliance certificates	RoHS
Logistics data
Master (outer) case width	115 mm
Master (outer) case length	505 mm
Master (outer) case height	65 mm
Products per master (outer) case	1 pc(s)
