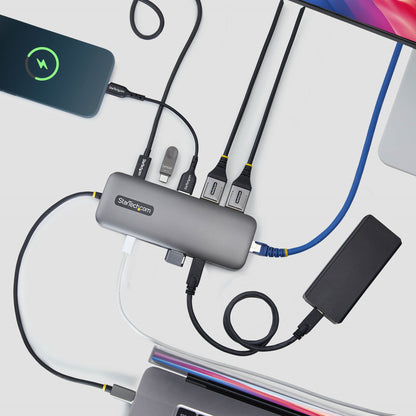

StarTech.com 10-in-1 Dual-DisplayPort Multiport USB-C Docking Station

One cable, full desk: the StarTech.com 10-in-1 Dual-DisplayPort Multiport turns your laptop into a workstation with dual displays, wired networking, 100W charging over a single USB-C connection.

Create a mobile workstation wherever you work

Enable dual-4K displays, high-speed device connectivity, power, and networking from a single USB-C dock for consistent productivity anywhere.

Deploy Multi-Display Setups with Ease

Drive two 4K 60Hz DisplayPort displays on Windows, Linux, and ChromeOS to increase screen real estate. Ideal for hot desks and remote users who need instant multi-monitor setups.

Connect Devices and Keep Ports Free

Connect modern and legacy high-speed devices with 3x USB-C and 2x USB-A (5Gbps), while a dedicated USB-A 2.0 port handles keyboard and mouse dongles or other essential peripherals. Reduce hub sprawl and keep critical ports available for storage, capture, or field tools.

Deliver a Consistent Desktop Experience Anywhere

Provide 100W PD charging passthrough and Gigabit Ethernet for stable, wired performance at home, in the office, or while travelling. Standardize deployments with the same display, USB, and network experience to simplify rollouts and support.

Built for Sustainability, Designed for Performance

This hub features a housing made from 85% post-consumer recycled (PCR) plastic. The product also ships in FSC Mix packaging made from responsibly sourced materials. These materials help align your IT infrastructure with your organization's sustainability goals, without compromising on quality or durability.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	3
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	2
Microphone in	No
Headphone outputs	0
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
DisplayPort version	1.2
USB 2.0 Type-C ports quantity	1
Network
Full duplex	Yes
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Maximum digital resolution	3840 x 2160 pixels
Product colour	Grey
Card reader integrated	No
Data transfer rate	5 Gbit/s
HD type	4K Ultra HD
Housing material	Plastic
Mean time between failures (MTBF)	103855 h
Technical details
User guide	Yes
Products per master (outer) case	80 pc(s)
Master (outer) case width	540 mm
Master (outer) case length	425 mm
Master (outer) case height	270 mm
Power
Power consumption (typical)	15 W
Output voltage	5 V
USB cable length	0.3 m
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported	Yes
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Weight	100 g
Width	55 mm
Depth	150 mm
Height	16.5 mm
Package weight	190 g
Package width	193 mm
Package depth	117 mm
Package height	24 mm
Other features
Chipset	Synaptics - VMM5220, VIA - VL103, VIA - VL817S, Realtek - RTL8153E

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
