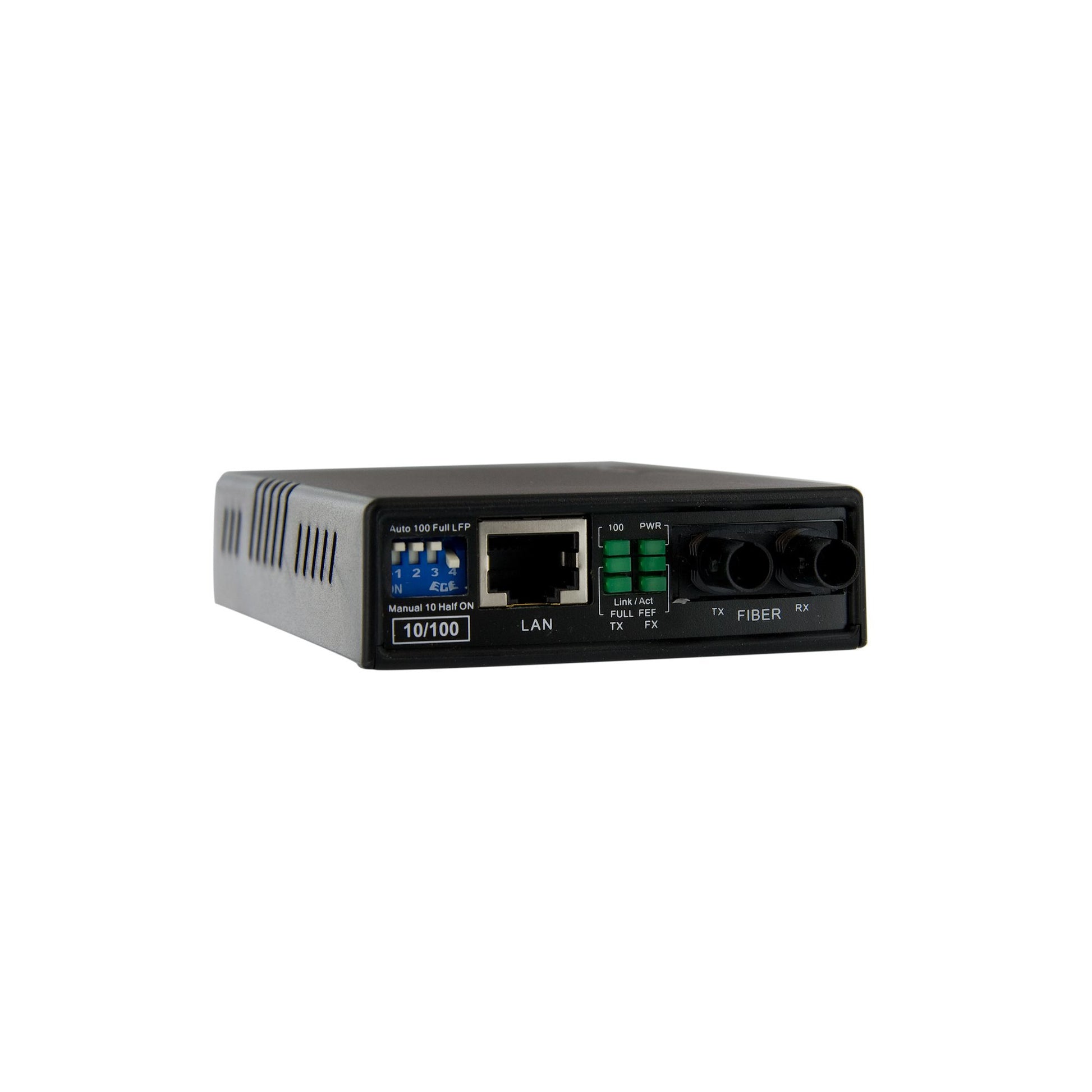

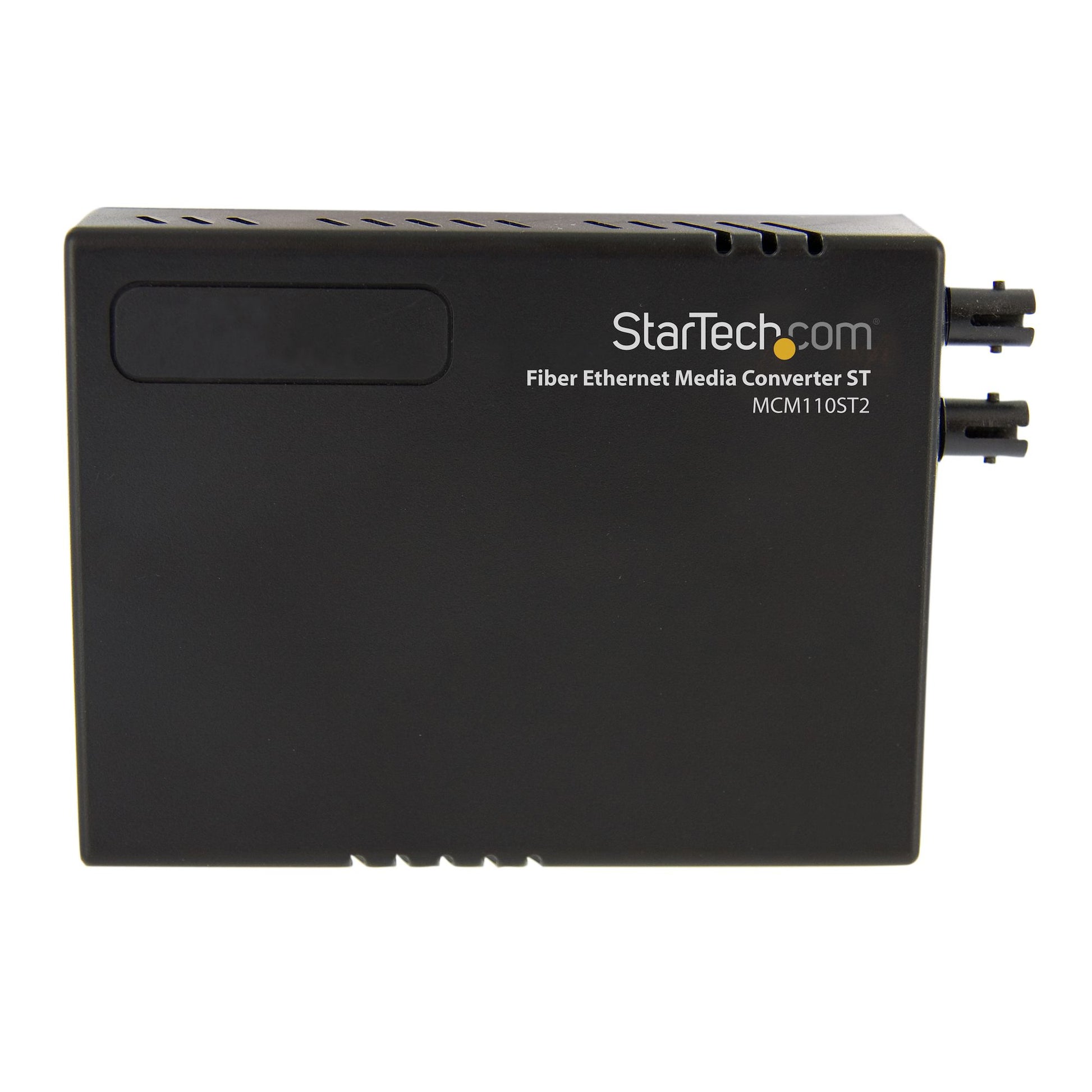

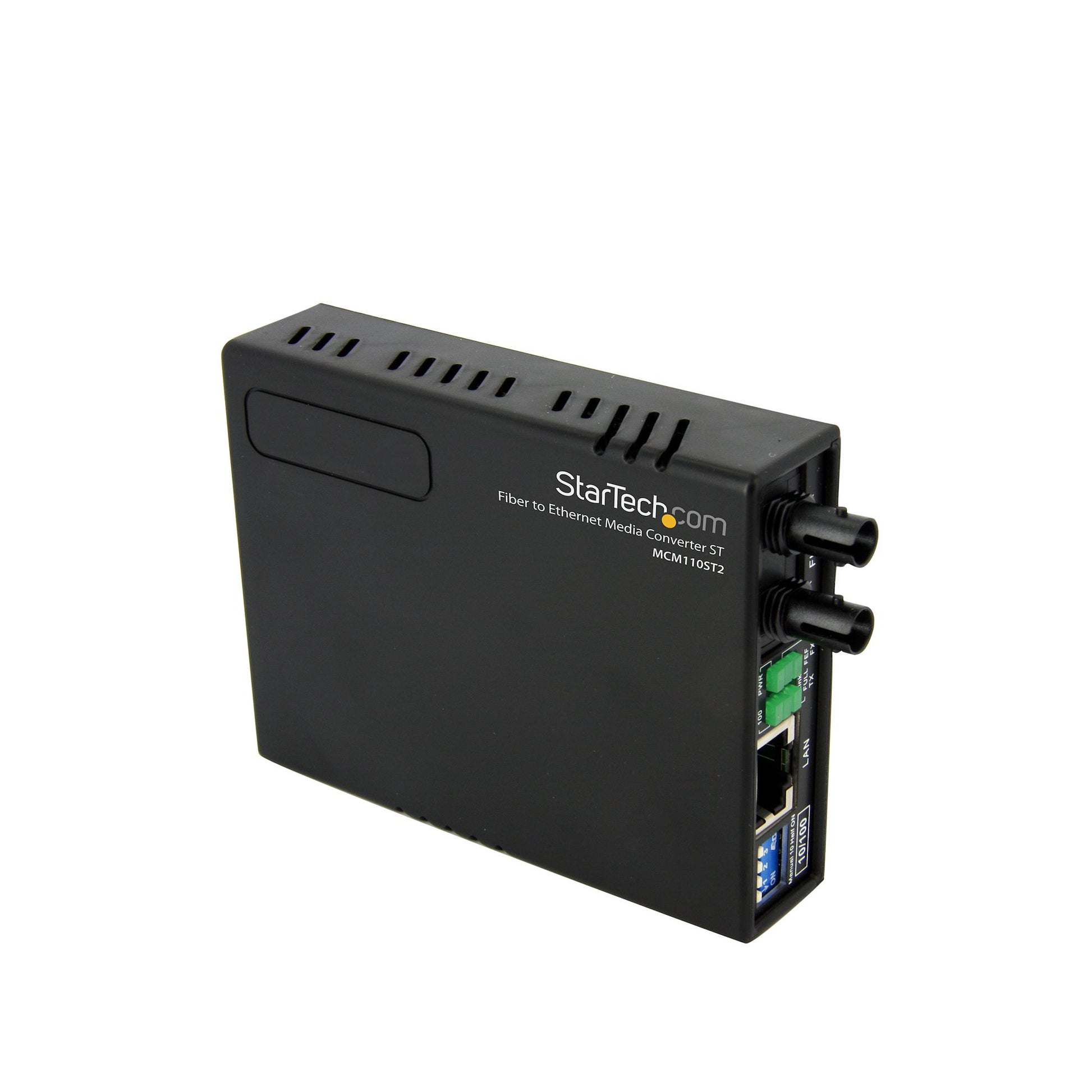

StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km - TAA Networking

The StarTech.com 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km - TAA is a dependable addition to any modern network installation.

Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber

This Ethernet to MM Fiber Media Converter creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.

The converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.

Easy to setup and install, this compact, value-conscious media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.

Specifications

Network
Jumbo frames support	Yes
Flow control support	Yes
Auto-negotiation	Yes
Jumbo frames	9000
Converter input interface	10Base-T
Networking standards	IEEE 802.3, IEEE 802.3u
Converter output interface	100Base-FX
Auto MDI/MDI-X	Yes
Maximum data transfer rate	100 Mbit/s
Fiber optic connector	ST
Performance
Wavelength-division multiplexing (WDM)	No
Wavelength	1310 nm
Maximum transfer distance	2000 m
Fiber mode structure	Multi-mode
Features
LED indicators	Activity, Link, Power, Speed
Product colour	Black
Internal	No
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1

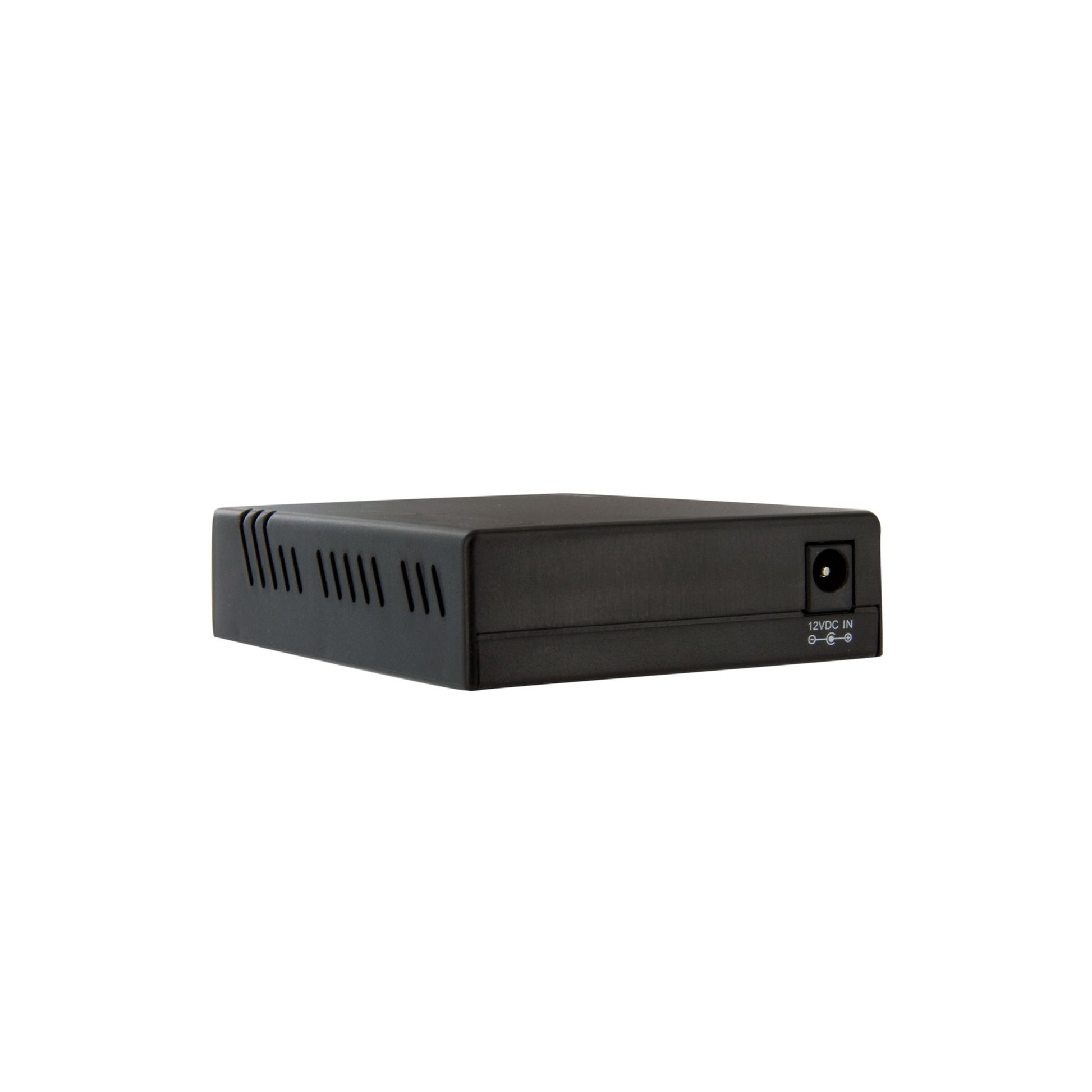

DC-in jack	Yes
Power
Power plug type	Type M
Input voltage	100 - 240 V
Output voltage	12 V
Output current	0.2 A
Power consumption (typical)	2.4 W
External power adapter	Yes
Weight & dimensions
Width	75 mm
Depth	95 mm
Weight	90.5 g
Height	20 mm
Package depth	175 mm
Package width	145 mm
Package height	65 mm
Package weight	300 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Packaging content
AC adapter included	Yes
Manual	Yes
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	390 mm
Master (outer) case length	480 mm
Master (outer) case height	300 mm
Products per master (outer) case	1 pc(s)
Other features
Full duplex	Yes
