StarTech.com 10/100 Mbps Multi Mode Fiber Media Converter SC 2 km Networking

The StarTech.com 10/100 Mbps Multi Mode Fiber Media Converter SC 2 km is a dependable addition to any modern network installation.

Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber

The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).

A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

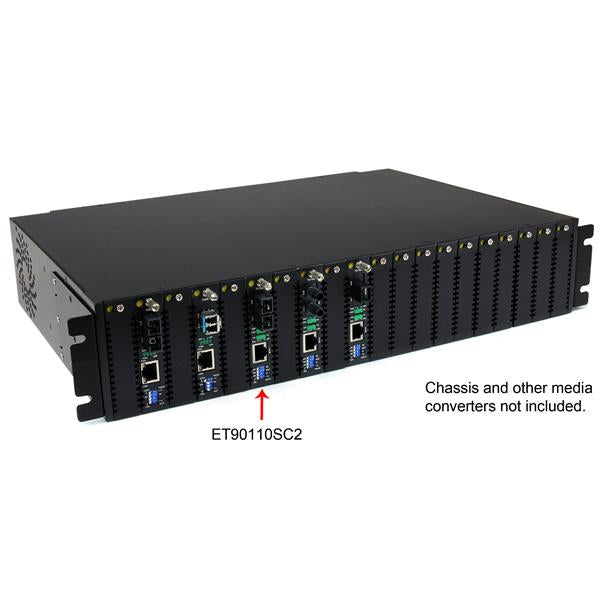

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments

Specifications

Network
Networking standards	IEEE 802.3, IEEE 802.3u
Duplex system	Full, Half
Auto MDI/MDI-X	Yes
Maximum data transfer rate	200 Mbit/s
Fiber optic connector	SC
Performance
Wavelength-division multiplexing (WDM)	No
Wavelength	1310 nm
Maximum transfer distance	2000 m
Fiber mode structure	Multi-mode
Features
Housing material	Steel
Product colour	Black
Internal	No
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Power
Power plug type	Type M
Power over Ethernet (PoE)	No
Input voltage	100 - 240 V
Output voltage	12 V
Output current	1.6 A
Weight & dimensions
Width	87 mm
Depth	153 mm
Weight	600 g
Height	24 mm
Dimensions (WxDxH)	95 x 160 x 20 mm
Package depth	233 mm
Package width	190 mm
Package height	77 mm
Package weight	779 g
Packaging content
AC adapter included	Yes
Manual	Yes
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Design
Certification	CE, FCC
Other features
Full duplex	Yes

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
