StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Hub
StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Hub
Regular price
£39.18 GBP
Regular price
Sale price
£39.18 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The StarTech.com 1-port PCI Express RS232 expands your ports in seconds — plug in and go.

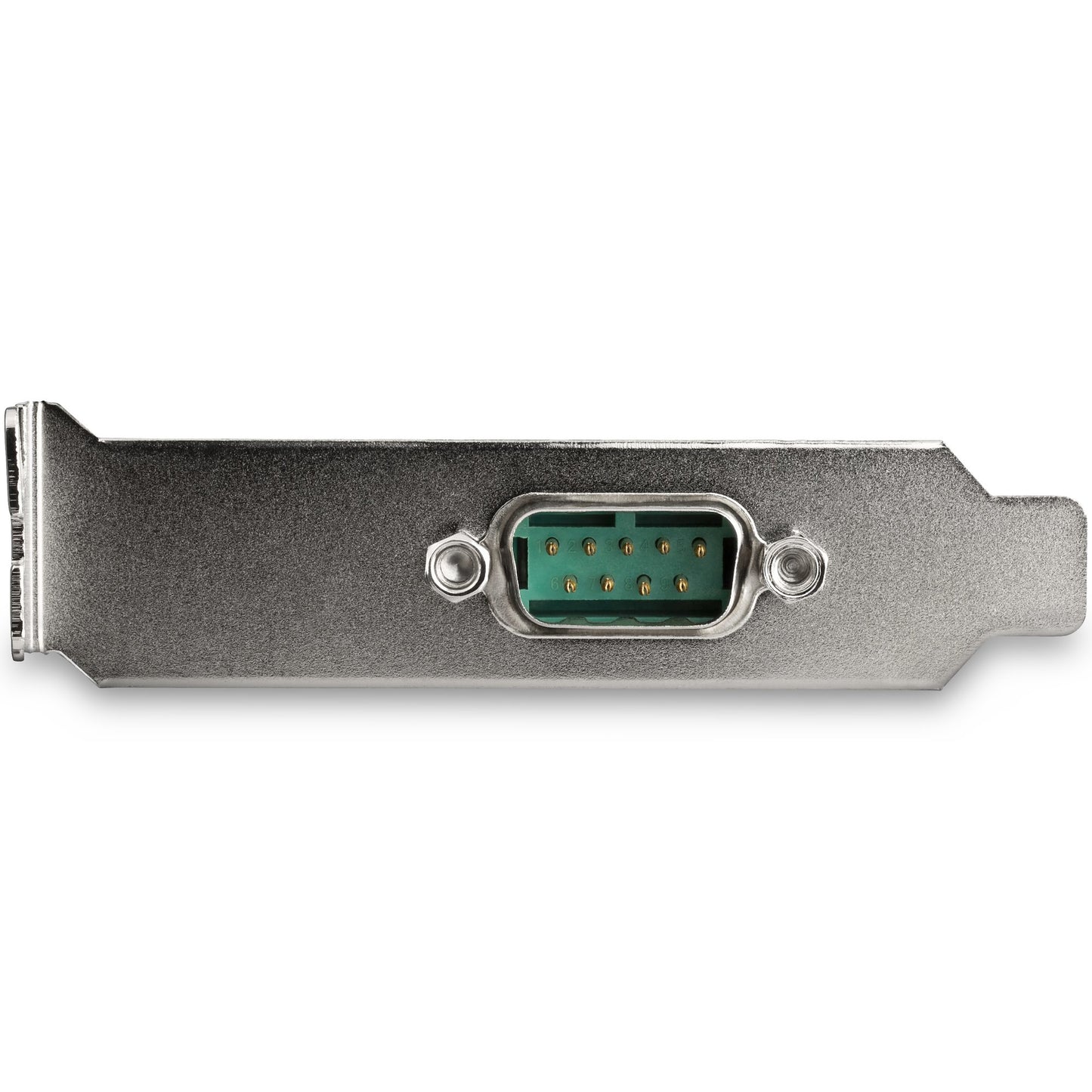

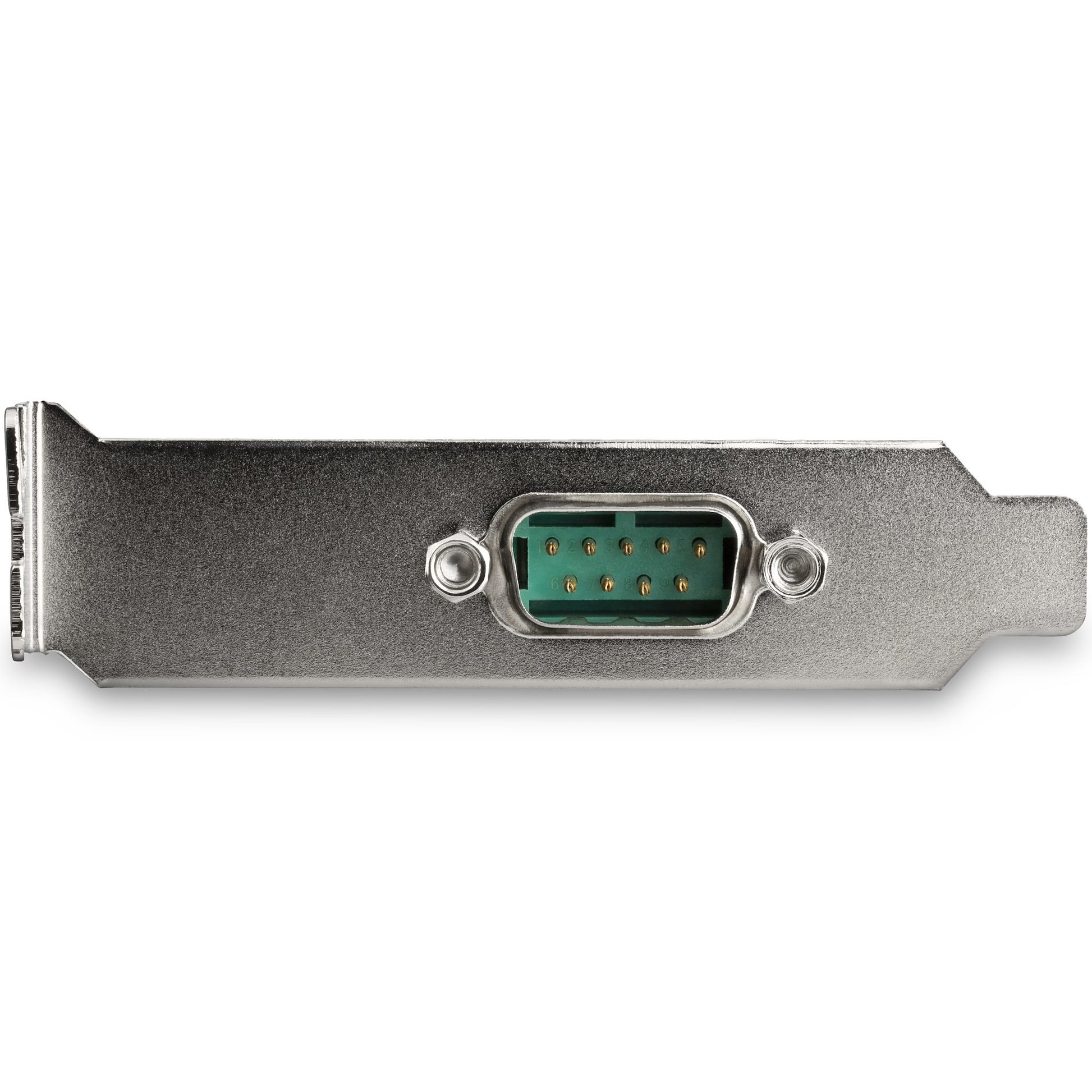

PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® CompatibleThis RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.
Maximum Compatibility

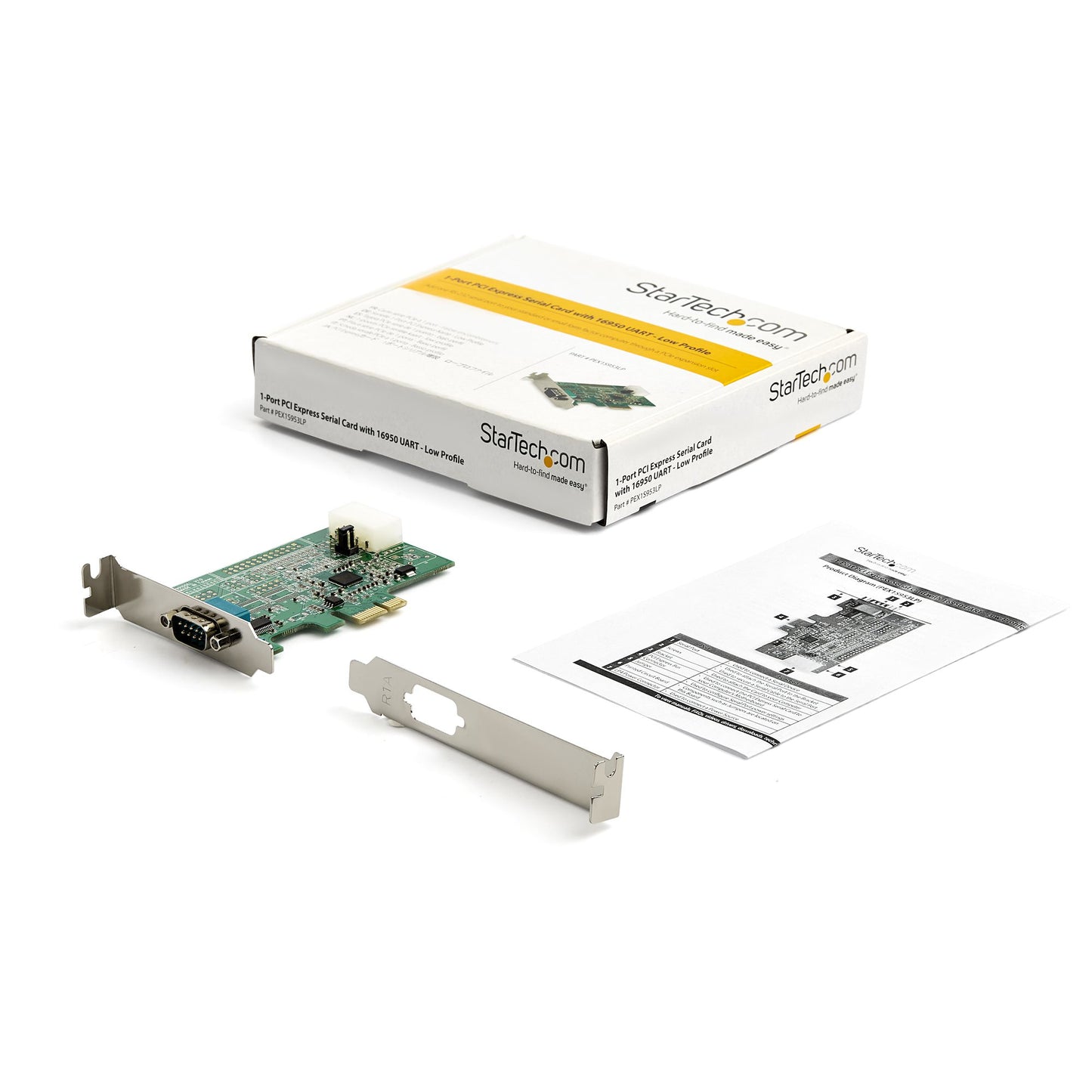

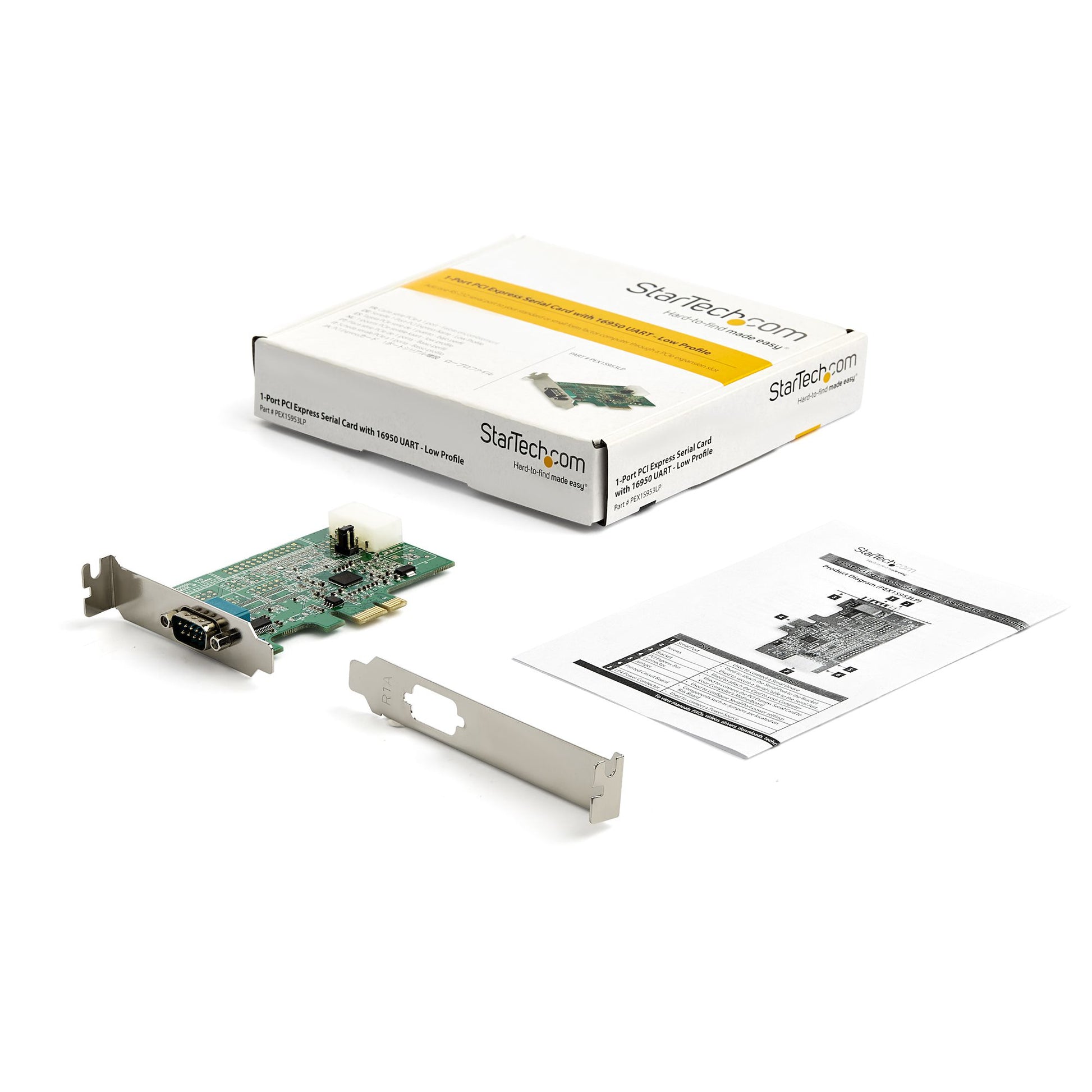

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 128-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100A chipset
• PCI Express 1.1 compliant
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Host interface | PCIe |
| Expansion card standard | PCIe 1.1 |
| Technical details | |
| Chipset | Asix AX99100 |
| FIFO (First In, First Out) | 256 B |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Performance | |
| Stop bits | 1, 1.5, 2 |
| Data bits | 5, 6, 7, 8, 9 |
| Baud rate | 921.4 Kbit/s |
| Flow control support | Yes |
| Product colour | Green |
| Harmonized System (HS) code | 84733020 |
| Design | |
| Mean time between failures (MTBF) | 277385 h |
| Features | |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Weight & dimensions | |
| Width | 67 mm |
| Depth | 98 mm |
| Height | 150 mm |
| Weight | 44 g |
| Package width | 143 mm |
| Package depth | 174 mm |
| Package height | 33 mm |
| Package weight | 112 g |
| Packaging data | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Quantity | 1 |
| Logistics data | |
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 694 mm |
| Master (outer) case length | 358 mm |
| Master (outer) case height | 325 mm |
