StarTech.com 1-Port Gigabit PCIe Network Adapter Card, Low-Profile NIC
StarTech.com 1-Port Gigabit PCIe Network Adapter Card, Low-Profile NIC
Regular price
£23.11 GBP
Regular price
Sale price
£23.11 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Upgrade your connectivity with the StarTech.com 1-Port Gigabit PCIe Network — ports, speeds and interface details are in the spec table.
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slotThis TAA-compliant Gigabit Ethernet card adds a gigabit Ethernet interface to a desktop or server.
Plug And Play Compatible
This 1-port network interface card is plug-and-play compatible, with drivers that auto-install on major operating systems such as Windows, Windows Server, and Linux. It is compatible with Intel and AMD hardware platforms equipped with PCI Express x1, x2, x4, x8, or x16 slots.
Performance and Management
This network card features link speed and activity LED indicators for visual network speed verification and issue diagnosis.
This PCIe network adapter supports 9K jumbo frames to minimize packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between 10/100/1000Mbps, and VLANs for streamlined network management.
Universal Fit

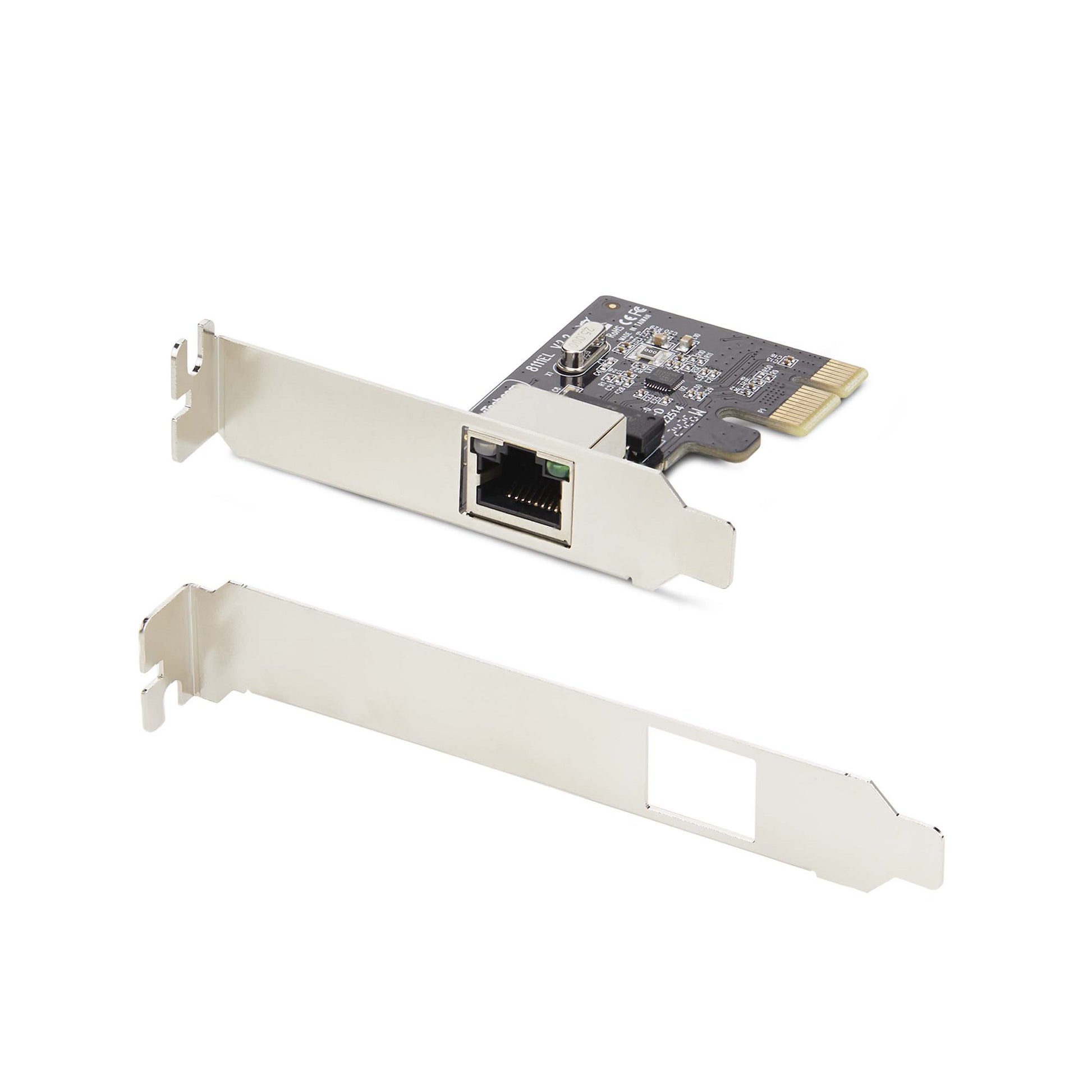

The PCI Express NIC includes a pre-installed low-profile bracket for compatibility with small form-factor computers, as well as a standard-profile bracket for full-sized desktops and servers.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Network | |
| Chipset | Realtek RTL8111H |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Jumbo frames | 9000 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Technical details | |
| Product colour | Black |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Design | |
| LED indicators | Activity, Link |
| Component for | PC/Server |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| System requirements | |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 70 °C |
| Storage temperature (T-T) | 0 - 80 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Weight & dimensions | |
| Width | 42 mm |
| Depth | 65 mm |
| Height | 18 mm |
| Weight | 34 g |
| Package width | 174 mm |
| Package depth | 144 mm |
| Package height | 33 mm |
| Package weight | 100.5 g |
| Packaging data | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Logistics data | |
| Master (outer) case width | 691 mm |
| Master (outer) case length | 362 mm |
| Master (outer) case height | 328 mm |
| Products per master (outer) case | 75 pc(s) |
