StarTech.com 1-Port Gigabit PCIe Network Adapter Card, 10/100/1000Mbps PCI Express

Upgrade your connectivity with the StarTech.com 1-Port Gigabit PCIe Network — ports, speeds and interface details are in the spec table.

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot

This TAA-compliant Gigabit Ethernet card adds a gigabit Ethernet interface to a desktop or server.

Plug And Play Compatible

This 1-port network interface card is plug-and-play compatible, with drivers that auto-install on major operating systems such as Windows, Windows Server, and Linux. It is compatible with Intel and AMD hardware platforms equipped with PCI Express x1, x2, x4, x8, or x16 slots.

Performance and Management

This network card features link speed and activity LED indicators for visual network speed verification and issue diagnosis.

This PCIe network adapter supports 9K jumbo frames to minimize packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between 10/100/1000Mbps, and VLANs for streamlined network management.

Universal Fit

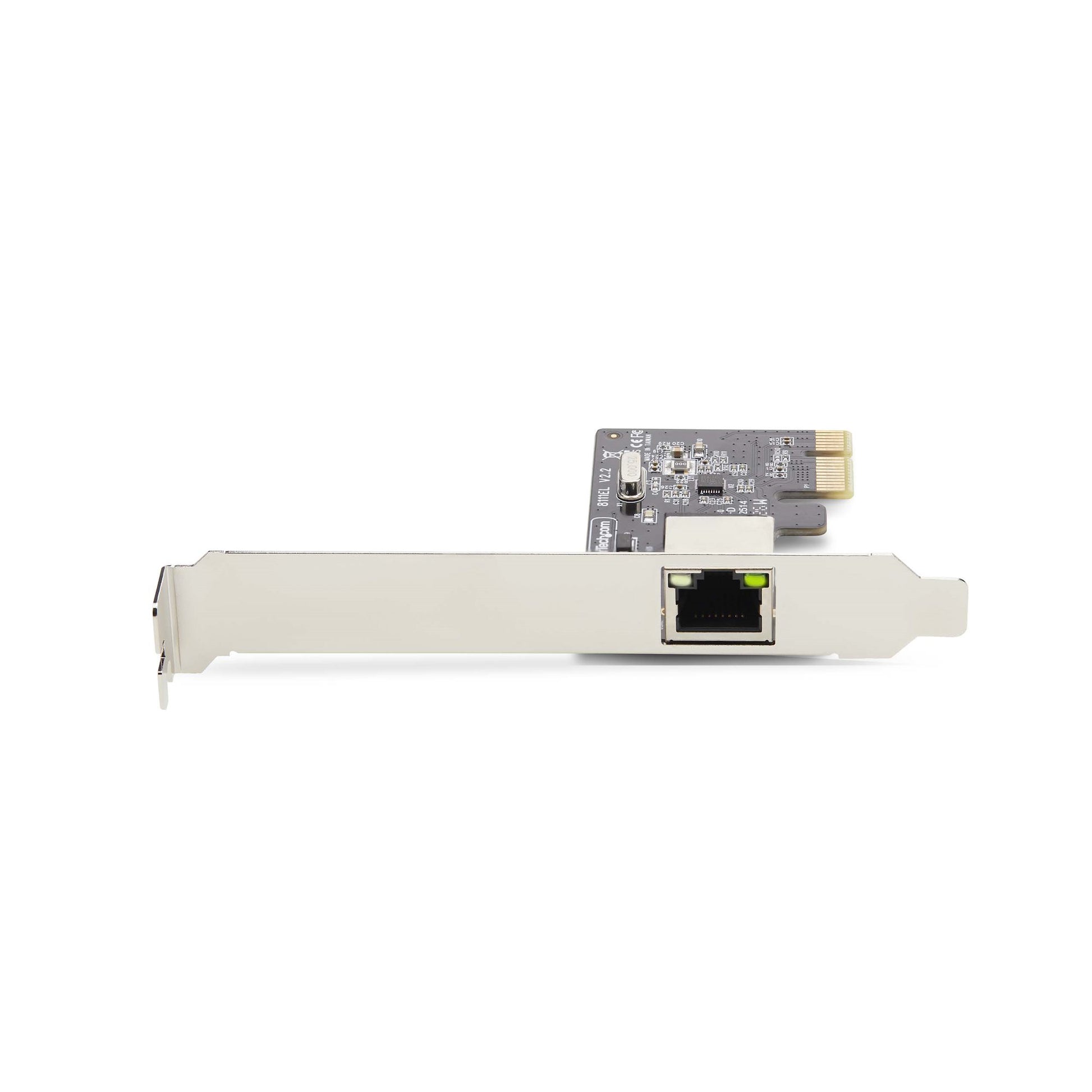

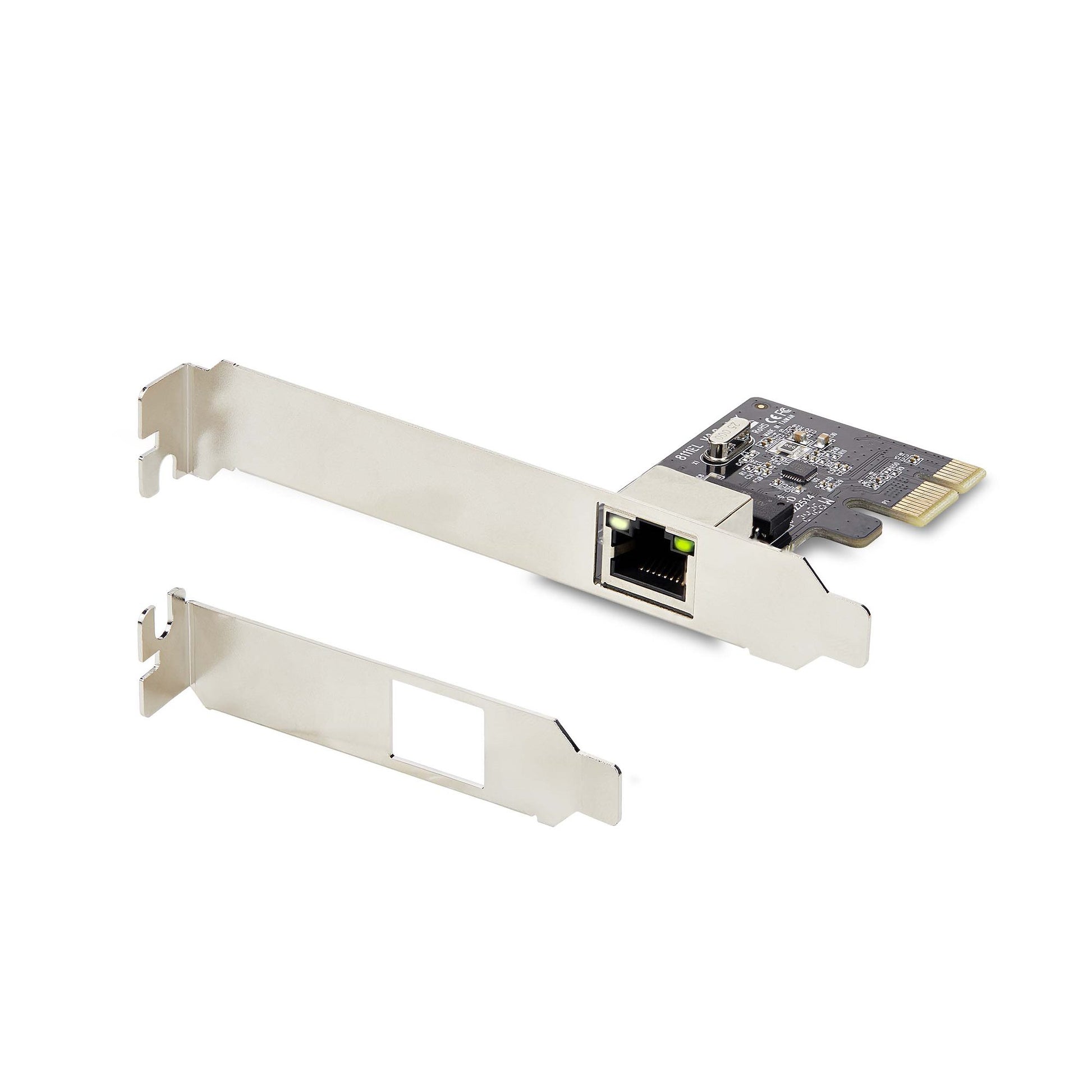

The PCI Express NIC includes a pre-installed standard-profile bracket for full-sized desktops and servers, as well as a low-profile bracket for compatibility with small form-factor computers.

Specifications

Ports & interfaces
Internal	Yes
Ethernet LAN (RJ-45) ports	1
PCI Card form factor	Full-height (low-profile)
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Network
Chipset	Realtek RTL8111H
Jumbo frames	9000
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready	Yes
Jumbo frames support	Yes
Auto-negotiation	Yes
VLAN support	Yes
Technical details
Product colour	Black
Design
LED indicators	Activity, Link
Component for	PC/Server
Software
Windows operating systems supported	Windows 11 Enterprise x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 8 Enterprise, Windows 10 IOT Core, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 8 Pro, Windows 10 Pro, Windows 8 Pro x64, Windows 10 Pro x64, Windows 8 x64, Windows 10 x64, Windows 8.1, Windows 11, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 8.1 Enterprise x64
Linux operating systems supported	Yes
System requirements
Server operating systems supported	Windows Server 2016, Windows Server 2019, Windows Server 2022
Operational conditions
Operating temperature (T-T)	5 - 70 °C
Storage temperature (T-T)	0 - 80 °C
Operating relative humidity (H-H)	10 - 80%
Weight & dimensions
Weight	34 g
Package width	175 mm
Package depth	143 mm
Package height	34 mm
Package weight	100.5 g
Logistics data
Master (outer) case width	682 mm
Master (outer) case length	365 mm
Master (outer) case height	332 mm
Products per master (outer) case	75 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
