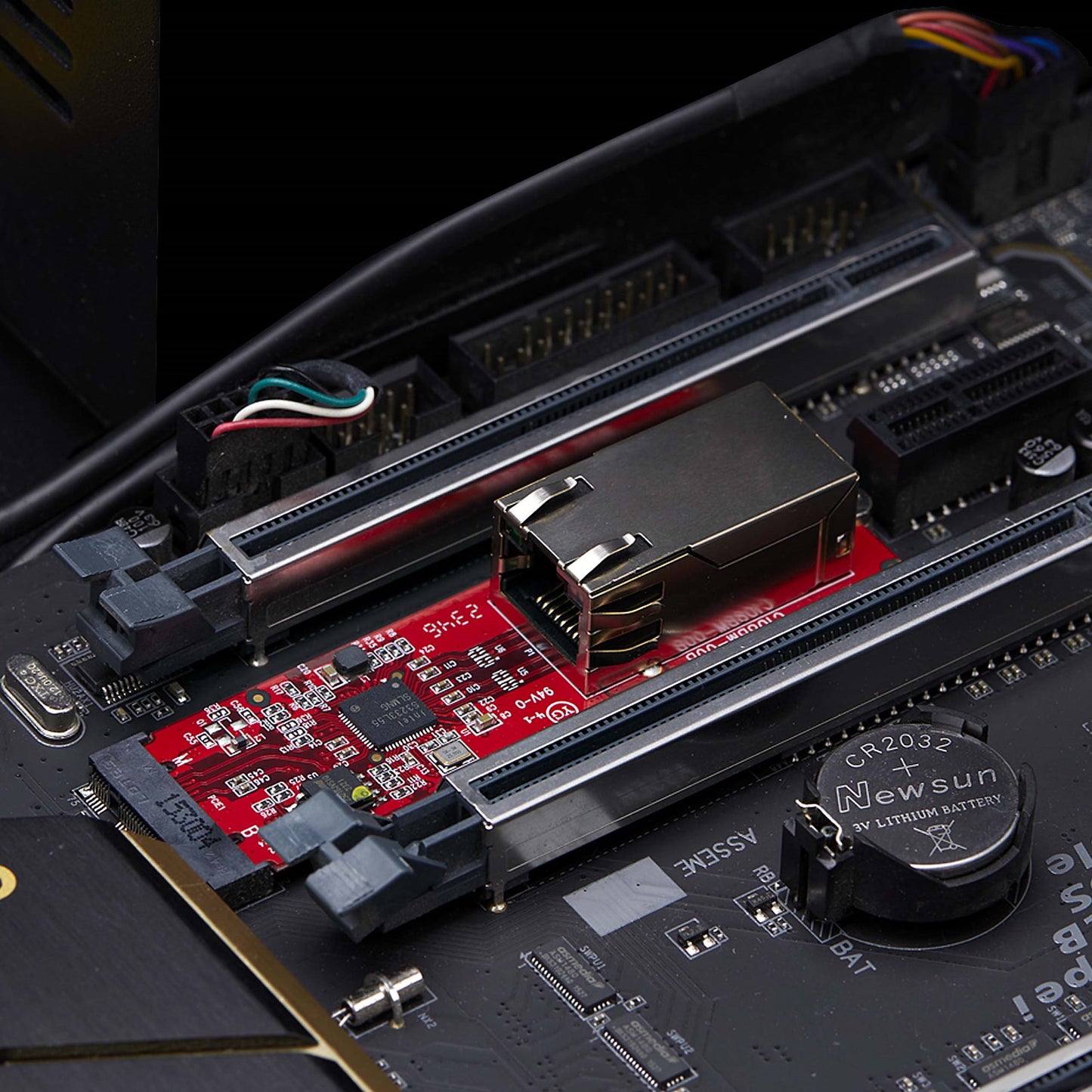

StarTech.com 1-Port 2.5GbE M.2 2280 Network Card, Multi-Gigabit Speeds Network Adapter
StarTech.com 1-Port 2.5GbE M.2 2280 Network Card, Multi-Gigabit Speeds Network Adapter
Regular price
£63.00 GBP
Regular price
Sale price
£63.00 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Upgrade your connectivity with the StarTech.com 1-Port 2.5GbE M.2 — ports, speeds and interface details are in the spec table.

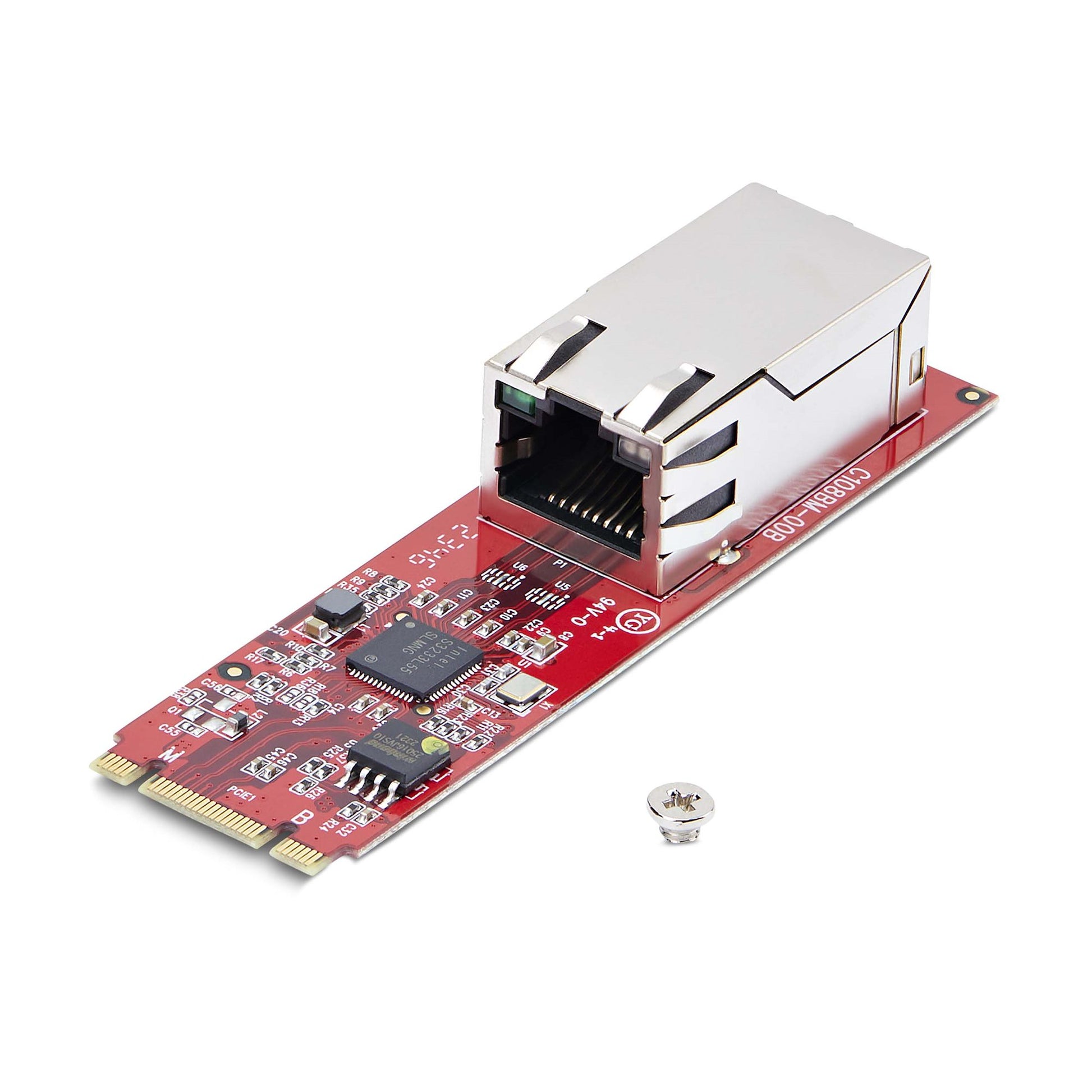

M.2 PCIe network card featuring the Intel® I225-V-chip, offering multi-gigabit speeds with support for NBASE-TThis 2.5 GbE M.2 Network Interface Card (NIC) features an Intel I225-V chipset with Intel vPro® technology, for enhanced performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support of new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding 2.5GBASE-T (802.3bz) compatibility for seamless integration.
Increased Network Speed
The PCIe network card takes advantage of Intel vPro® technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and online content streaming or uploading while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware

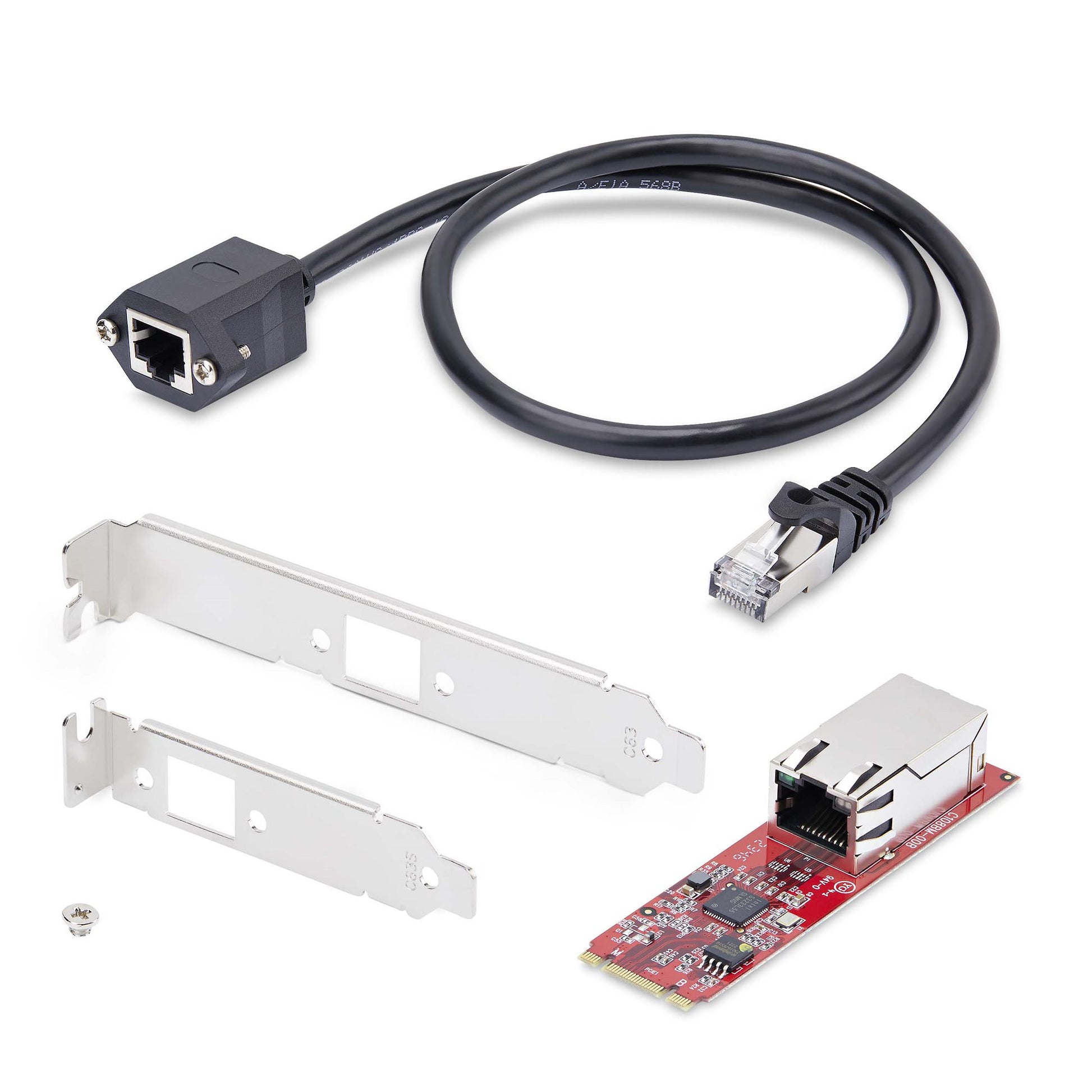

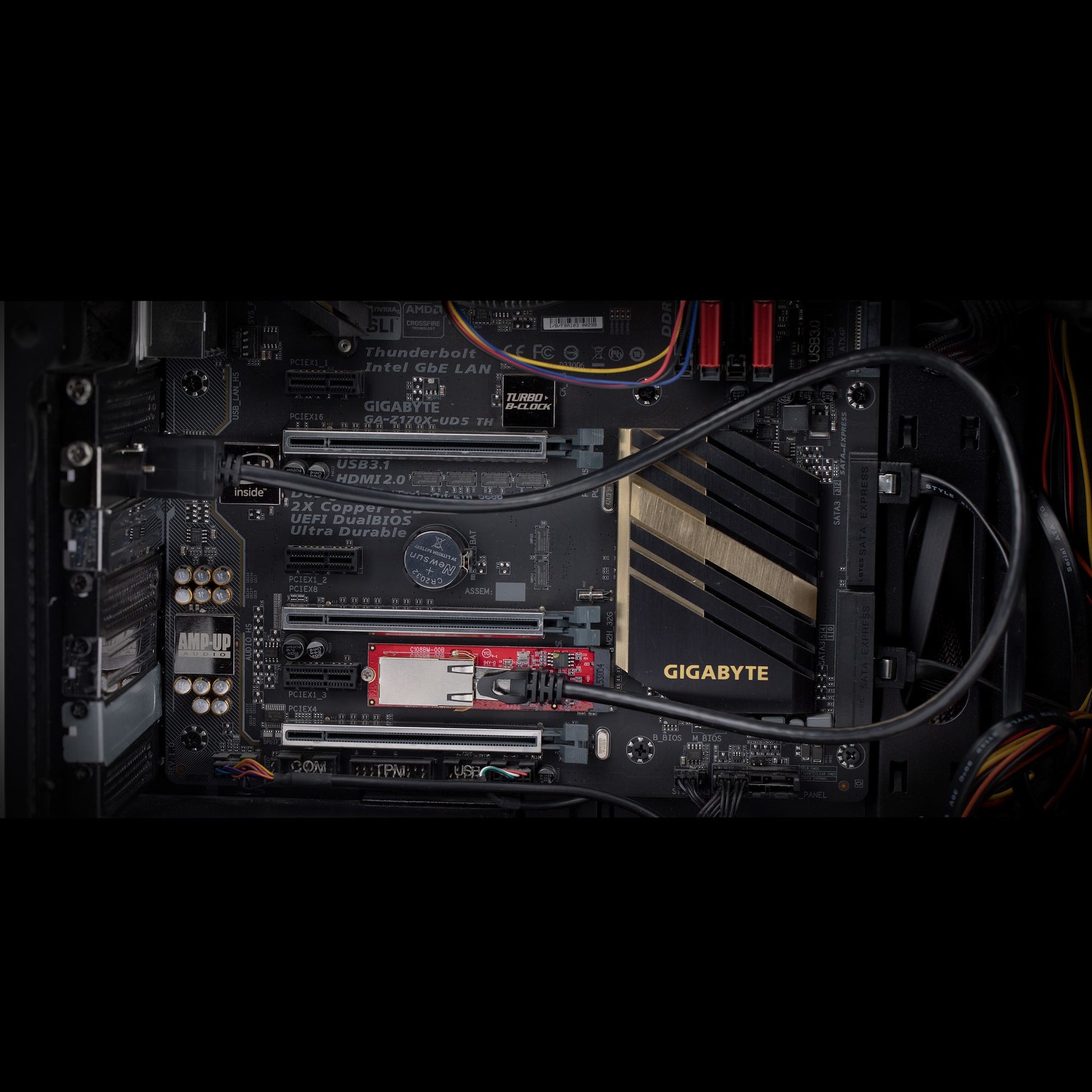

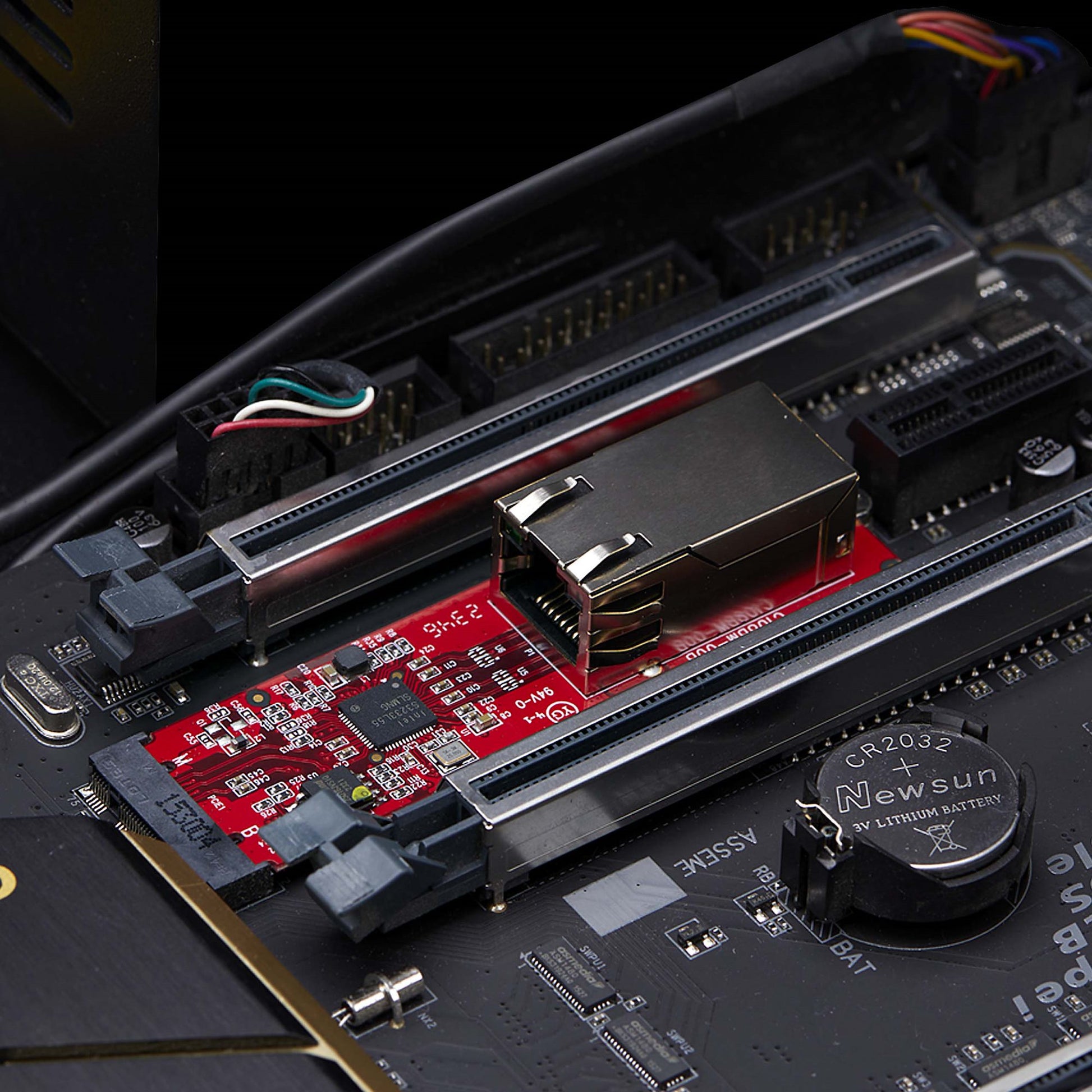

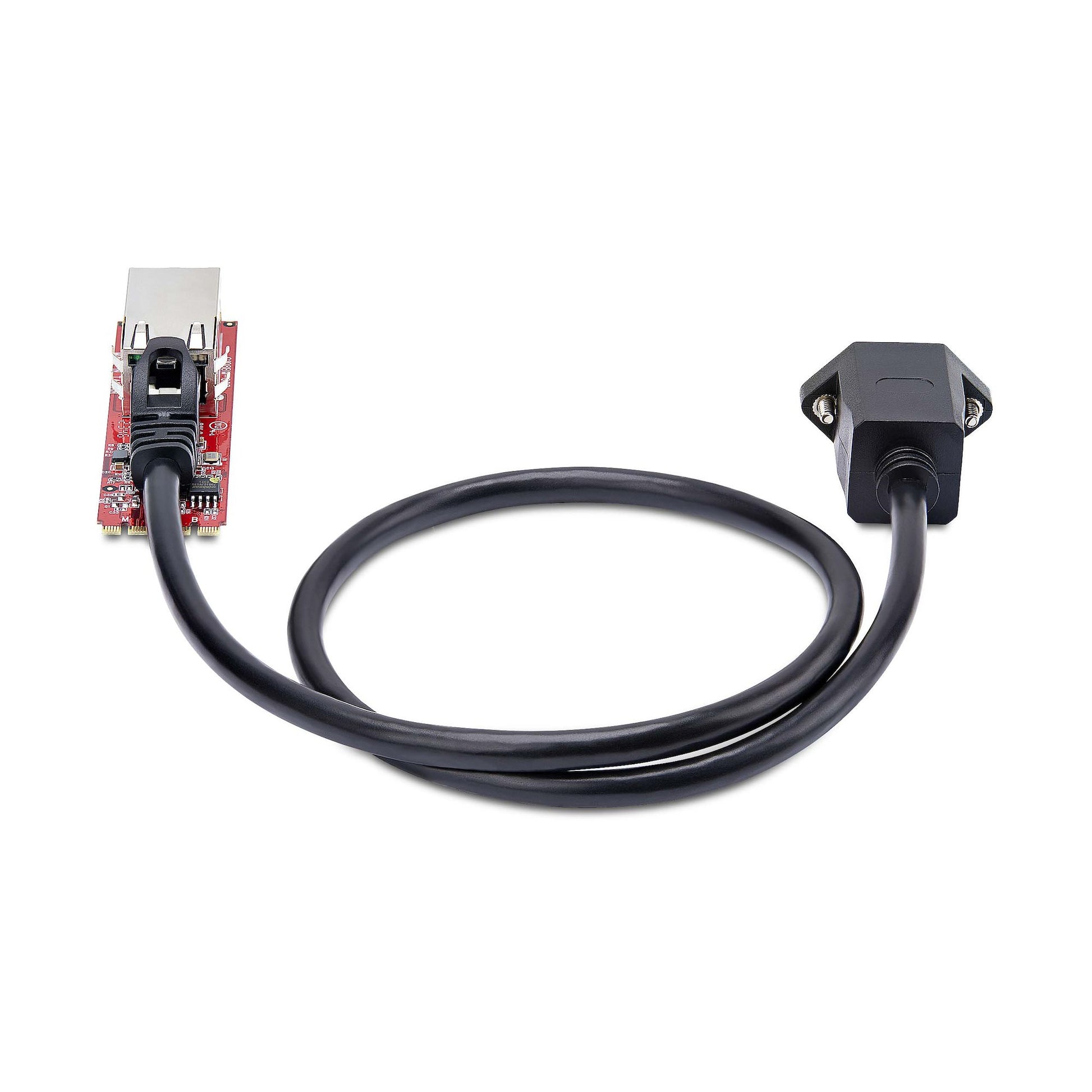

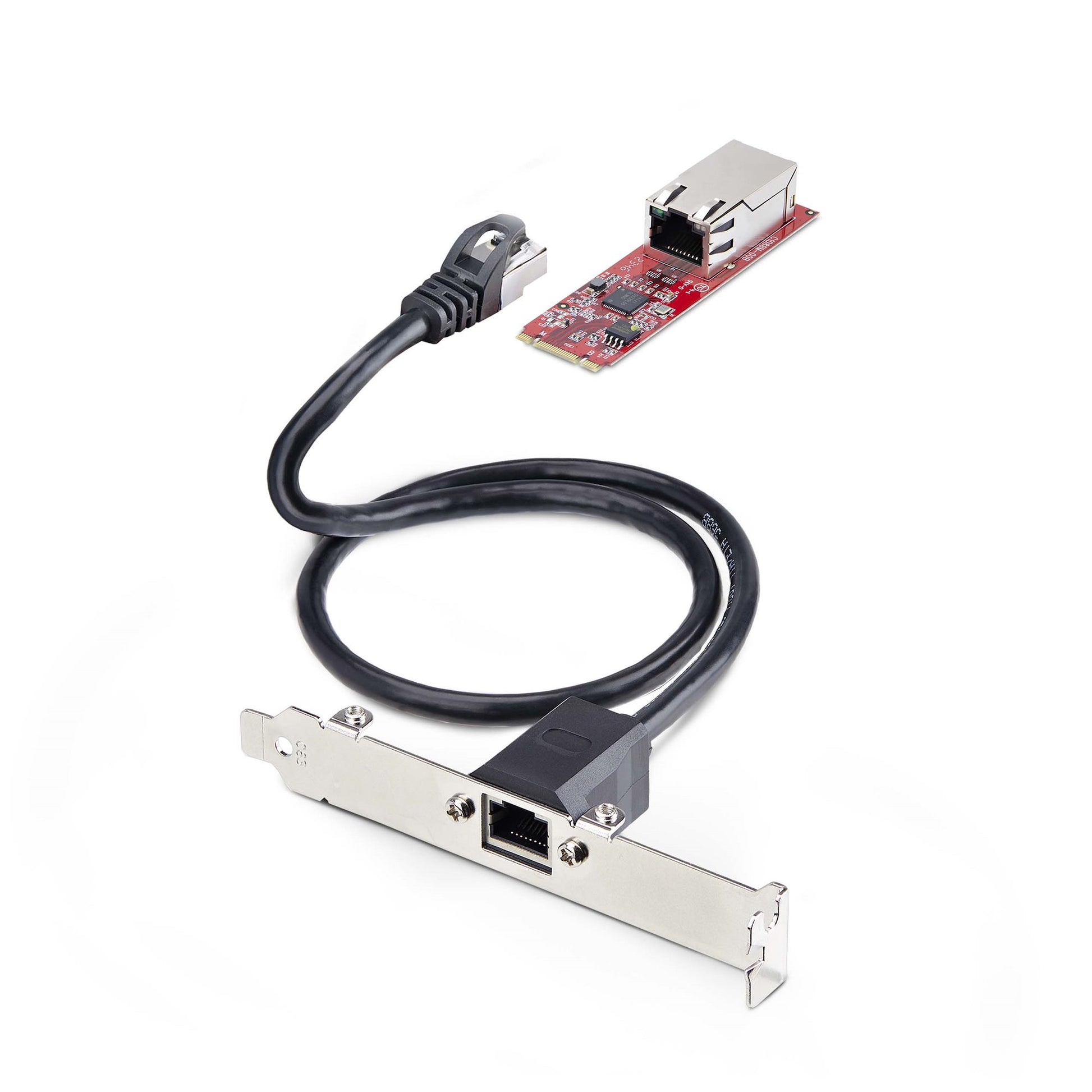

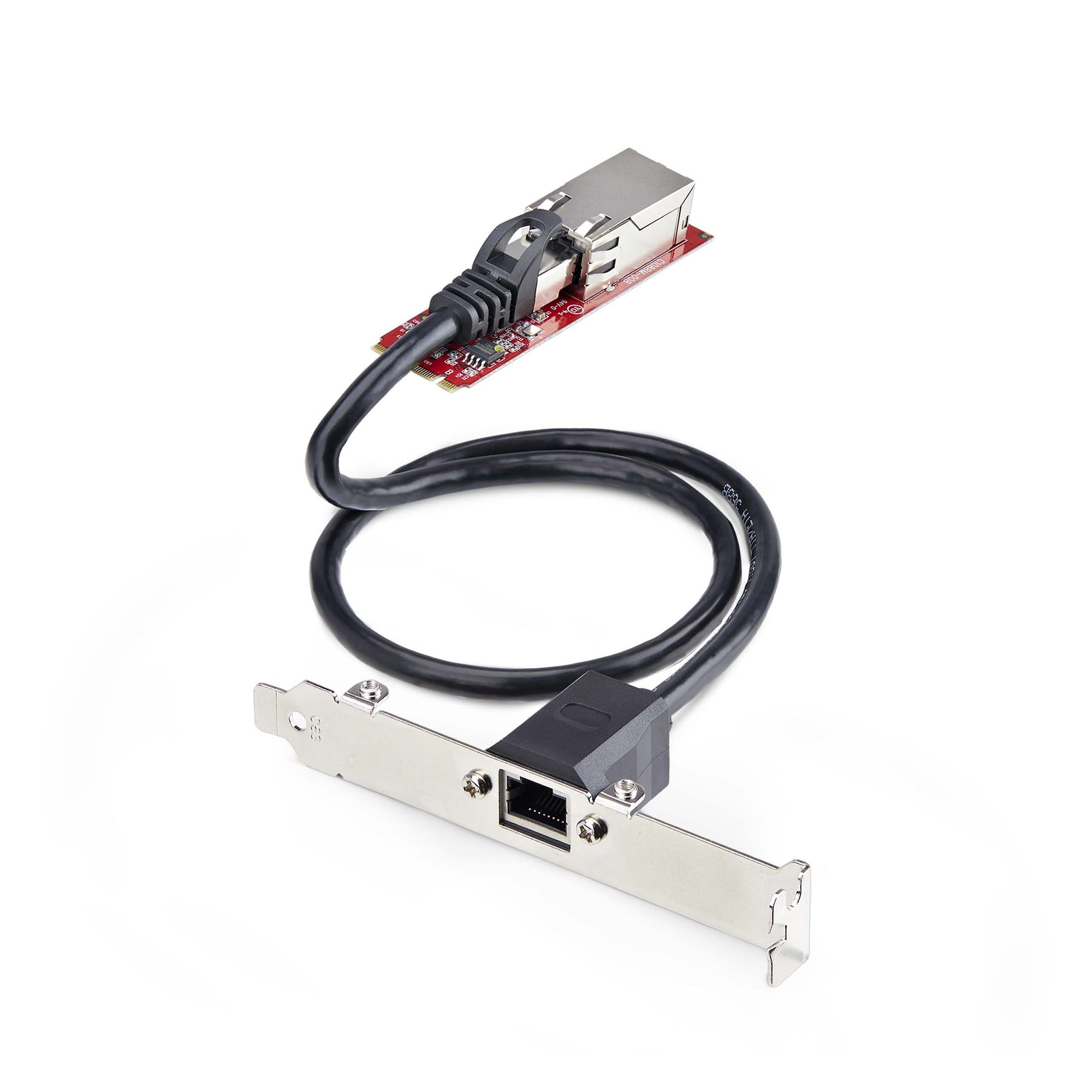

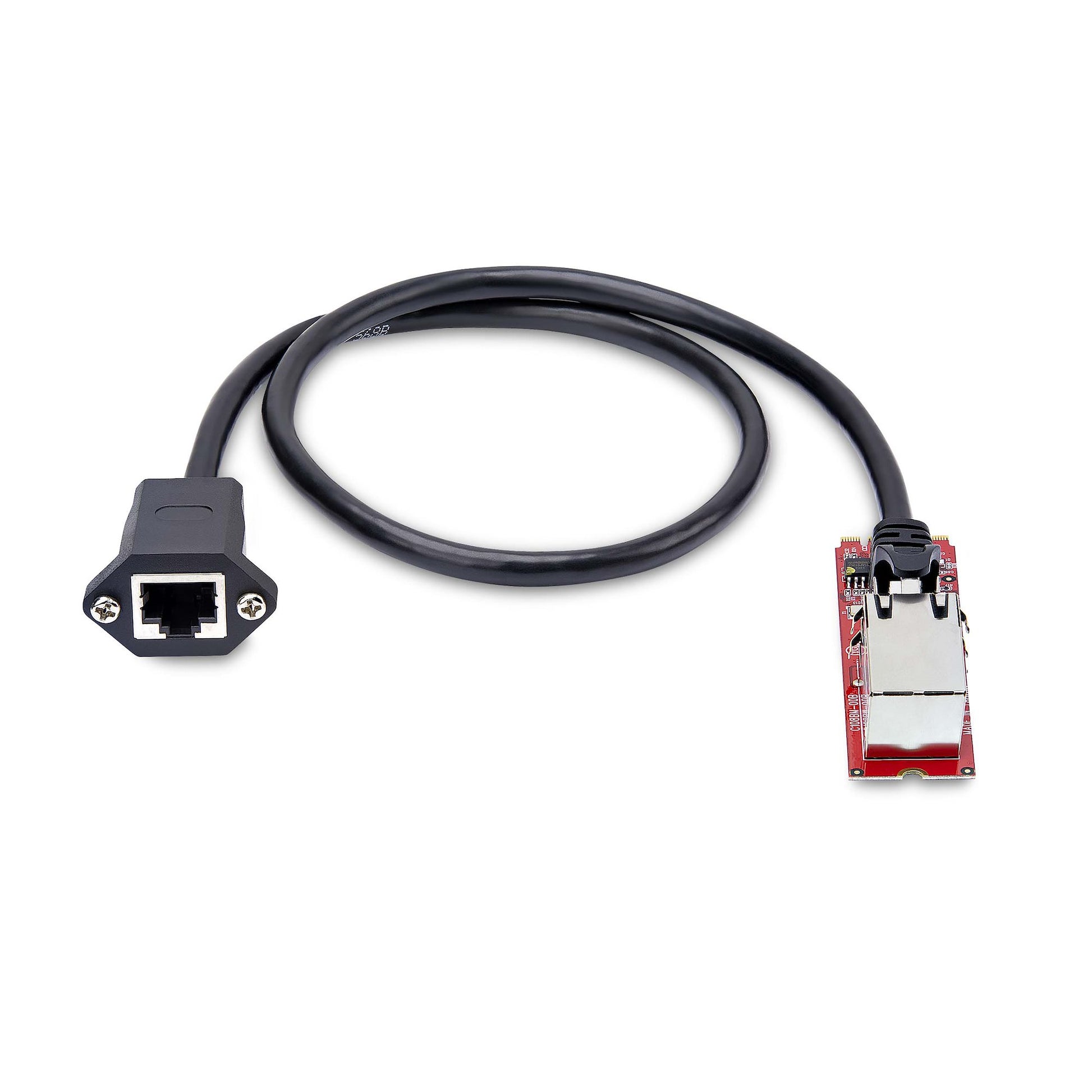

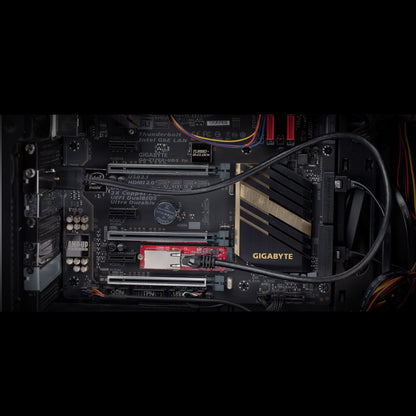

The network adapter card connects to an available M.2 2280 PCIe slot (B or M key compatible). Standard and low-profile brackets and a 2ft (60cm) Cat6 adapter cable are included for versatile installation. Compatible with Windows, and Linux.
Advanced Features
This Ethernet card supports the following advanced features: PXE Boot, Wake-on-Lan (WoL), VLAN tagging, 9K jumbo frame, half-duplex, auto-negotiation, and Error Correcting Memory (ECC) for optimal network functionality.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | M.2 |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 2500 Mbit/s |
| Network | |
| Chipset | Intel I225-V |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Jumbo frames | 9000 |
| Ethernet LAN | Yes |
| Cabling technology | NBase-T |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Technical details | |
| Product colour | Red |
| Sustainability compliance | Yes |
| Compliance certificates | Trade Agreements Act (TAA) |
| Design | |
| LED indicators | Yes |
| Component for | PC/Server |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 22 mm |
| Height | 15 mm |
| Weight | 15 g |
| Package width | 143 mm |
| Package depth | 176 mm |
| Package height | 33 mm |
| Package weight | 170 g |
| Packaging data | |
| Mounting brackets included | Yes |
| Quick start guide | Yes |
| Packaging content | |
| Packaging content | CAT6 Cable Adapter |
| Logistics data | |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 60 pc(s) |
