StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server
StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server
Regular price
£151.65 GBP
Regular price
Sale price
£151.65 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Upgrade your connectivity with the StarTech.com 1-Port 10Gbps PCIe Network — ports, speeds and interface details are in the spec table.
Six-Speed | AVB | PXE Boot | x2 PCIe 3.0 | Marvell AQC113CSInstall this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco®; HPE®; and Juniper®.
Increased Network Speeds
This PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and when streaming online content.
NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.
Enhance Existing Hardware

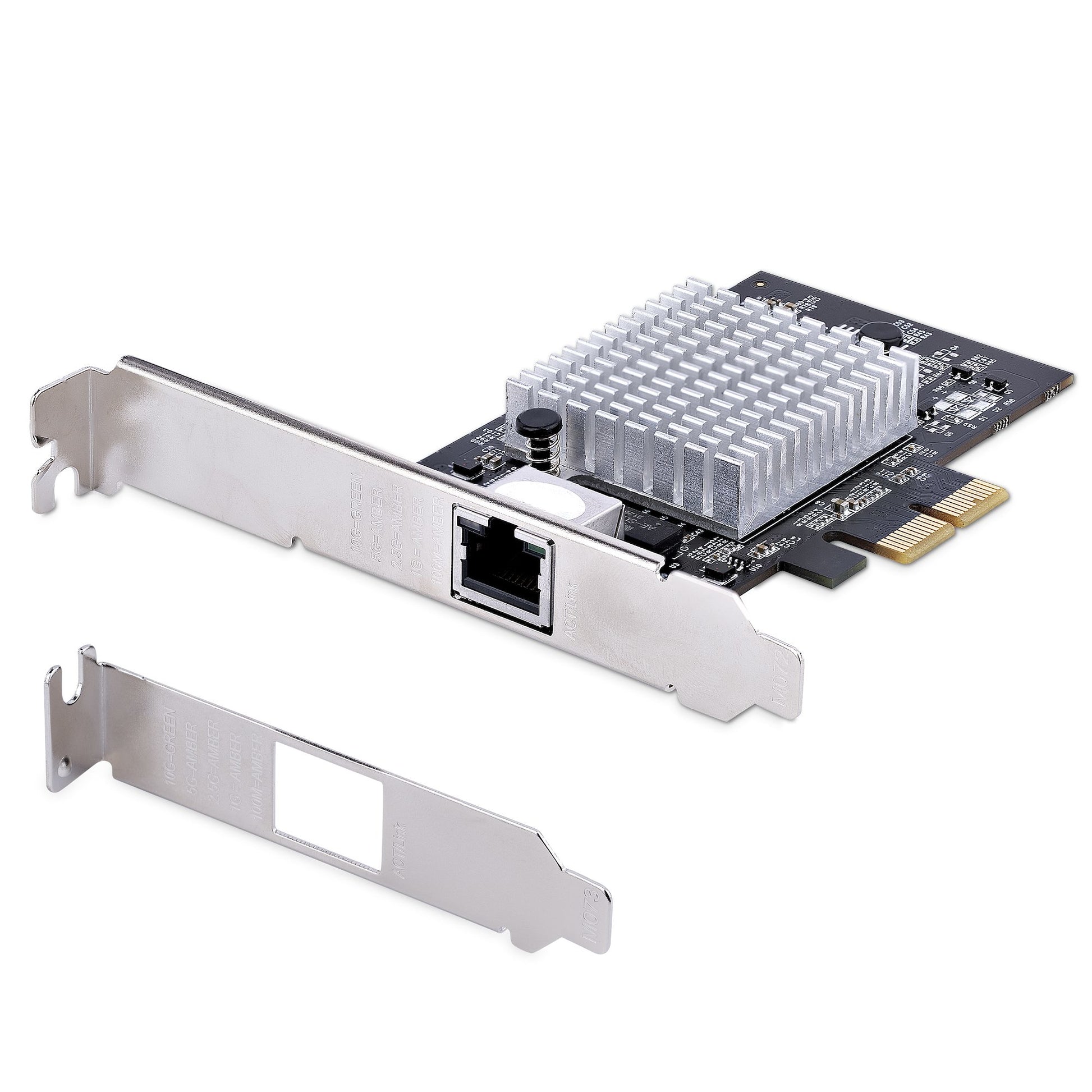

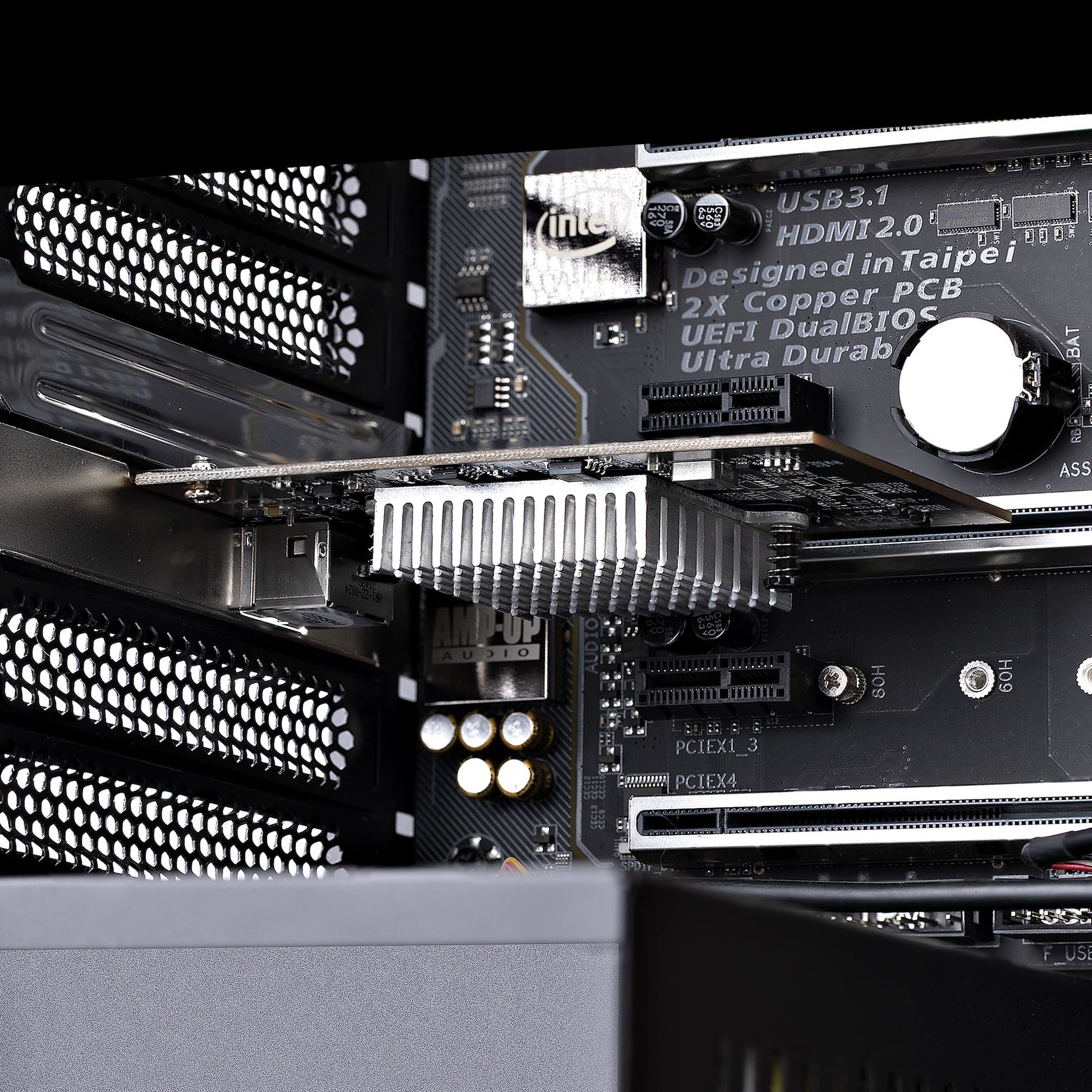

The Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows, Windows Server, and Linux.
Take advantage of advanced features such as Audio-Video Bridging (AVB), VLAN tagging, 16 K jumbo frame, full-duplex, secure boot, and PXE.
The PCI Express 10G NIC is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCIe |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Auto MDIX IEEE | Yes |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Jumbo frames | 16000 |
| Ethernet LAN | Yes |
| Cabling technology | 10GBase-T |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Design | |
| LED indicators | Yes |
| Component for | PC |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Weight & dimensions | |
| Width | 107 mm |
| Depth | 121 mm |
| Height | 22 mm |
| Weight | 70 g |
| Package width | 217 mm |
| Package depth | 152 mm |
| Package height | 35 mm |
| Package weight | 120 g |
| Packaging data | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Logistics data | |
| Master (outer) case width | 452 mm |
| Master (outer) case length | 378 mm |
| Master (outer) case height | 326 mm |
| Products per master (outer) case | 40 pc(s) |
