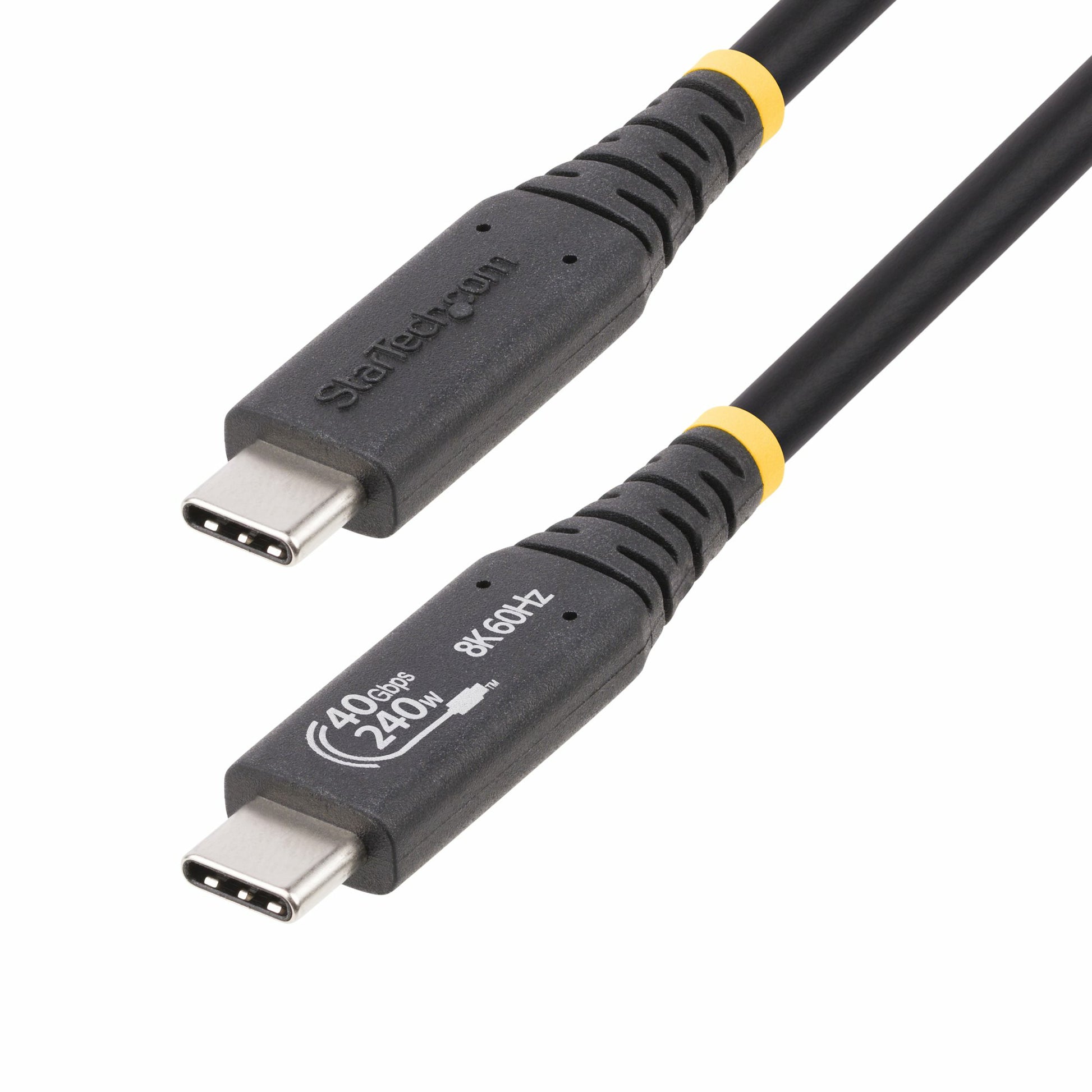

StarTech.com 1.6ft (50cm) USB4 Cable 40Gbps, 240W (5A) Power Delivery, 8K 120Hz / 4K

Make the connection with the StarTech.com 1.6ft (50cm) USB4 Cable — length and connector details are in the spec table.

Use this USB-IF Certified USB-C cable for fast and reliable connections to your USB4 devices

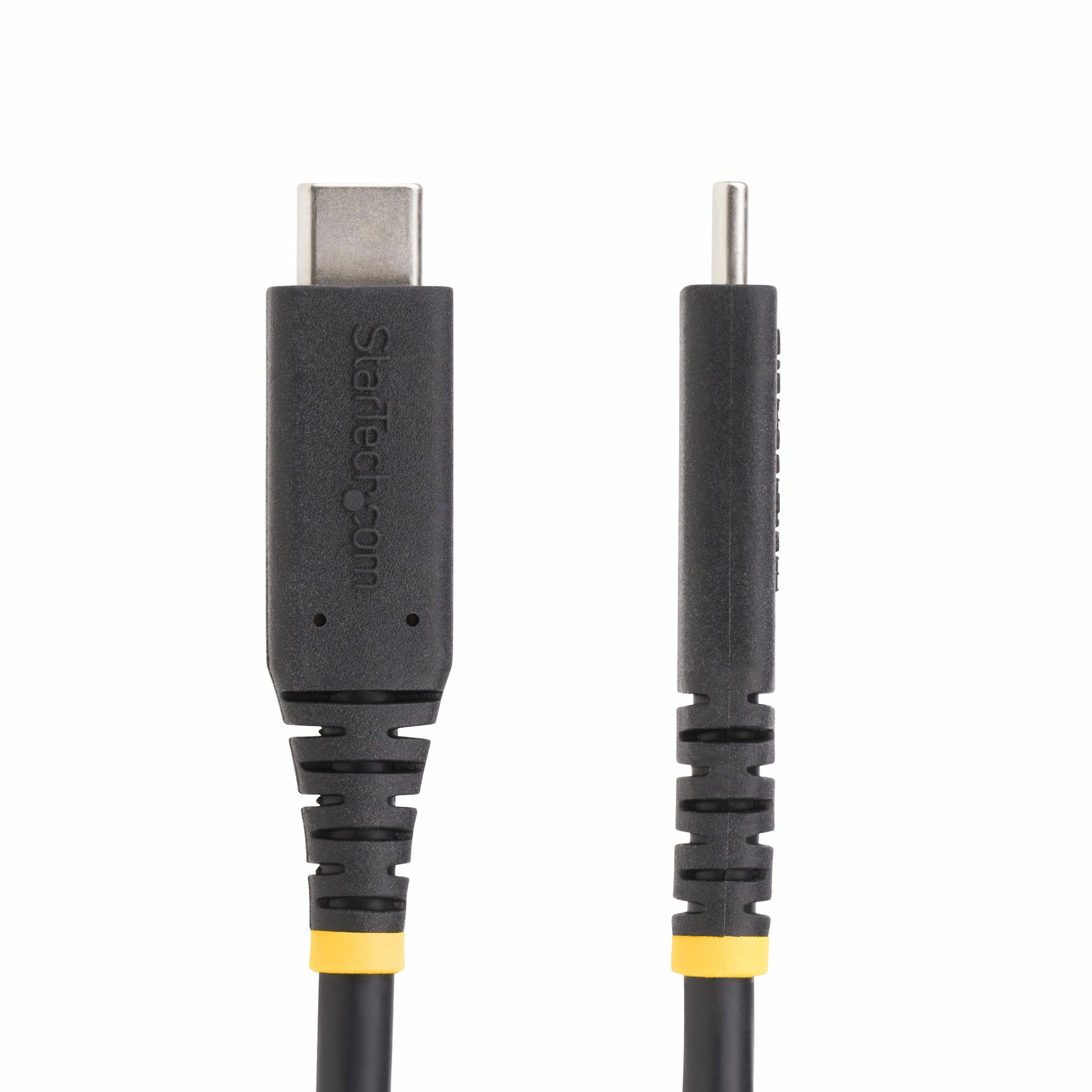

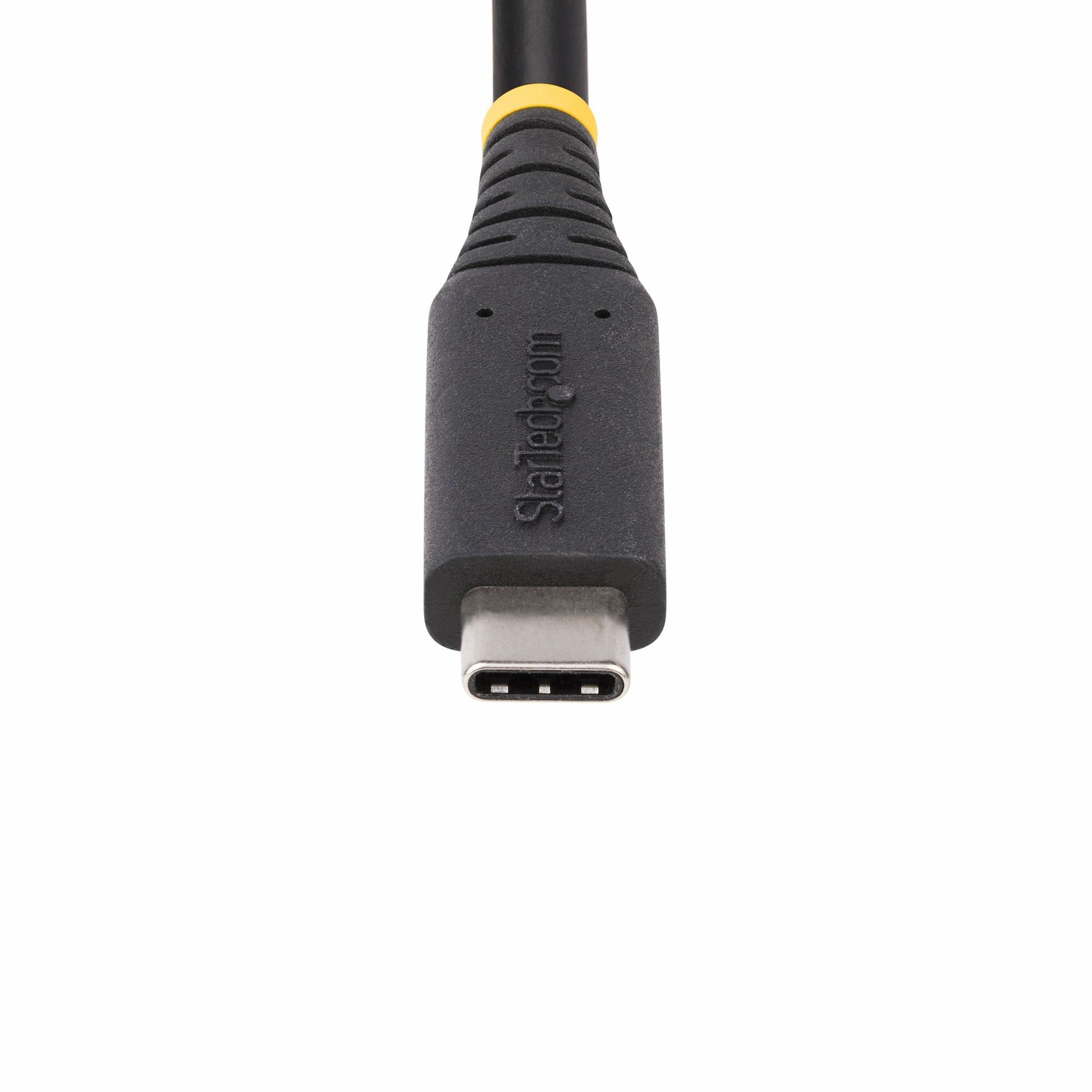

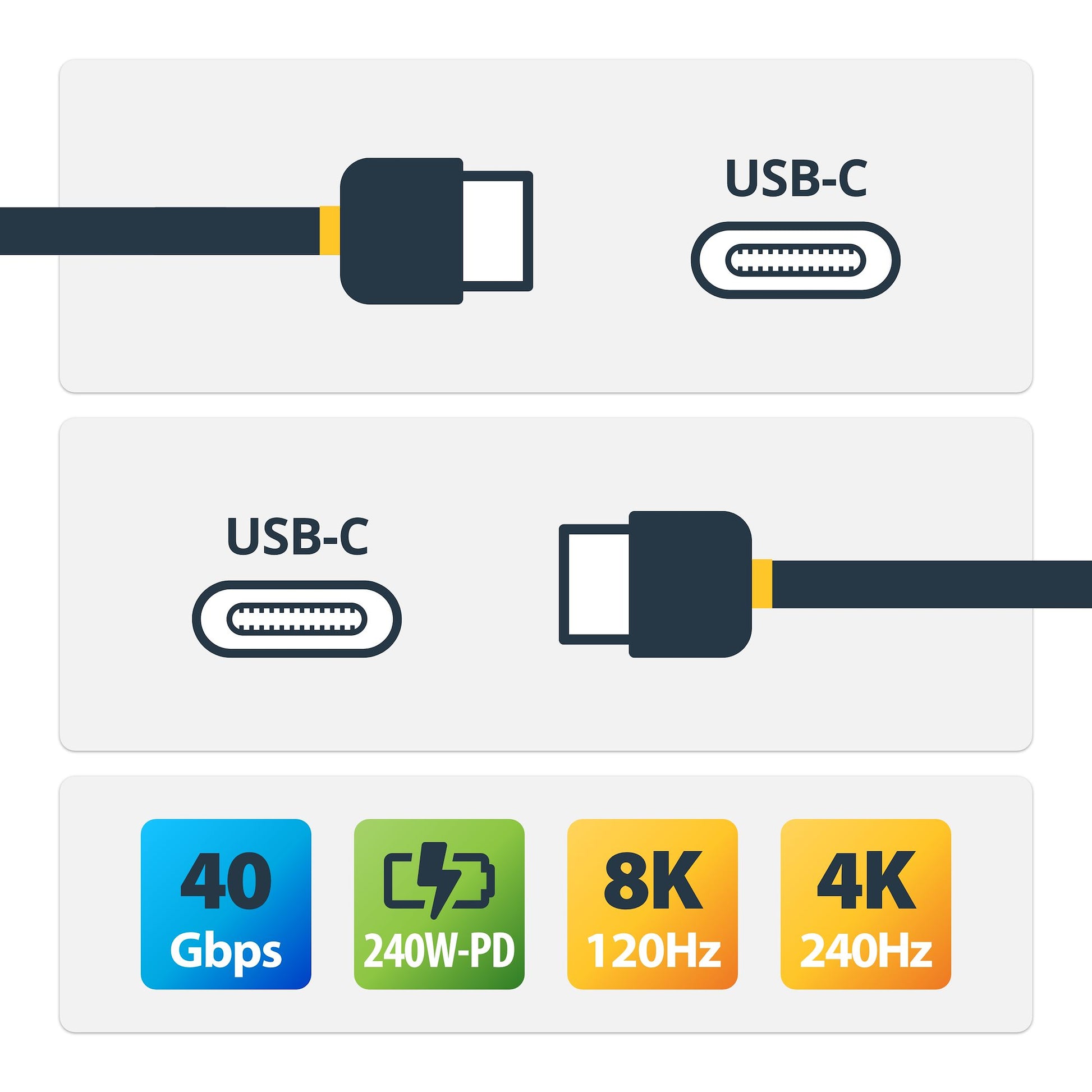

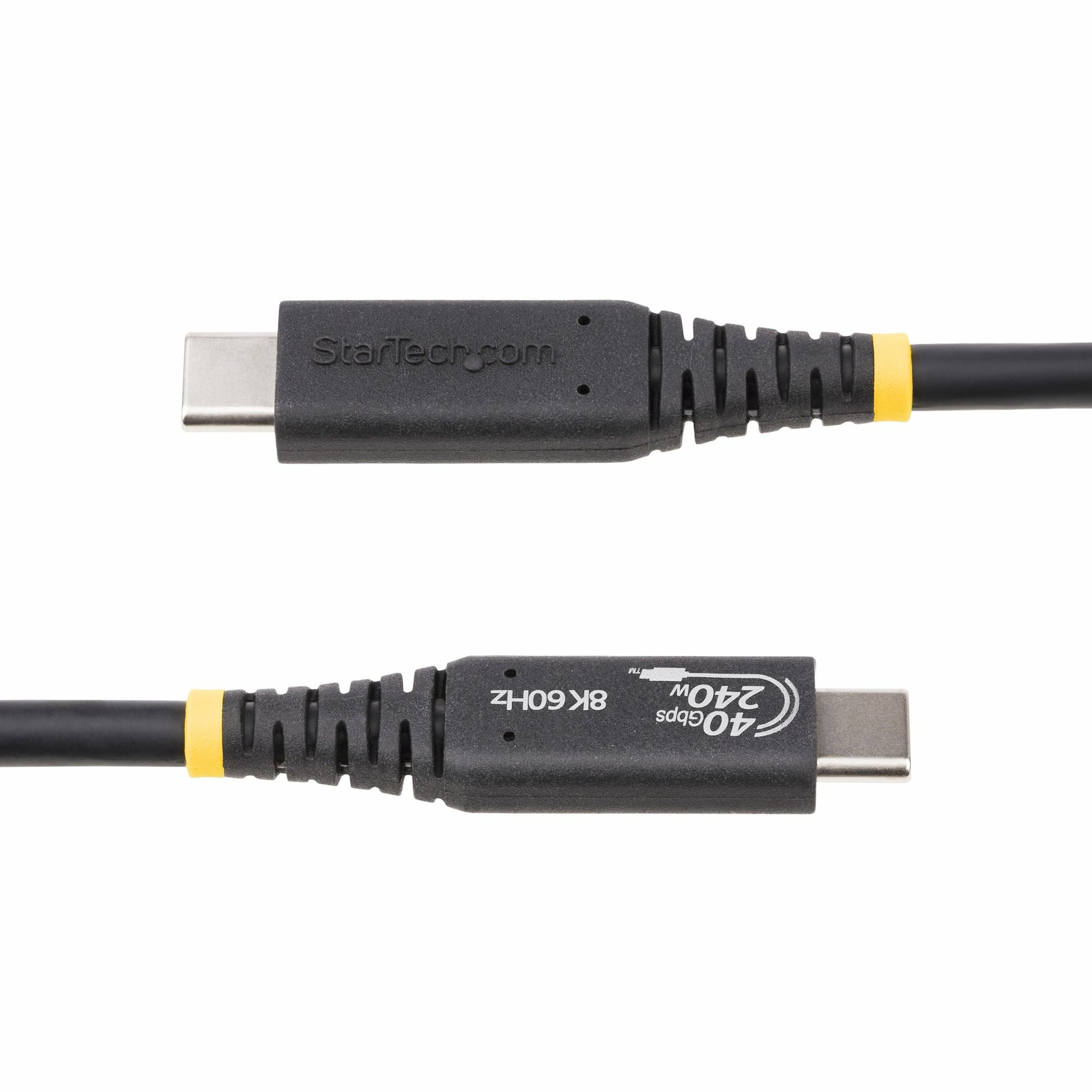

Connect reliably to USB Type-C® (USB4), Thunderbolt™; and PCIe-enabled devices, delivering up to 40Gbps, 8K/4K video, and 240W of Power Delivery. The connector markings enable quick visual identification, distinguishing this USB4 cable from other similar-looking or unmarked USB-C cables. Eliminate guesswork and always choose the appropriate cable to support full USB4 capabilities.

240W Extended Power Range

The USB4 Charger Cord supports up to 240W of Extended Power Range (EPR) Power Delivery 3.1. It is ideal for high performance USB-C laptops requiring extra power, such as 16in MacBook Pro M3 Pro/M3 Max. Connect the cable from the laptop to a USB-C wall charger or compatible docking station.

Establish Fast and Stable Power/Data Connections

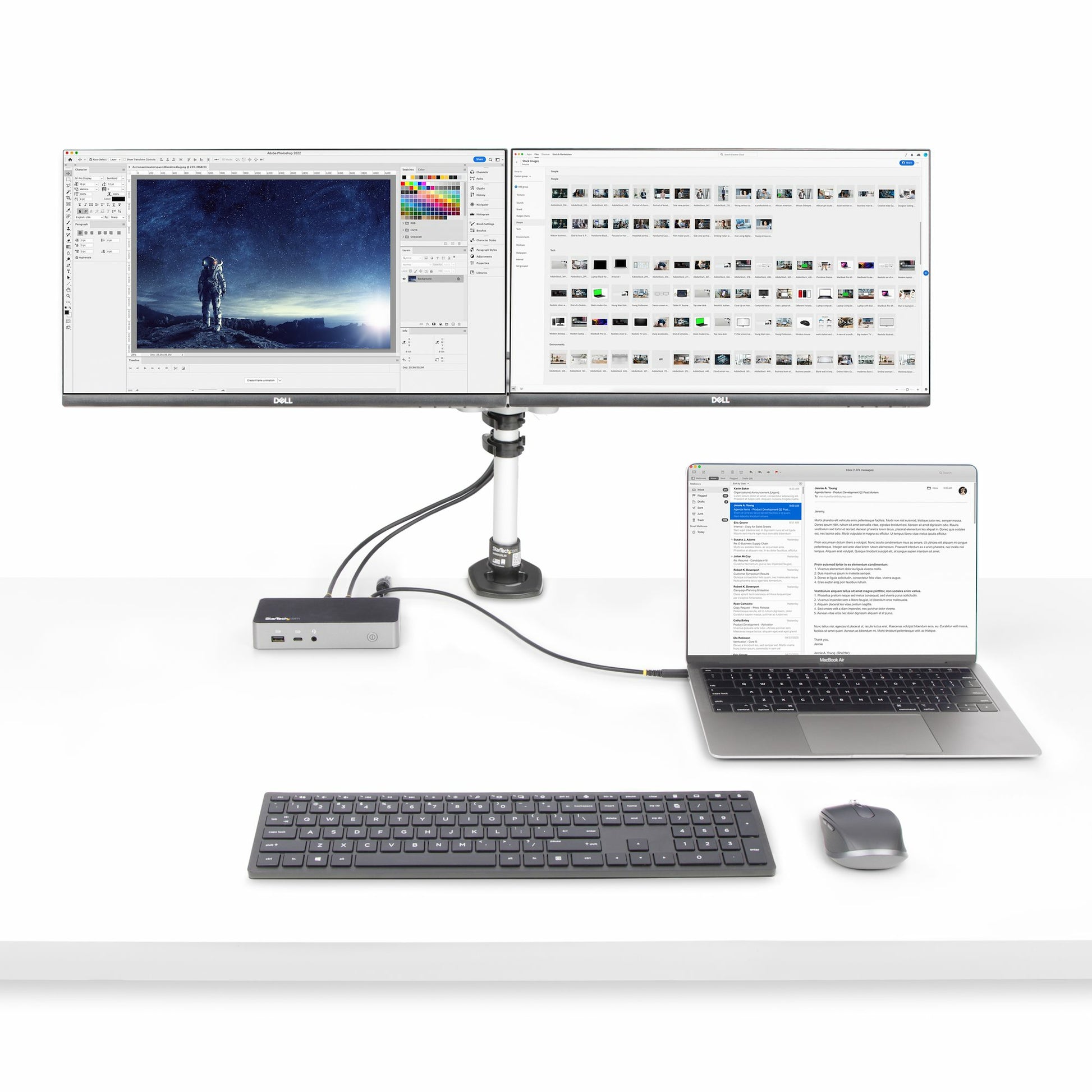

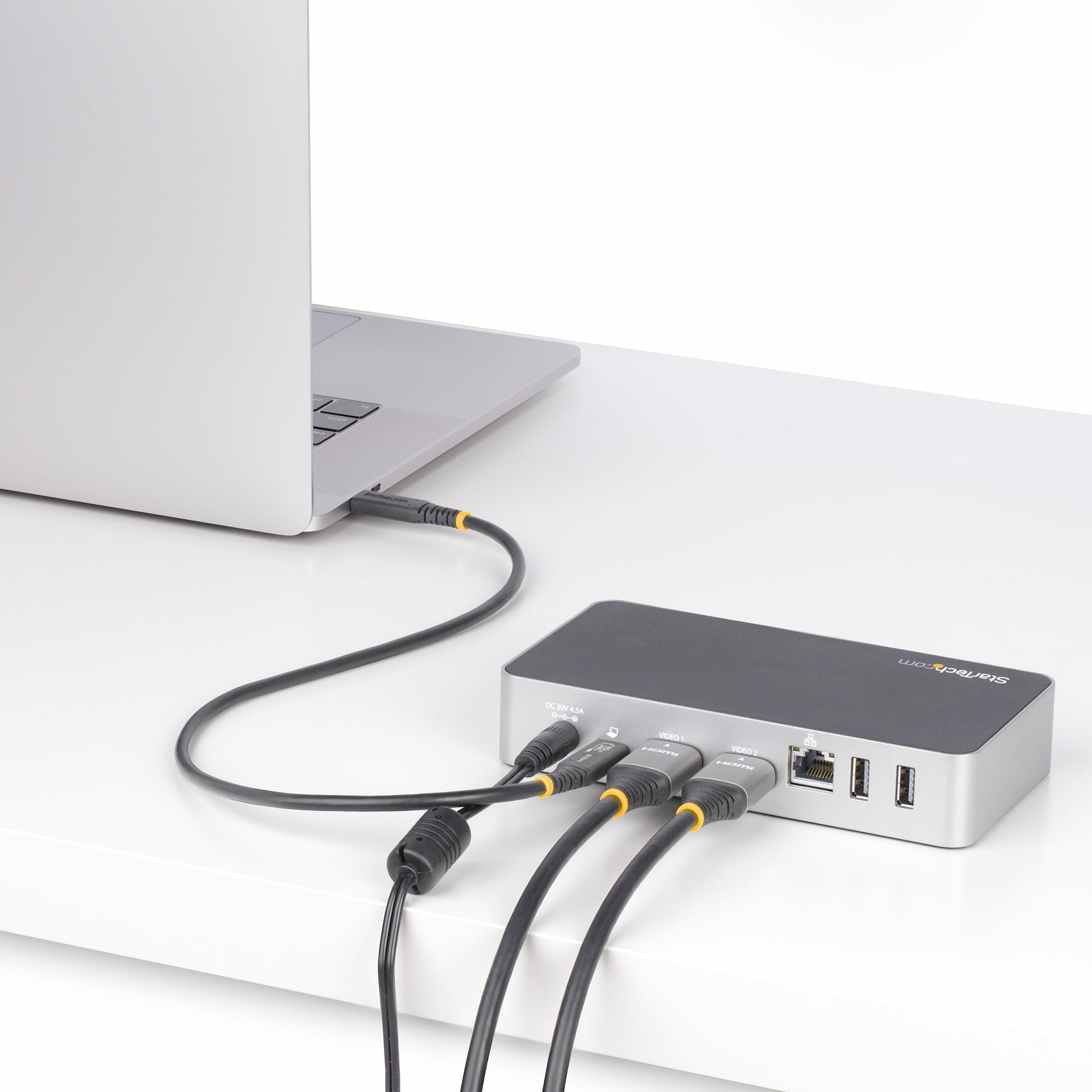

This USB4 Type-C cable is USB-IF certified for guaranteed USB-C compatibility. It reliably delivers consistent transfer rates and power output. It facilitates 40Gbps data transfer to external USB-C-enabled external storage devices or serves as a single-cable connection from a USB-C dock to a laptop.

This cable has undergone rigorous USB-IF compliance testing to meet USB4 specifications. This includes electrical and mechanical standards which ensure a reliable, high-quality cable for USB-C devices. StarTech.com's cables are designed to meet the technical requirements of wide variety of applications. Our in-house specialists subject our products to multiple rounds of comprehensive testing for interoperability and reliability with the latest devices.

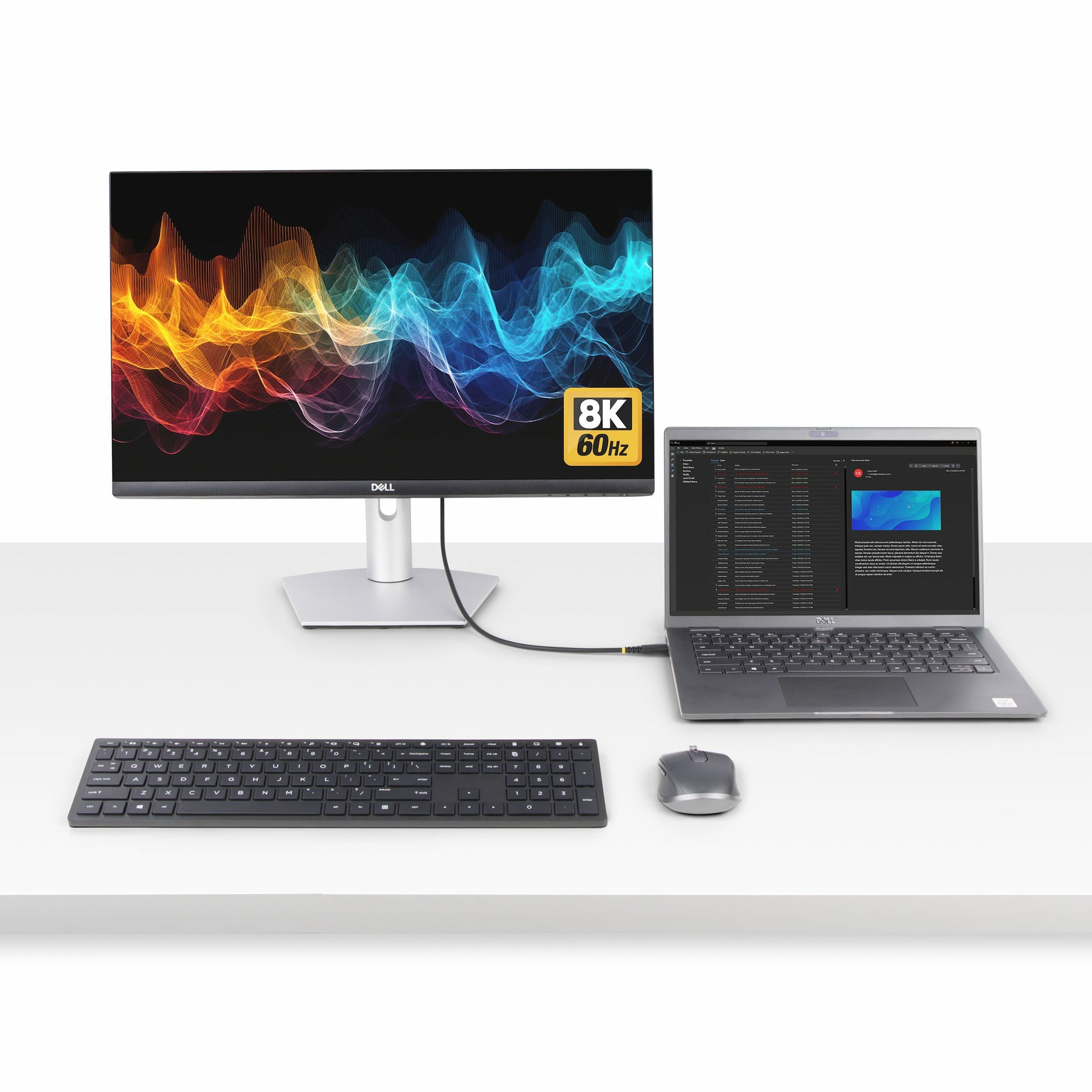

Experience 8K Video with DisplayPort 2.1 Alt Mode

The USB4 cable supports up to 8K 120Hz or 4K 240Hz video over DisplayPort 2.1 Alt Mode with DSC, HDR, and HBR3, and is compatible with 4K 60Hz and lower resolutions.

Specifications

Features
Cable shielding	Aluminum mylar foil
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	26/32
USB version	USB4 Gen 3x2
Connector 1	USB C
Connector 2	USB C
Cable length	0.5 m
Connector contacts plating	Nickel
Maximum data transfer rate	40000 Mbit/s
Product colour	Black
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Male
USB Power Delivery (USB PD)	Yes
Cable jacket material	Thermoplastic elastomer (TPE)
USB Power Delivery up to	240 W
USB Power Delivery revision	3.1
Maximum refresh rate	120 Hz
High Dynamic Range (HDR) supported	Yes
DisplayPort version	1.4
Display Stream Compression (DSC)	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Input voltage	48 V
Cable diameter	4.8 mm
Input current (max)	5 A
Weight	23 g
Quantity per pack	1 pc(s)
Weight & dimensions
Package width	130 mm
Package depth	220 mm
Package height	10 mm
Package weight	30 g
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC)
Logistics data
Products per master (outer) case	250 pc(s)
Master (outer) case width	310 mm
Master (outer) case length	310 mm
Master (outer) case height	335 mm
