StarTech.com 1.6ft (50cm) USB-C Cable, Right-Angled, USB 10Gbps, 100W (5A) Power

Make the connection with the StarTech.com 1.6ft (50cm) USB-C Cable — length and connector details are in the spec table.

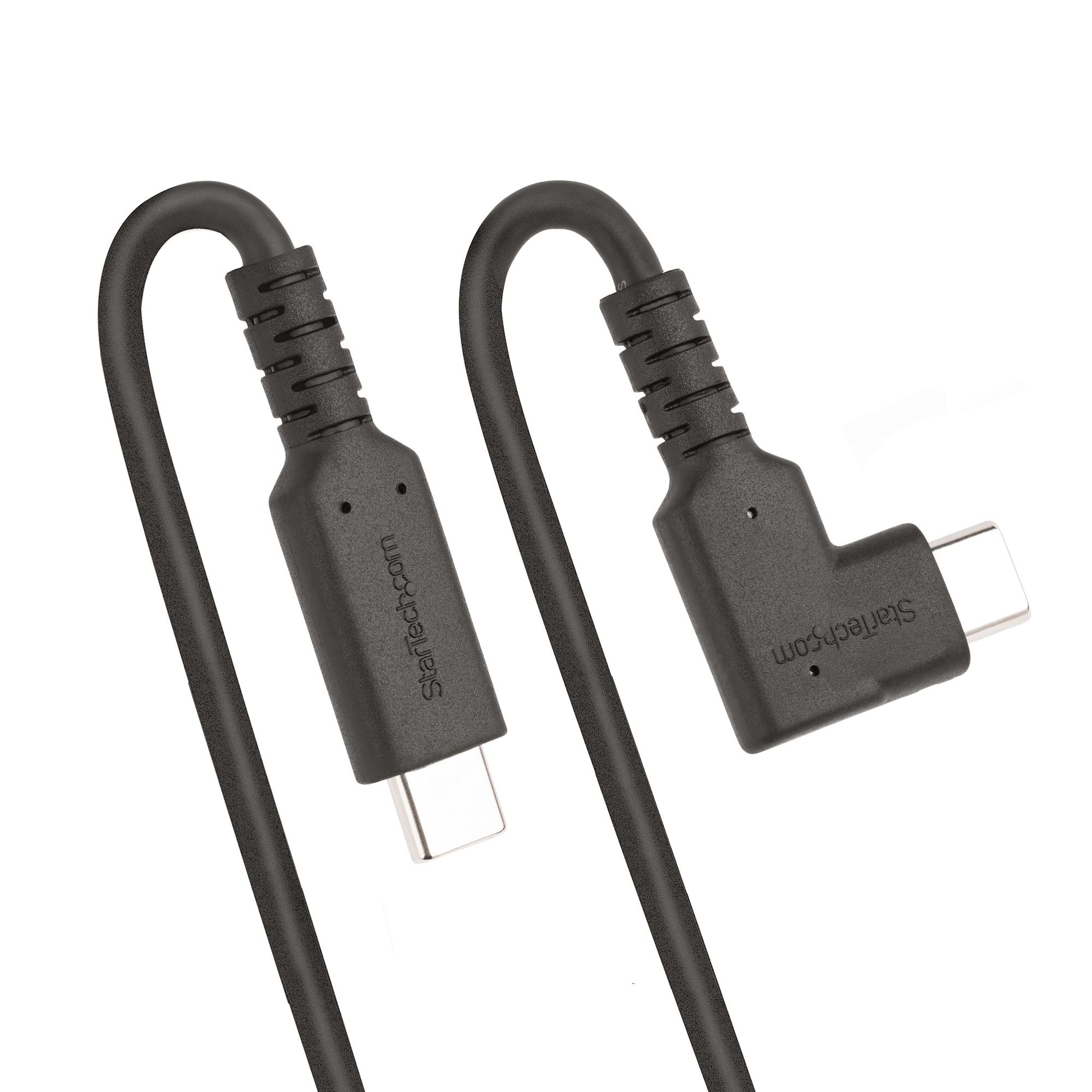

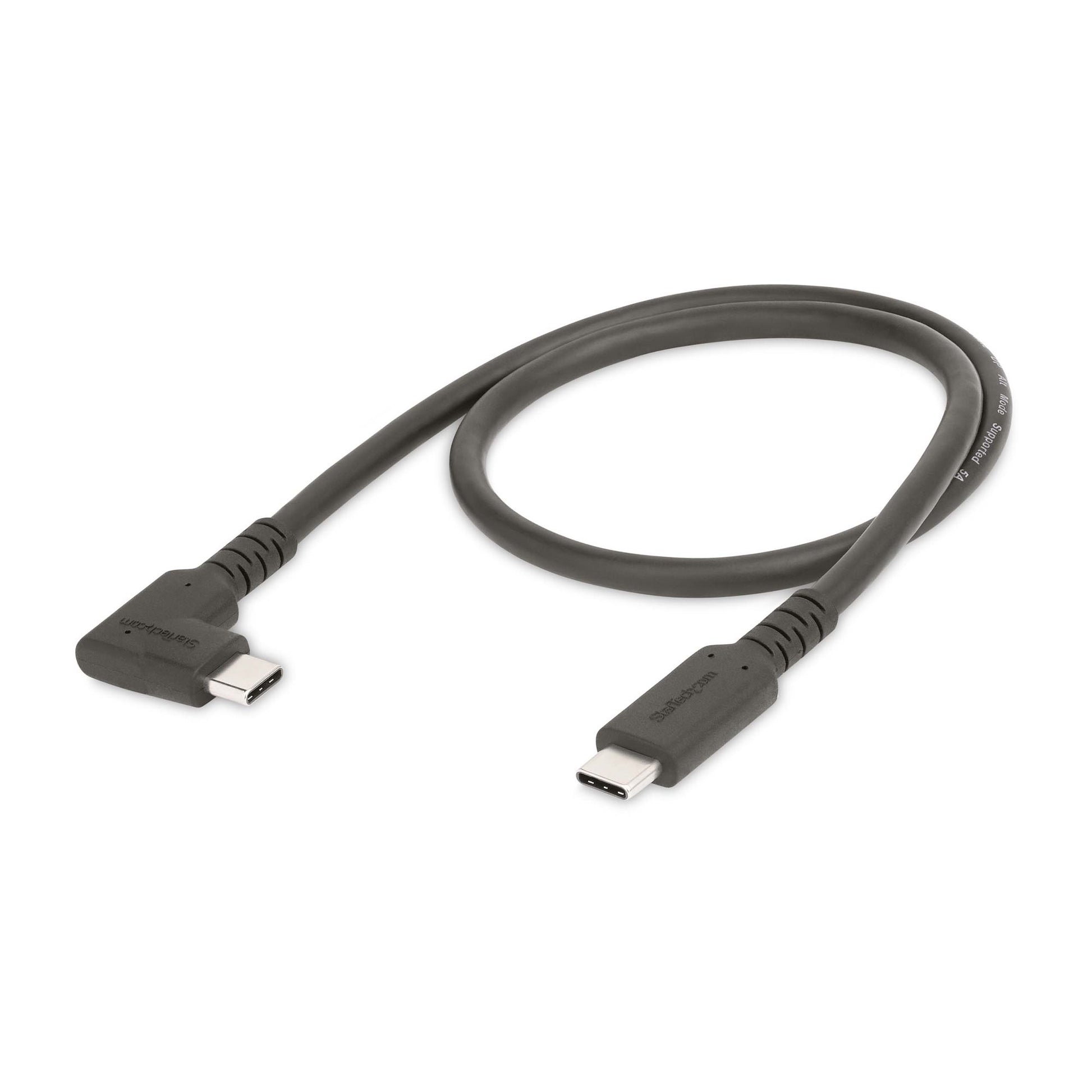

Connect and charge USB Type-C devices with a rugged right-angle USB-C Cable

Connect USB 10 Gbps source and peripheral devices, using this 1.6ft (50cm) Rugged Right Angle USB Type-C Cable. Position the right angle USB-C connection along the device to reduce cable clutter and avoid prolonged strain from bending.

It is ideal for 10 Gbps data transfer to external USB-C-enabled external storage devices, or as a single-cable connection from a USB-C dock to a laptop.

Experience 8K Video with DisplayPort 1.4 Alt Mode

The Rugged USB-C cable supports up to 8K 60Hz or 4K 144Hz video over DisplayPort 1.4 Alt Mode, and is compatible with 1080p and lower resolutions.

Enhanced Durability

Designed to withstand heavy use, the USB-C cable features an Aramid fiber core and durable TPE outer jacket. This heavy-duty construction protects against fraying or breakage and resists tangling.

Full-Featured USB-C Power and Data

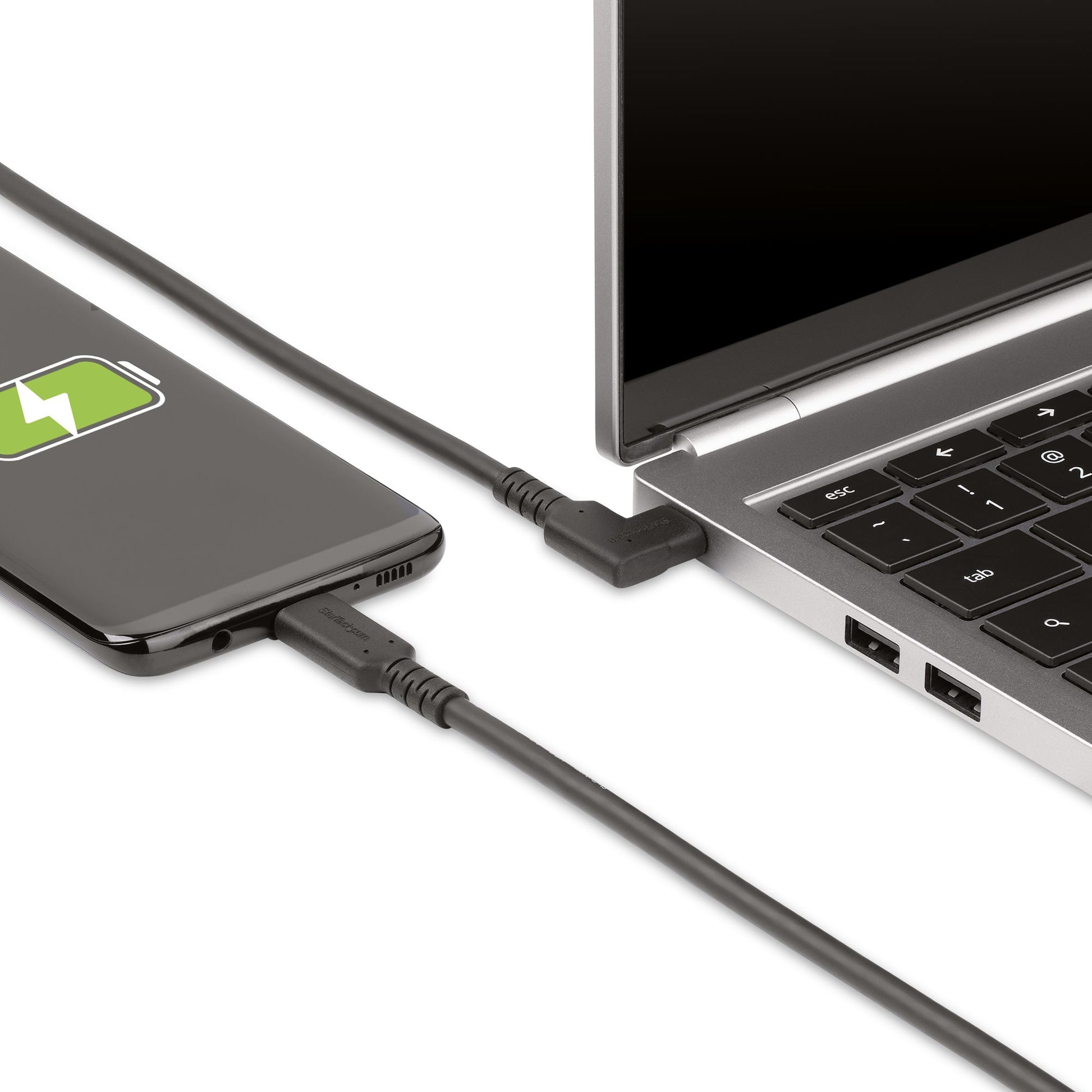

This USB Type-C cable features Power Delivery (PD) 3.0 with up to 100W PD output. Power and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface with up to 100W output over USB Power Delivery 3.0. Connect the USB-C cable from a laptop to a USB-C wall charger or docking station.

Specifications

Features
Cable shielding	Aluminum mylar foil
Connector 1 form factor	Straight
Connector 2 form factor	Straight
USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB C
Connector 2	USB C
Cable length	0.5 m
Connector contacts plating	Nickel
Maximum data transfer rate	10000 Mbit/s
Product colour	Black
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Male
USB Power Delivery (USB PD)	Yes
Cable jacket material	Thermoplastic elastomer (TPE)
USB Power Delivery up to	100 W
Maximum resolution	4096 x 2160 pixels
Maximum refresh rate	60 Hz
DisplayPort version	1.2
USB Type-C DisplayPort Alternate Mode	Yes
Cable diameter	4.8 mm
Weight & dimensions
Bend radius (min)	8 mm
Package width	127 mm
Package depth	189 mm
Package height	11 mm
Package weight	90 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Logistics data
Products per master (outer) case	250 pc(s)
Master (outer) case width	440 mm
Master (outer) case length	394 mm
Master (outer) case height	304 mm

Downloads

• Datasheet (PDF)
