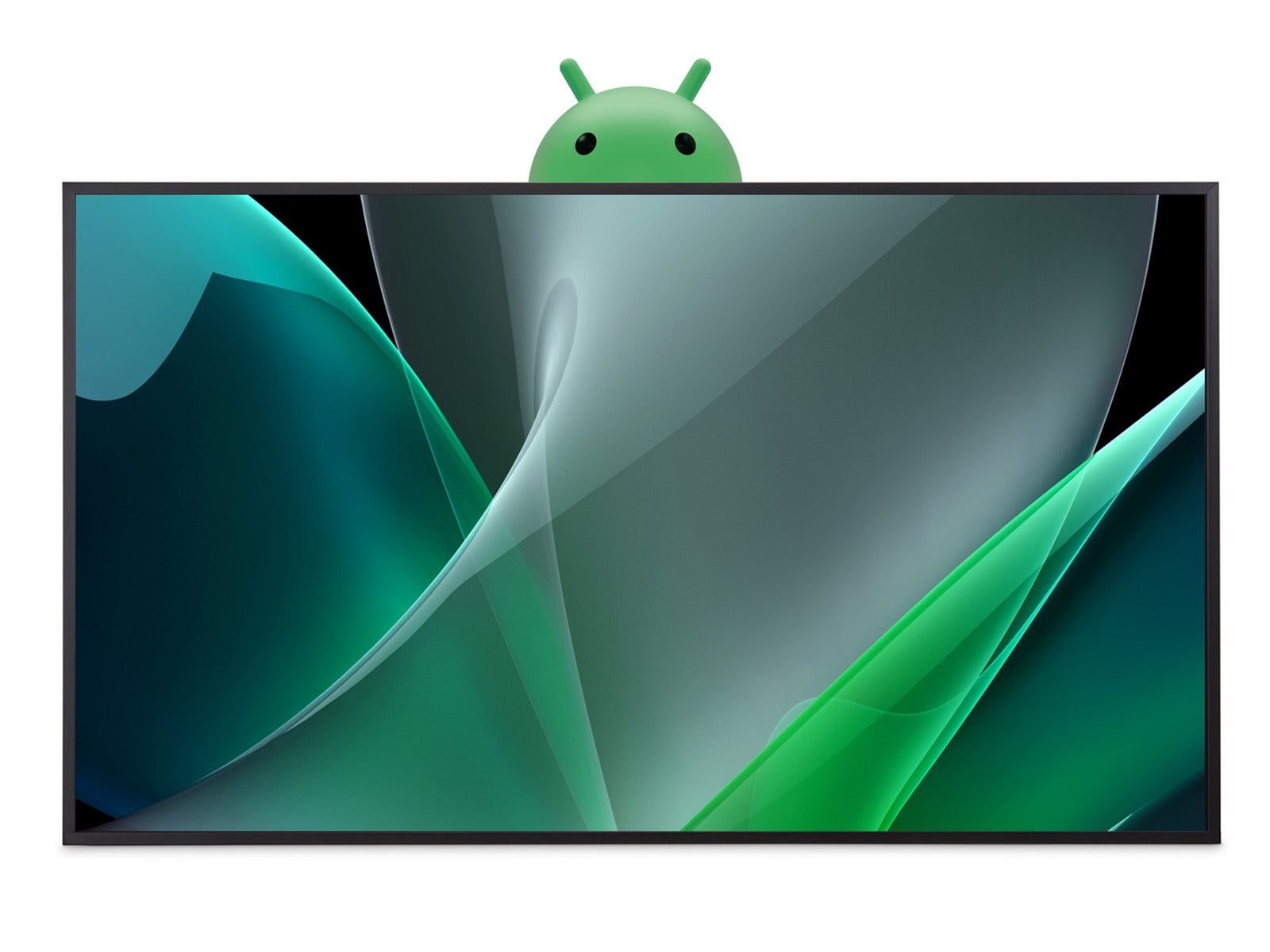

Sharp PN-ME752 Digital signage flat panel 4K UHD IPS Monitor

The Sharp PN-ME752 Digital signage flat panel tidies your workspace: one USB-C cable drives this 4K UHD 3840x2160 IPS monitor while charging your laptop.

Class-leading performance and value

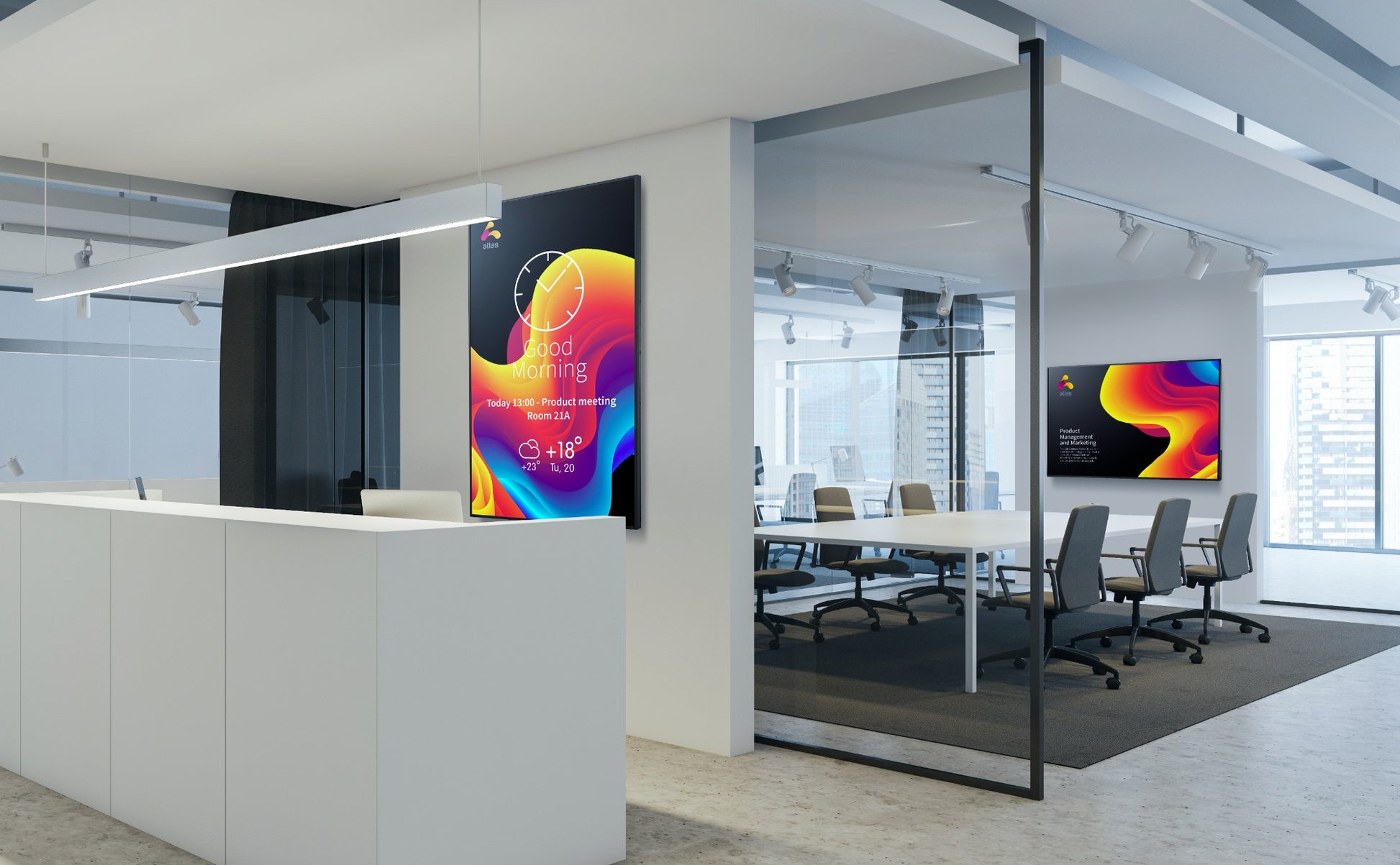

For best-in-class visual performance and value, the second generation ME series commands feature-rich professional capabilities for meeting rooms and signage applications. The multi-functional Sharp MultiSync® displays with high haze panel, native USB-C connectivity, and quick input detection appeals to Enterprise users for Bring Your Own Device simplicity, supporting hybrid workflows and spontaneous meetings.

An integrated System on Chip (SoC) with Android 13 CTS-compliant Operating System brings the most up to date features and security, powering signage applications and commanding high compatibility with CMS partners, making the multi-purpose Sharp MultiSync® ME series suitable for cost sensitive retail signage applications. Experience seamless access to Android apps and install apps directly on the display using the integrated browser, without the hassle and expense of an additional external media player.

Trusted long-life reliability is assured through Japanese engineering standards and high-quality components. The Sharp MultiSync® ME series is a class-leading solution for today’s workplace challenges, bringing value and professional performance, without compromise.

Specifications

Display
LED backlight	Yes
Panel type	IPS
Display number of colours	1.073 billion colours
LED backlighting type	Direct-LED
Touchscreen	No
Display technology	LED
Display diagonal	190.5 cm (75")
Display resolution	3840 x 2160 pixels
Display brightness	450 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display diagonal (metric)	189.3 cm
Vertical scan range	23 - 76 Hz
Native aspect ratio	16:9
Horizontal scan range	15 - 135 kHz
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
High Dynamic Range (HDR) supported	Yes
Haze rate	25%
Ports & interfaces
USB port	Yes
Wi-Fi	No
PC Audio out	Yes
Ethernet LAN	Yes
HDMI ports quantity	3
DVI port	No
RS-232 interface	Yes
USB version	2.0
USB ports quantity	3
HDMI input ports quantity	3
Audio
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Placement supported	Indoor
Orientation	Horizontal/Vertical
Product colour	Black
Panel mounting interface	600 x 800 mm
VESA mounting	Yes
Mounting type	Desk/Wall
Screen shape	Flat
Bezel colour	Pantone (Process Black M)
Power
Power consumption (typical)	132 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Computer system
Computer system	Yes
Operating system installed	Android
Internal memory	4 GB
Internal storage capacity	32 GB
Operating system version	13
Weight & dimensions
Display width	1686 mm
Display depth	68 mm
Display height	964 mm
Display weight	34.3 kg
Packaging data
Package width	1863 mm
Package depth	225 mm
Package height	1090 mm
Package weight	51 kg
Remote control included	Yes
Cables included	AC
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
