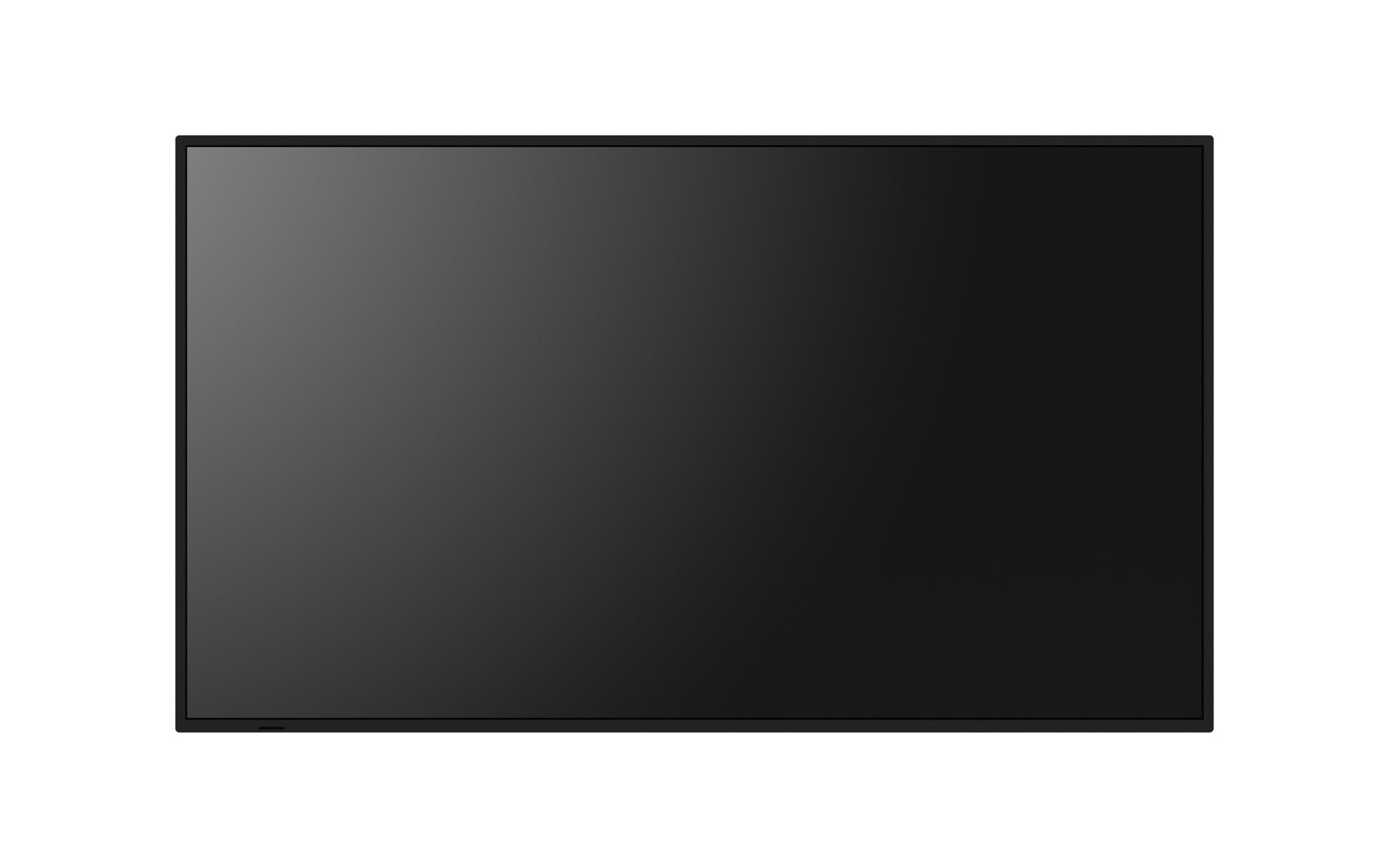

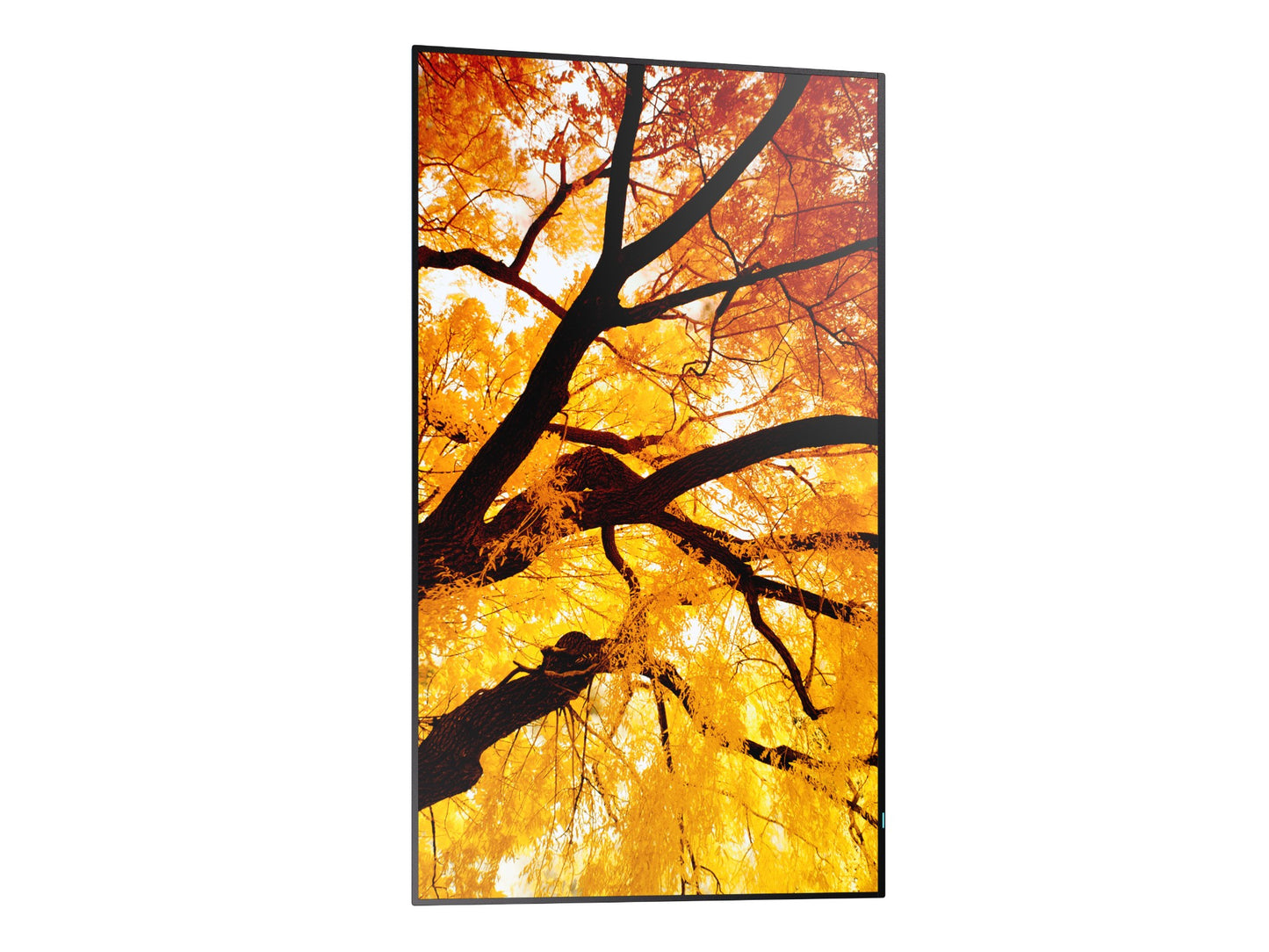

Sharp MultiSync M502 Digital signage flat panel 50" 4K UHD VA Monitor

The Sharp MultiSync M502 Digital signage flat panel delivers a crisp 50" 4K UHD 3840x2160 VA monitor that handles everyday work and entertainment with ease.

Built to perform, designed to last

The versatile solution for professional display applications, the Sharp MultiSync® M2 Series (32" up to 98") is purpose-built for demanding signage and meeting room environments. With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security. Featuring class-leading 550 cd/m² brightness, a high-haze panel to minimise glare, and NEC’s trusted SpectraView Engine, the M2 Series delivers outstanding visual performance with unmatched colour precision.

As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC’s legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.

Specifications

Display
LED backlight	Yes
Panel type	VA
Display number of colours	1.073 billion colours
LED backlighting type	Direct-LED
Touchscreen	No
Active display area (W x H)	1095.8 x 616.4 mm
Display technology	LCD
Display diagonal	127 cm (50")
Display resolution	3840 x 2160 pixels
Display brightness	550 cd/m²
HD type	4K Ultra HD
Contrast ratio (typical)	8000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.285 x 0.285 mm
Display diagonal (metric)	125.7 cm
Native aspect ratio	16:9
Maximum frame rate	60 fps
Haze rate	25%
RGB colour space	NTSC
Ports & interfaces
USB connector type	USB Type-A, USB Type-C
DisplayPorts out	1
USB port	Yes
DisplayPorts in	1
RS-232C	Yes
DisplayPorts quantity	2
Ethernet LAN	Yes
HDMI ports quantity	3
Ethernet LAN data rates	10,100 Mbit/s
DVI port	No
Ethernet LAN (RJ-45) ports	2
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	4
HDMI input ports quantity	2
HDMI output ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Bezel width (top)	1.09 cm
Bezel width (side)	1.09 cm
Bezel width (bottom)	1.39 cm
Product colour	Black
Panel mounting interface	300 x 300 mm
VESA mounting	Yes
Performance
Operating hours (hours/days)	24/7
International Protection (IP) code	IP5X, IP2X
Power
Power consumption (off)	0.5 W
Power consumption (typical)	85 W
Power consumption (standby)	2 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	81 kWh
Computer system
Computer system	No
Built-in processor	No
Weight & dimensions
Display width	1121.6 mm
Display depth	66.5 mm
Display height	645.2 mm
Display weight	18 kg
Packaging data
Package width	1245 mm
Package depth	188 mm
Package height	785 mm
Package weight	23 kg
Batteries included	Yes
Remote control included	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	20 - 80%
Features
Base material	Metal
