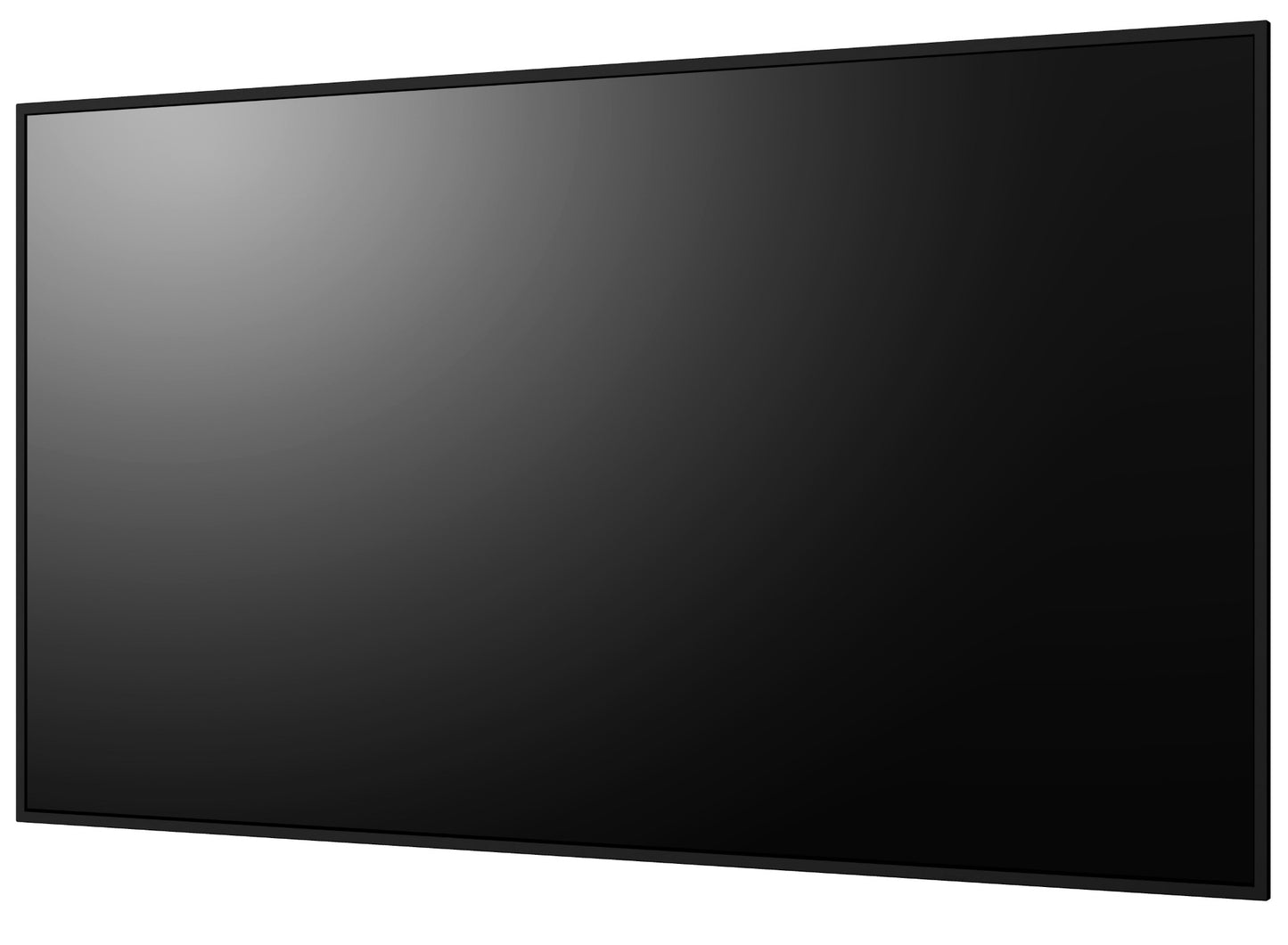

Sharp MultiSync E559 Digital signage flat panel 55" 4K UHD IPS Monitor

The Sharp MultiSync E559 Digital signage flat panel delivers a crisp 55" 4K UHD 3840x2160 IPS monitor that handles everyday work and entertainment with ease.

Professional performance, affordable value

The entry point for professional display solutions, the Sharp MultiSync® E9 Series is designed for modern business environments that need more than a consumer TV can offer. Combining essential features for meeting rooms and digital signage with commercial-grade reliability, the E9 Series delivers crisp UHD resolution, integrated media playback, and 16/7 operation at an accessible price point. A professional matte high-haze panel ensures superior visual performance in this product category, minimising reflections and glare common with glossy panels.

Designed for seamless integration across the wider Sharp display family, the E9 Series shares the same core identity, including the same remote control and device management for a consistent user experience. A robust metal back cover secures product longevity in commercial settings. Whether for presentations, retail signage, or corporate communication, the E9 Series gives you the professional edge without stretching your budget

Specifications

Display
LED backlight	Yes
Panel type	IPS
LED backlighting type	Direct-LED
Touchscreen	No
Active display area (W x H)	1210 x 680 mm
Display technology	LED
Display diagonal	139.7 cm (55")
Display resolution	3840 x 2160 pixels
Display brightness	350 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.315 x 0.315 mm
Display diagonal (metric)	139 cm
Native aspect ratio	16:9
Native refresh rate	60 Hz
Ports & interfaces
USB connector type	USB Type-A, USB Type-C
USB port	Yes
PC Audio in	Yes
Ethernet LAN	Yes
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
USB ports quantity	2
HDMI input ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Audio Return Channel (ARC)	Yes
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Placement supported	Indoor
Bezel width (top)	1.08 cm
Bezel width (side)	1.08 cm
Bezel width (bottom)	1.08 cm
Product colour	Black

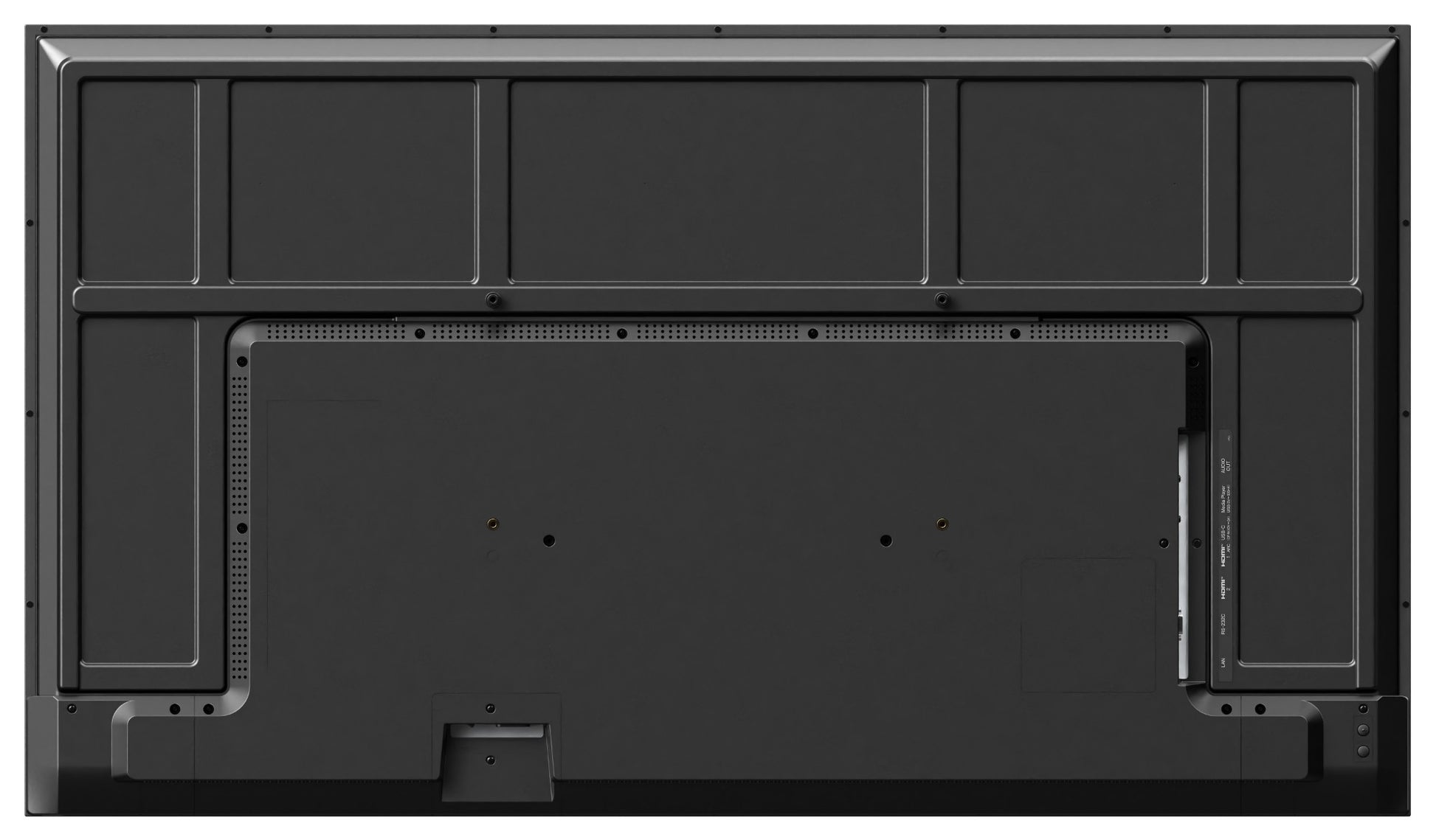

Panel mounting interface	400 x 200 mm
VESA mounting	Yes
Screen shape	Flat
Performance
Purpose	Universal
HDCP	Yes
Power
Power consumption (typical)	100 W
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	98 kWh
Computer system
Video formats supported	H.263, H.264, HEVC/H.265, MP4, MPEG1, MPEG2, MPG, TS
Audio formats supported	AAC, LPCM, MP3, WMA, WMV
Image formats supported	JPG
Weight & dimensions
Display width	1234 mm
Display depth	58.9 mm
Display height	707 mm
Display weight	12 kg
Packaging data
Package width	1386 mm
Package depth	130 mm
Package height	845 mm
Package weight	17 kg
Batteries included	Yes
Remote control included	Yes
Remote control type	IR
Cables included	USB
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 80%
Technical details
Sustainability certificates	ENERGY STAR
Compliance certificates	CE, Federal Communications Commission (FCC), RCM, UKCA, UL, VCCI, cUL
