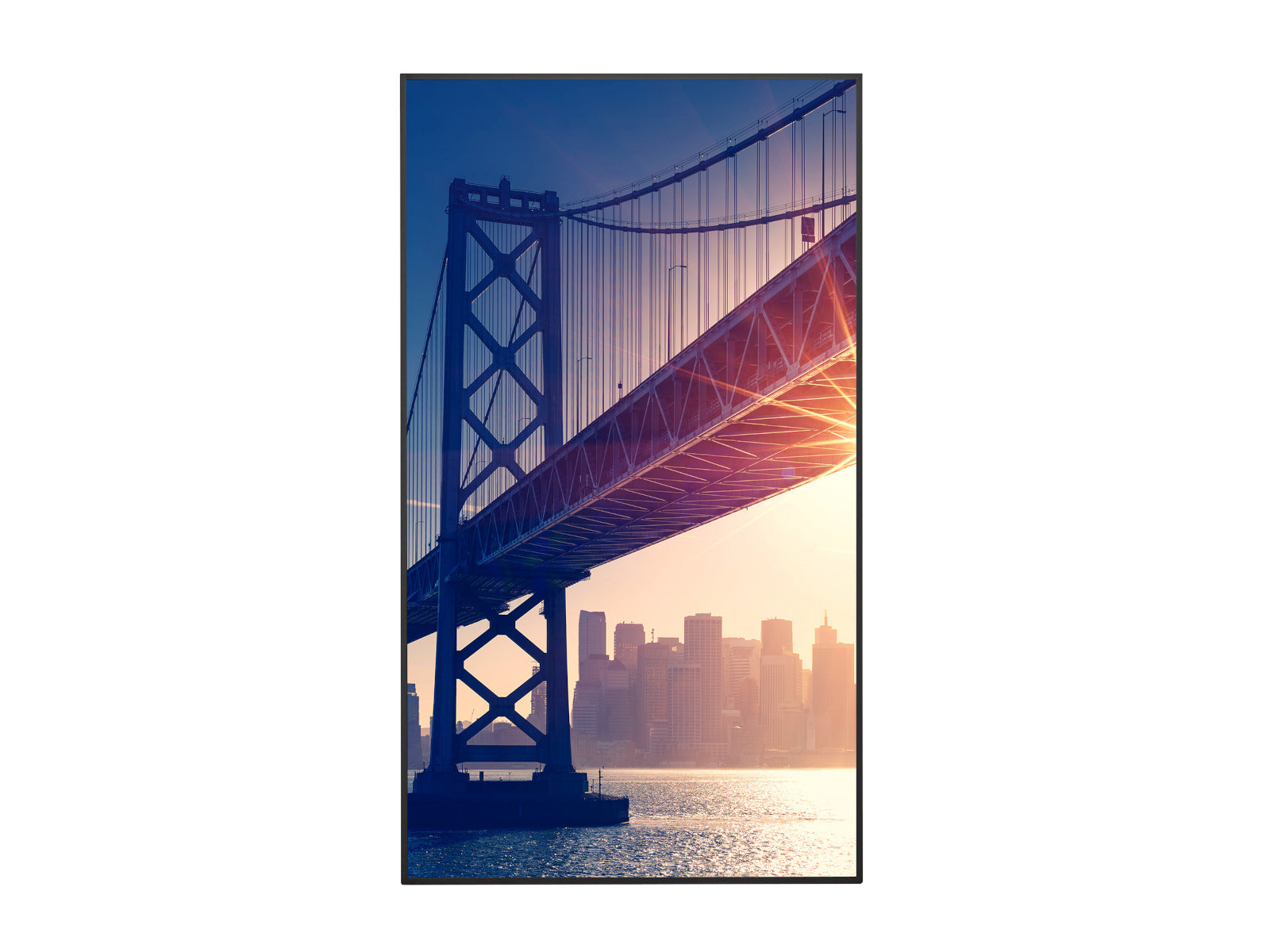

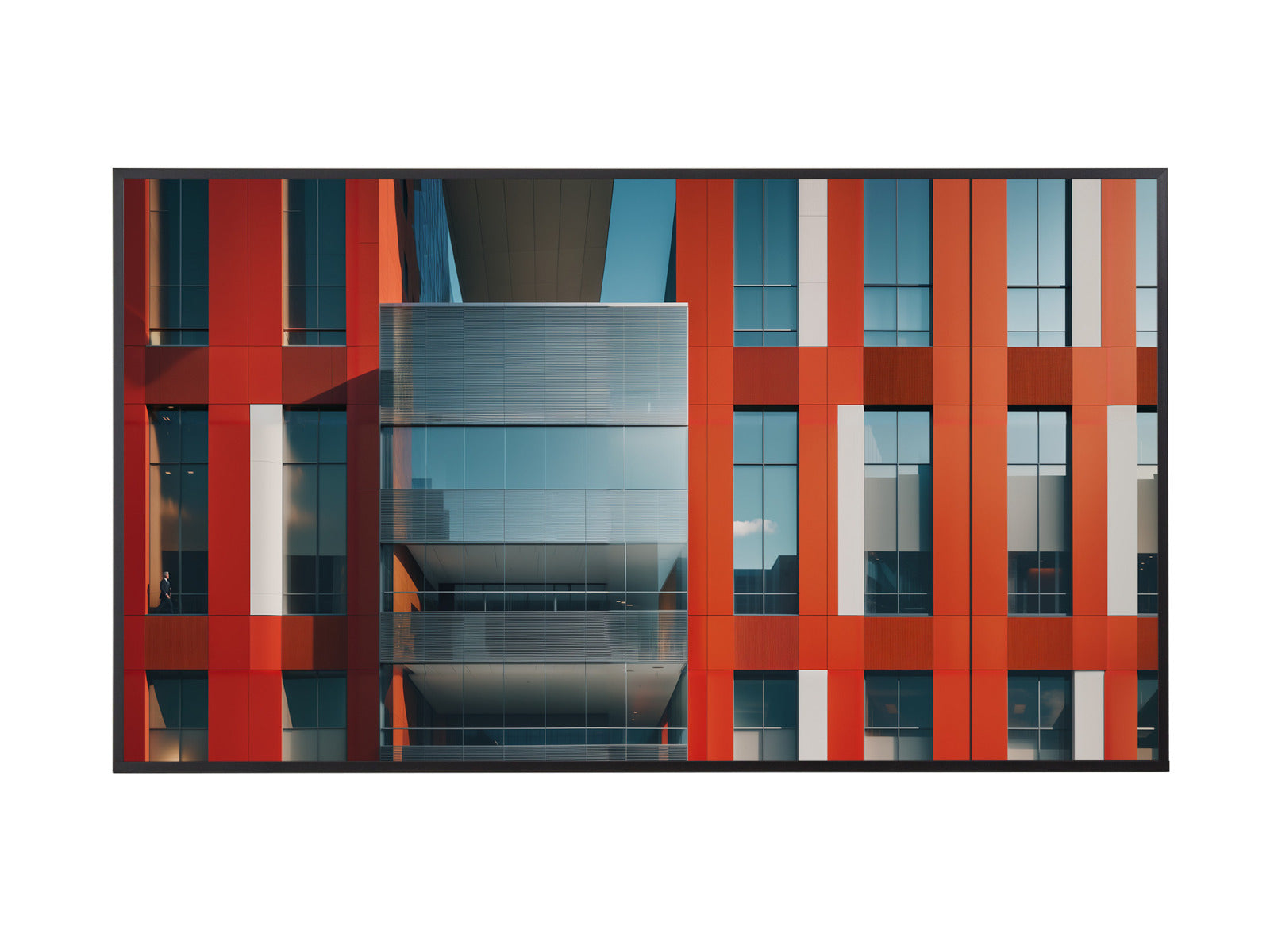

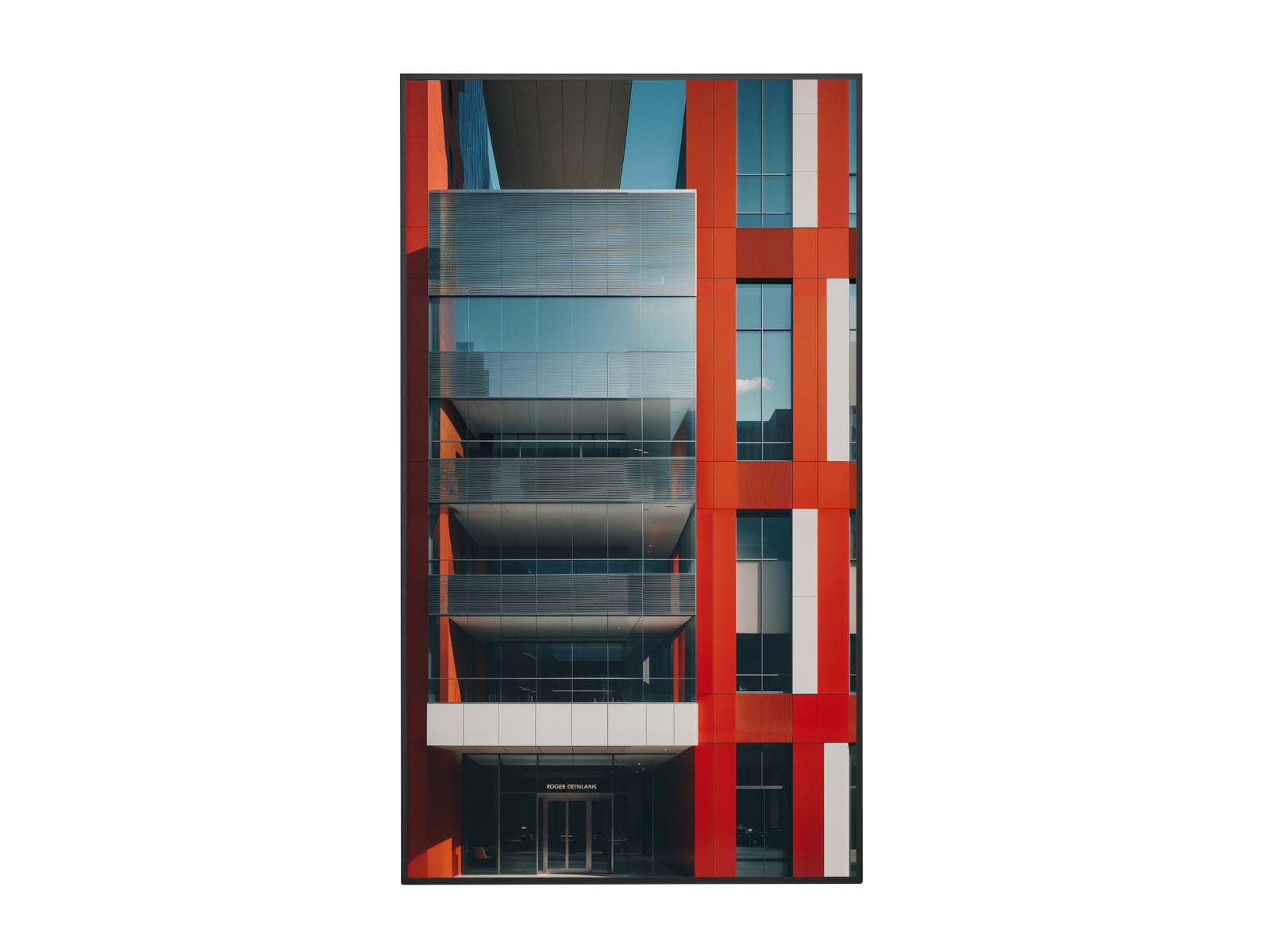

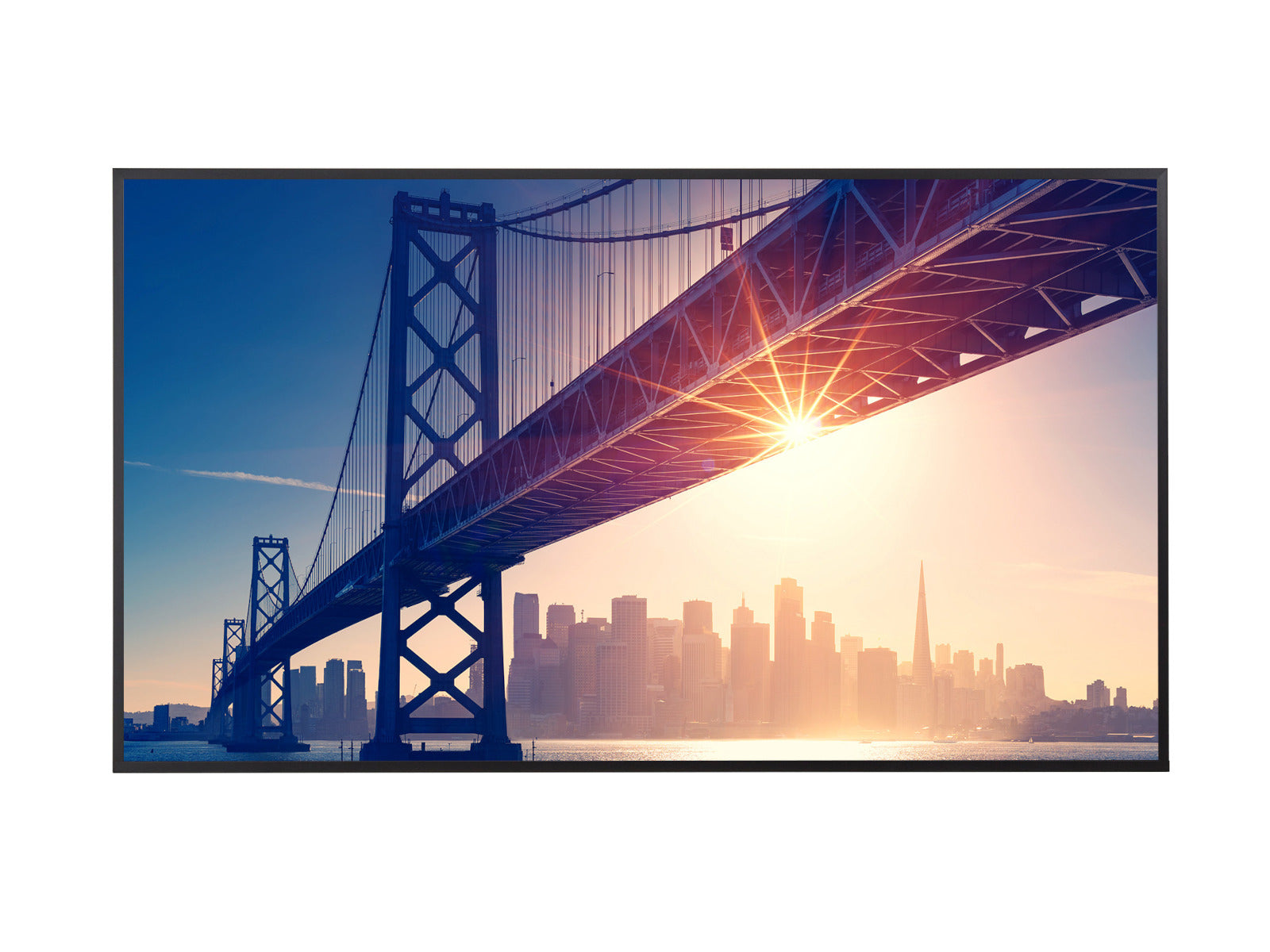

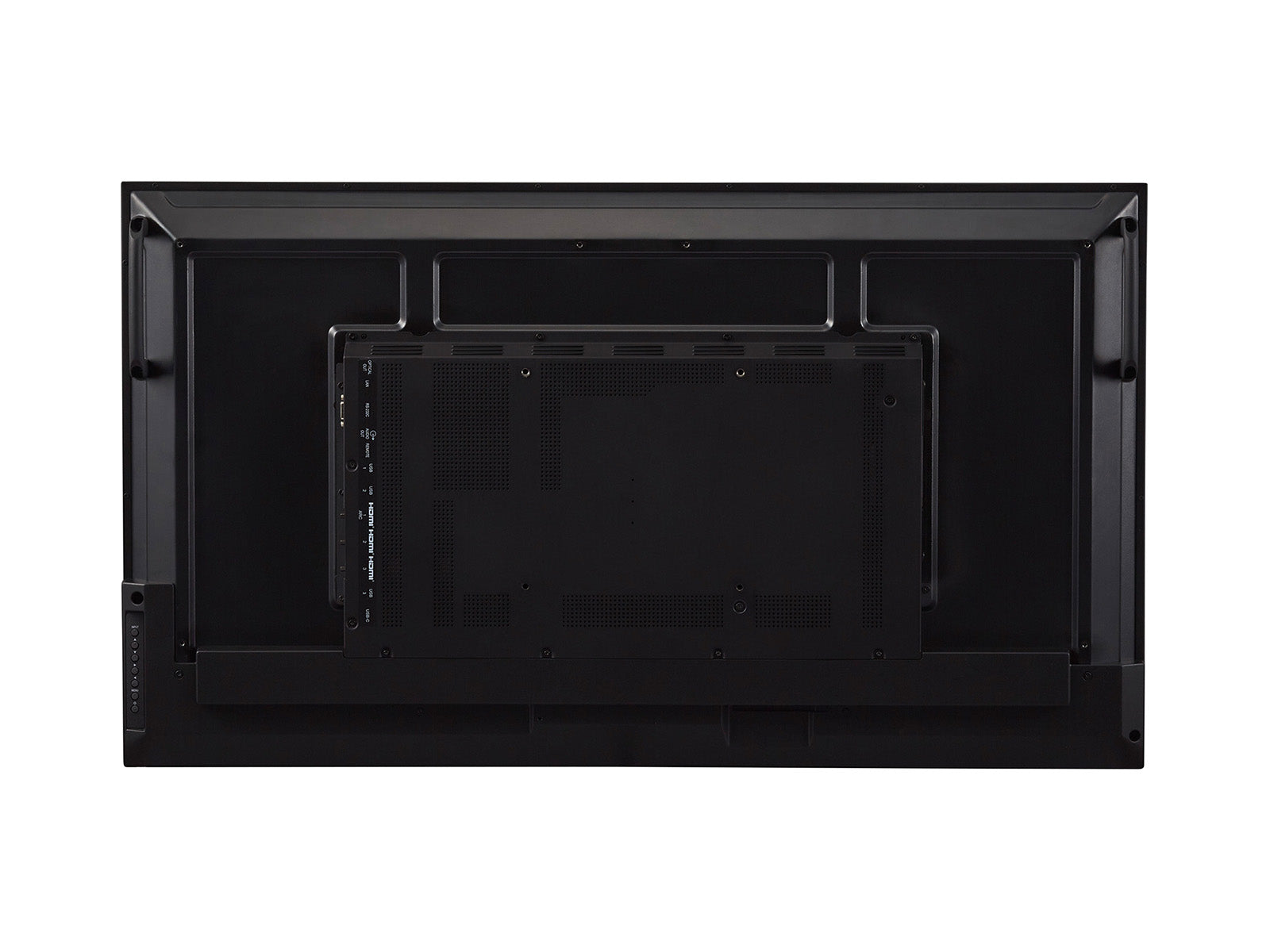

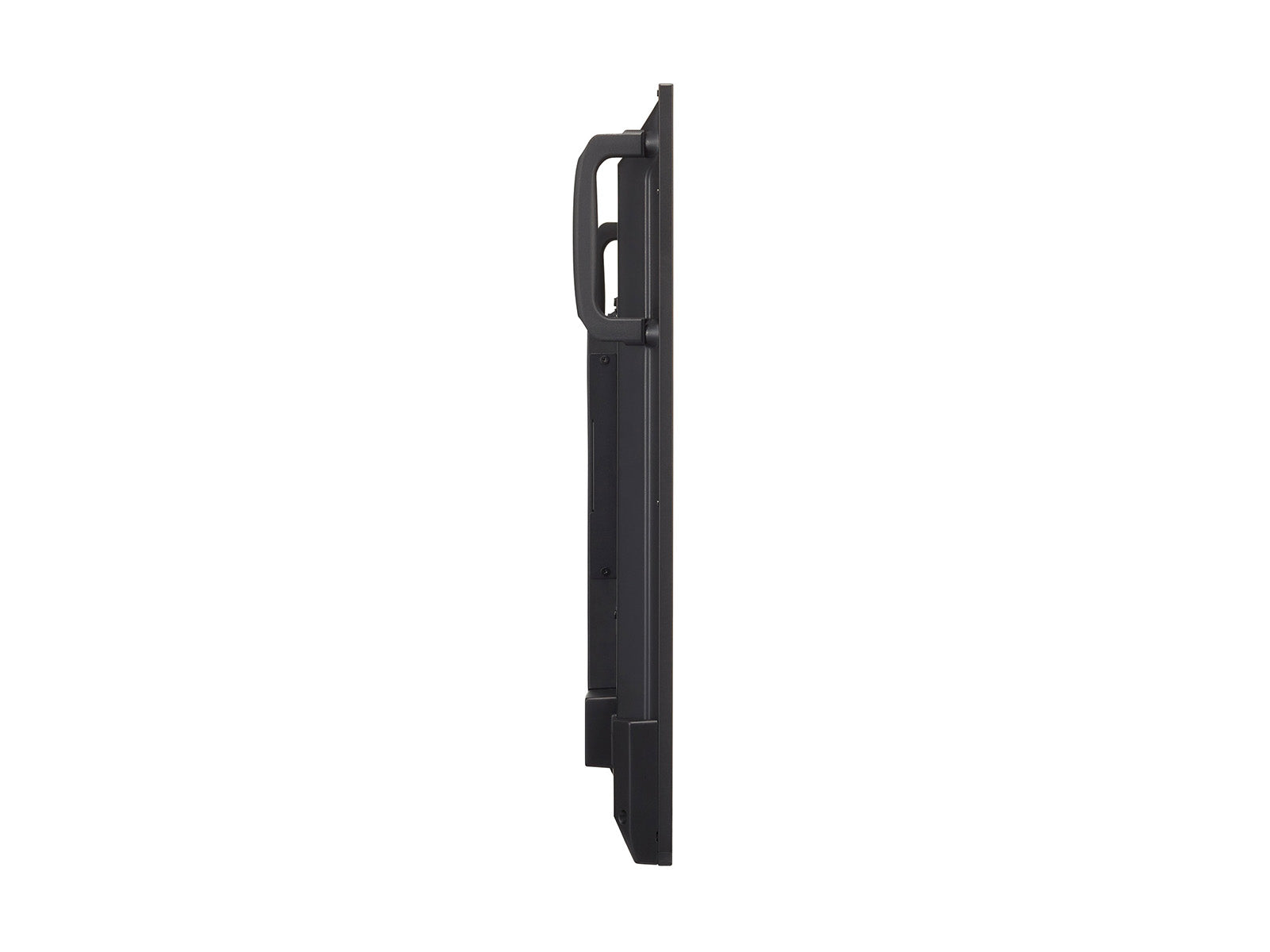

Sharp ME652 Digital signage flat panel 4K UHD IPS Monitor

The Sharp ME652 Digital signage flat panel delivers a crisp 4K UHD 3840x2160 IPS monitor that handles everyday work and entertainment with ease.

Class-leading performance and value

For best-in-class visual performance and value, the second generation ME series commands feature-rich professional capabilities for meeting rooms and signage applications. The multi-functional Sharp MultiSync® displays with high haze panel, native USB-C connectivity, and quick input detection appeals to Enterprise users for Bring Your Own Device simplicity, supporting hybrid workflows and spontaneous meetings.

An integrated System on Chip (SoC) with Android 13 CTS-compliant Operating System brings the most up to date features and security, powering signage applications and commanding high compatibility with CMS partners, making the multi-purpose Sharp MultiSync® ME series suitable for cost sensitive retail signage applications. Experience seamless access to Android apps and install apps directly on the display using the integrated browser, without the hassle and expense of an additional external media player.

Trusted long-life reliability is assured through Japanese engineering standards and high-quality components. The Sharp MultiSync® ME series is a class-leading solution for today’s workplace challenges, bringing value and professional performance, without compromise.

Specifications

Display
LED backlight	Yes
Panel type	IPS
Display number of colours	1.073 billion colours
LED backlighting type	Direct-LED
Touchscreen	No
Display technology	LCD
Display diagonal	165.1 cm (65")
Display resolution	3840 x 2160 pixels
Display brightness	450 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display diagonal (metric)	163.9 cm
Vertical scan range	23 - 76 Hz
Native aspect ratio	16:9
Horizontal scan range	15 - 135 kHz
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
High Dynamic Range (HDR) supported	Yes
Native refresh rate	60 Hz
Haze rate	25%

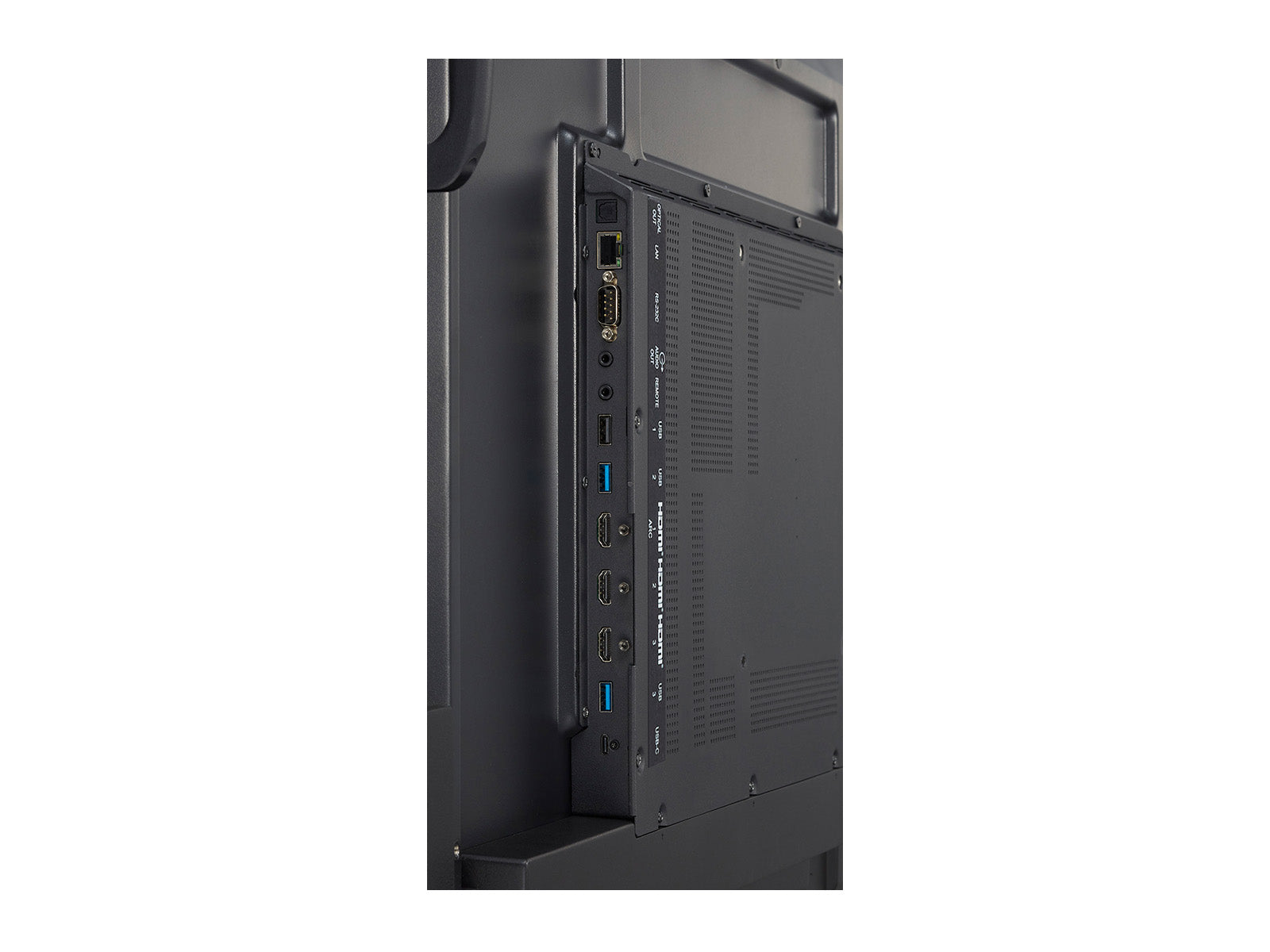

Ports & interfaces
USB port	Yes
DisplayPorts quantity	0
Ethernet LAN	Yes
HDMI ports quantity	6
Ethernet LAN data rates	100 Mbit/s
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
USB ports quantity	5
HDMI input ports quantity	6
USB 2.0 Type-B ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Audio
Number of built-in speakers	2
RMS rated power	20 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Orientation	Horizontal/Vertical
Product colour	Black
Panel mounting interface	600 x 400 mm
VESA mounting	Yes
Screen shape	Flat
Performance
Purpose	Universal
Operating hours (hours/days)	18/7
HDCP	Yes
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	144 kWh
Energy consumption (HDR) per 1000 hours	145 kWh
Computer system
Operating system installed	Android
Internal memory	4 GB
Internal storage capacity	32 GB
Video formats supported	H.264, MPEG2, HEVC/H.265, MP4, MPEG1
Audio formats supported	MP3
Operating system version	Android 13
Weight & dimensions
Display width	1463.3 mm
Display depth	68 mm
Display height	838.2 mm
Display weight	23.9 kg
Packaging data
Package width	1628 mm
Package depth	185 mm
Package height	942 mm
Package weight	34.5 kg
Batteries included	Yes
Cables included	HDMI, Power
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
