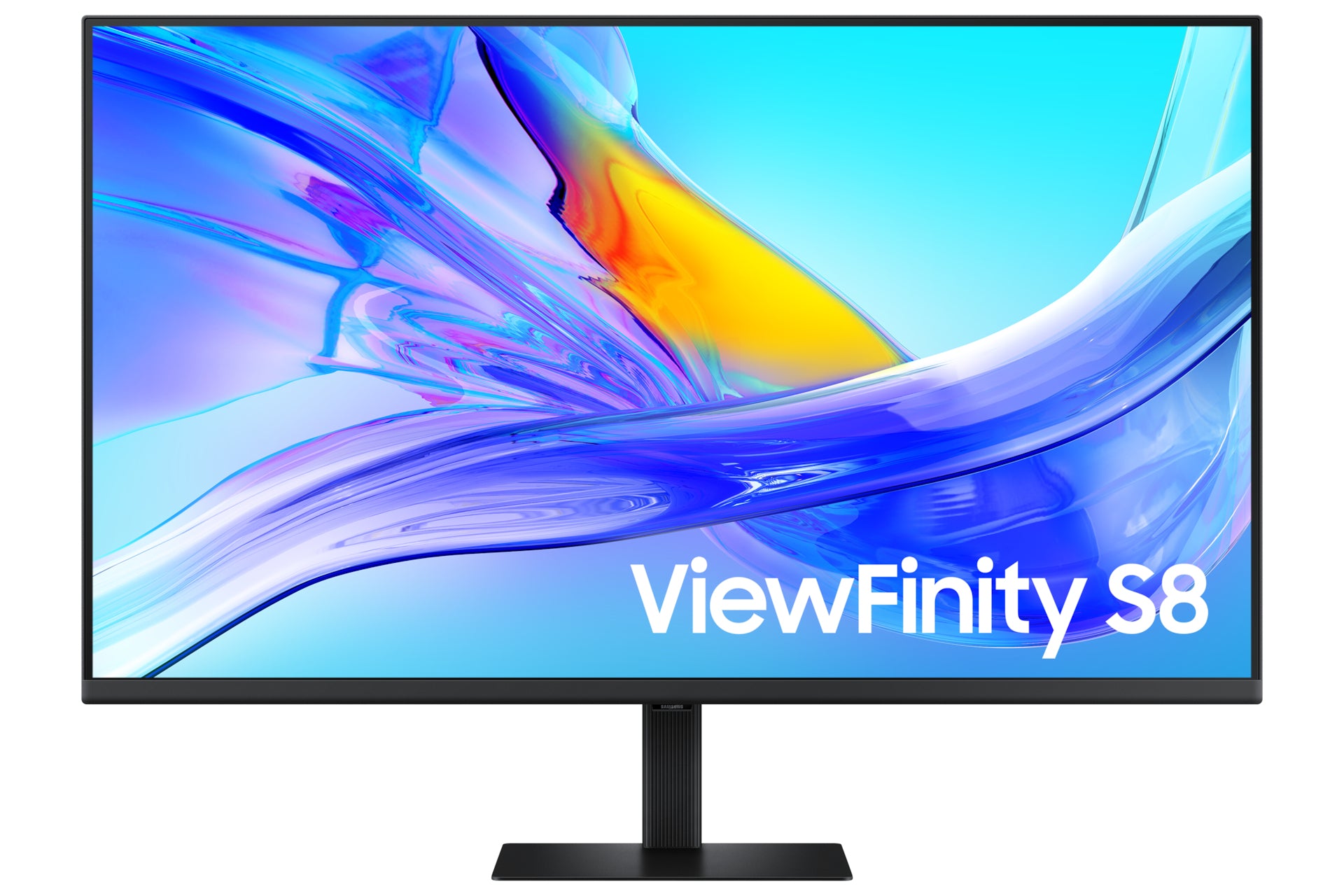

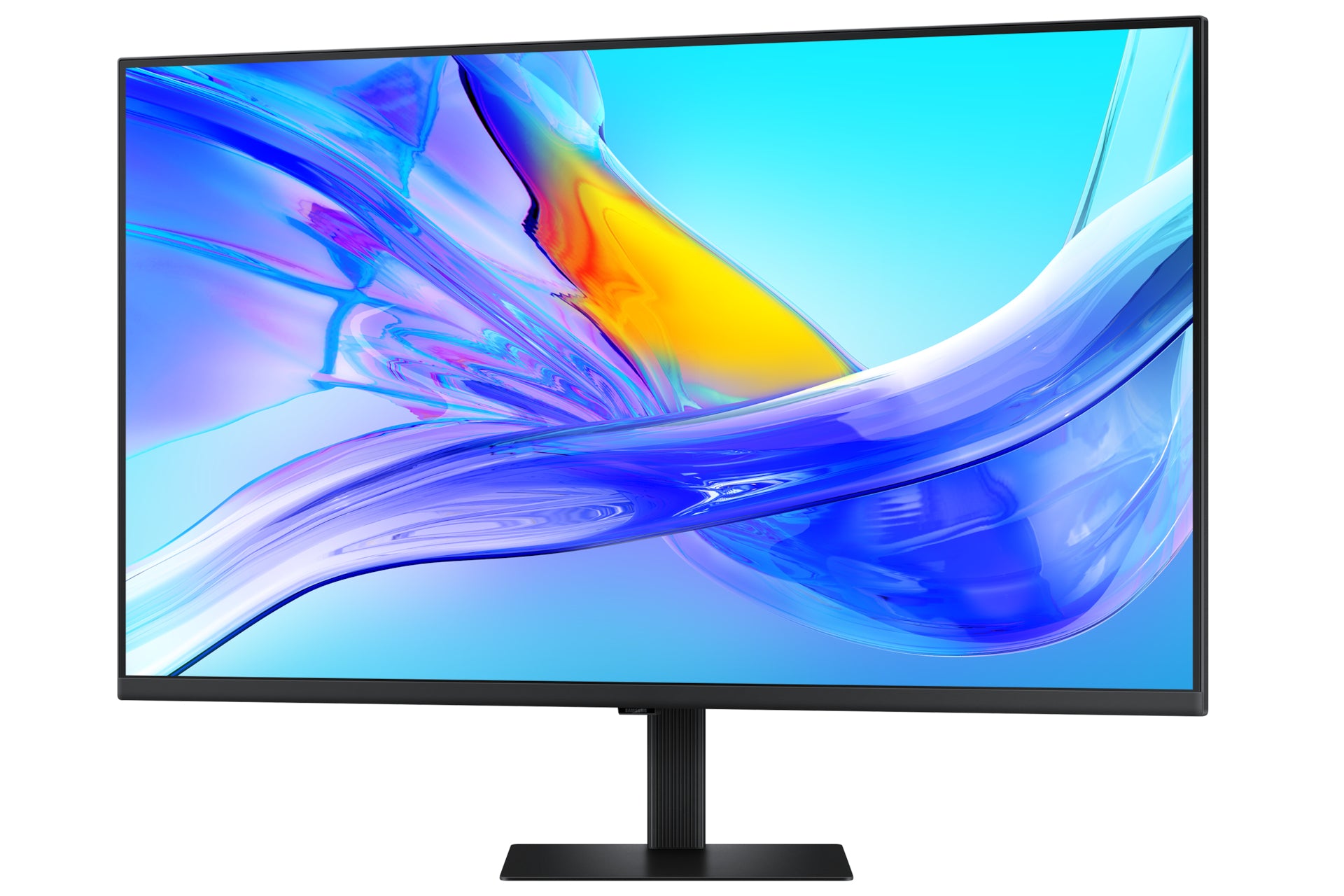

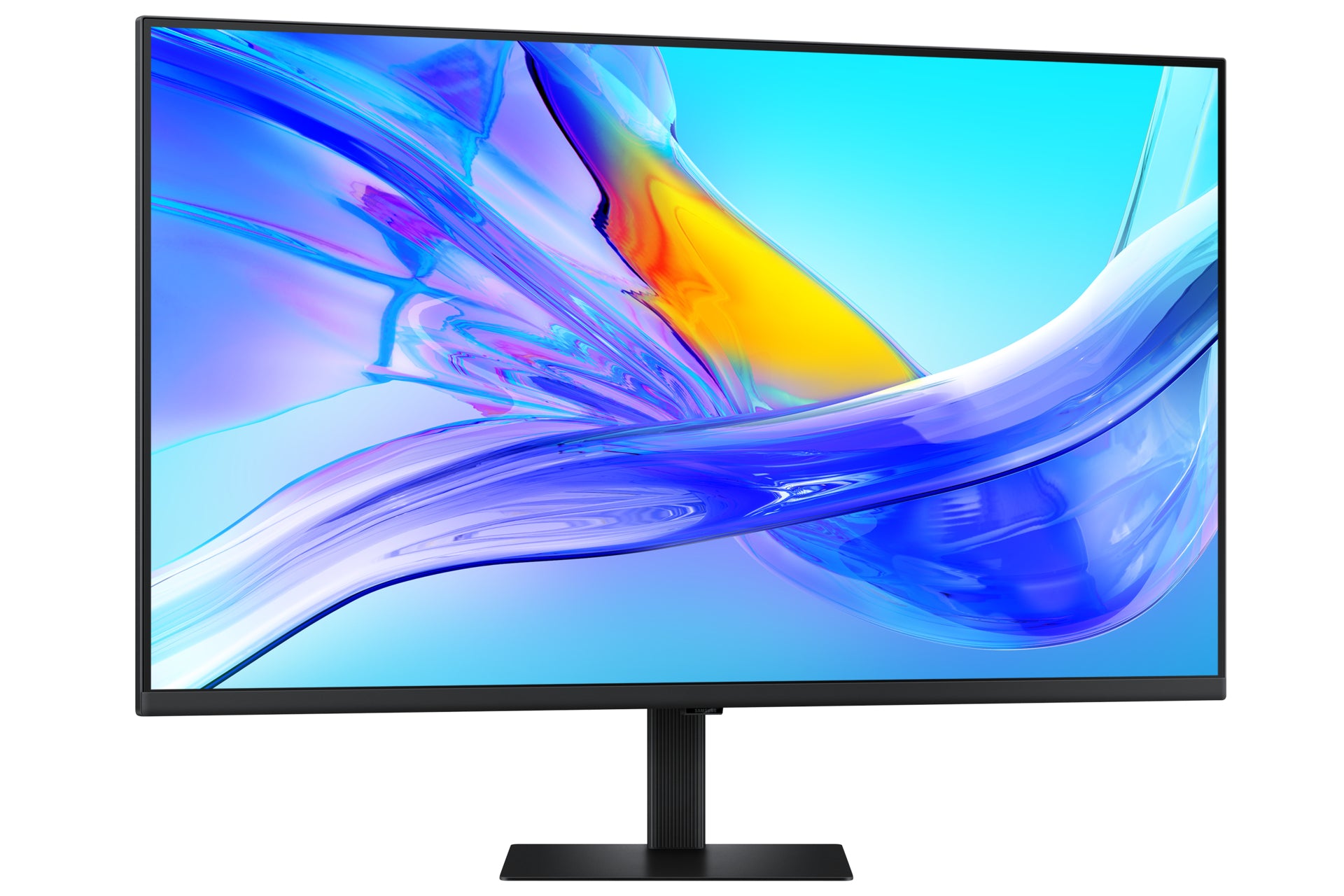

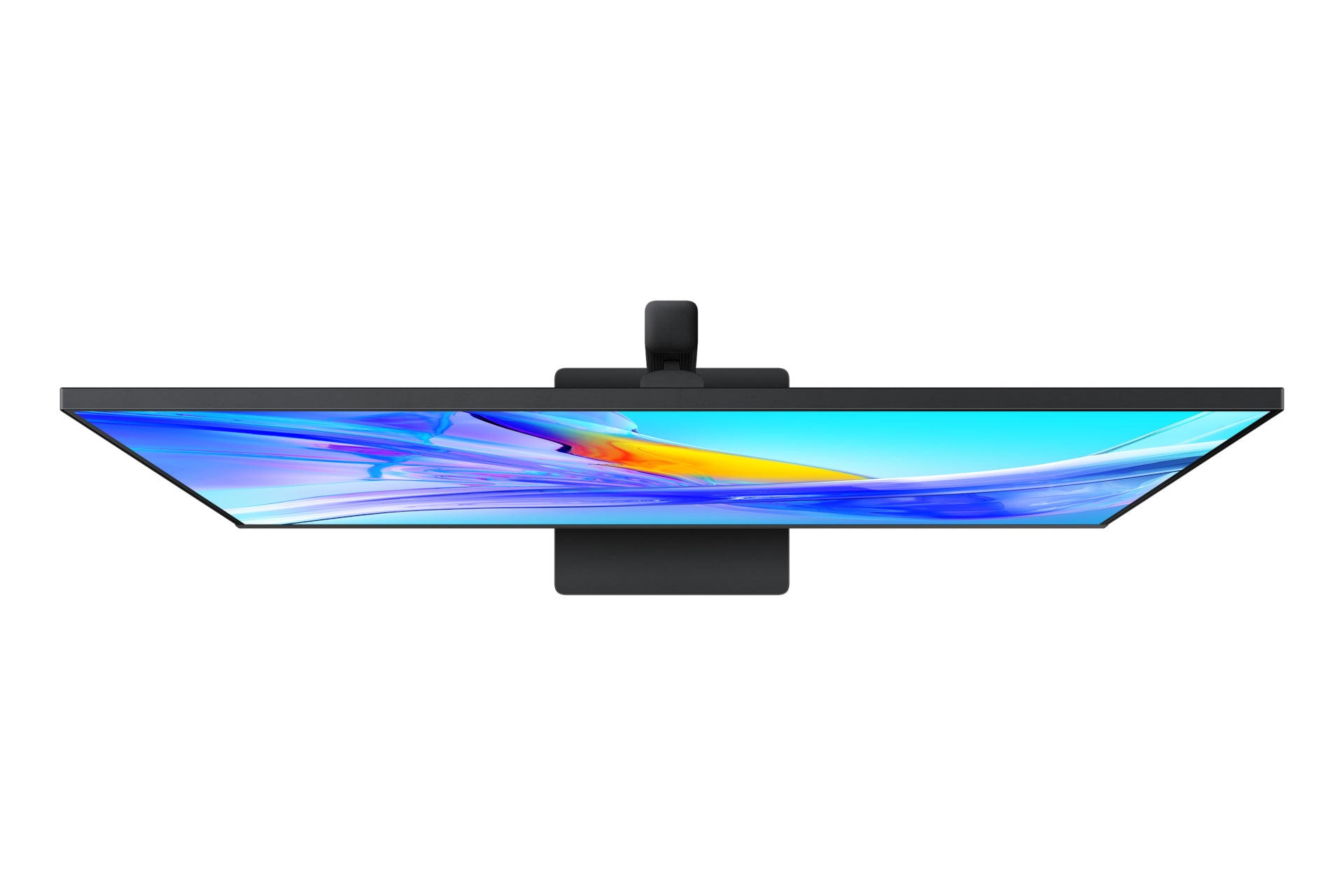

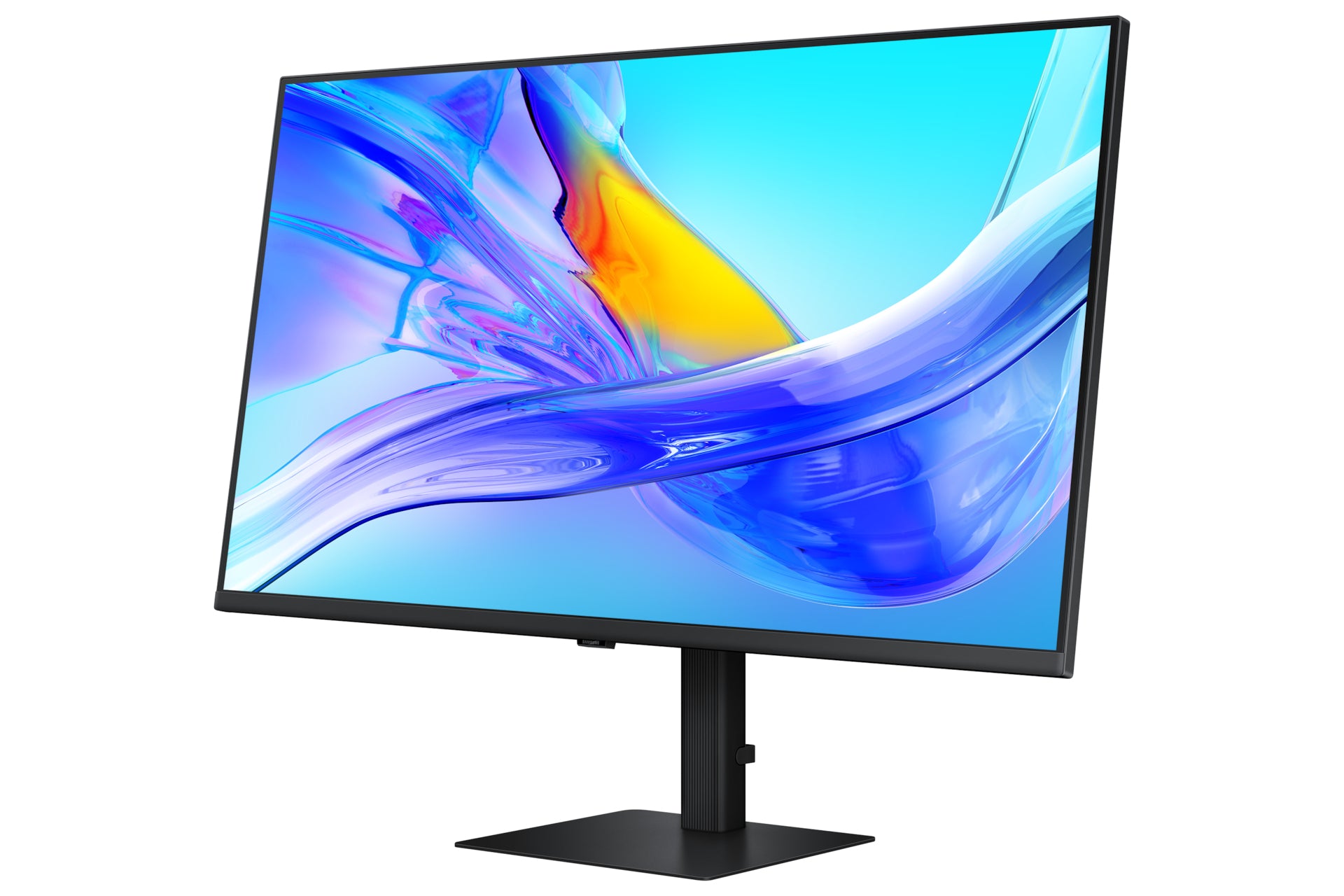

Samsung S80UD 37" 4K UHD VA Monitor

The Samsung S80UD tidies your workspace: one USB-C cable drives this 37" 4K UHD 3840x2160 VA monitor while charging your laptop.

Productivity boosted by an extra 5 inches
37" Ergonomic Workspace Display
Revolutionise your workspace with the world's first 37'' UHD monitor. The additional 5 inches compared to a 32'' display provide a 100% UHD experience without the need to scale down for better readability. With the expanded workspace, you can tackle complex tasks with ease and boost your productivity. Plus, the 37'' screen is TUV-certified for eye comfort and designed to reduce visual fatigue — helping you stay focused during long work sessions

Discover the deeper details
UHD resolution
Visual excellence that professionals demand. UHD (3840x2160) resolution reveals greater levels of detail with higher pixel density. Professionals can dive into greater colour detail and more screen space to build intricate designs, complex diagrams and dynamic video content with a smoother workflow.

Enhanced realism through more colour
1.07 billion colours with HDR10
See a wider gamut of colours for stunning accuracy and detail. HDR10 provide near limitless hues and true-to-life colour representation, with darker darks and the brighter brights. Every piece of content becomes a joy to look at and can be experienced exactly as intended.

Connect and adjust to meet your needs
USB-C and LAN Port
Connect it all to elevate your workspace. A USB-C port allows for 90W charging and data transfer at the same time, while a built-in LAN port offers seamless Ethernet connectivity for laptops.

Master multiple sources in harmony
Built-in KVM Switch
A built-in KVM switch lets you connect and control two sources to your monitor at once, with just one keyboard and mouse. You choose: split screen, Picture in Picture or Picture by Picture are all possible. Be more efficient and remove multi-device hassle with easy input switching and multitasking.

Effortless and instant setup
Easy Setup Stand
The Easy Setup Stand effortlessly creates an ideal workspace without any tools or screws. When it's time to change things up, simply push a button and enjoy flexible convenience.

View with enhanced versatility

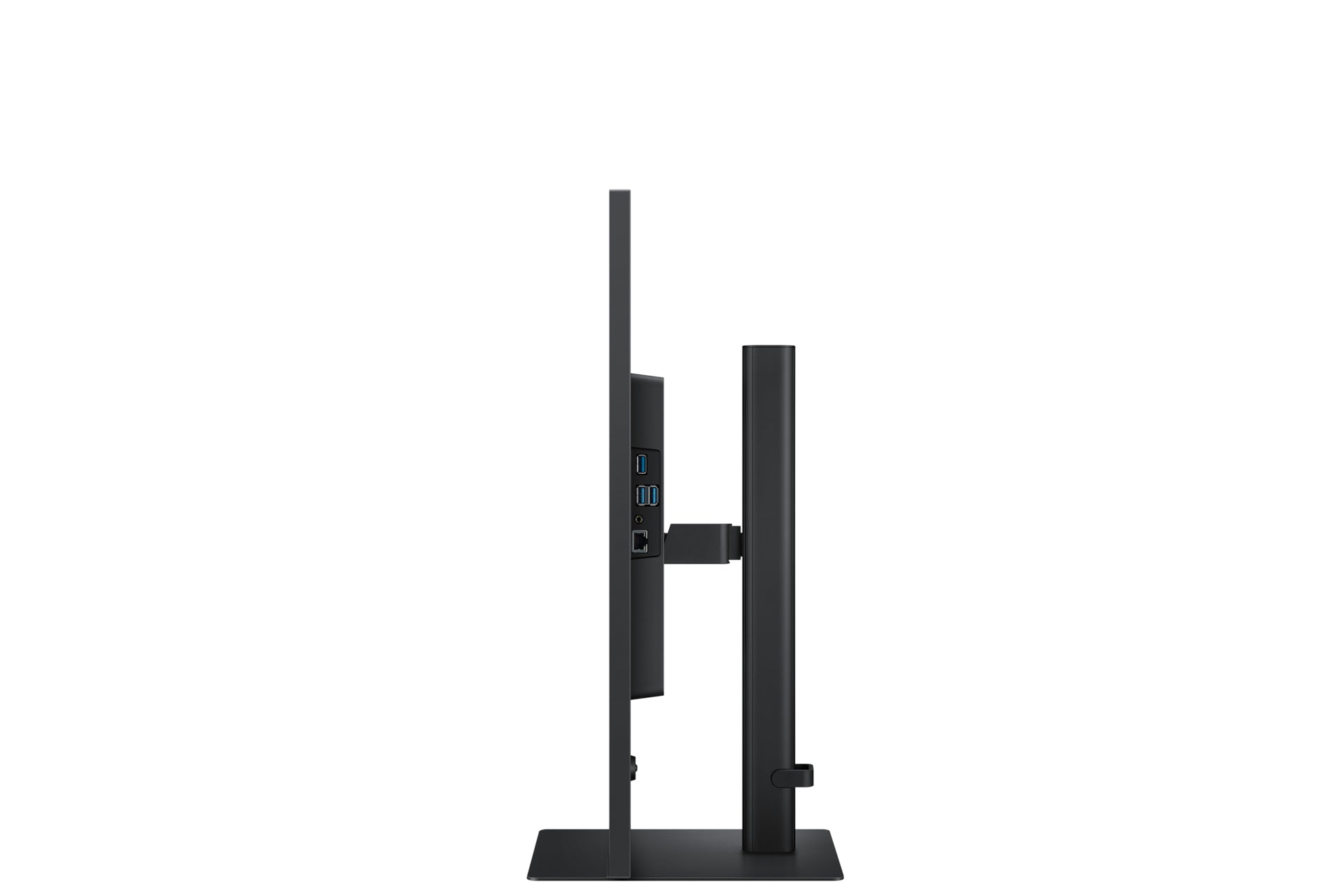

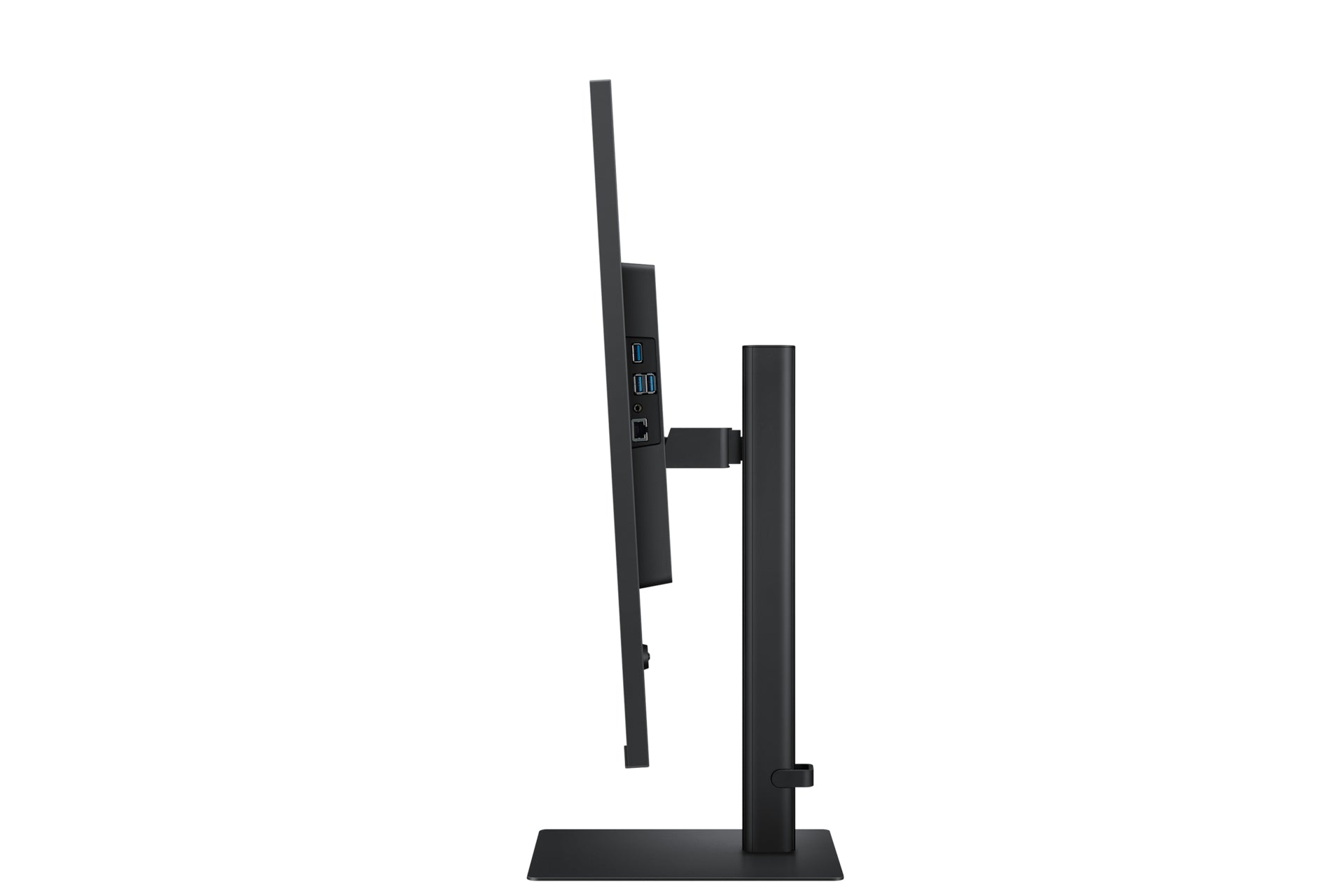

Ergonomic Design
Enjoy ideal ergonomics in any environment. A heigh-adjustable screen tilts and swivels to give you the best angle, ultimate utility, and custom comfort.

Relieve your eyes from strain
TUV certified Intelligent Eye Care
Keep your eyes fresh with less screen strain. For those late-night projects, brightness and colour temperature automatically optimise for your environment. TUV-certified for intelligent eye care, Samsung reduces screen flickering and protects eyes against excessive blue light with eye saver mode.

Responsibly designed and built
Recycled Materials
Certified by TCO, ENERGY STAR and EPEAT Gold, and featuring a TUV-certified Product Carbon Footprint, the Samsung ViewFinity monitor contains over 50% recycled plastic. No chemical sprays are used on the monitor's plastic, making it easy to recycle. Plus, the packaging box joints are glued together instead of stapled, eliminating the need to remove staples during disassembly.

Specifications

Display
HDCP	Yes
Display brightness (typical)	350 cd/m²
Screen shape	Flat
Dynamic contrast ratio marketing name	Mega Infinity DCR
Display number of colours	1.07 billion colours
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
Display brightness (min)	280 cd/m²
sRGB coverage (typical)	100%
HD type	4K Ultra HD
Display technology	LCD
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Viewable size, horizontal	80.8 cm
Viewable size, vertical	45.5 cm
Display resolution	3840 x 2160 pixels
Response time	5 ms
Display diagonal	94 cm (37")
Contrast ratio (typical)	3000:1
Touchscreen	No
High Dynamic Range (HDR) supported	Yes
Panel type	VA
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
Display diagonal (metric)	92 cm
Colour gamut standard	sRGB
Audio
Built-in speaker(s)	No
Performance
Built-in camera	No
AMD FreeSync	No
NVIDIA G-SYNC	No
Flicker-free technology	Yes
Brand specific technologies	Eye Saver
Adaptive picture	Yes
Management features
Picture-in-Picture	Yes
Power
Power cable length	1.5 m
Power supply type	Internal
AC input voltage	100 - 240 V
Power consumption (max)	190 W
Power consumption (standby)	0.5 W
Power consumption (typical)	37 W
Annual energy consumption	54 kWh
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	37 kWh
Energy consumption (HDR) per 1000 hours	66 kWh
Design
Market positioning	Professional
Feet colour	Black
Certification	Windows11
Product colour	Black
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B, USB Type-C
Number of upstream ports	1
USB Type-A downstream ports quantity	2
Headphone out	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
HDMI	Yes
HDMI version	2.0
DisplayPort version	1.2
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	90 W
Number of USB Type-B upstream ports quantity	1
Number of USB Type-C upstream ports quantity	1
Built-in KVM switch	Yes
HDCP version	2.2
Ethernet LAN	Yes
Technical details
Height (without stand)	486.5 mm
Depth (without stand)	41.8 mm
Width (without stand)	823.9 mm
RJ-45 ports quantity	1
Cable lock slot	Yes
Sustainability certificates	TCO, EPEAT Silver
USB charging port	Yes
Samsung Eye Saver Mode	Yes
Weight (with stand)	8.9 kg
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Swivelling	Yes
Swivel angle range	-30 - 30°
Tilt angle range	-5 - 20°
Height adjustment	Yes
Tilt adjustment	Yes
Adjustable height (max)	12 cm
Picture-by-Picture (PbP)	Yes
Operational conditions
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Non-operating relative humidity (non-condensing)	10 - 80%
Weight & dimensions
Width (with stand)	823.9 mm
Depth (with stand)	250 mm
Height (with stand)	648 mm
Weight (without stand)	5.9 kg
Package width	921 mm
Package depth	604 mm
Package height	181 mm
Package weight	12.3 kg
Packaging data
Stand type	HAS stand
Stand included	Yes
Cables included	HDMI, USB Type-C
Other features
Auto source switch+	Yes
Off Timer Plus	Yes
Image size	Yes
Factory tunning	Yes
Supplied AC adapter type	AC
