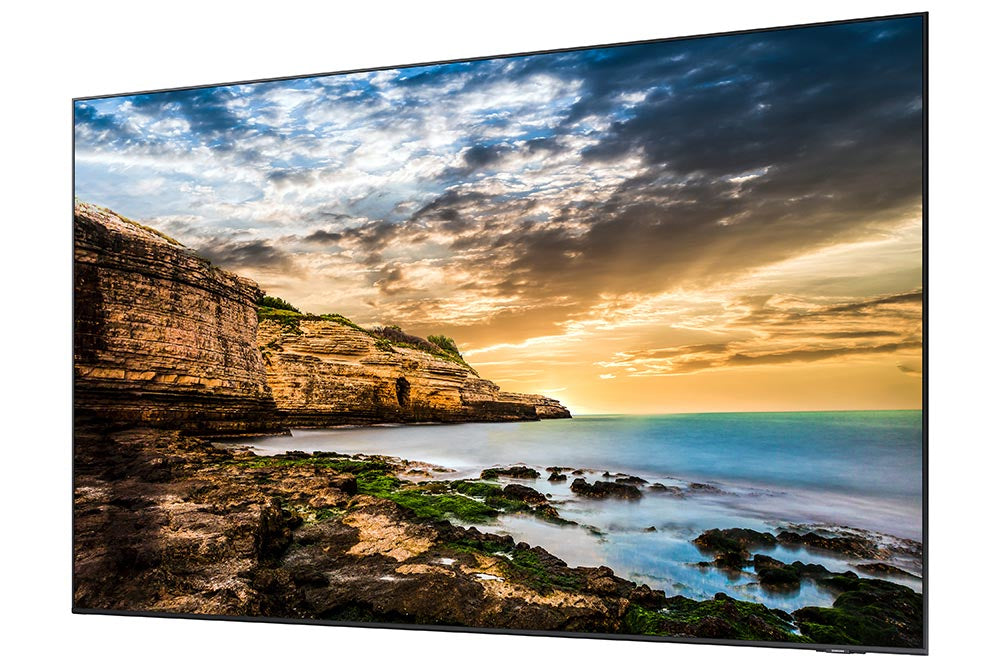

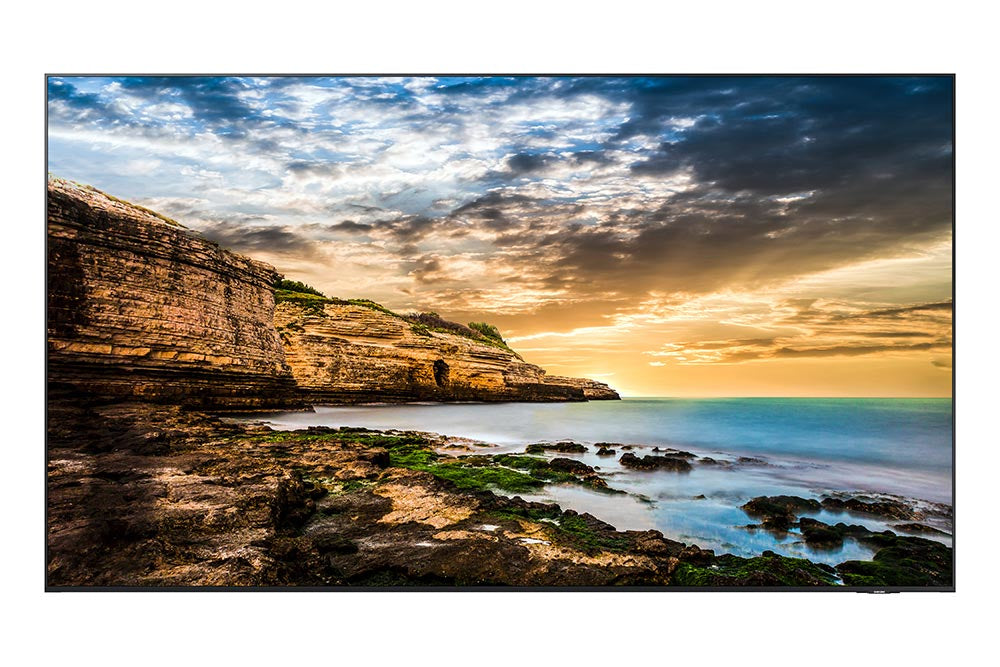

Samsung QE85T Digital signage flat panel 2.16 m 4K UHD VA Monitor

The Samsung QE85T Digital signage flat panel 2.16 m delivers a crisp 4K UHD 3840x2160 VA monitor that handles everyday work and entertainment with ease.

Upgrade your business with efficient digital displays
Samsung’s QET series features intelligent upscaling technology that displays all content in eye-catching UHD resolution along with a boundless design and simple content management features.

Incredible UHD picture quality
Samsung’s QET series is able to capture customer attention by providing an incredibly clear picture, showcasing lifelike images in advanced picture quality than ever before.

Crystal Display
Samsung’s QET series features a Crystal Display which optimizes color tones without distortion, ensuring each backlight unit is fine-tuned to match each color filter and create a clear native white.

Crystal Processor 4K
Intelligent UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.

Boundless design for an immersive experience
The boundless design of the display is optimized to allow the viewer to be completely immersed by content and the display seamlessly integrates into any business environment.

Integrated content management solution
With a range of on-demand images and videos, MagicINFO Lite Player makes content management easier than ever before. New content can be added from a personal computer or USB drive by connecting directly to the display.

Specifications

Display
Panel type	VA
Dynamic contrast ratio marketing name	Mega Contrast
Touchscreen	No
Display technology	LCD
Colour gamut	72%
Display diagonal	2.16 m (85")
Display resolution	3840 x 2160 pixels
Display brightness	300 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.4875 x 0.4875 mm
Vertical scan range	24 - 75 Hz
Horizontal scan range	15 - 135 kHz
Colour saturation	72%
Haze rate	2%
Pixel frequency (max)	594 MHz

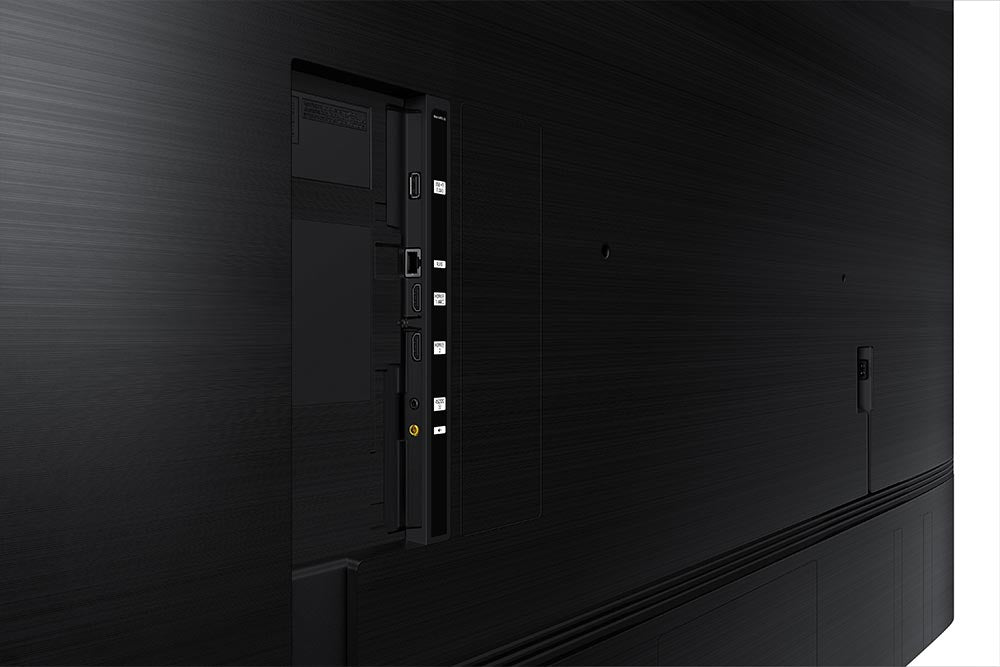

Ports & interfaces
USB port	Yes
HDMI version	2.0
DisplayPorts quantity	0
Ethernet LAN	Yes
HDMI ports quantity	2
DVI port	No
Ethernet LAN (RJ-45) ports	1
RS-232 interface	Yes
USB ports quantity	1
HDMI input ports quantity	2
Design
Product design	Digital signage flat panel
Placement supported	Indoor
Product colour	Black
Panel mounting interface	600 x 400 mm
Certification	Class B 60950-1, 62368-1
VESA mounting	Yes
Screen shape	Flat
Bezel colour	Black
Bezel type	3 Bezel-less
Performance
Purpose	Universal
Operating hours (hours/days)	16/7
HDCP	Yes
HDCP version	2.2
Power
Power consumption (sleep)	0.5 W
Annual energy consumption	304 kWh
Power consumption (typical)	275 W
AC input voltage	100 - 200 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A+++ to D
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Operating system installed	Tizen 4.0
Built-in processor	Yes
Weight & dimensions
Display width	1900.9 mm
Display depth	26.9 mm
Display height	1086.2 mm
Display weight	41.5 kg
Packaging data
Package width	2075 mm
Package depth	220 mm
Package height	1237 mm
Package weight	54.3 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Technical details
RJ-45 input ports	1
RS-232 input ports	1
Audio out (mini jack)	1
Other features
Flash memory	8000 MB
Energy efficiency class (old)	A
Optional features	WMN8200SG
