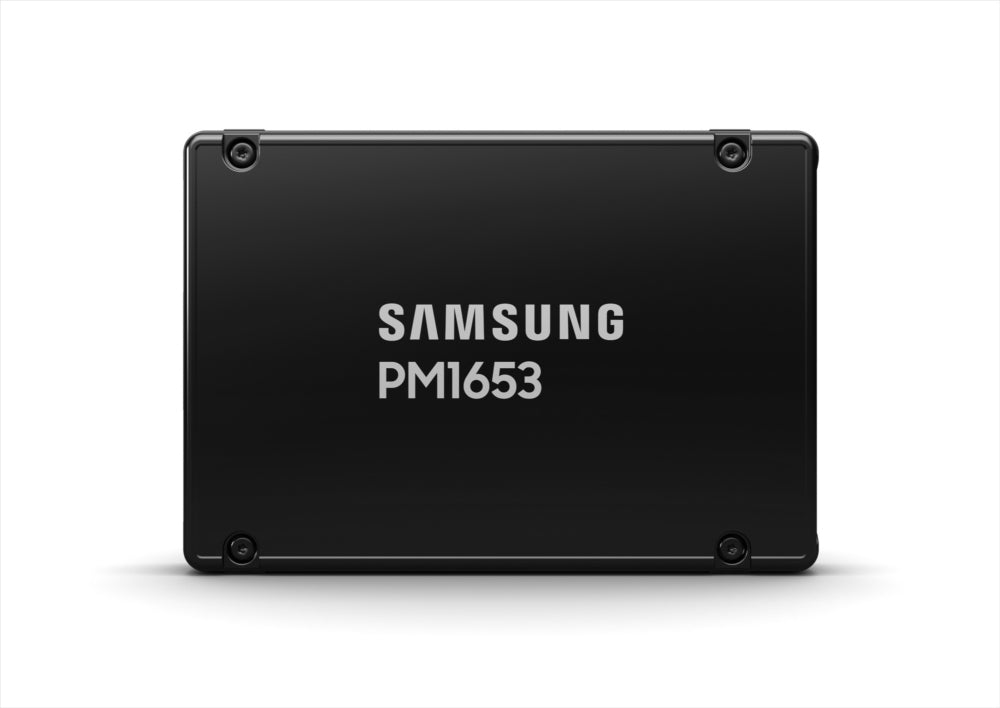

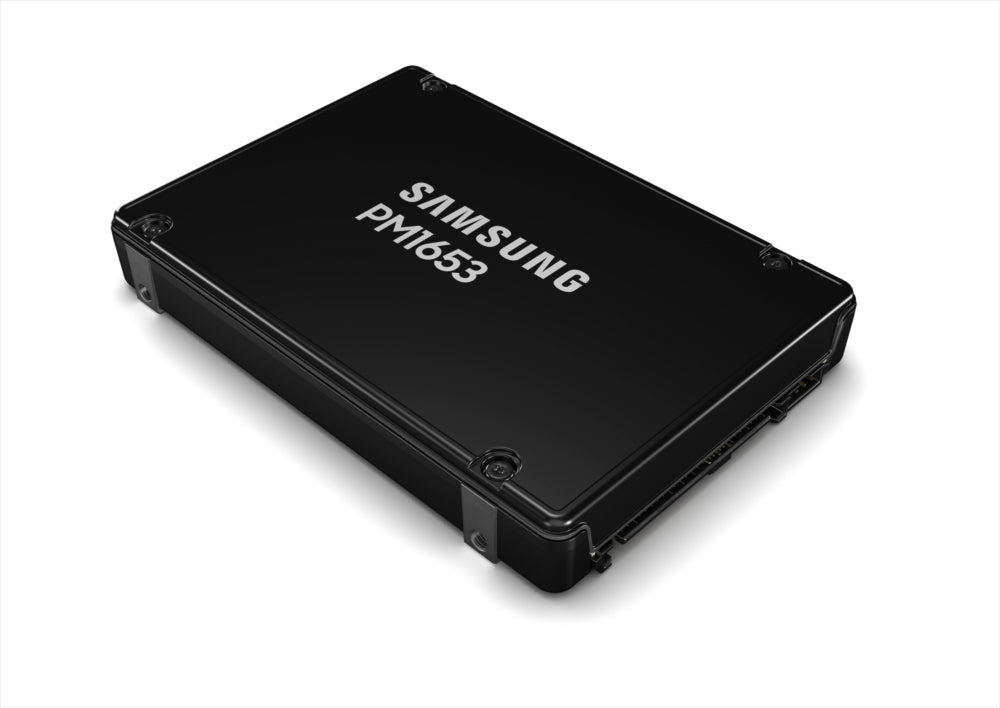

Samsung MZILG960HCHQ-00A07 960GB 2.5" SAS SSD

Upgrade to solid-state speed: the Samsung MZILG960HCHQ-00A07 delivers 4200MB/s read over its SAS interface for quicker boots, loads and transfers.

A landmark release
for Enterprise SSDs

A Big Leap Forward for Enterprise Storage
Access a whole new level of SSD performance. Now more than ever, enterprises require high-performance storage solutions that are capable of processing heavy workloads quickly and efficiently. Optimized with the latest 24G SAS interface and featuring dual ports for added stability, Samsung’s PM1653 offers enterprises the performance they need to keep up with today’s rapidly evolving data demands.

24G SAS: Class-Leading Performance
The PM1653’s 24G SAS support streamlines storage infrastructure by maximizing throughput.
This is possible thanks to the addition of a cutting-edge Rhino controller that doubles the PM1653's bandwidth. This allows it to offer roughly twice the performance and more than double the random speeds of the previous generation.

Remarkably Reliable
The stability to succeed. The PM1653’s dual ports feature two pairs of signal pins that are connected to a
separate storage system. Utilizing that system, it continuously performs service checks to ensure that if one port fails, the other is capable of maintaining stable service. Such reliability enhances TCO while also adding much-needed stability to mission-critical enterprise applications.

More Capacity, More Efficiency
Featuring Samsung’s latest sixth-generation,
128-layer V-NAND and a maximum capacity of 30.72TB, the PM1653 offers the capacity to keep up with the exponential growth of business data. Such large capacity significantly expands the amount of storage that can be used in the enterprise market.

Specifications

Hard drive
SSD capacity	960 GB
Memory type	V-NAND
Data transmission
Read speed	4200 MB/s
Write speed	1200 MB/s
Random write (4KB)	55000 IOPS
Random read (4KB)	600000 IOPS
Data transfer rate	24 Gbit/s
Features
Interface	SAS
Component for	Server/workstation
NVMe	No
SSD form factor	2.5"
Drive writes per day (DWPD)	1
