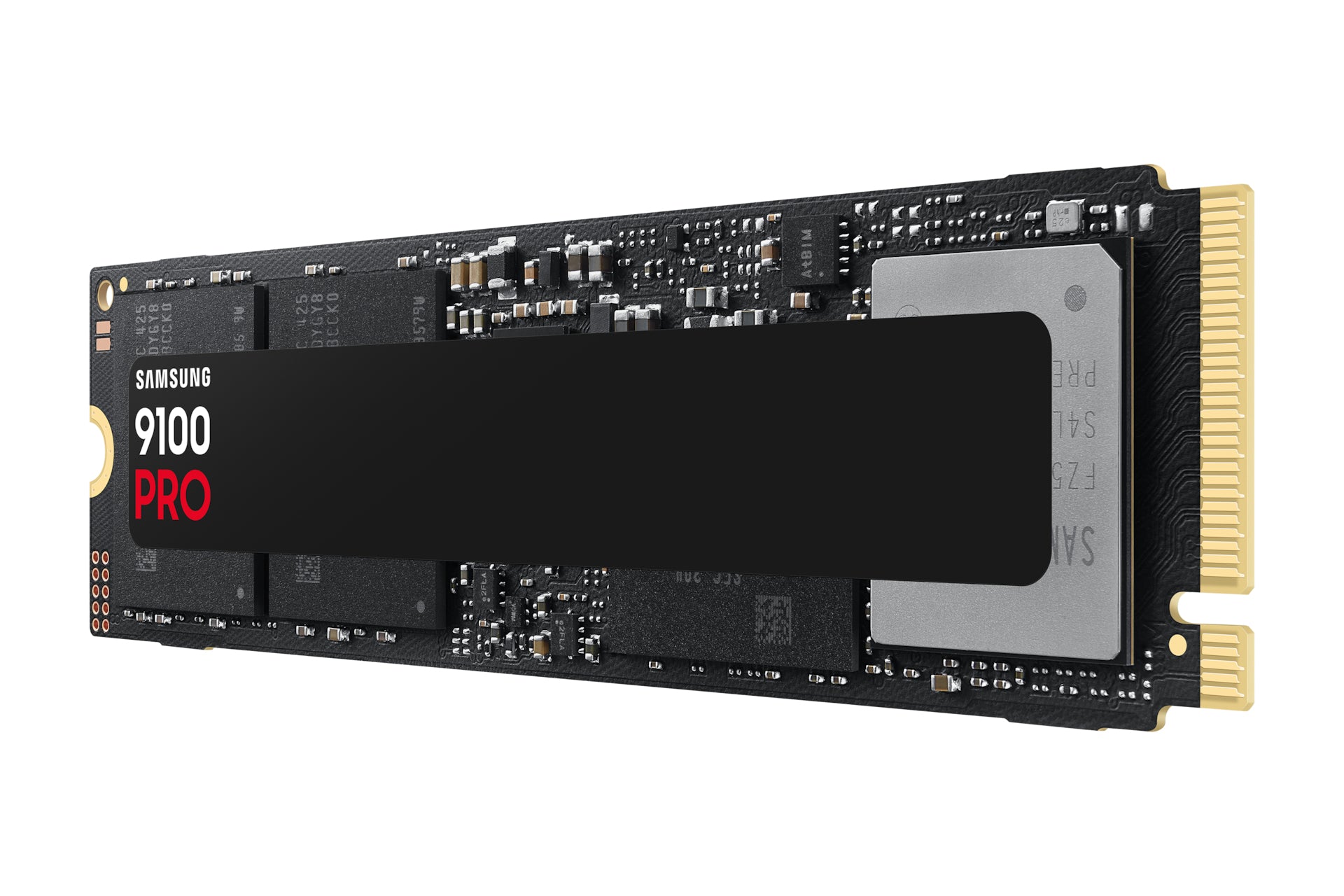

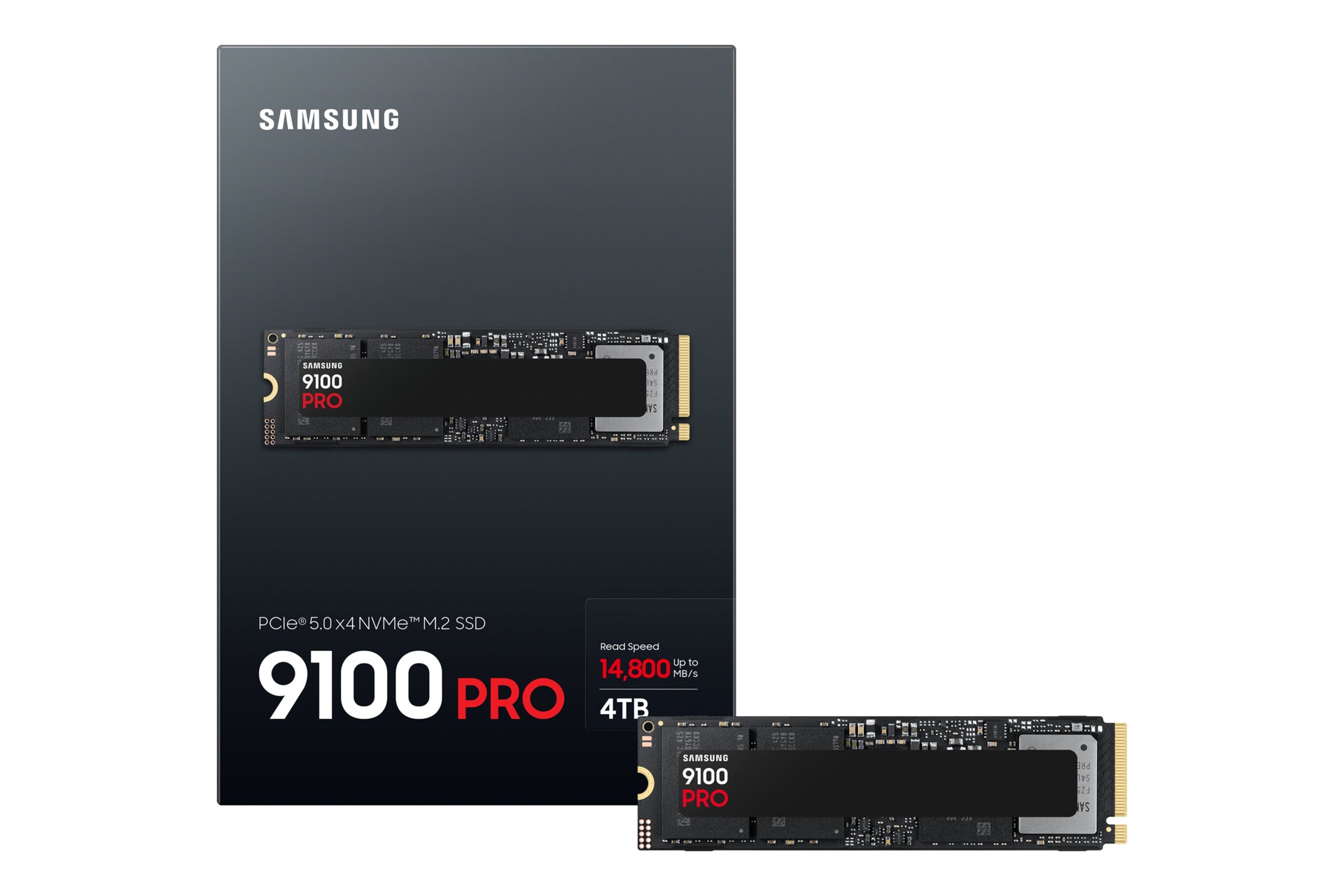

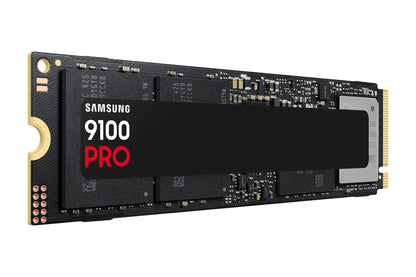

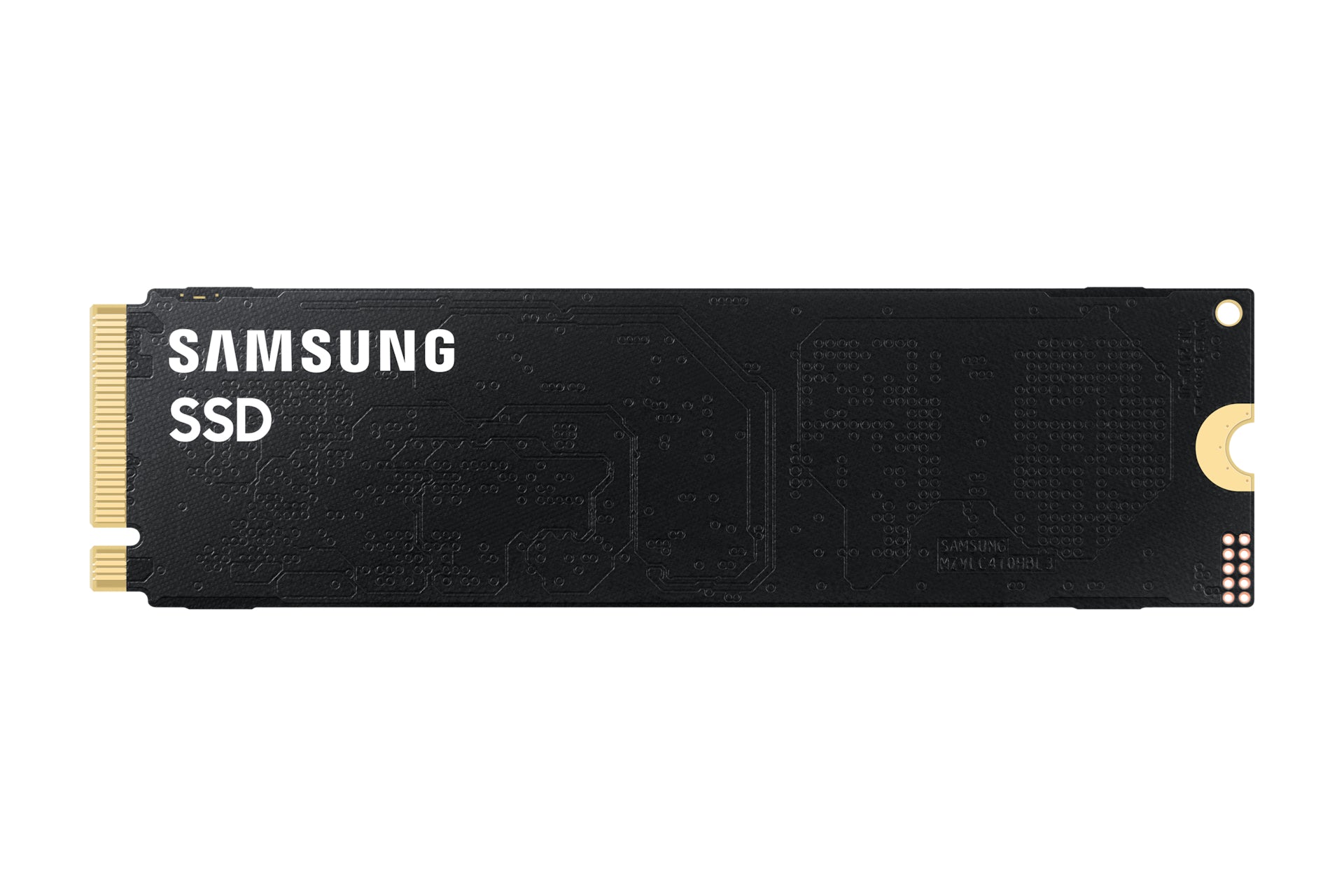

Samsung MZ-VAP4T0BW 4TB M.2 NVMe PCIe Gen5 SSD

Upgrade to solid-state speed: the Samsung MZ-VAP4T0BW delivers 4800MB/s read over its NVMe PCIe Gen5 interface for quicker boots, loads and transfers.

Breakthrough PCIe® 5.0 performance

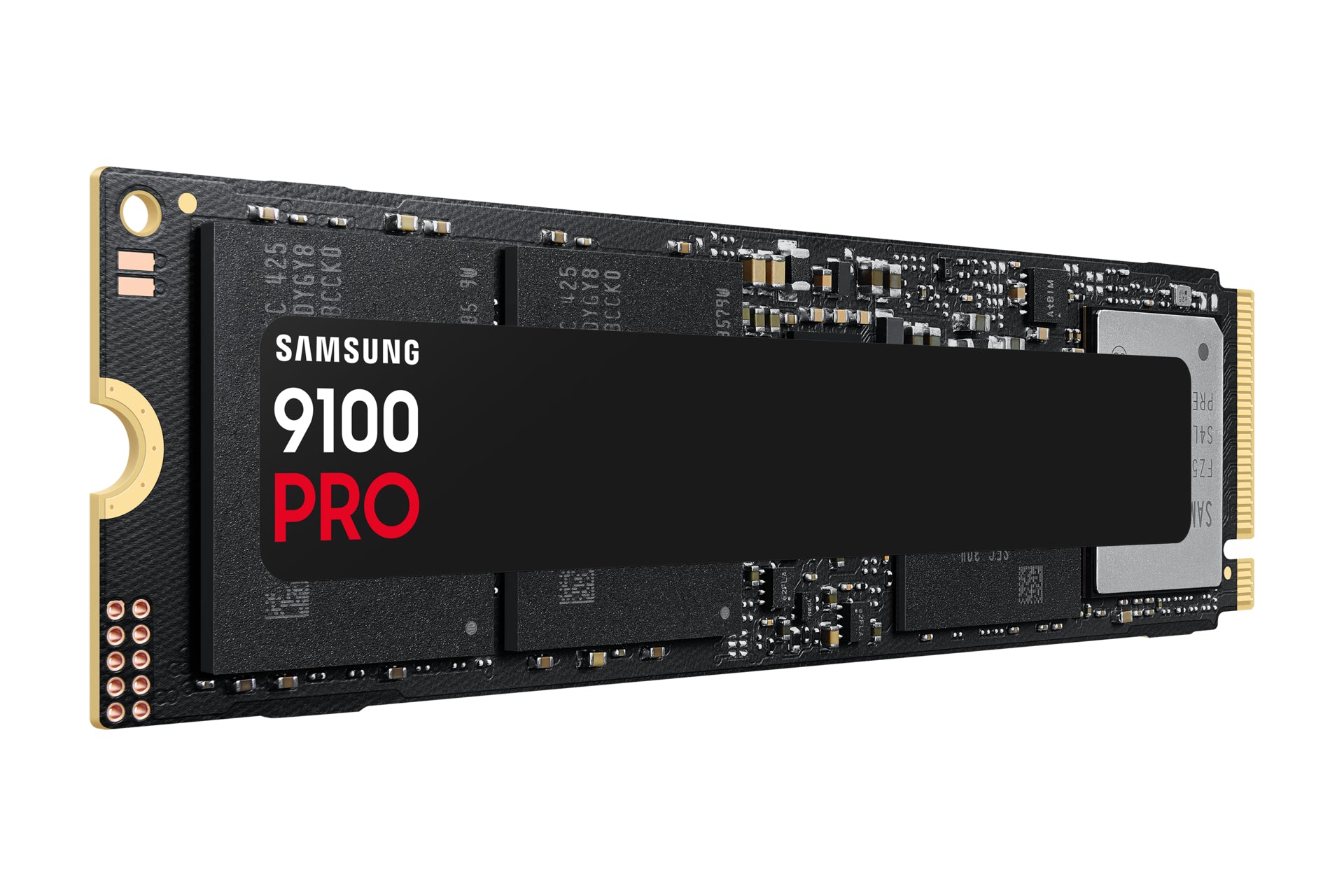

Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.

Impressive processing power
Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Rapid AI creation
Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PROs exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.

Exceptional performance at your fingertips
Elevate your competitive edge. Breeze through video editing, 3D art, and even long streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on any device, and choose the storage you need with expansive capacity up to 8TB.

Extraordinary thermal efficiency
Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovations to life
For decades, Samsungs NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

PCIe® 5.0 Performance
Max 14,800/13,400 MB/s sequential speeds,two times faster than 990 PRO.

Advance your gameplay
Mega capacity with exceptional compatibility.

Innovative Power & Thermal Control
Up to 49% enhanced power efficiency with advanced thermal control.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	4 TB
Memory type	V-NAND TLC
Data transmission
Read speed	14800 MB/s
Write speed	13400 MB/s
Random write (4KB)	2600000 IOPS
Random read (4KB)	2200000 IOPS
Security
Security algorithms	256-bit AES
Endurance
Mean time between failures (MTBF)	1500000 h
Features
Interface	PCI Express 5.0
Component for	PC/Game console
NVMe	Yes
NVMe version	2.0
DevSlp (device sleep) support	Yes
S.M.A.R.T. support	Yes
TRIM support	Yes
Hardware encryption	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Power
Power consumption DevSlp (device sleep)	5.7 mW
Power consumption (write)	8.2 W
Power consumption (read)	9 W
Power consumption (idle)	0.007 W
Operating voltage	3.3 V
Average power consumption (write)	8.2 W
Average power consumption (read)	9 W
Weight & dimensions
Width	80.2 mm
Weight	9 g
Height	80.2 mm
Depth	2.38 mm
Package width	143 mm
Package depth	98 mm
Package height	22 mm
Package weight	65 g
Package type	Box
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating shock	1500 G
