Philips

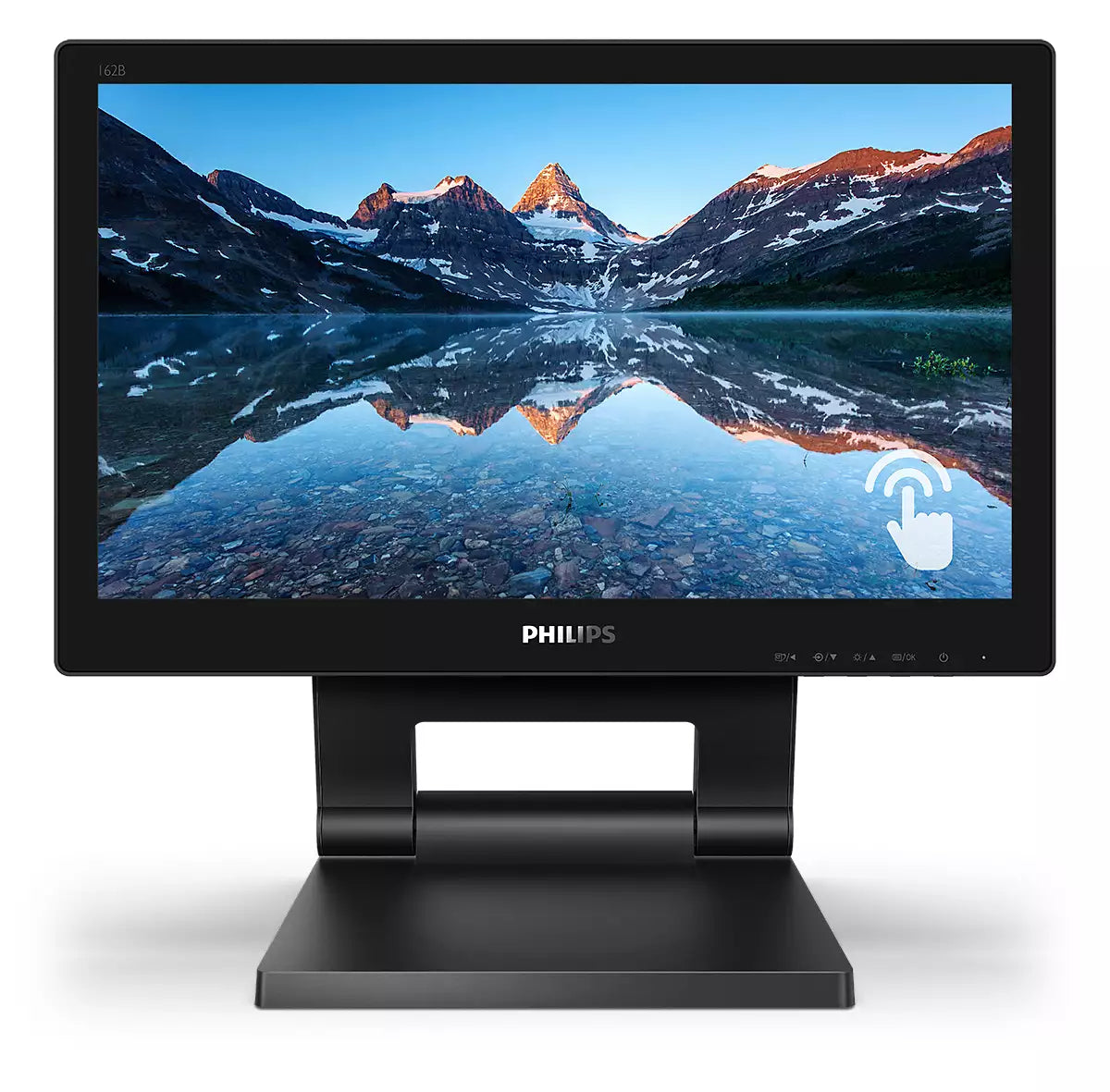

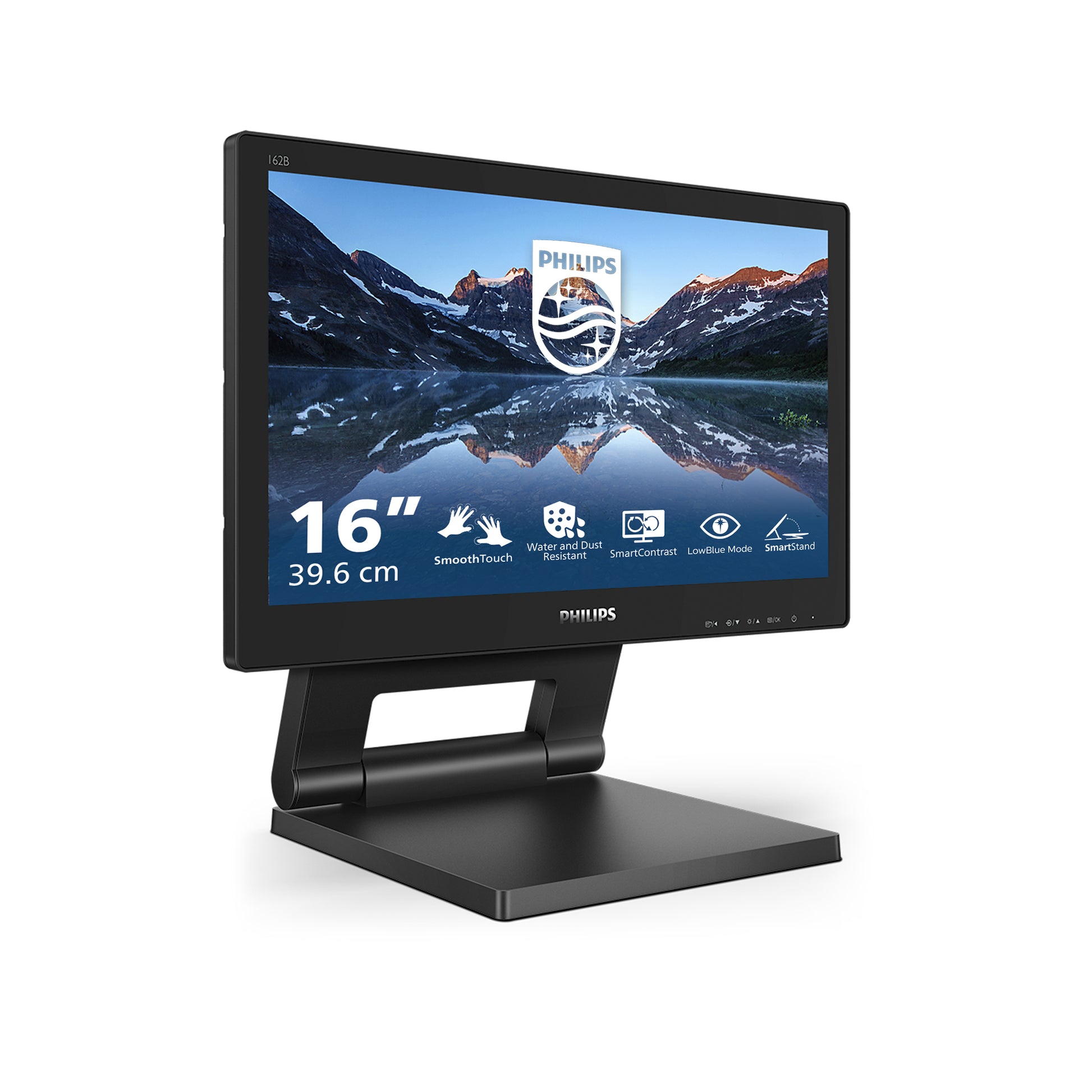

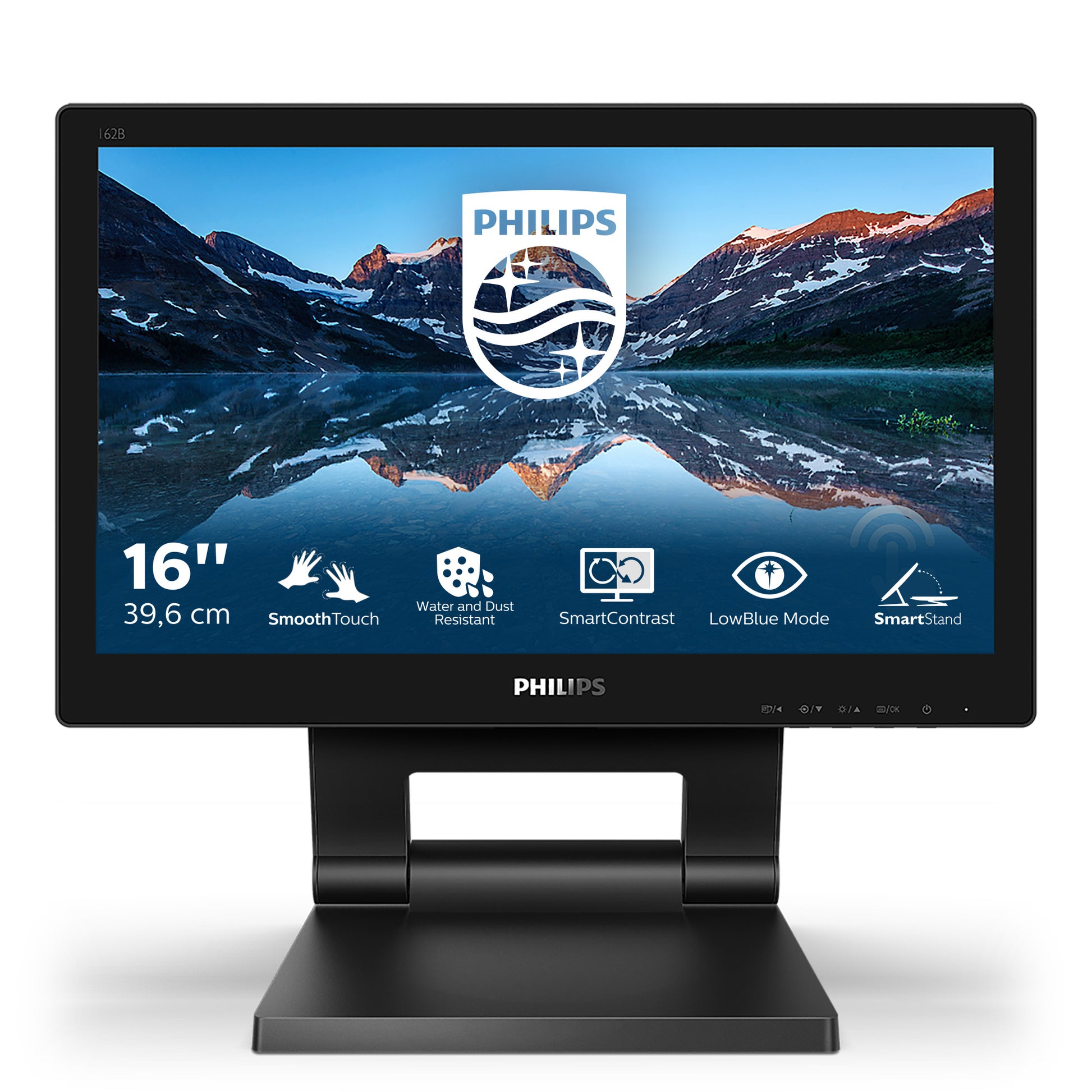

Philips 162B9T/00 15.6" HD TN Touch Monitor

£335.28 GBP

Sale Sold out

Taxes included.

Condition New

The Philips 162B9T/00 brings touch control to a 15.6" HD 1366x768 TN monitor — ideal for POS, kiosks and interactive work.

A sturdy water- and dust-resistant touch-screen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts productivity.

Specifications

Display
HDCP	Yes
Display brightness (typical)	220 cd/m²
Screen shape	Flat
Dynamic contrast ratio marketing name	SmartContrast
Display number of colours	262000 colours
Native aspect ratio	16:9
Pixel density	100 ppi
DDC/CI	Yes
Colour gamut	86%
Maximum refresh rate	60 Hz
sRGB coverage (typical)	100%
Display surface	Gloss
HD type	HD
Display technology	LCD
Contrast ratio (dynamic)	20000000:1
Viewing angle, horizontal	90°
Viewing angle, vertical	60°
Pixel pitch	0.252 x 0.252 mm
Horizontal scan range	30 - 60 kHz
Vertical scan range	50 - 75 Hz
Aspect ratio	16:9
Viewable size, horizontal	34.4 cm
Viewable size, vertical	19.4 cm
Digital horizontal frequency	30 - 60 kHz
Digital vertical frequency	50 - 75 Hz
Separate H/V sync	Yes
Sync-on-green (SOG)	Yes
Backlight type	W-LED
Display resolution	1366 x 768 pixels
Response time	4 ms
Display diagonal	39.6 cm (15.6")
Contrast ratio (typical)	500:1
Display panel size	15.6 inch/39.6 cm
Surface hardness	7H
NTSC coverage (typical)	86%
Touchscreen	Yes
Number of simultaneous touchpoints	10
Panel type	TN
Display diagonal (metric)	39.6 cm
Display sRGB	Yes
Touchscreen technology	Projected capacitive system
LED backlight	Yes
Display brightness	220 cd/m²
Colour gamut standard	sRGB, NTSC
Audio
Built-in speaker(s)	Yes
RMS rated power	4 W
Performance
Mean time between failures (MTBF)	70000 h
AMD FreeSync	No
Compatible operating systems	Windows 10 / 8.1 / 8 / 7
NVIDIA G-SYNC	No
Operating system installed	Windows 10
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Low Blue Light technology	Yes
Component video sync	Separate Sync, Sync-on-green (SOG)
Stylus pen hover function	Yes
Palm rejection	Yes
EasyRead mode	Yes
Management features
On Screen Display (OSD)	Yes
Number of OSD languages	21
On Screen Display (OSD) languages	Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
Plug and Play	Yes
Multimedia
Number of speakers	2
Design
Market positioning	Home
Heavy metals free	Hg (mercury)
Feet colour	Black
Certification	CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS
Product colour	Black
Front bezel colour	Black
International Protection (IP) code	IP65
Exterior finish type	Textured

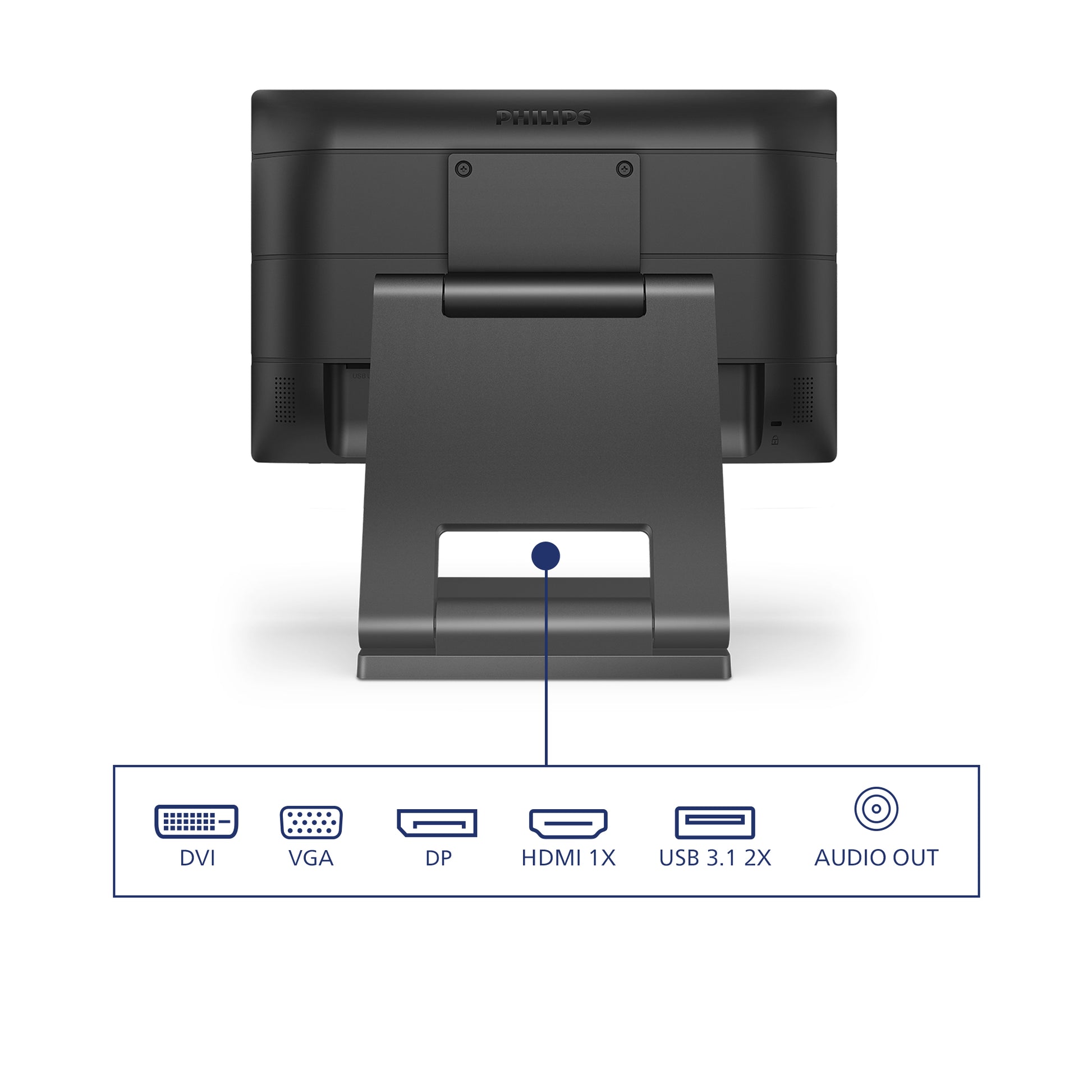

Ports & interfaces
USB Type-A downstream ports quantity	2
Headphone out	Yes
DVI port	Yes
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
HDMI ports quantity	1.4
DisplayPorts quantity	1.2
Headphone outputs	1
PC Audio in	Yes
HDMI	Yes
HDMI version	1.4
DisplayPort version	1.2
HDCP version	1.4
USB Touch port	Yes
Technical details
Height (without stand)	241 mm
Depth (without stand)	42 mm
Width (without stand)	378 mm
Mobile operating systems supported	Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4
Cable lock slot	Yes
Display viewable area (HxV)	344.2 x 193.5 mm
User controls	SmartImage; Input; Brightness; Menu; Power On/Off
Picture enhancement	SmartImage
Recyclable packaging material	100%
Regulatory Approvals	CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS
Sustainability certificates	ENERGY STAR
Doesn't contain	Mercury, PVC/BFR
Compliance certificates	RoHS, WEEE
Power supply type	External
Weight (with stand)	5 kg
Folding angle	70°
Touch method	Stylus, Finger, Glove*
LowBlue mode	Yes
Software
Bundled software	SmartControl
Ergonomics
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
LED indicators	Operation, Stand-by

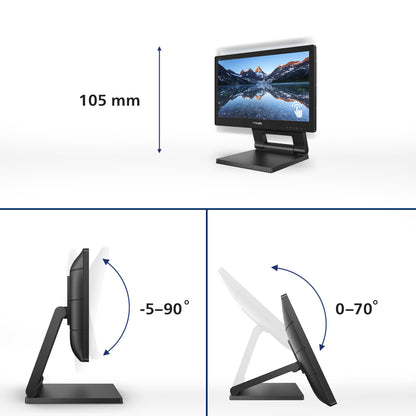

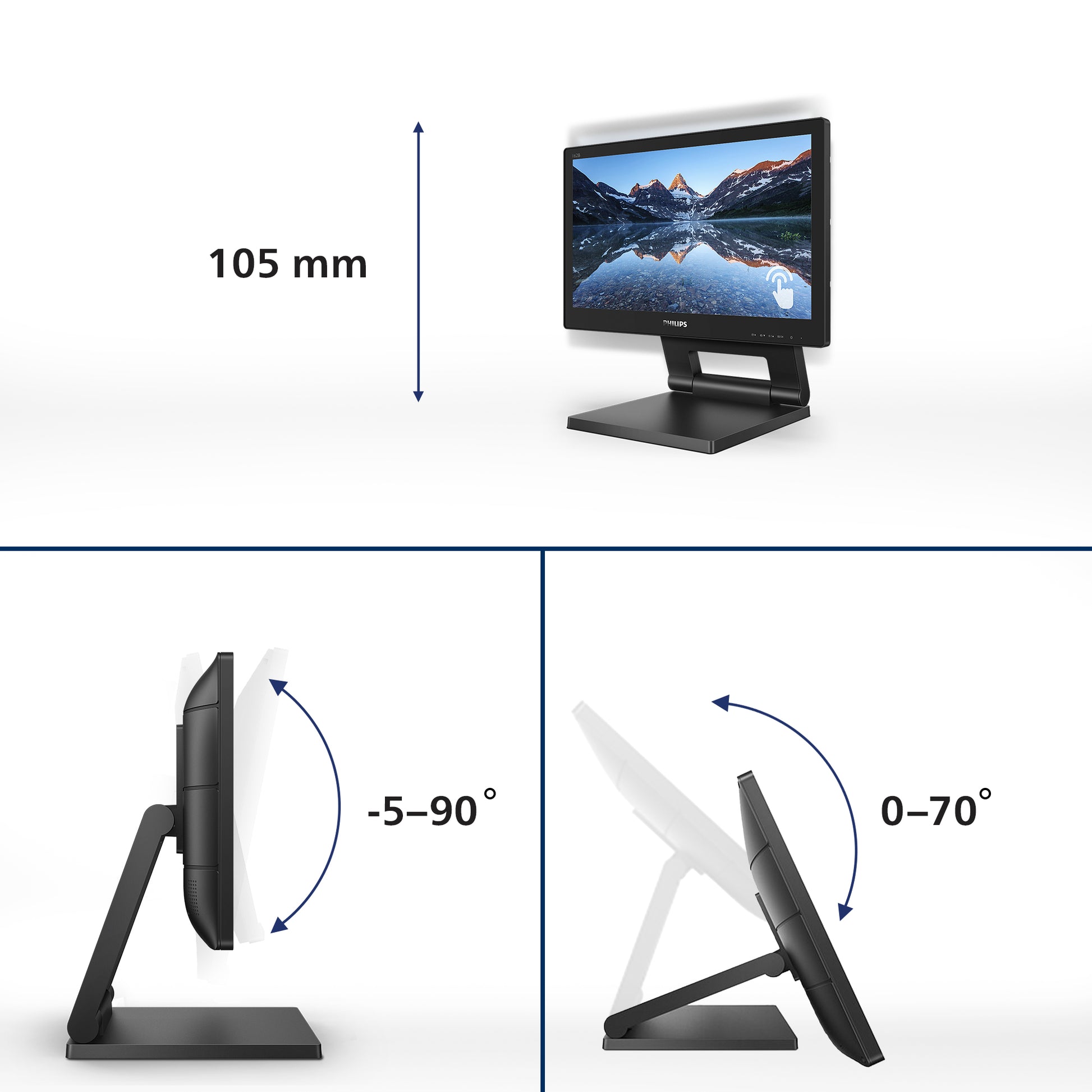

Tilt angle range	-5 - 90°
Height adjustment	Yes
Cable lock slot type	Kensington
Palm rejection area	25 x 25 mm
Tilt adjustment	Yes
Adjustable height (max)	10.5 cm
Power
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	7.1 W
Power consumption (off)	0.3 W
Power consumption (PowerSave)	5.6 W
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	10 kWh
Operational conditions
Non-operating altitude	0 - 12192 m
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3658 m
Weight & dimensions
Width (with stand)	378 mm
Depth (with stand)	227 mm
Height (with stand)	347 mm
Dimensions (W x D x H) with stand	378 x 347 x 227 mm
Weight (without stand)	2.01 kg
Package width	445 mm
Package depth	159 mm
Package height	388 mm
Package weight	6.31 kg
Packaging data
Stand included	Yes
Quick start guide	Yes
Manual	Yes
Cables included	VGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC
Stylus included	Yes
Other features
Signal input	VGA (Analogue); DVI-D (digital, HDCP); DisplayPort 1.2; HDMI 1.4
Monitor sync input signal	Separate Sync; Sync on Green
Height adjustment (vertical mode)	10.5 cm
Height adjustment (horizontal mode)	18.4 cm
Energy efficiency class (old)	A
Supplied AC adapter type	1366 x 768 @ 60 Hz
Logistics data
Harmonized System (HS) code	85285210
