Position your screen exactly where you need it with the Peerless STS650 signage display mount — VESA fit and load ratings are below.

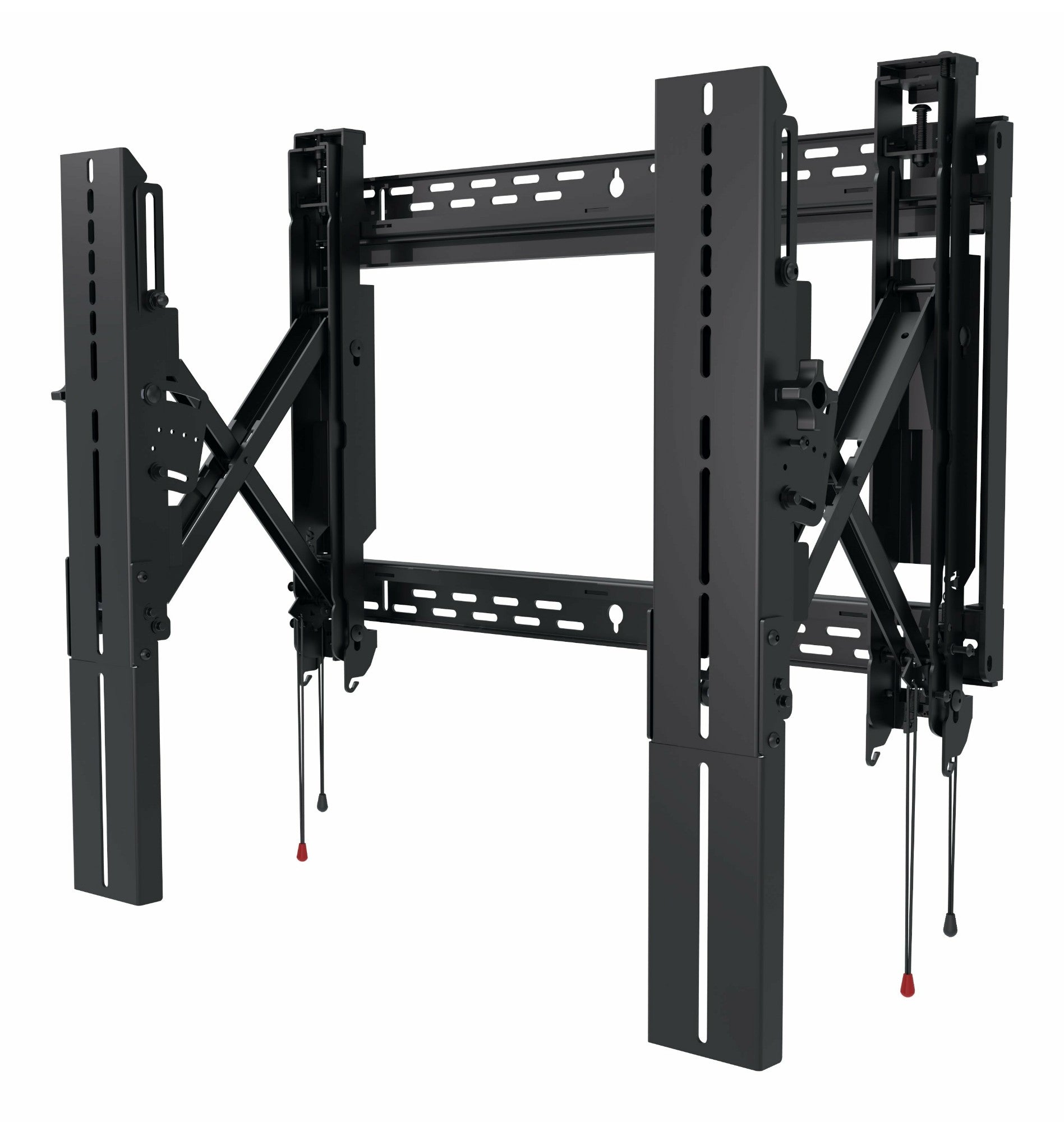

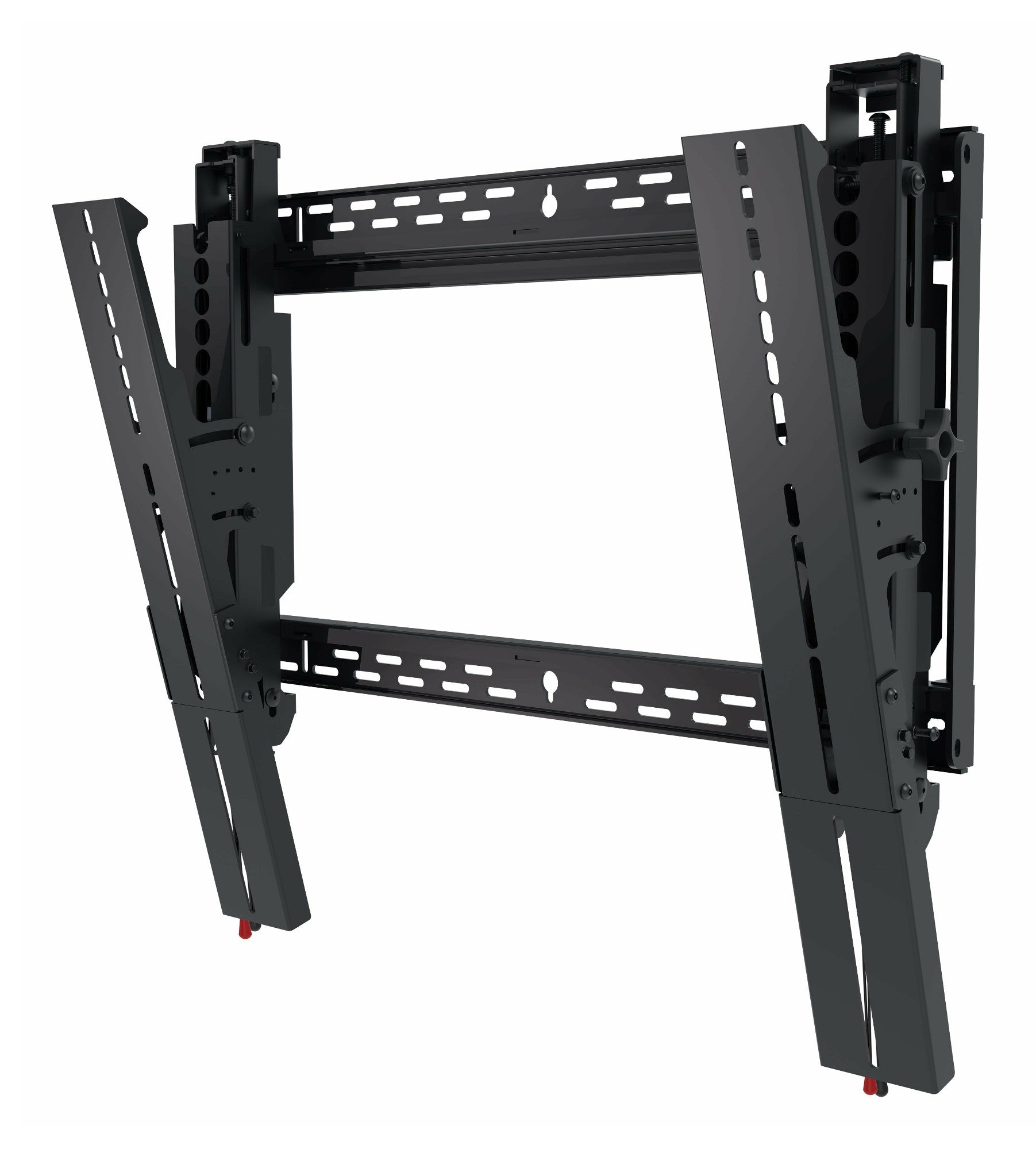

Peerless-AV’s SmartMount® Universal Scissor Wall Mount is the optimal mounting solution for UC/VC applications and recessed walls as the STS650 allows for convenient access to components stored behind the display. The STS650’s extendable adaptors allow the display to be pulled 12" (305 mm) from the wall to easily access the back of the display, and can be locked into place when the installation or maintenance is completed. Installation of the display is a breeze with the Hook-and-Hang™ feature, and the mount’s open access design provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes. Post-installation leveling and side-to-side adjustability features allow for fine tuning of the mounted display for the perfect position in any corporate conference room, digital signage application or hospitality setting.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Specifications
Mounting
Minimum screen size
99.1 cm (39")
Maximum weight capacity
90.7 kg
Panel mounting interface
200 x 100,600 x 400 mm
Number of displays supported
1
Mounting type
Wall
Minimum VESA mount
200 x 100 mm
Maximum VESA mount
600 x 400 mm
Maximum screen size
2.16 m (85")
Ergonomics
Tilt angle range
-2 - 15°
Tilt adjustment
Yes
Design
Product colour
Black
Weight & dimensions
Width
732 mm
Depth
97 mm
Height
683 mm
Weight
16.1 kg
Package width
464 mm
Package depth
829 mm
Package height
114 mm
Package weight
18.1 kg
Packaging content
Mounting kit
Yes
Manual
Yes
Packaging content
Wall Mount, Wall and Display Installation Hardware, Installation Instruction
