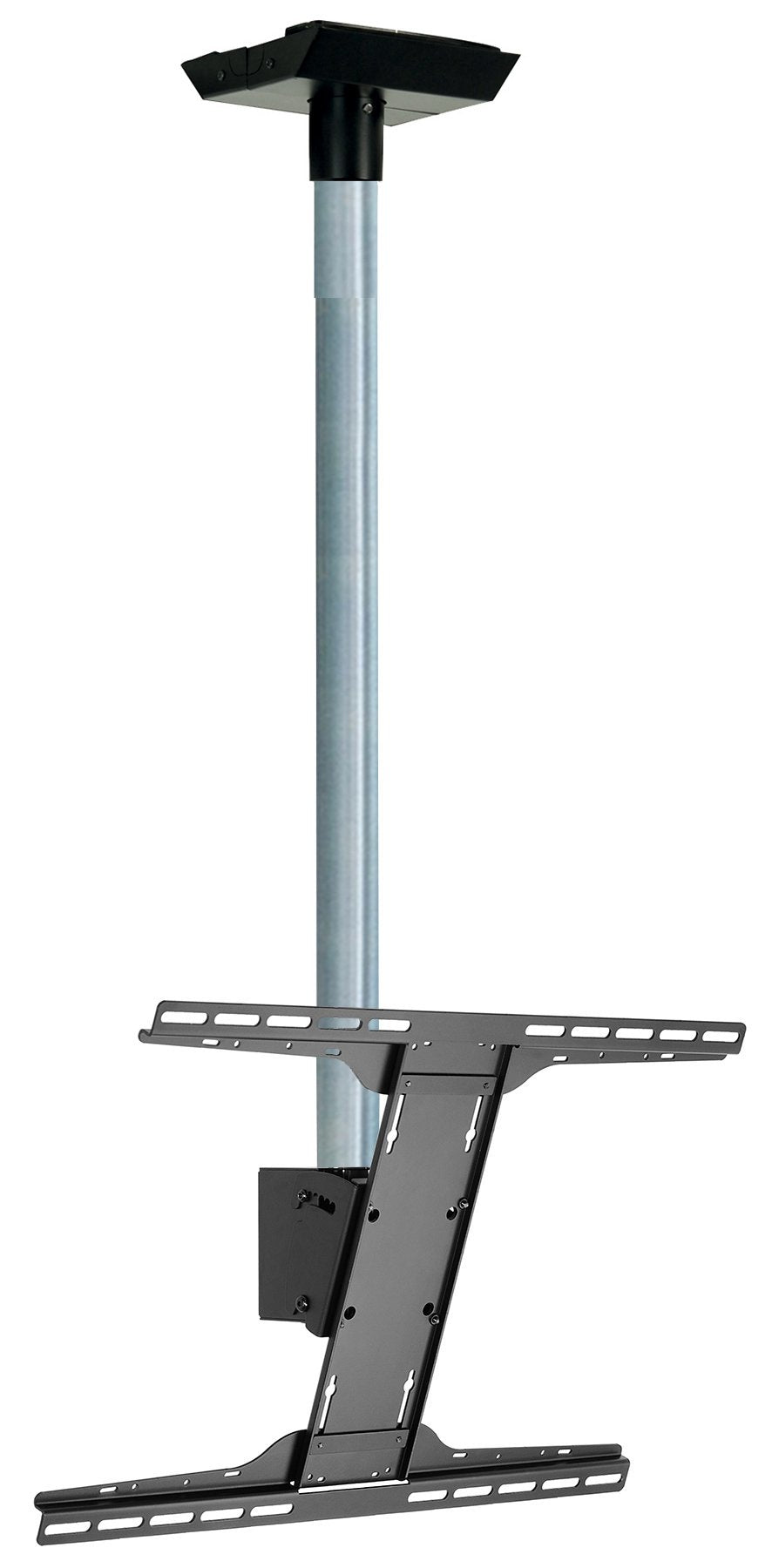

Peerless MOD-FPSKIT150-CPF signage display mount 190.5 cm (75") Black, Zinc
Peerless MOD-FPSKIT150-CPF signage display mount 190.5 cm (75") Black, Zinc
Couldn't load pickup availability
Position your screen exactly where you need it with the Peerless MOD-FPSKIT150-CPF signage display mount — VESA fit and load ratings are below.
Peerless-AV constantly strives to improve the versatility and ease of use of our products, and having listened to the feedback from installers and integrators it is apparent that the market requires a product range that can fulfil multiple requirements from a limited number of SKUs. Thus the Modular Series has been introduced as a universal ceiling mount solution with just over a dozen components in the range, allowing the professional installer to configure their own bespoke flat panel or projector mounting solution. The MOD-FPSKIT150 comes with all of the components required to ceiling mount a single 32-75" flat panel display. However, being composed of Modular components the mount can be expanded or changed as required.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 81.3 cm (32") |
| Maximum weight capacity | 112 kg |
| Number of displays supported | 1 |
| Mounting type | Ceiling |
| Minimum VESA mount | 600 x 400 mm |
| Maximum VESA mount | 600 x 400 mm |
| Maximum screen size | 190.5 cm (75") |
| Ergonomics | |
| Tilt angle range | -5 - 20° |
| Tilt adjustment | Yes |
| Design | |
| Certification | RoHS |
| Product colour | Black, Zinc |
| Weight & dimensions | |
| Width | 619 mm |
| Depth | 225 mm |
| Height | 1672 mm |
| Weight | 7.9 kg |
| Package dimensions (WxDxH) | 1588 x 305 x 127 mm |
| Package width | 1588 mm |
| Package depth | 127 mm |
| Package height | 305 mm |
| Package weight | 10.4 kg |
| Packaging content | |
| Manual | Yes |
| Technical details | |
| Orientation | Landscape/Portrait |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
