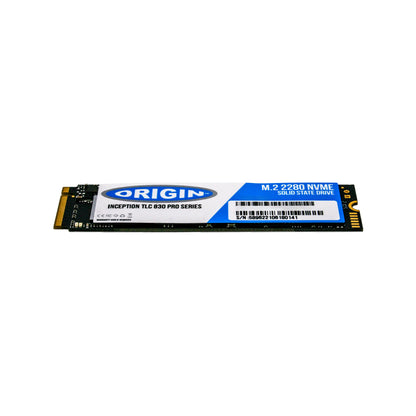

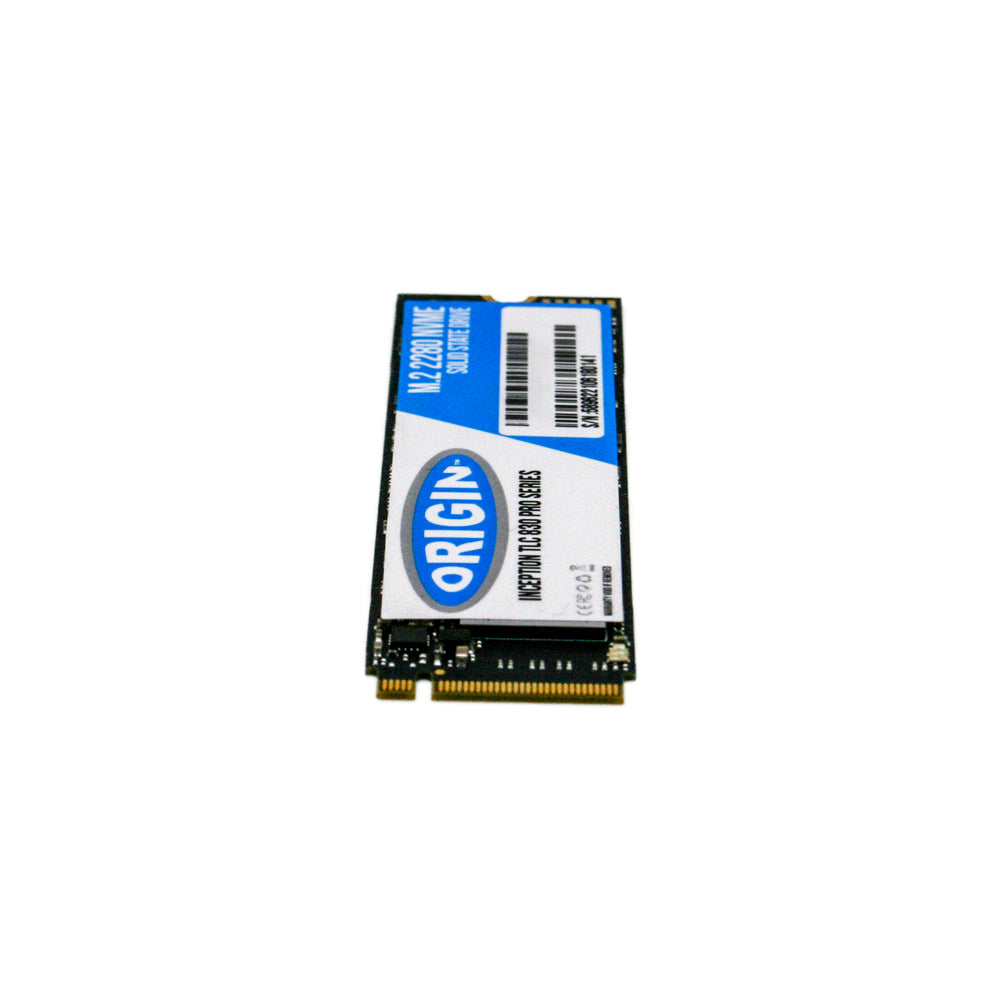

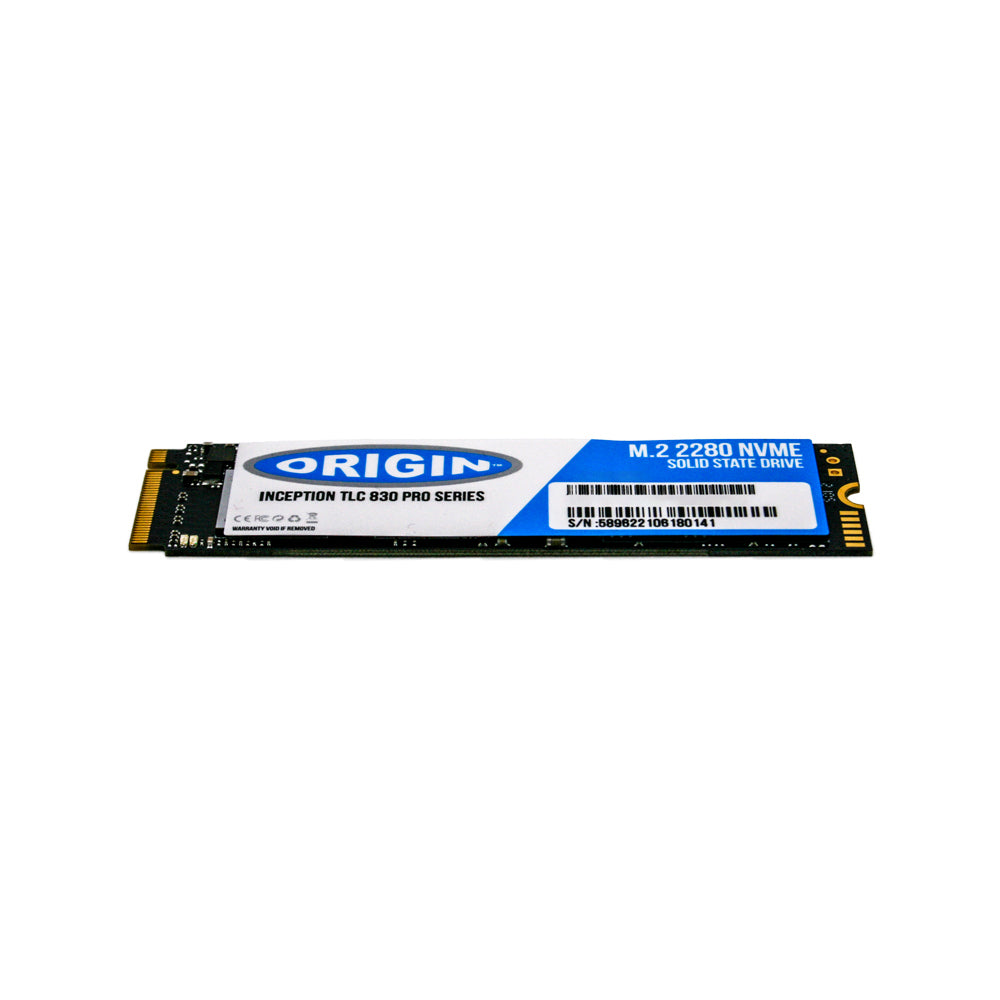

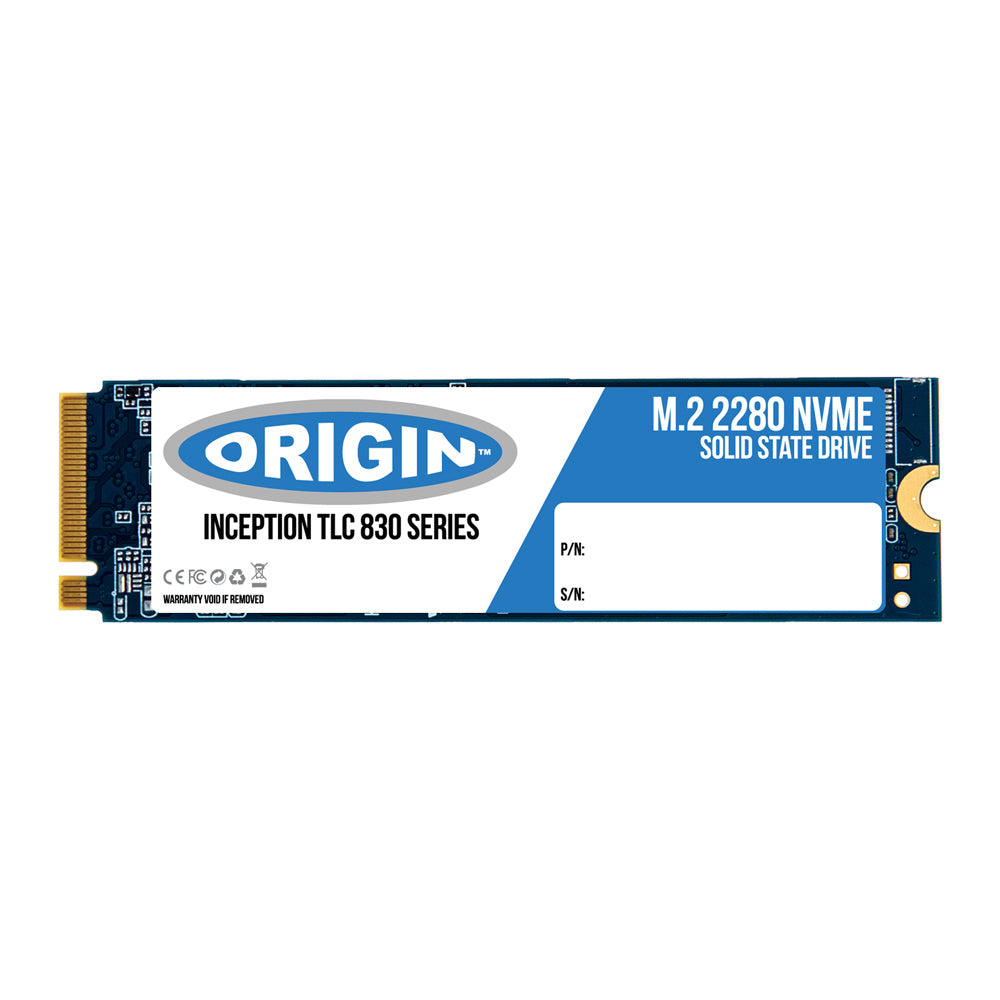

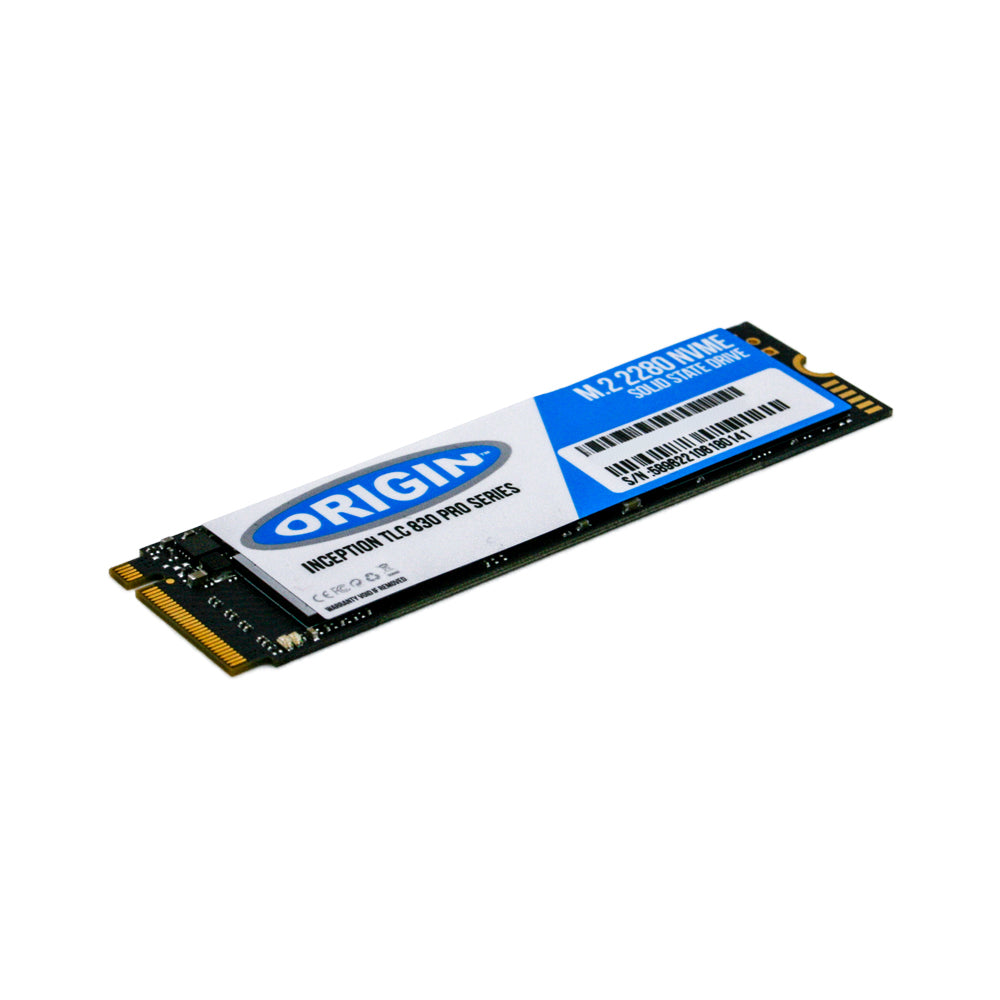

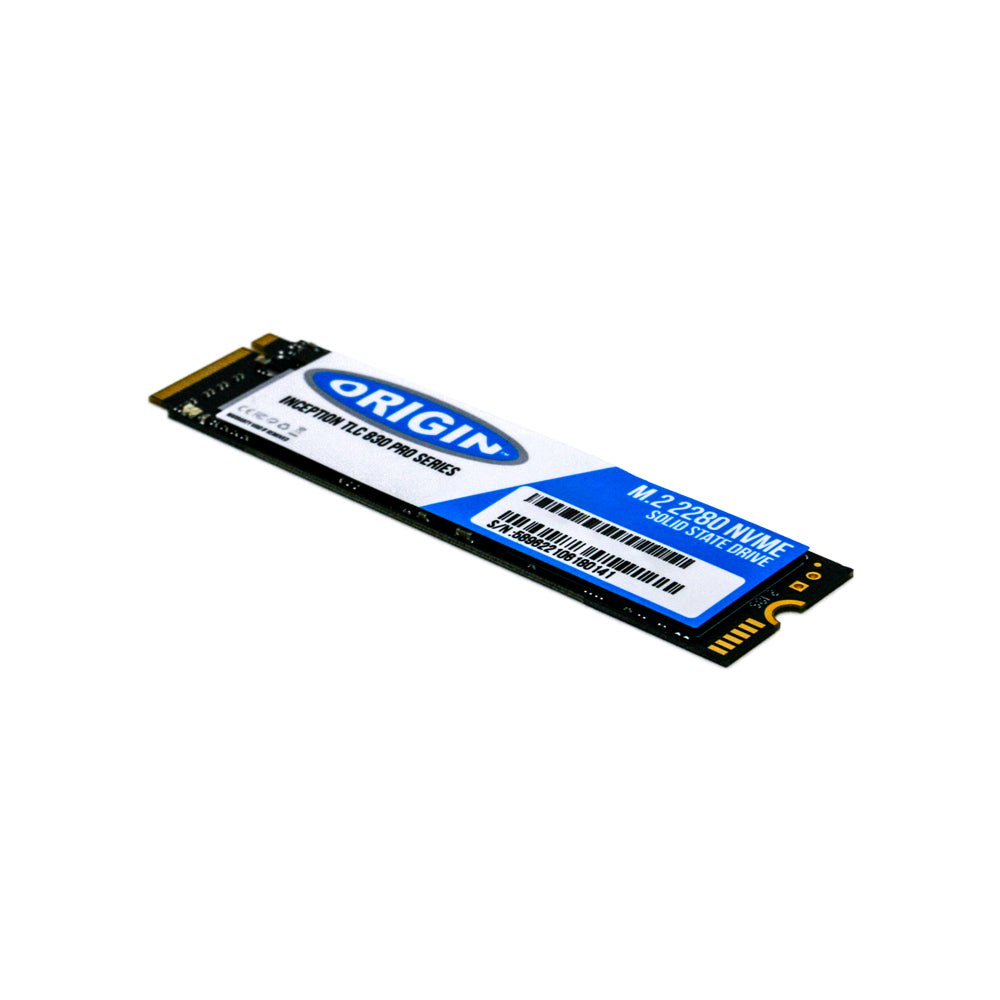

Origin Storage OTLC5123DNVMEM.2/80 512GB M.2 NVMe PCIe Gen3 SSD
Origin Storage OTLC5123DNVMEM.2/80 512GB M.2 NVMe PCIe Gen3 SSD
Couldn't load pickup availability
Upgrade to solid-state speed: the Origin Storage OTLC5123DNVMEM.2/80 delivers 2100MB/s read over its NVMe PCIe Gen3 interface for quicker boots, loads and transfers.
Origin Storage Ltd manufactures a full range of Matched SSD Solutions for most major branded Servers, laptops and desktops, such as Dell, HP, Toshiba, and Lenovo. All of our Matched SSD Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support. We can supply replacements or upgrades in form factors of 2.5" or 3.5", M.2 & AIC with either SATA, SAS or PCIe interfaces respectively, available in a range of capacities and drive write endurances for laptop, desktop or Server. All our Matched SSD Solutions are just that, matched to the system you have for 100% compatibility, right first time, every time!
Specifications
| Hard drive | |
|---|---|
| PCI Express interface data lanes | x4 |
| SSD capacity | 512 GB |
| Memory type | 3D TLC |
| Seek time | 0 ms |
| Access time | 0.2 ms |
| Performance | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Interface | PCI Express 3.0 |
| Component for | PC/Laptop |
| NVMe | Yes |
| Low-density parity-check (LDPC) | Yes |
| TBW rating | 200 |
| Hot-swap | No |
| S.M.A.R.T. support | Yes |
| Read speed | 2100 MB/s |
| Write speed | 1900 MB/s |
| ECC | Yes |
| Random write (4KB) | 179200 IOPS |
| Random read (4KB) | 102400 IOPS |
| Mean time between failures (MTBF) | 1000000 h |
| Hardware encryption | No |
| Data transfer rate | 8 Gbit/s |
| Compatible products | Universal |
| Features | |
| SSD form factor | M.2 |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption (write) | 2.97 W |
| Power consumption (read) | 2.89 W |
| Power consumption (idle) | 0.49 W |
| Operating voltage | 3.3 V |
| Packaging data | |
| Storage drive adapter included | No |
| Package type | Blister |
| Screws included | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -45 - 105 °C |
| Operating relative humidity (H-H) | 5 - 98% |
| Storage relative humidity (H-H) | 5 - 98% |
| Operating shock | 1500 G |
| Operating vibration | 16 G |
| Maximum operating altitude | 120000 m |
| Technical details | |
| Compliance certificates | RoHS |
