Netgear

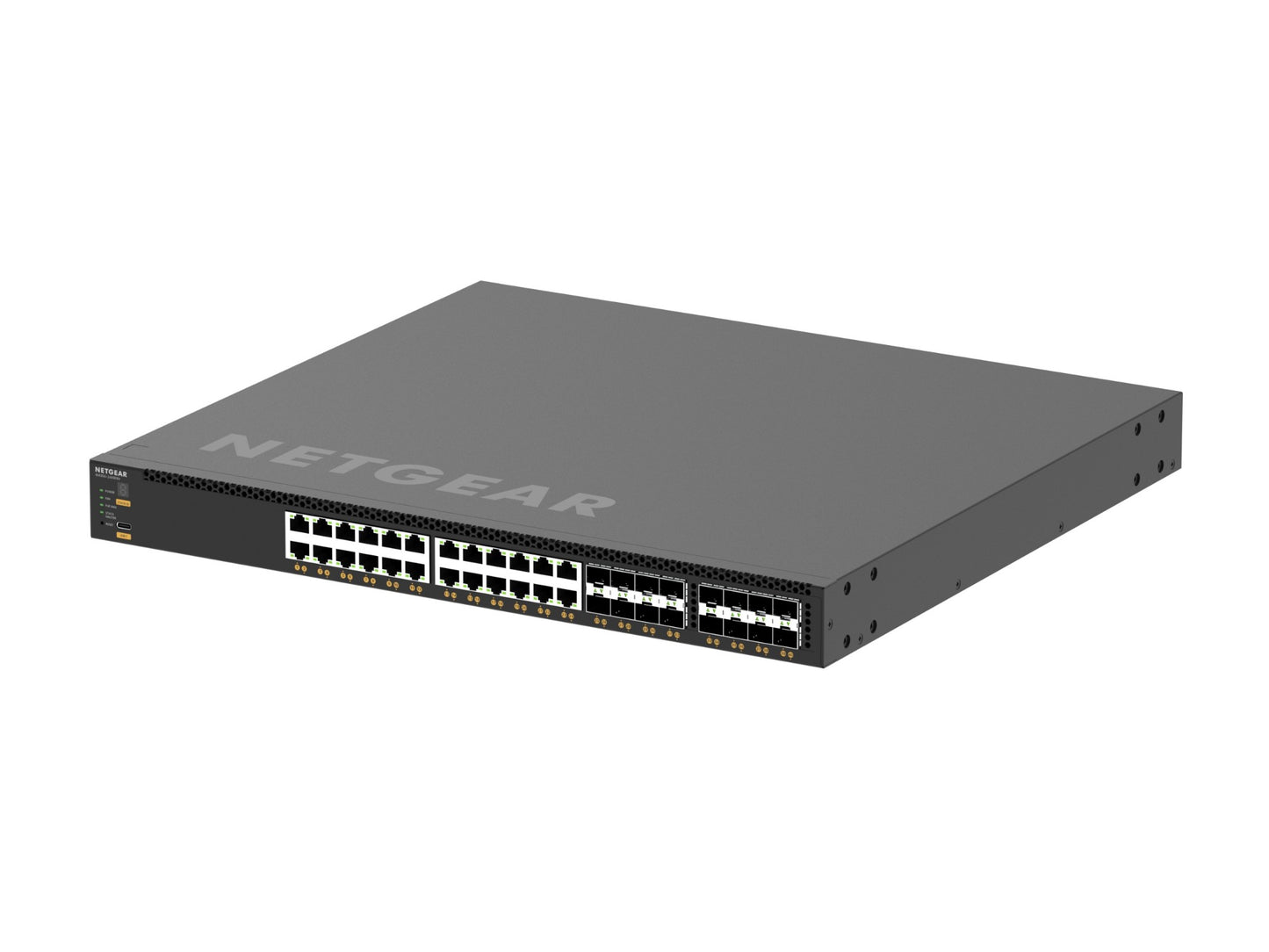

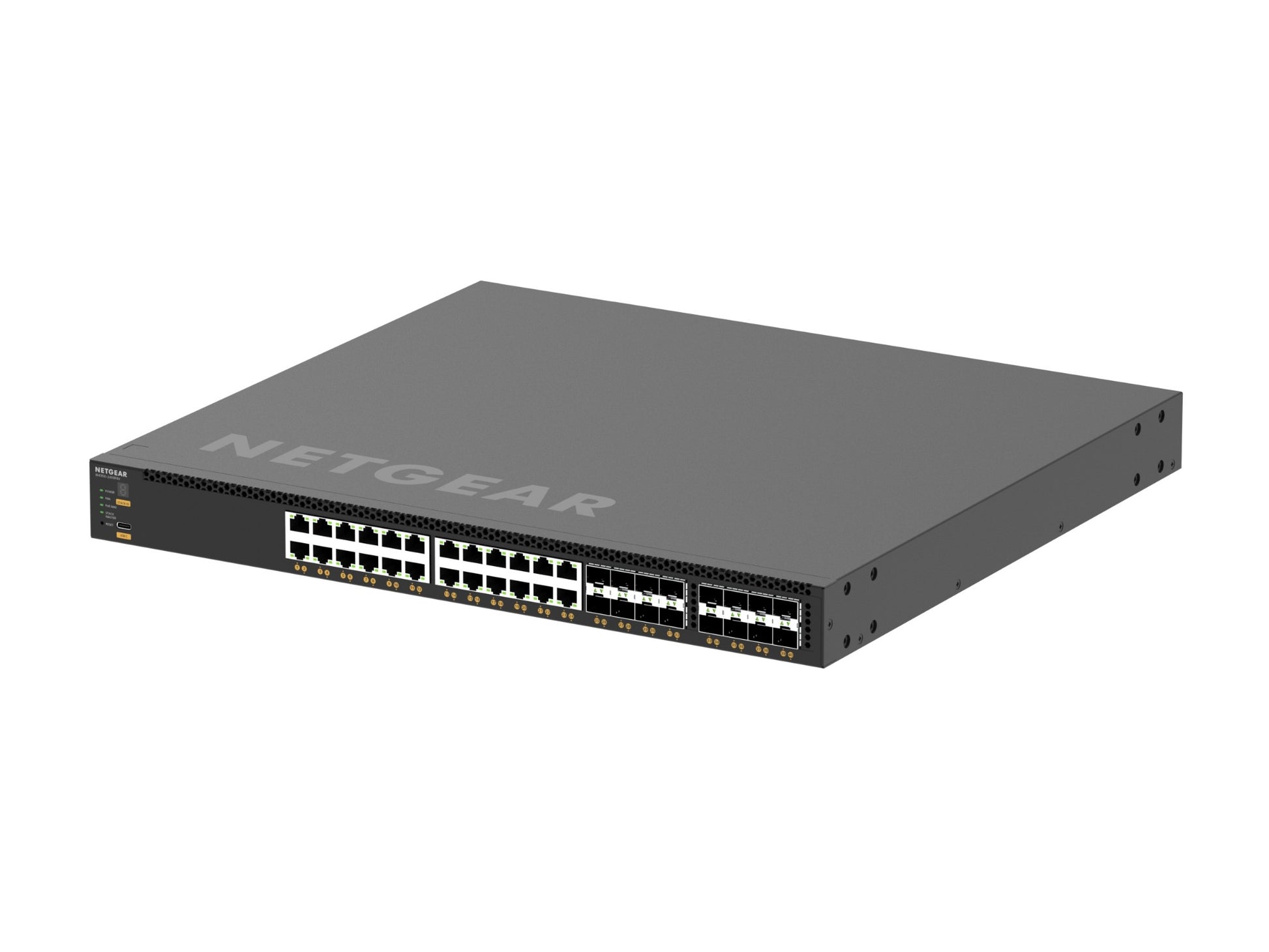

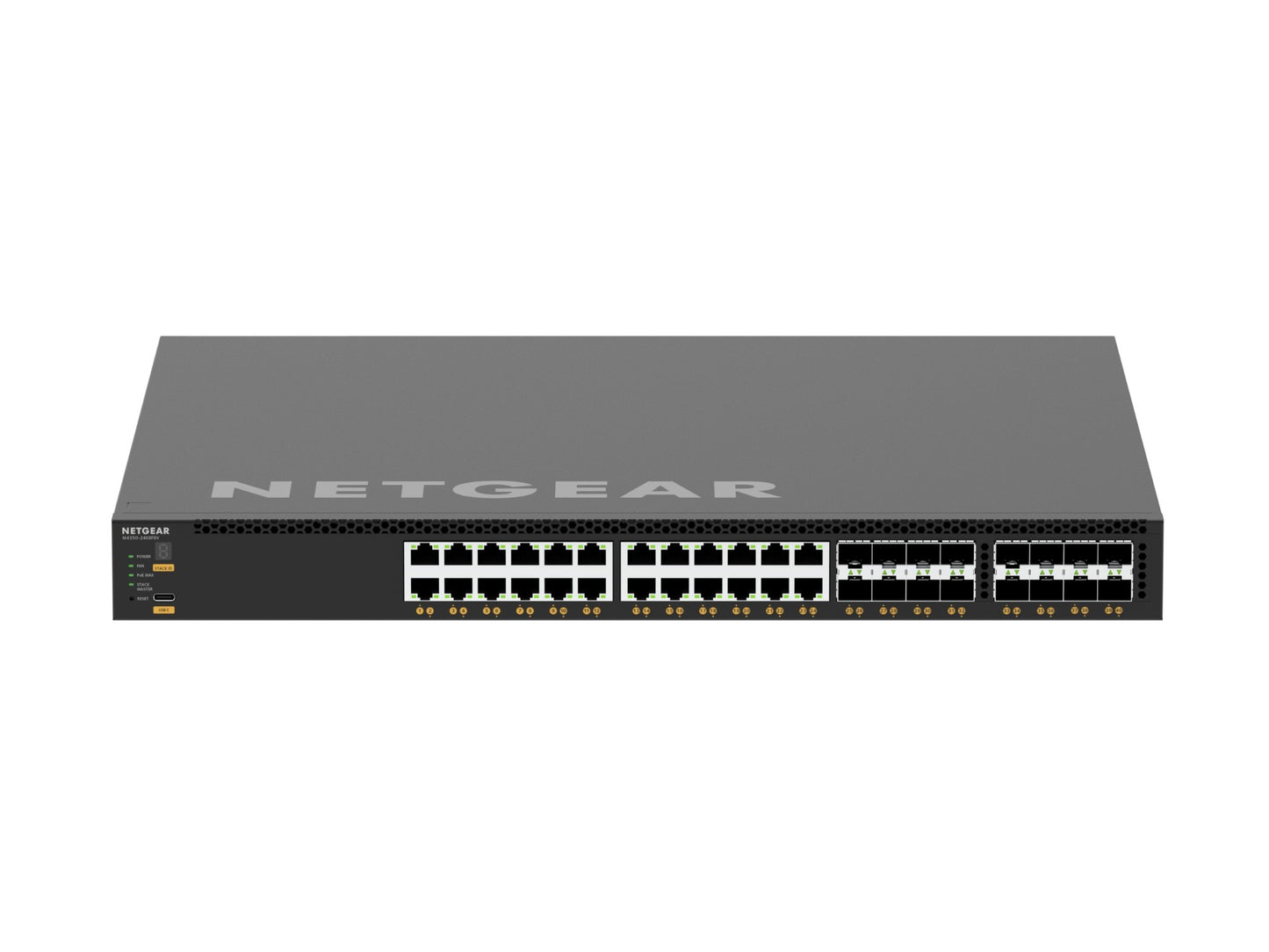

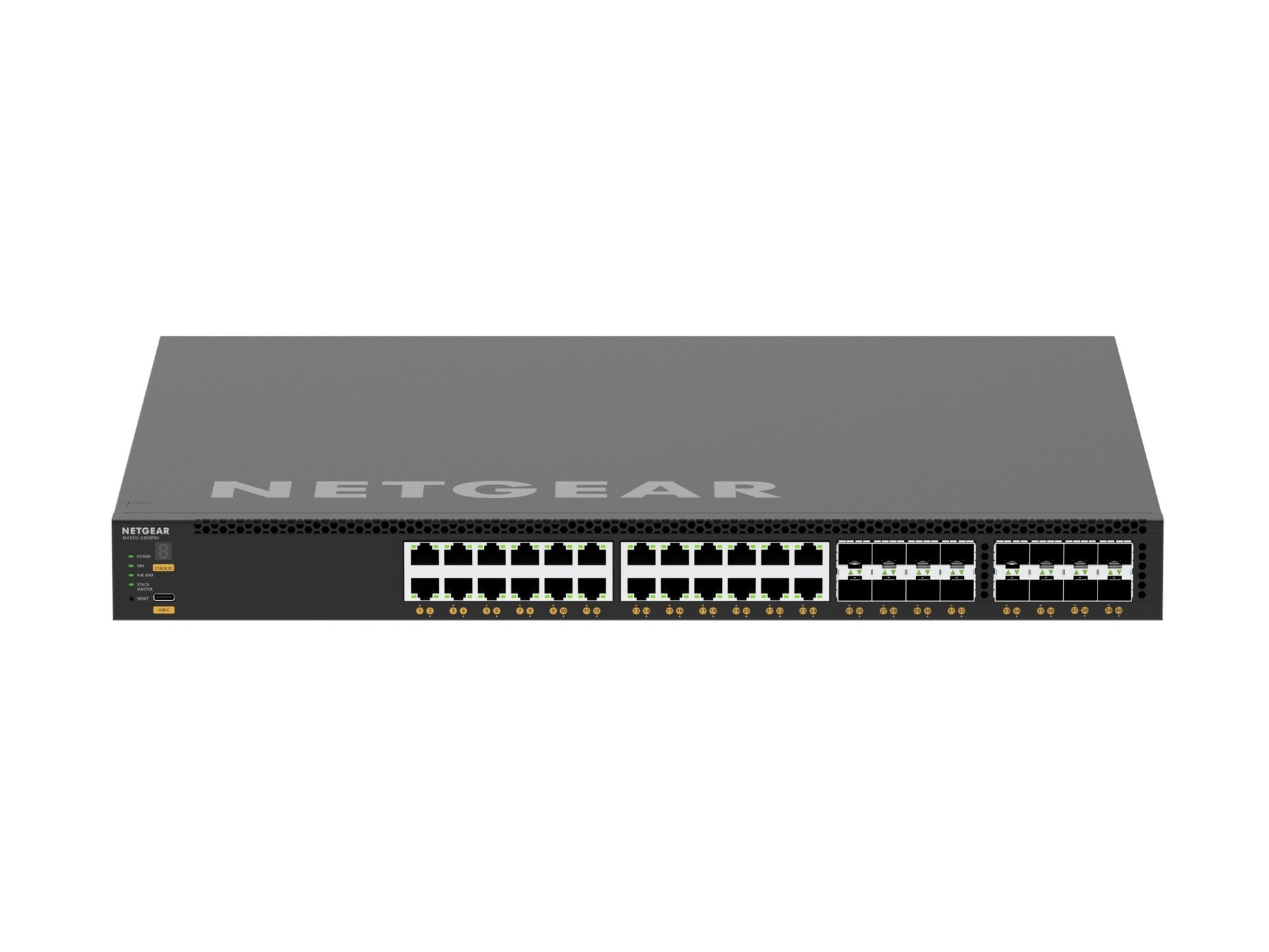

Netgear XSM4340V Networking
Netgear XSM4340V Networking
Regular price
£6,833.35 GBP
Regular price
Sale price
£6,833.35 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The Netgear XSM4340V is a dependable addition to any modern network installation.

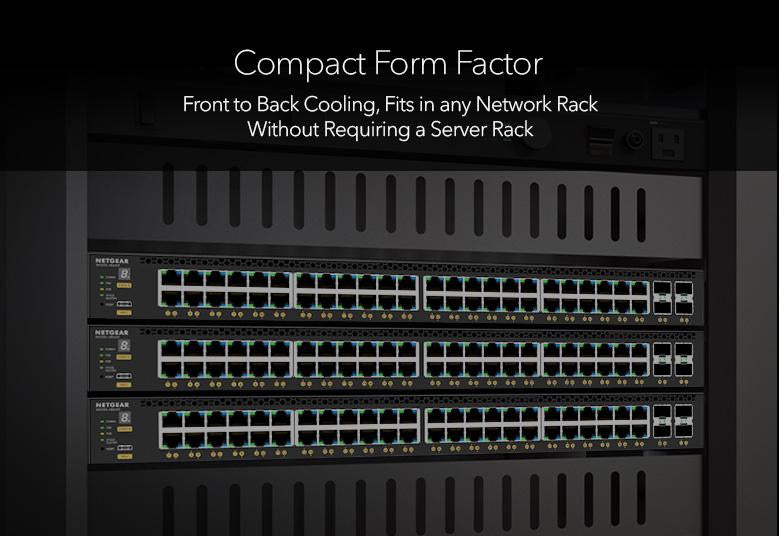

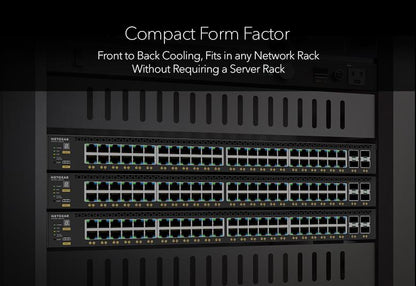

POWER AND THROUGHPUTEdge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |

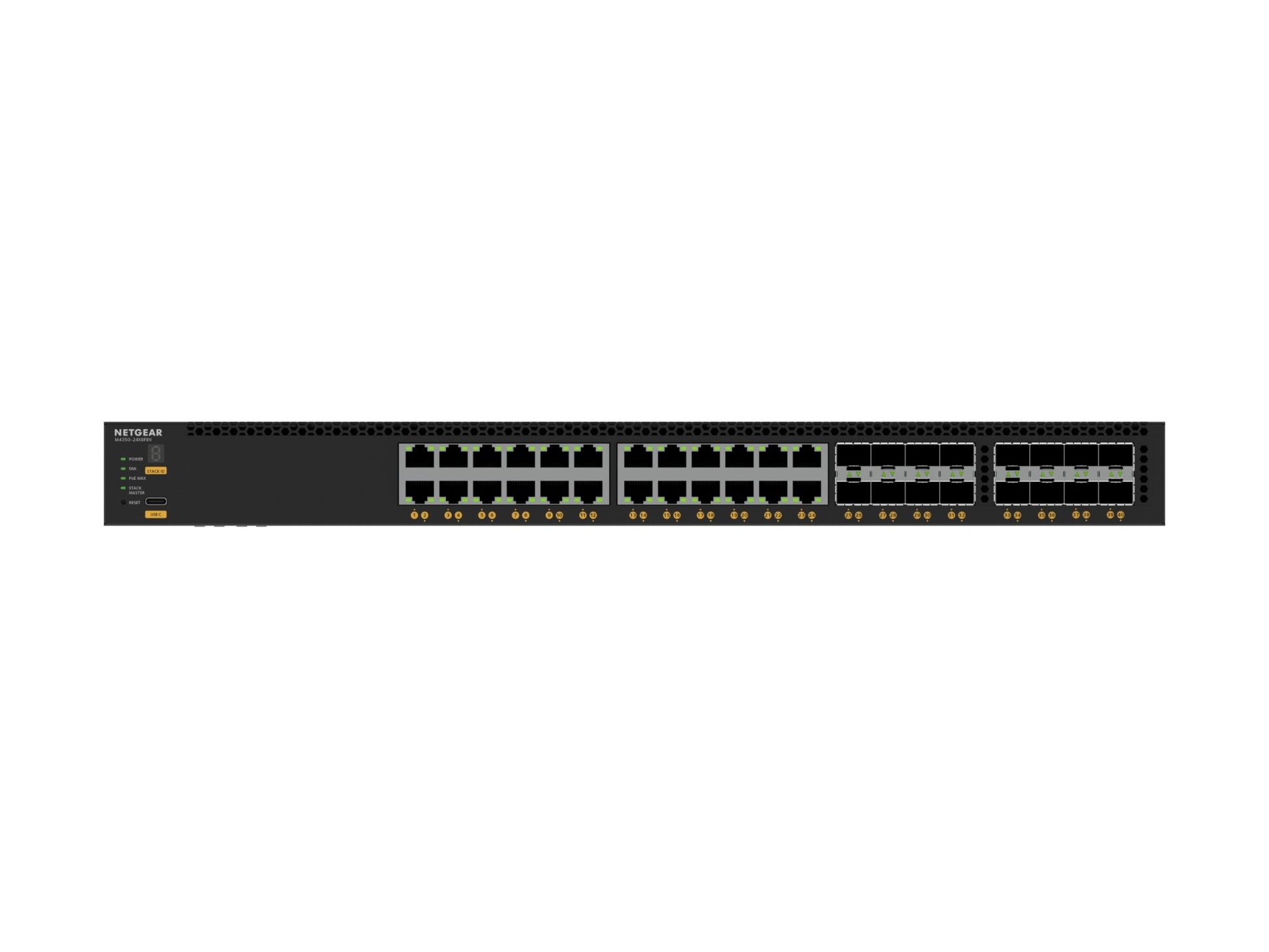

| Ports & interfaces | |
| SFP+ module slots quantity | 8 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP28 ports quantity | 8 |
| 10G Ethernet (copper) ports quantity | 24 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Number of VLANs | 4093 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Policy-based routing | Yes |
| 6to4 tunnel | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Voice VLAN |
| IPv6 routes | 256 |
| IPv4 routes | 512 |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IGMP proxy | Yes |
| Data transmission | |
| Jumbo frames | 12000 |
| Throughput | 773.76 Mpps |
| Latency (10 Gbps) | 2.7 µs |
| Packet buffer memory | 64 MB |
| MAC address table | 16000 entries |
| Switching capacity | 1040 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication |
| Static port security | Yes |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Root protection | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted random early detection (WRED) |
| Password protection | Yes |
| DoS attack prevention | Yes |
| Authentication type | RADIUS, TACACS+ |
| Access Control List (ACL) ingress | 511 |
| Access Control List (ACL) egress | 1023 |
| DHCP features | DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping |
| Protocols | |
| Management protocols | SNMP V1, V2, V3 |
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |

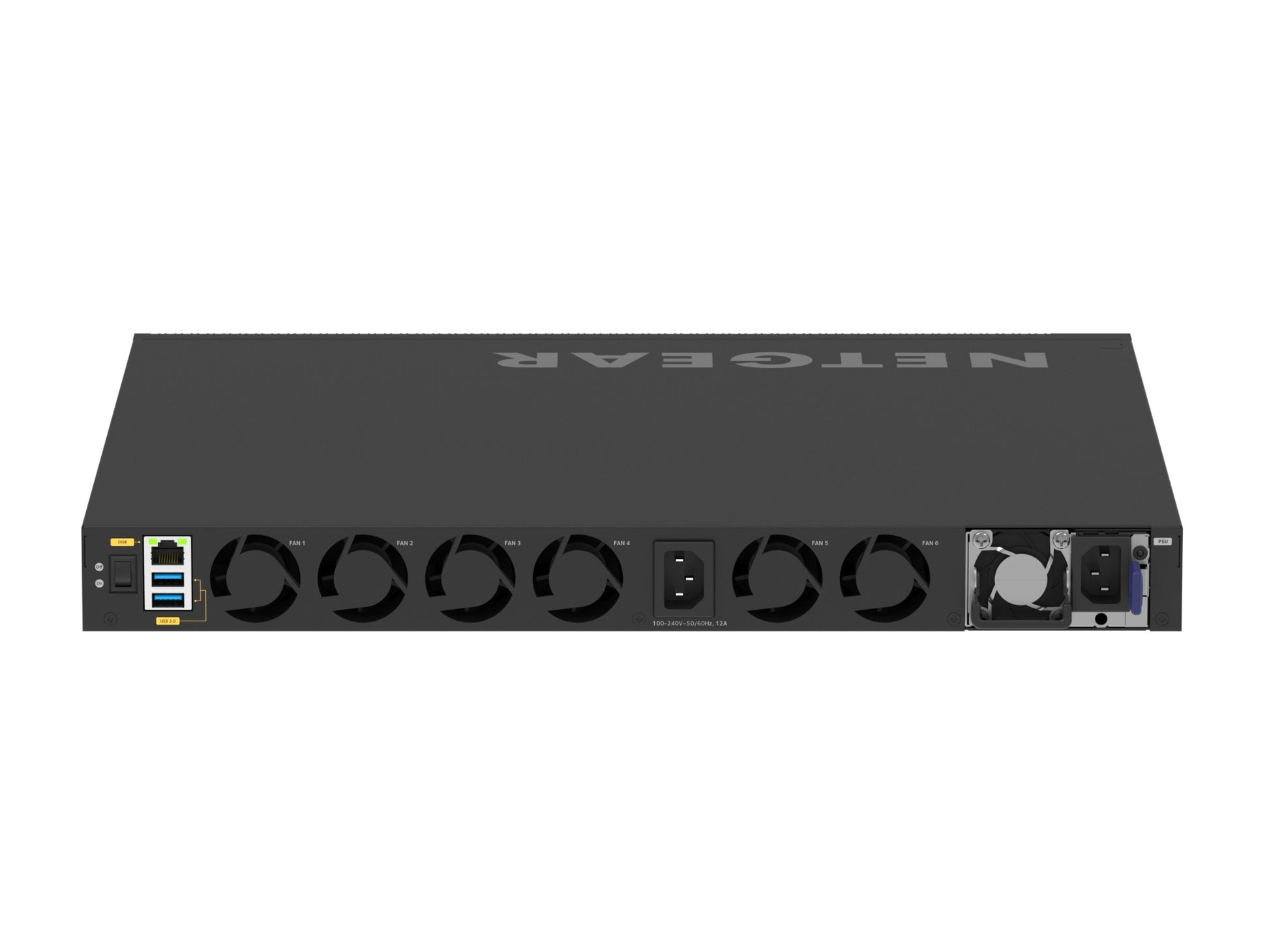

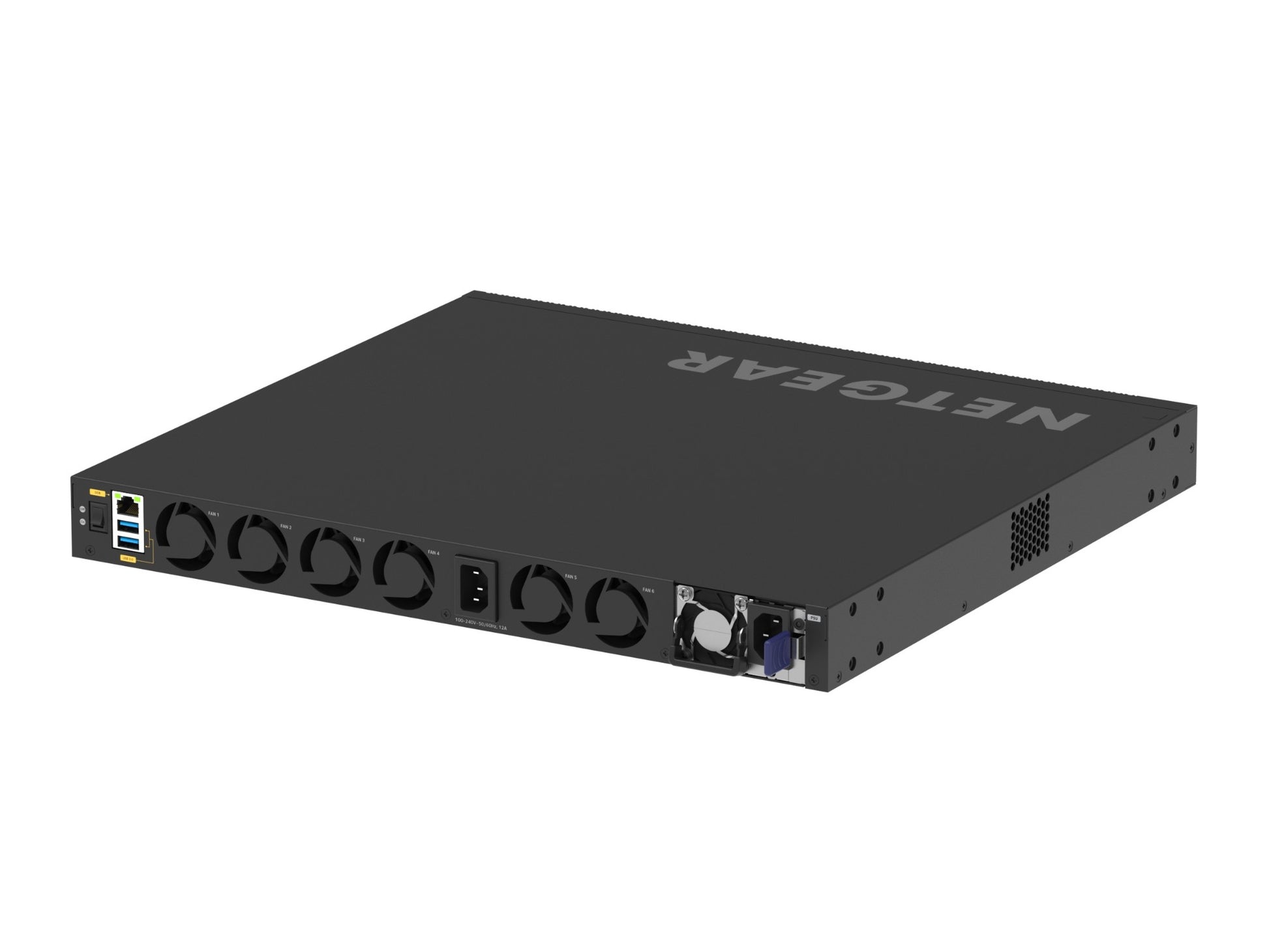

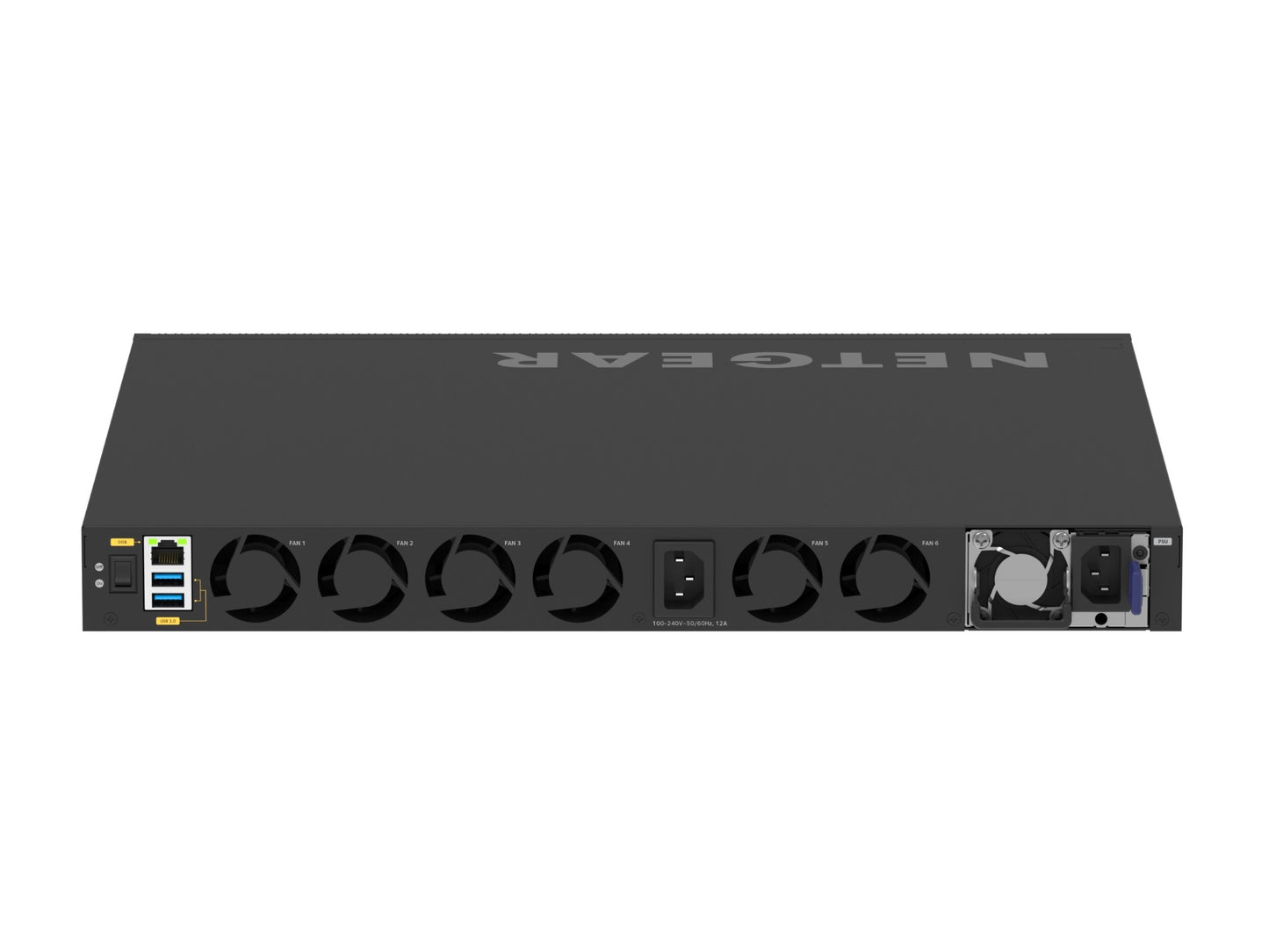

| Airflow direction | Front-to-back airflow |
| Performance | |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 512 MB |
| sFlow | Yes |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A57 |
| Power | |
| Power consumption (max) | 464 W |
| Power supply included | Yes |
| Power consumption (typical) | 151.8 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 1770 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 24 |
| Other features | |
| Power supply | 750 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 400 mm |
| Height | 43.2 mm |
| Weight | 7.24 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB Type-C |
| Included power plug types | EU, UK, NA |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Compliance certificates | BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD) |
