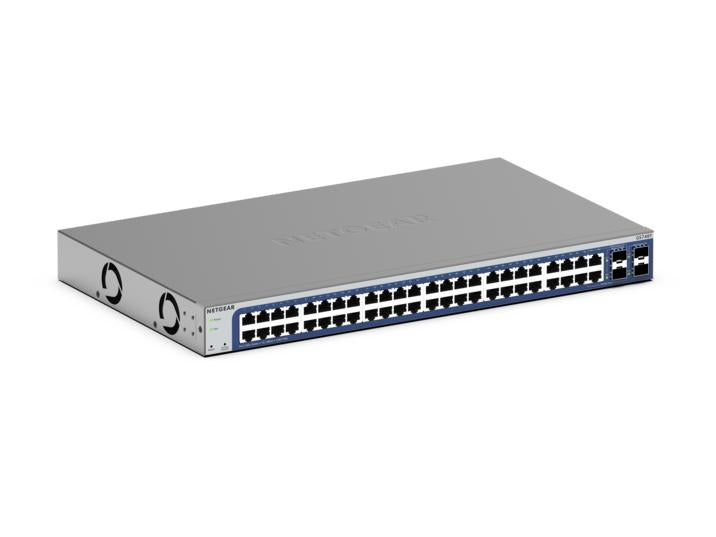

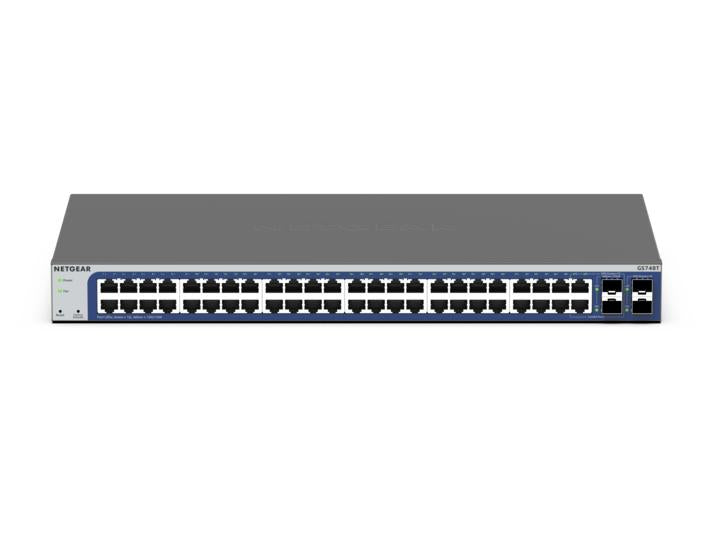

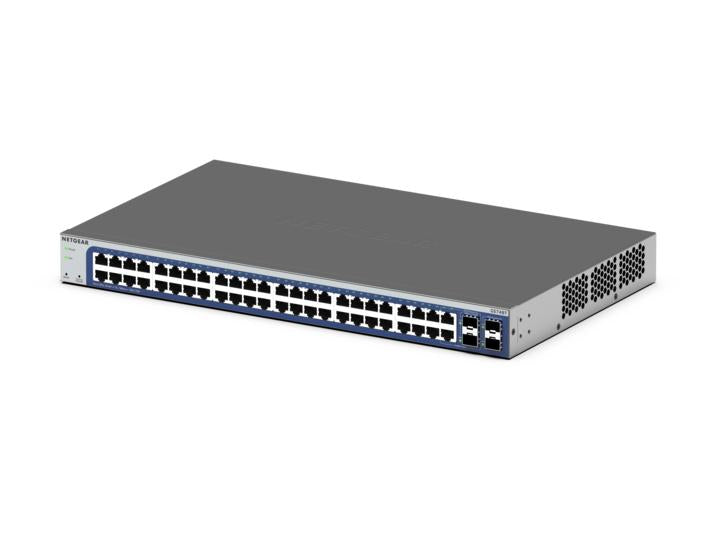

Netgear GS748T Switch

The Netgear GS748T keeps your wired network organised.

NETGEAR GS748T Smart Cloud Switch offers powerful L2 and L2+/Layer 3 Lite features and enhanced performance and usability. Manage remotely with Insight Cloud Management


Total Network Solution helps you get the most out of your network

Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

NETGEAR INSIGHT REMOTE MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.

Specifications

Management features
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L2/L3/L4
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T
Network
Networking standards	IEEE 802.1D, IEEE 802.1as, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	256
IP routing	Yes
Flow control support	Yes
Broadcast storm control	Yes
IGMP snooping	Yes
Data transmission
Number of static routes	32
MAC address table	16000 entries
Switching capacity	100 Gbit/s
Store-and-forward	Yes
Number of queues	8
Jumbo frames support	Yes
Number of multicast groups filtered	512
Security
SSH/SSL support	Yes
Security algorithms	802.1x RADIUS, HTTPS, SSL/TLS
MAC address filtering	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client
Protocols
Management protocols	SNMP v1/v2
Supported network protocols	IP
Design
Product colour	Black, Grey
LED indicators	Activity, Link, Power
Rack mounting	Yes
Certification	CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC
Performance
Noise level	37.2 dB
Mean time between failures (MTBF)	390728 h
Firmware upgradeable	Yes
Power
AC input voltage	100 - 240 V
Power consumption (typical)	41.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Weight & dimensions
Width	440 mm
Depth	257 mm
Height	43 mm
Weight	3.46 kg
Packaging content
Manual	Yes
Cables included	AC
