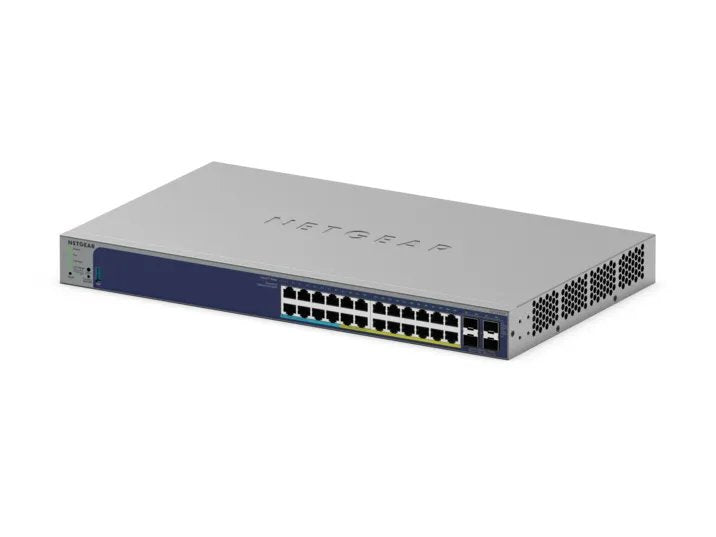

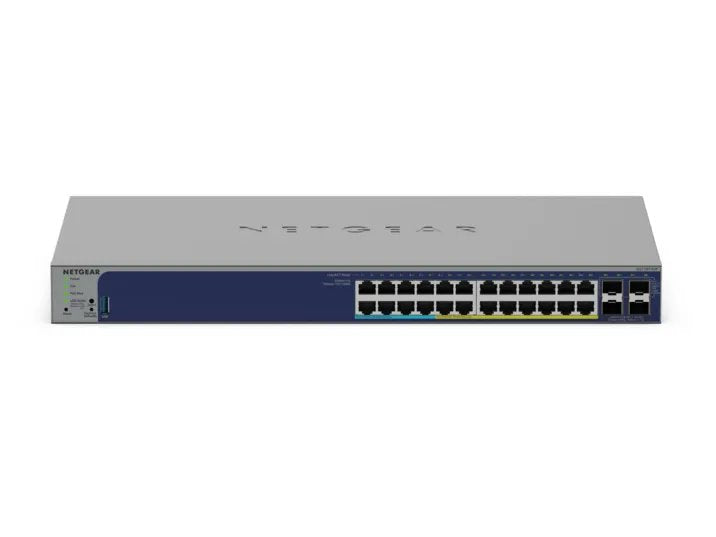

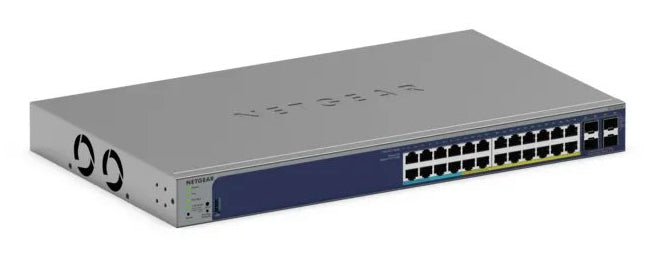

Netgear GS728TXUP Switch PoE

The Netgear GS728TXUP keeps your wired network organised with PoE power for APs and cameras.

Total Network Solution helps you get the most out of your network
Easily deploy, manage, and monitor NETGEAR Insight managed routers, switches, and access points all from a single pane-of-glass.

NETGEAR INSIGHT REMOTE MANAGEMENT
Manage locally or remotely through the Cloud for simple yet powerful control of your network anytime, anywhere. A 1-year subscription is included.

Specifications

Management features
Switch type	Managed
Cloud-managed	Yes
Ports & interfaces
SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Number of VLANs	256
10G support	Yes
Data transmission
Jumbo frames	10000
Packet buffer memory	1.5 MB
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	95.24 Mpps
Design
Form factor	1U
Product colour	Grey
Rack mounting	Yes
Number of fans	2 fan(s)
Performance
Noise level	30.5 dB
Mean time between failures (MTBF)	286168 h
Power
Power source	AC/PoE
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	420 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity	4
Weight & dimensions
Width	440 mm
Depth	316 mm
Height	43 mm
Weight	3.86 kg

Downloads

• Datasheet (PDF)
