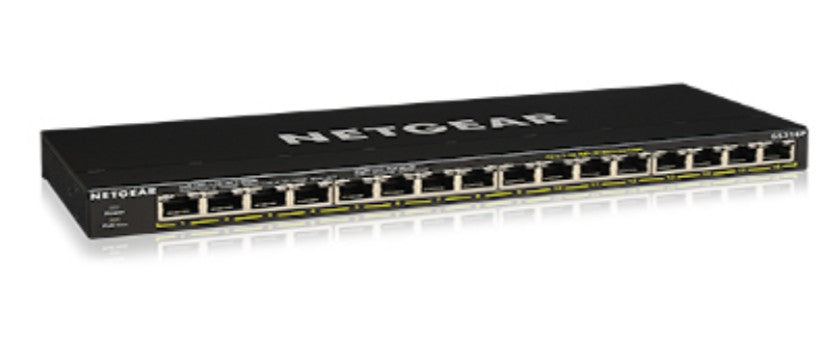

Netgear GS316P Switch PoE

The Netgear GS316P keeps your wired network organised with PoE power for APs and cameras.

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.

NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.

Specifications

Performance
Packet buffer memory	1 MB
Mean time between failures (MTBF)	2362192 h
Harmonized System (HS) code	85176990
Power
Power connector	DC-in jack
Power consumption (max)	127.9 W
Input current	2.4 A
DC input voltage	54 V
Technical details
Product colour	Black
Housing material	Metal
Rack mounting	No
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Packet forwarding rate (1 Gbps)	1448000 pps
Jumbo frames	9216
Latency (1 Gbps)	3.7 µs
MAC address table	4000 entries
Switching capacity	32 Gbit/s
Jumbo frames support	Yes
Design
Wall mountable	Yes
LED indicators	Yes
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Heat dissipation	437.42 BTU/h
Weight & dimensions
Width	286 mm
Depth	102 mm
Height	27 mm
Weight	880 g
