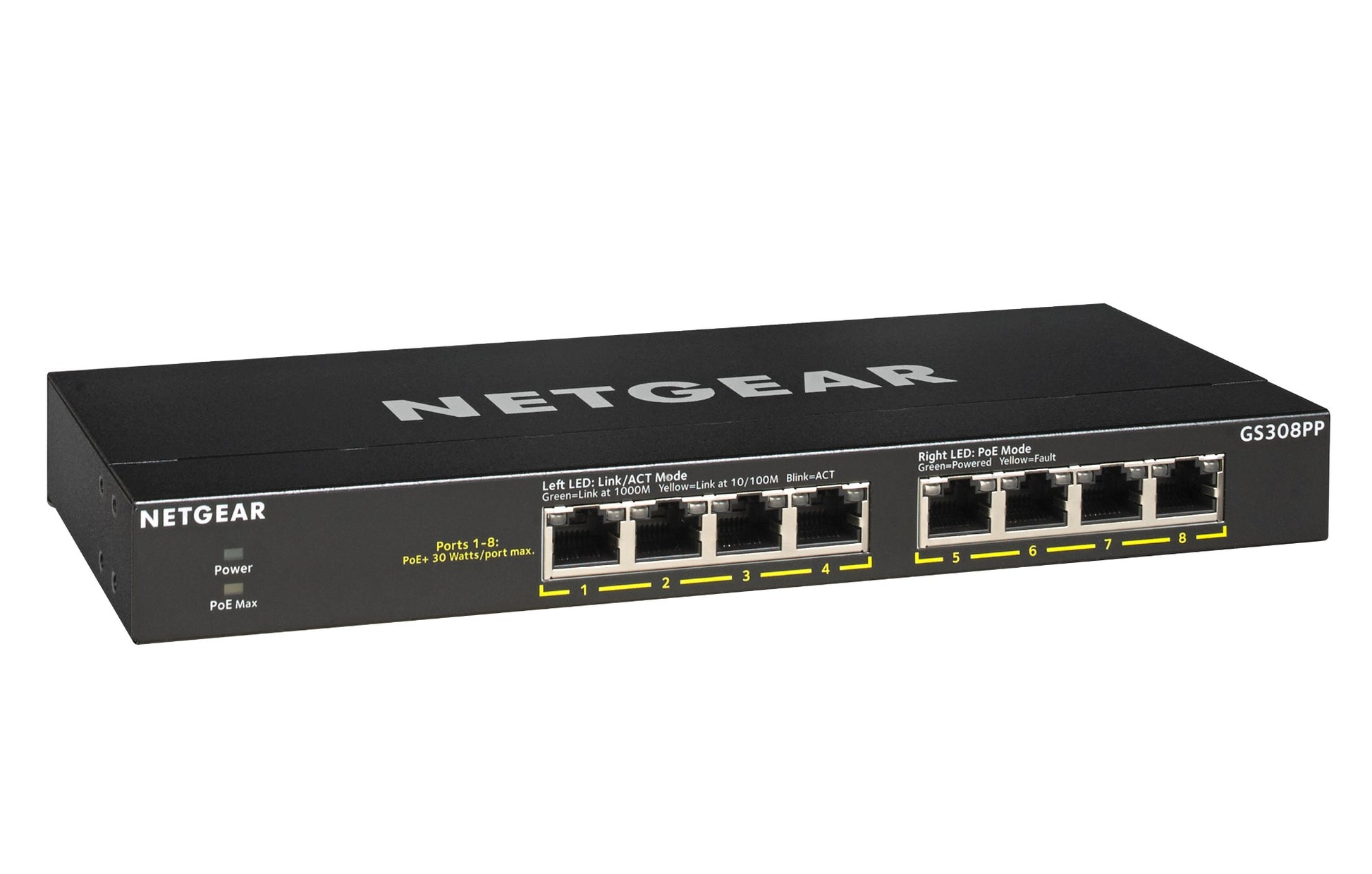

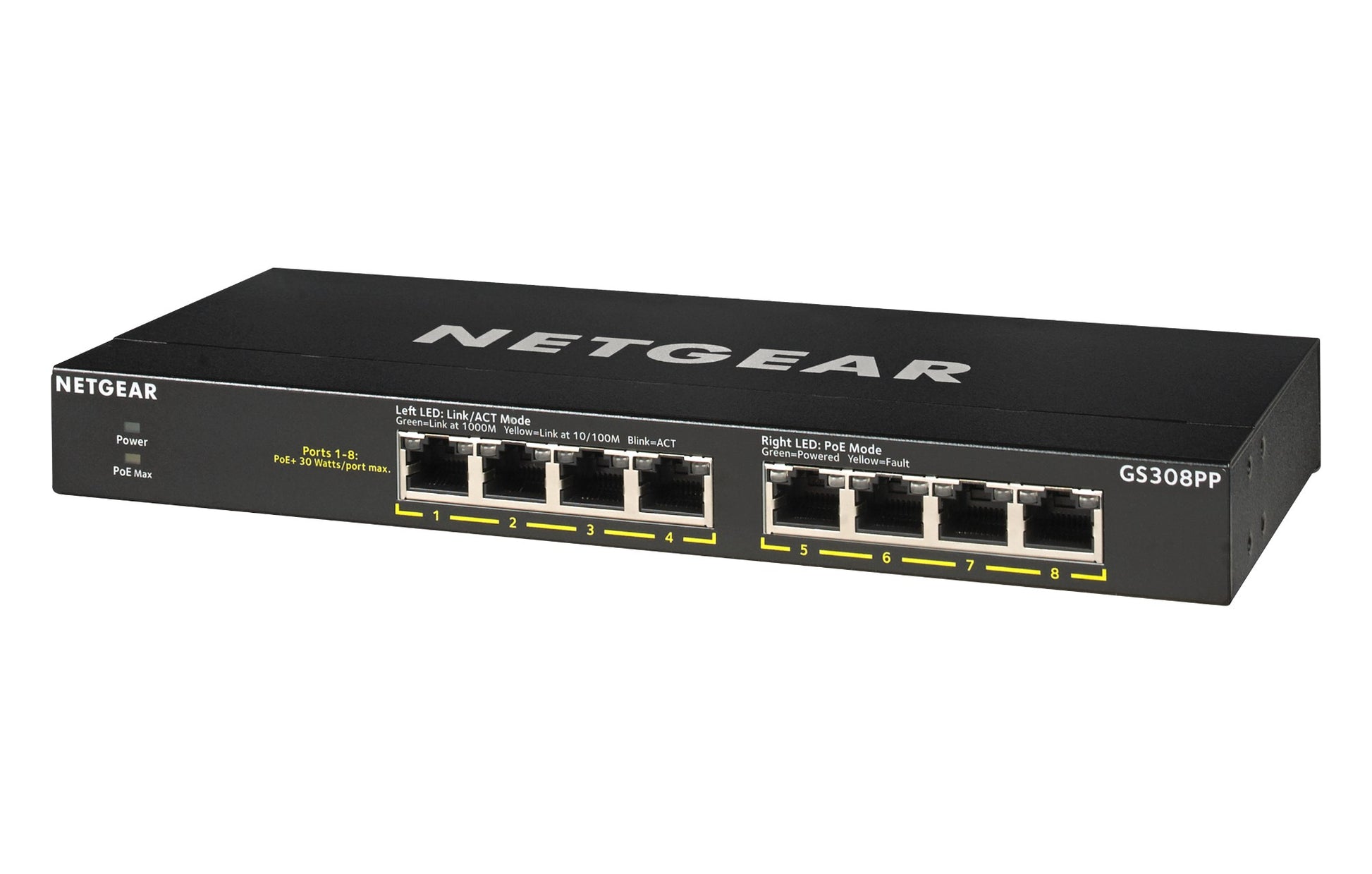

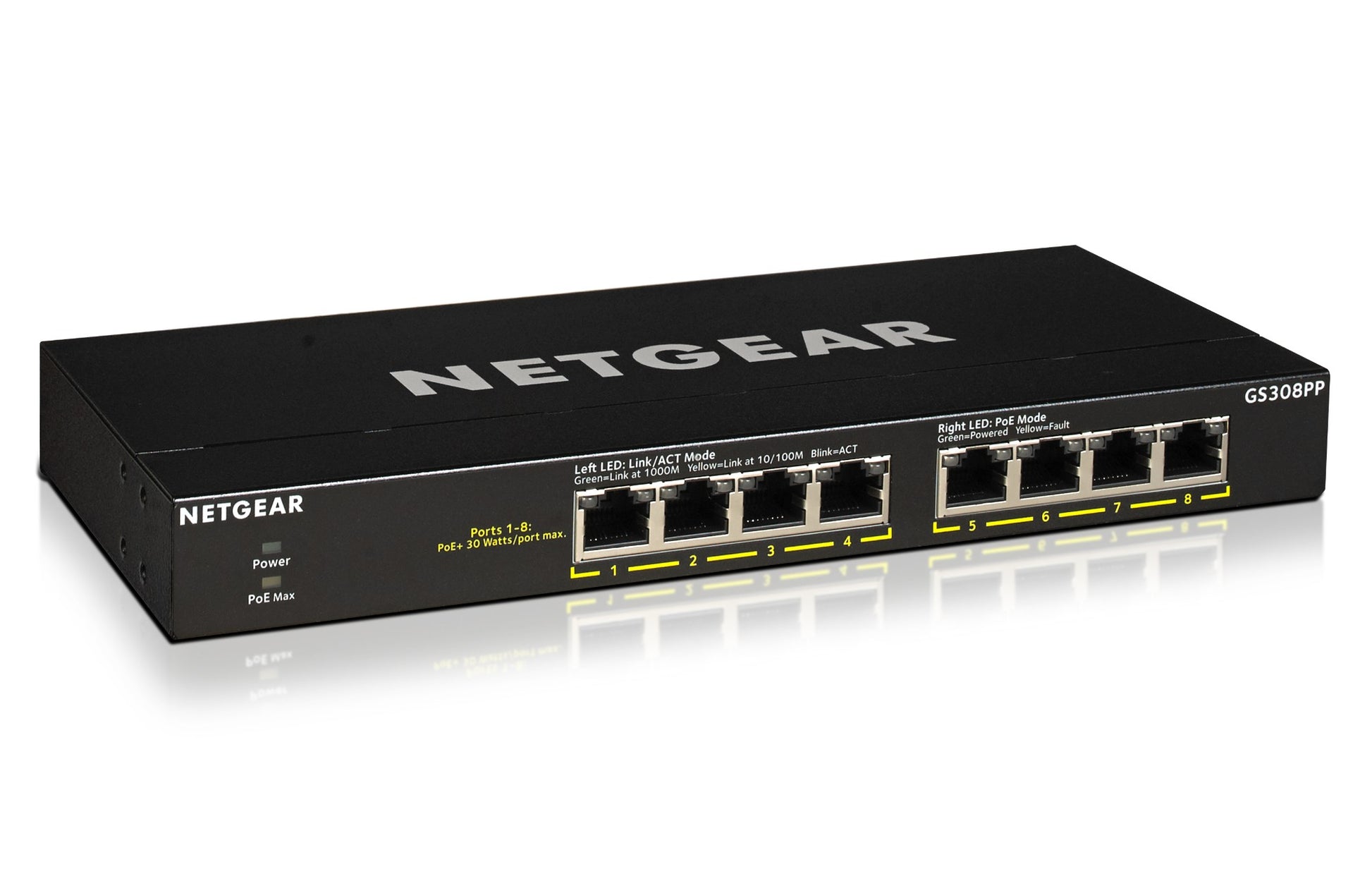

Netgear GS308PP Switch PoE

The Netgear GS308PP keeps your wired network organised with PoE power for APs and cameras.

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.

NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level

Specifications

Performance
Packet buffer memory	0.192 MB
Auto-negotiation	Yes
Mean time between failures (MTBF)	2752476 h
Harmonized System (HS) code	85176990
Power

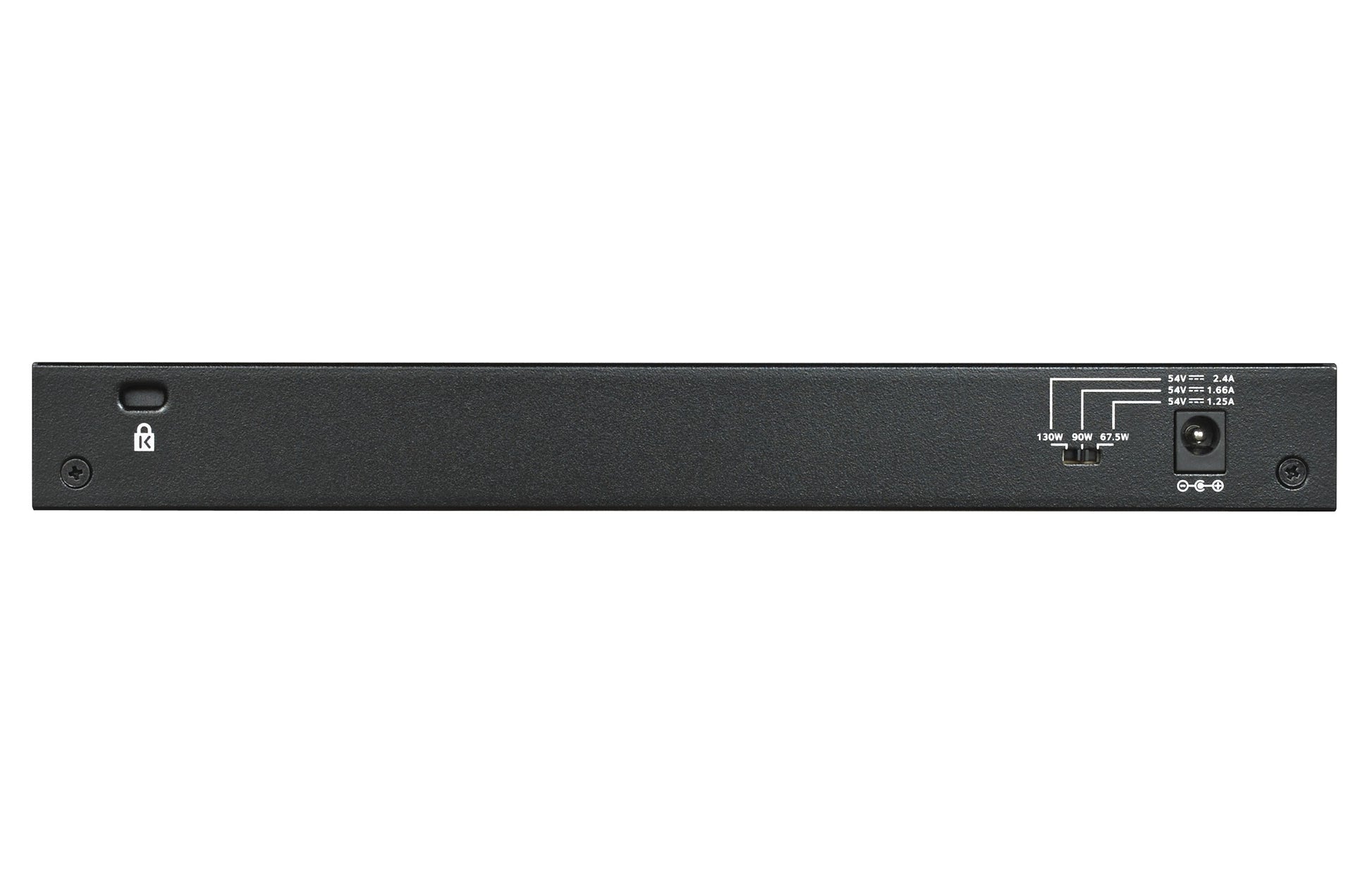

Power connector	DC-in jack
Power consumption (max)	87.9 W
Input current	1.66 A
DC input voltage	54 V
Technical details
Product colour	Black
Housing material	Metal
Rack mounting	Yes
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Auto-sensing	Yes
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Packet forwarding rate (1 Gbps)	1448000 pps
Jumbo frames	9216
Latency (1 Gbps)	3 µs
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Jumbo frames support	Yes
Certificates
Certification	CE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, BSMI, KC
Design
Wall mountable	Yes

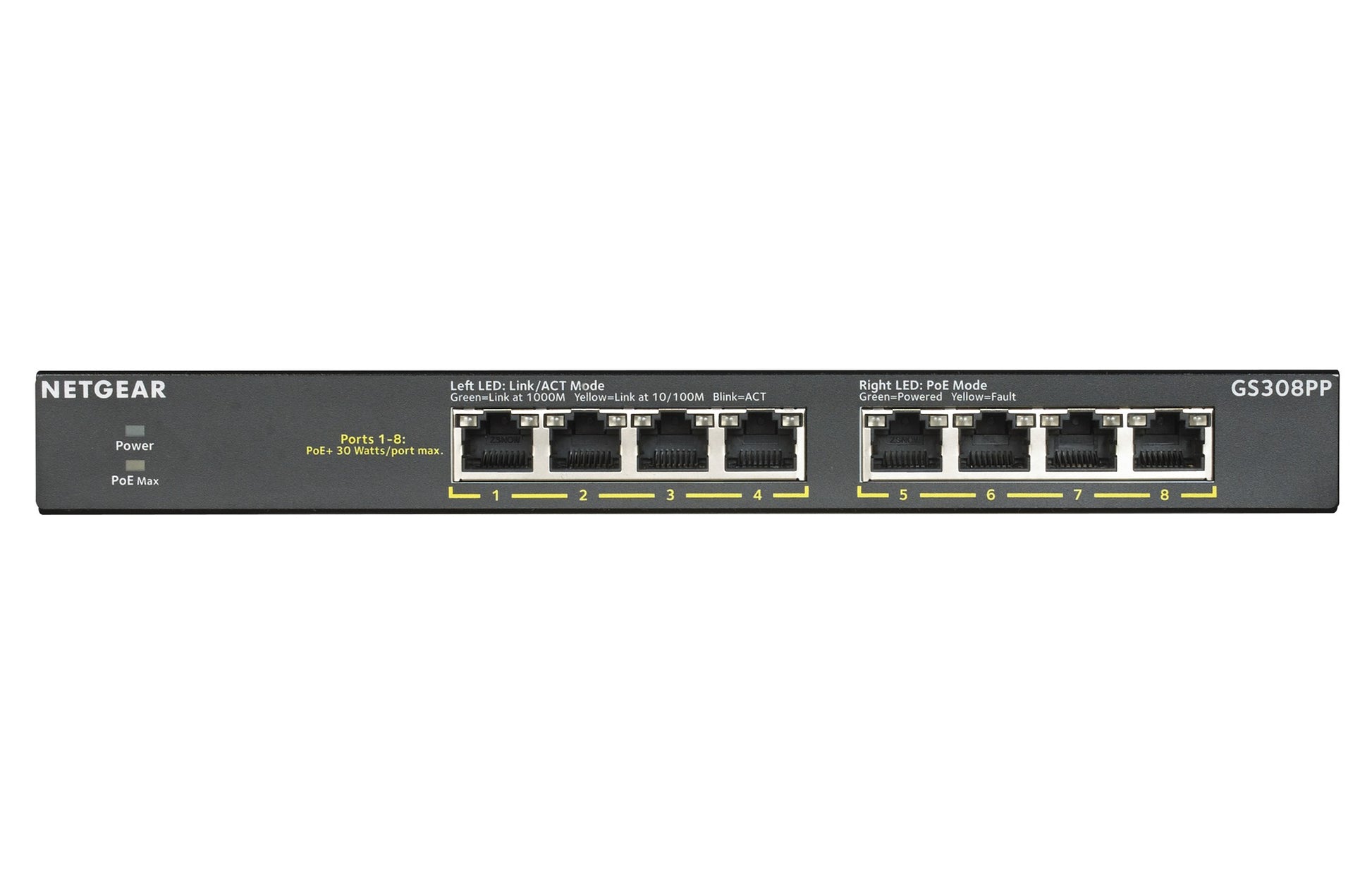

LED indicators	Activity, Link, PoE, Power, Speed
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	130 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Heat dissipation	300.6 BTU/h
Weight & dimensions
Width	236 mm
Depth	102 mm
Height	27 mm
Weight	600 g
