Netgear GS305PP Networking

The Netgear GS305PP is a dependable addition to any modern network installation.

Expanding Wired Connectivity for SOHO Networks

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

Specifications

Management features
Reset button	Yes
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5
Power connector	DC-in jack
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable length detection	Yes
Auto-sensing	Yes
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Jumbo frames	9216
Latency (1 Gbps)	2.4 µs
Packet buffer memory	128 MB
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Jumbo frames support	Yes
Forwarding rate	1.448 Mpps
Design
Wall mountable	Yes
Product colour	Black

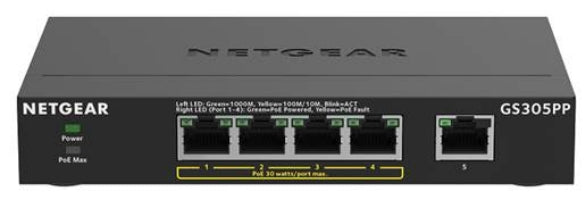

LED indicators	Activity, Link, PoE, Power
Housing material	Metal
Rack mounting	No
Certification	CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, CB, CE VD, CCC
Performance
Mean time between failures (MTBF)	6710127 h
Power
Power consumption (max)	88.89 W
Power consumption (typical)	2.89 W
Input current	1.66 A
DC input voltage	54 V
Power source	DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	83 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	304 BTU/h
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	29 mm
Weight	410 g
Packaging content
Manual	Yes
Packaging data
Package width	269 mm
Package depth	73 mm
Package height	215 mm
Package weight	1.3 kg
Technical details
Shipping (inner) case width	45.1 cm
Shipping (inner) case net weight	15.1 kg
Shipping (inner) case length	25.5 cm
Shipping (inner) case height	37.5 cm
Products per shipping (inner) case	10 pc(s)
Logistics data
Master (outer) case width	237 mm
Master (outer) case length	469 mm
Master (outer) case height	306 mm
Master (outer) case gross weight	8.52 kg
Products per master (outer) case	6 pc(s)
