Netgear

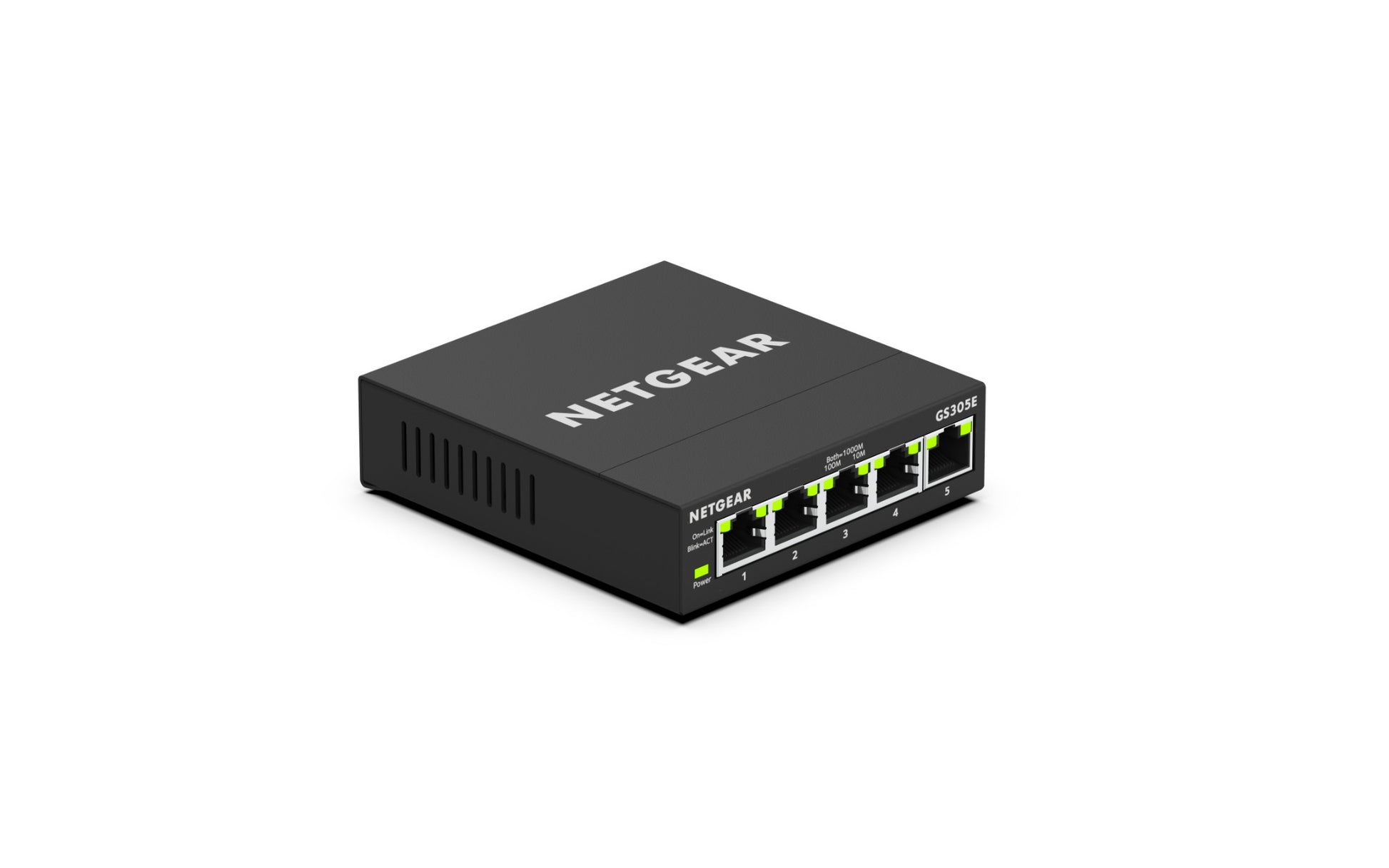

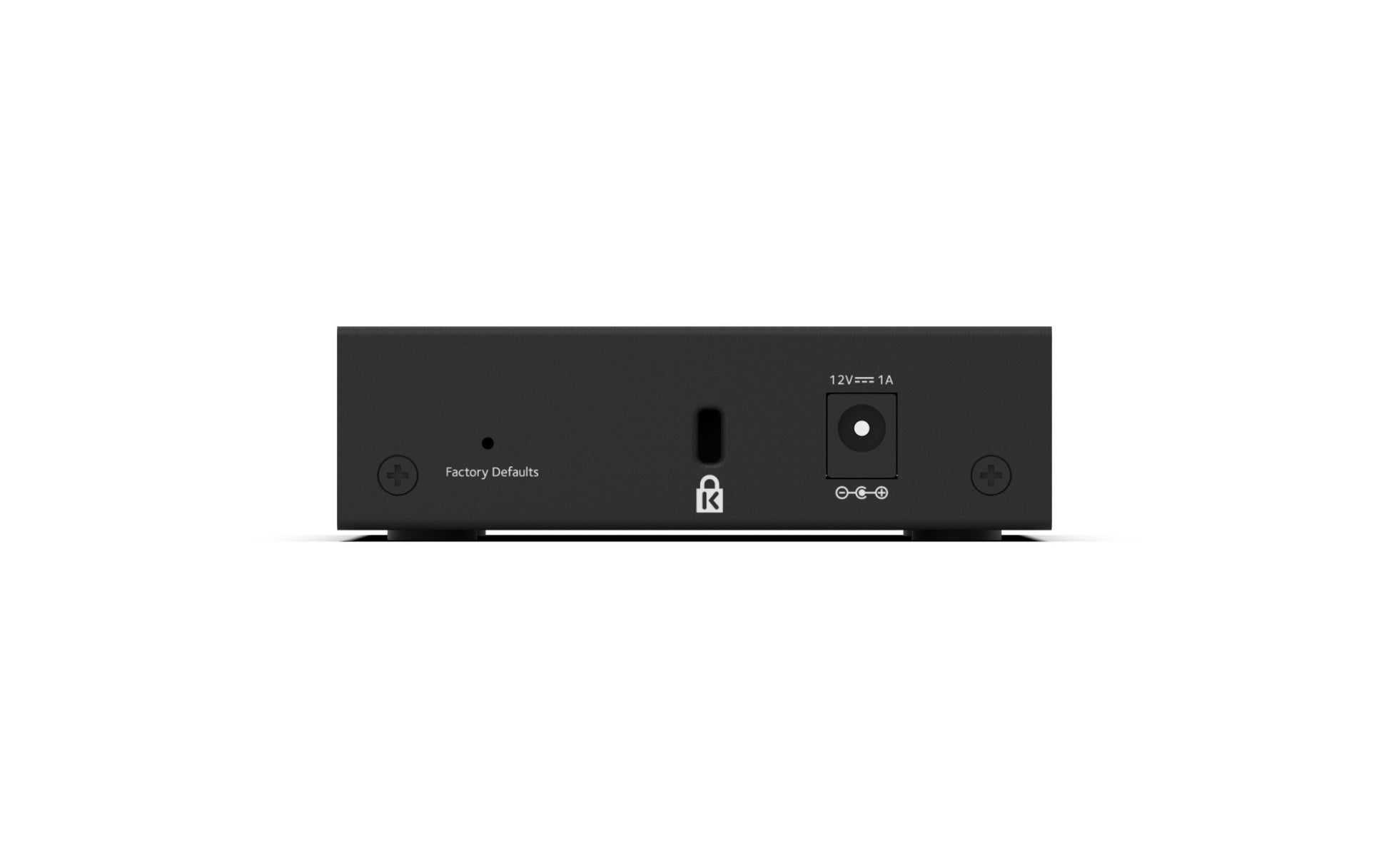

Netgear GS305E Switch
Netgear GS305E Switch
Regular price
£22.72 GBP
Regular price
Sale price
£22.72 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The Netgear GS305E keeps your wired network organised.
NETGEAR ® Smart Managed Plus Switches meet this growing need by providing fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimize the performance of business networks. Smart Managed Plus Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Virtual Cable Test (VCT) | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 64 |
| Link aggregation | No |
| Flow control support | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 8000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Security | |
| Loop protection | Yes |
| Password protection | Yes |
| DoS attack prevention | Yes |
| DHCP features | DHCP client |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, Power, Speed, System |
| Rack mounting | No |
| Performance | |
| Buffer size | 128 KB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 2531294 h |
| Harmonized System (HS) code | 85176990 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 94 mm |
| Depth | 100 mm |
| Height | 27 mm |
| Weight | 250 g |
| Packaging data | |
| Package type | Box |
| Package width | 153 mm |
| Package depth | 237 mm |
| Package height | 61 mm |
| Package weight | 600 g |
| Technical details | |
| Shipping (inner) case width | 49.7 cm |
| Shipping (inner) case net weight | 10.1 kg |
| Shipping (inner) case length | 34.4 cm |
| Shipping (inner) case height | 28 cm |
| Products per shipping (inner) case | 15 pc(s) |
| Logistics data | |
| Master (outer) case width | 344 mm |
| Master (outer) case length | 497 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 10.2 kg |
| Products per master (outer) case | 15 pc(s) |
