Netgear

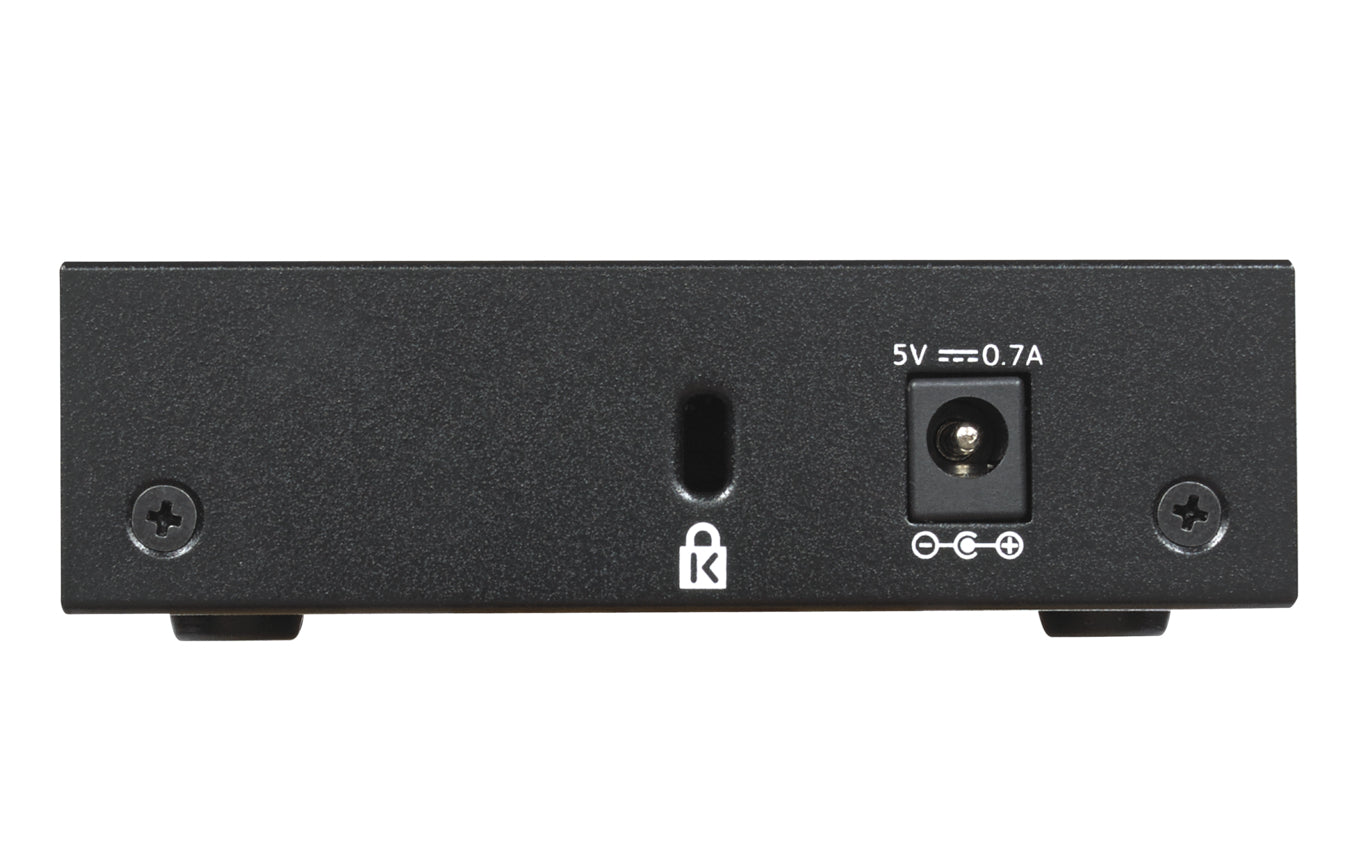

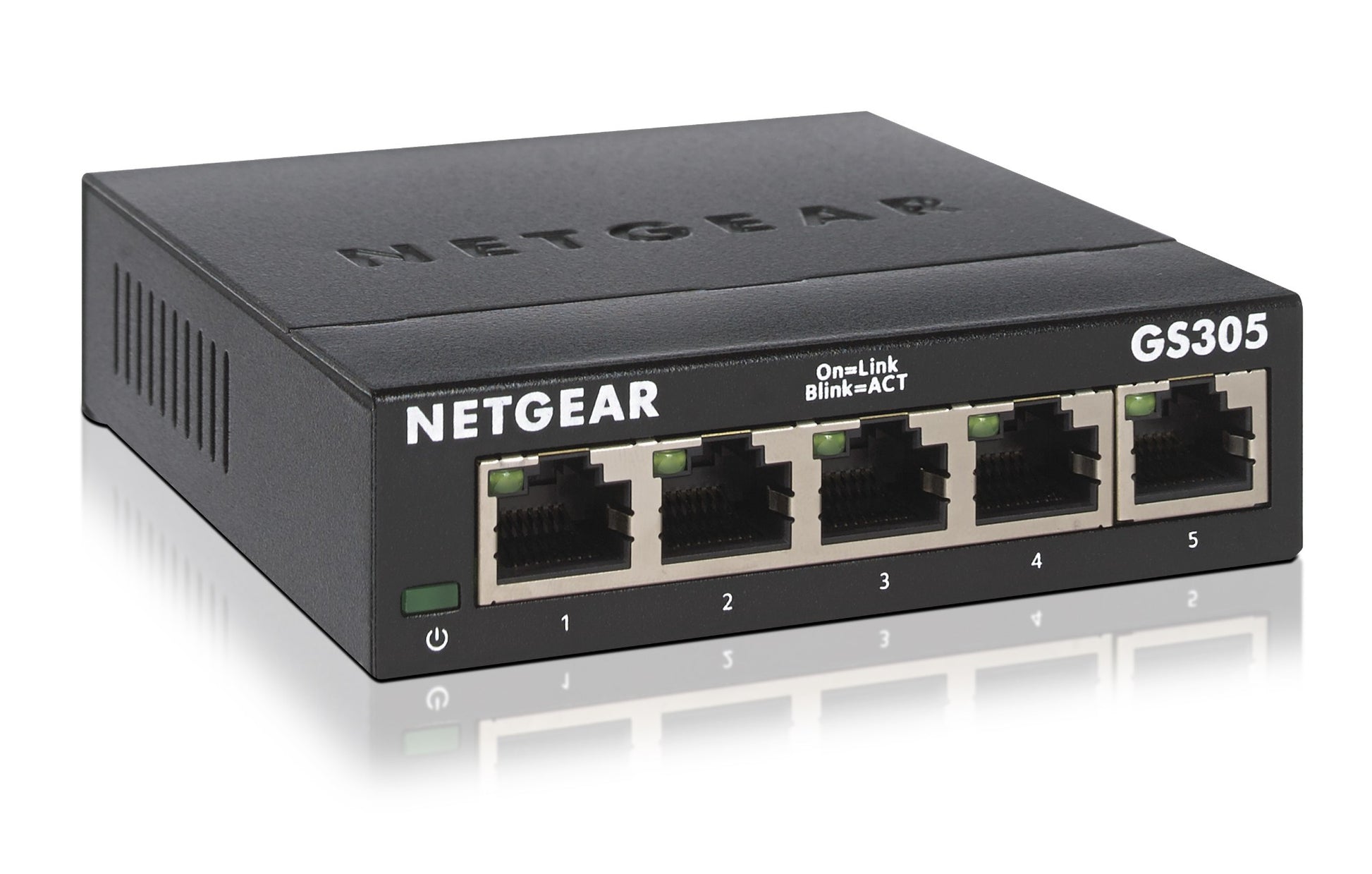

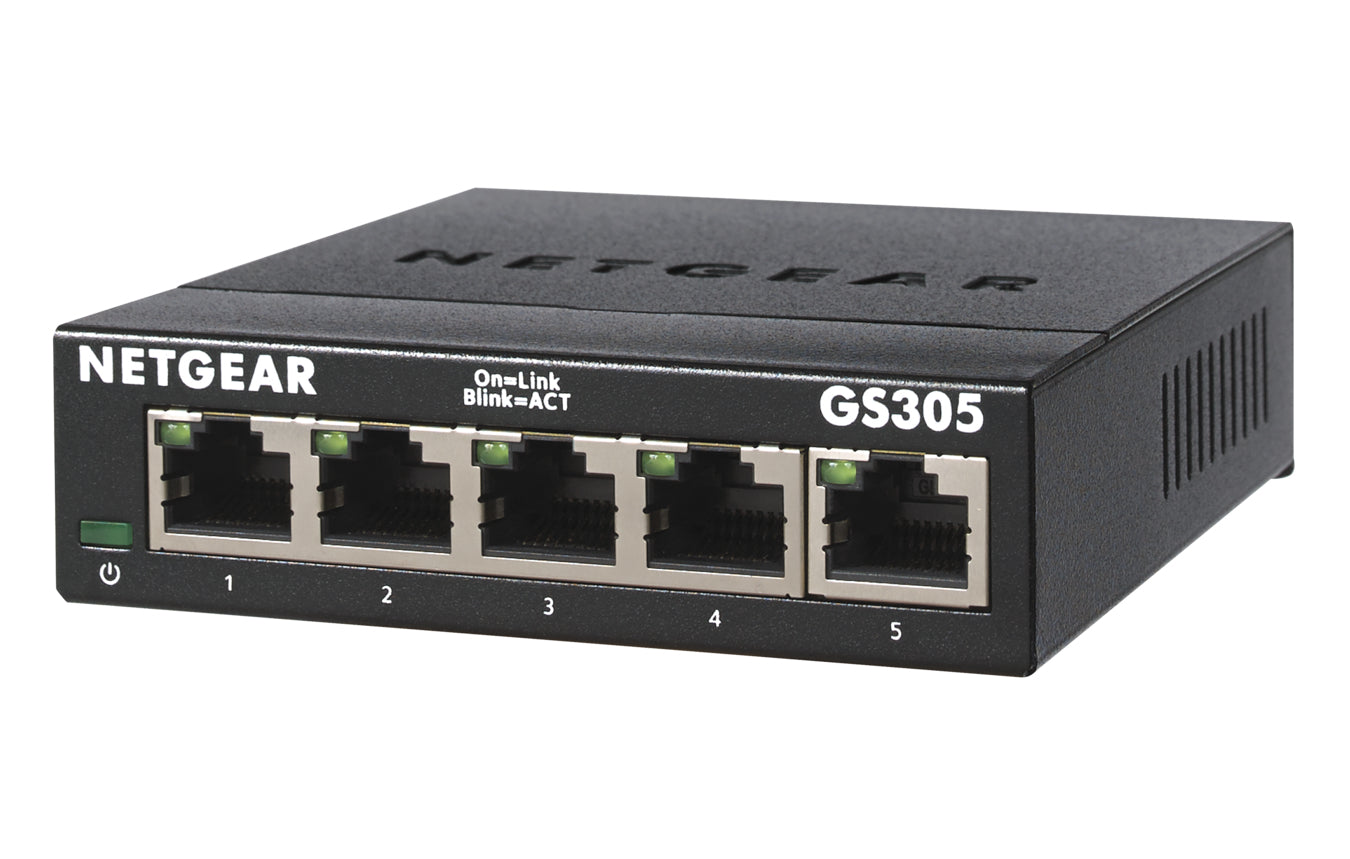

Netgear GS305 Networking
Netgear GS305 Networking
Couldn't load pickup availability
The Netgear GS305 is a dependable addition to any modern network installation.
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. With these unmanaged plug-andplay switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Cable length detection | Yes |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 9216 |
| Latency (1 Gbps) | 2.6 µs |
| Packet buffer memory | 128 MB |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 1.448 Mpps |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Housing material | Metal |
| Rack mounting | No |
| Certification | CE Mark FCC Part 15 Class B IC Class B RCM VCCI |
| Performance | |
| Mean time between failures (MTBF) | 3831422 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 2.15 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 7.35 BTU/h |
| Weight & dimensions | |
| Width | 101 mm |
| Depth | 94 mm |
| Height | 29 mm |
| Weight | 250 g |
| Technical details | |
| Shipping (inner) case width | 49.9 cm |
| Shipping (inner) case net weight | 10.7 kg |
| Shipping (inner) case length | 31.8 cm |
| Shipping (inner) case height | 35.7 cm |
| Products per shipping (inner) case | 20 pc(s) |
