Netgear

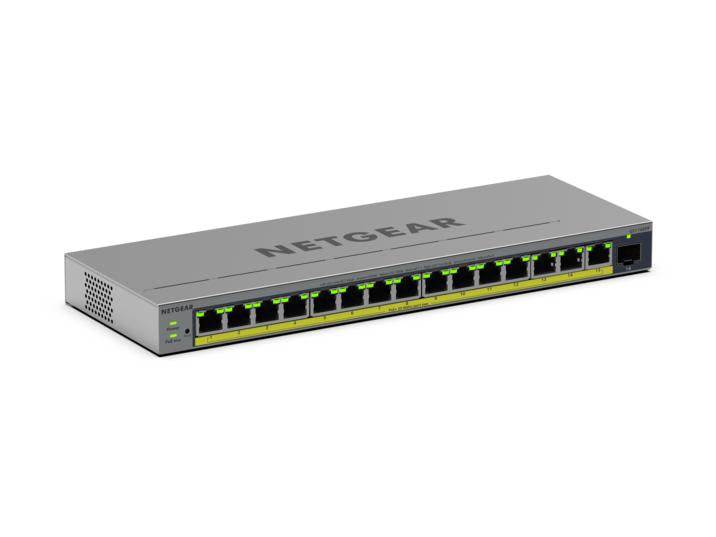

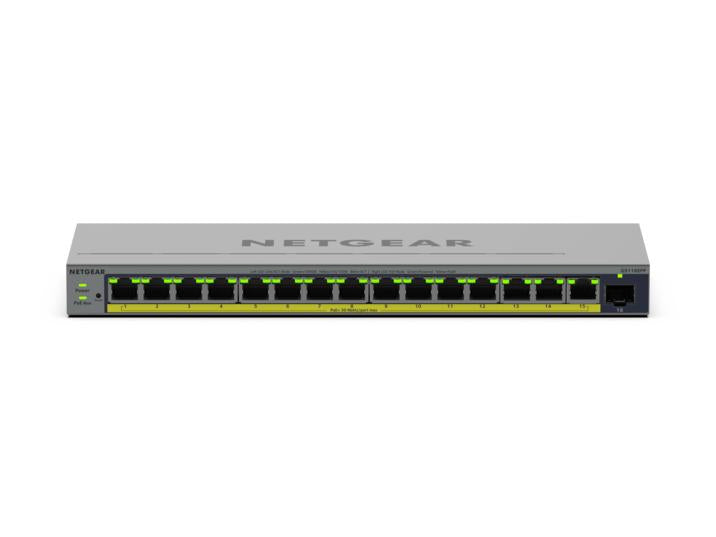

Netgear GS116EPP Networking
Netgear GS116EPP Networking
Regular price
£263.38 GBP
Regular price
Sale price
£263.38 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The Netgear GS116EPP is a dependable addition to any modern network installation.
EASY POE CONTROLSManage PoE prioritization, PoE power limit per port, PoE scheduling and more for advanced control over all PoE-powered devices
GIGABIT ETHERNET AND FIBER
15 ports provide Gigabit Ethernet connectivity to your devices and 1 SFP fiber port for long distance connections
VLANS
Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources
FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Place your switch on your desktop or mount it to your wall with the hardware provided in the box. Silent operation makes this switch perfect for noise-sensitive environments
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| SFP module slots quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3az |
| VLAN support | Yes |
| Rate limiting | Yes |
| Number of VLANs | 64 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Virtual LAN features | Port-based VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8000 entries |
| Switching capacity | 1 Gbit/s |
| Jumbo frames support | Yes |
| Number of multicast groups filtered | 128 |
| Security | |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Design | |
| Product colour | Grey |
| Housing material | Metal |
| Performance | |
| Mean time between failures (MTBF) | 5704358 h |
| Power | |
| Power consumption (max) | 250.6 W |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 15 |
| Total Power over Ethernet (PoE) budget | 231 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Bandwidth | 32 Gbit/s |
| Operational conditions | |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 286 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 830 g |
| Packaging content | |
| Quick start guide | Yes |
| Manual | Yes |
| Technical details | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), KC, VCCI |
