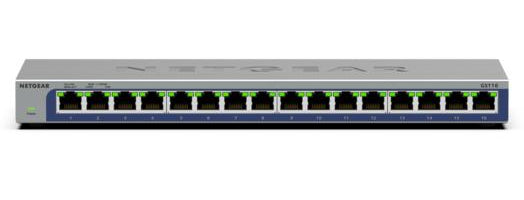

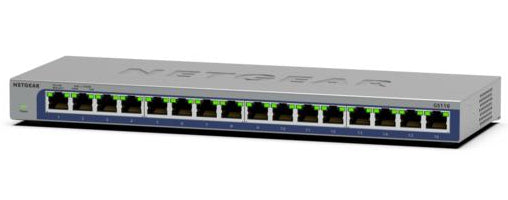

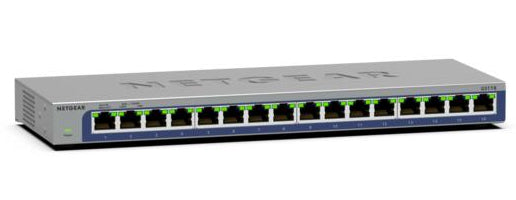

Netgear GS116 Networking

The Netgear GS116 is a dependable addition to any modern network installation.

RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true gigabit speed with no compromise
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box
METAL CASE
Durable and rugged case for long-lasting performance

Specifications

Management features
Switch type	Unmanaged
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	DC-in jack
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Network
Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN support	Yes
Rate limiting	Yes
Port mirroring	Yes
10G support	No
Virtual LAN features	Port-based VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames support	Yes
Design
Safety	CE/LVD, EN 60950, CB, CCC
Product colour	Black
Electromagnetic compatibility	CE mark (commercial), EN 55022 (CISPR 22) Class A, FCC Part 15 Class A, VCCI Class A, C-Tick
Rack mounting	No
Performance
Compatible operating systems	Microsoft Windows 7/Vista/XP
Harmonized System (HS) code	85176990
Power
Input voltage	12 V
Input current	1.5 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	286 mm
Depth	102 mm
Height	27 mm
Weight	890 g
Packaging content
Quick start guide	Yes
User guide	Yes
Manual	Yes

Downloads

• Datasheet (PDF)
