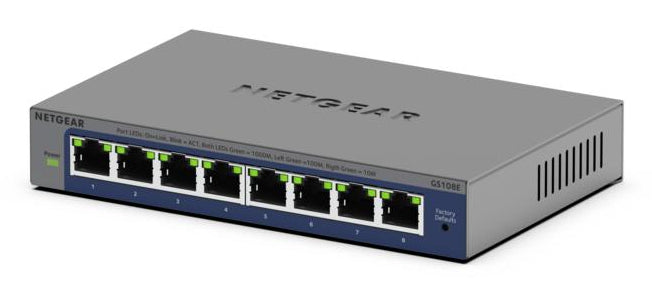

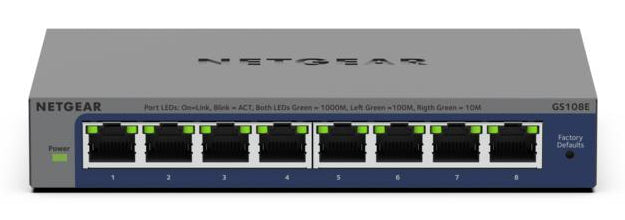

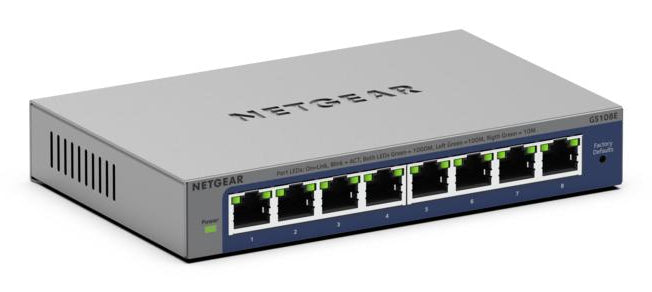

Netgear GS108Ev4 Networking

The Netgear GS108Ev4 is a dependable addition to any modern network installation.

8-Port Gigabit Plus Switch
On top of the plug-n-play Gigabit Ethernet connectivity, the NETGEAR GS108E switch offers essential networking features such as VLAN, QoS, IGMP Snooping, rate limiting, traffic monitoring and more. NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.

Specifications

Management features
Switch type	Unmanaged
Multicast support	Yes
Switch layer	L2/L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Cable types supported	Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
VLAN support	Yes
Port mirroring	Yes
Number of VLANs	64
Ethernet LAN data rates	10,100,1000 Mbit/s
10G support	No
Virtual LAN features	Port-based VLAN, Tagged VLAN
Data transmission
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Number of multicast groups filtered	128
Security
Access Control List (ACL)	Yes
Design
Product colour	Grey
LED indicators	Activity, Link, Power, Speed, System
Performance
Mean time between failures (MTBF)	2463431 h
Fanless	Yes
Power
Power consumption (max)	3.7 W
Power supply included	Yes
Input current	1.5 A
DC input voltage	12 V
Power source	DC
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3000 m
Heat dissipation	8.9 BTU/h
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	29 mm
Weight	508 g
